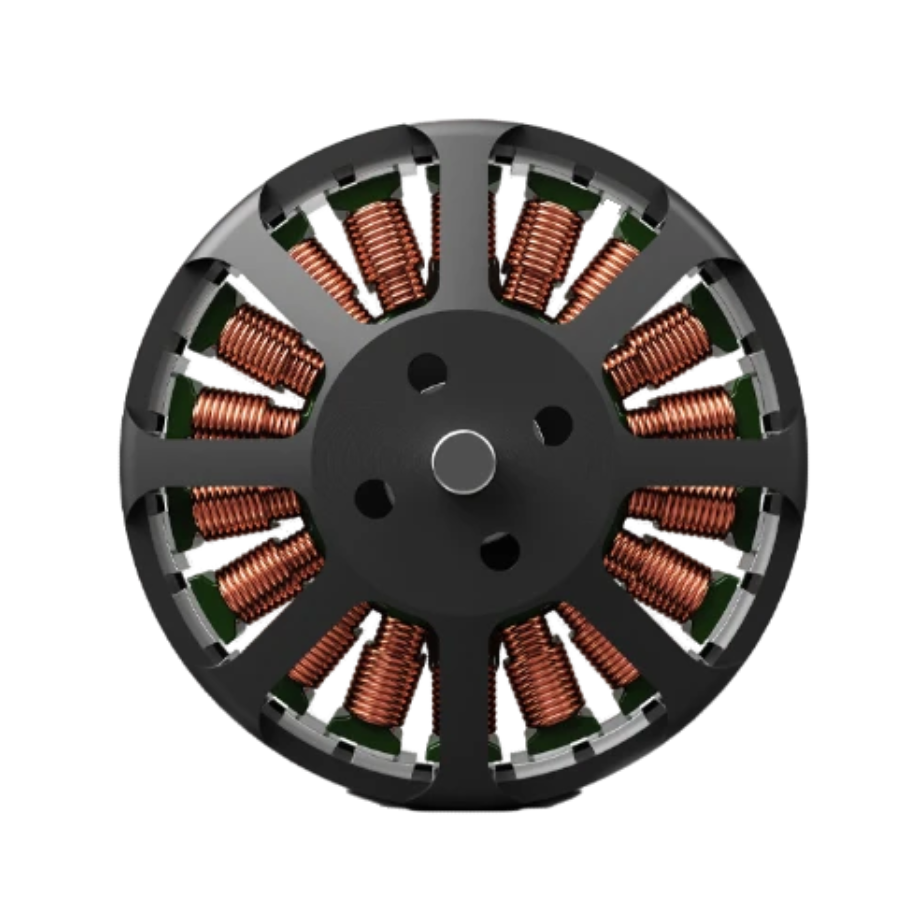

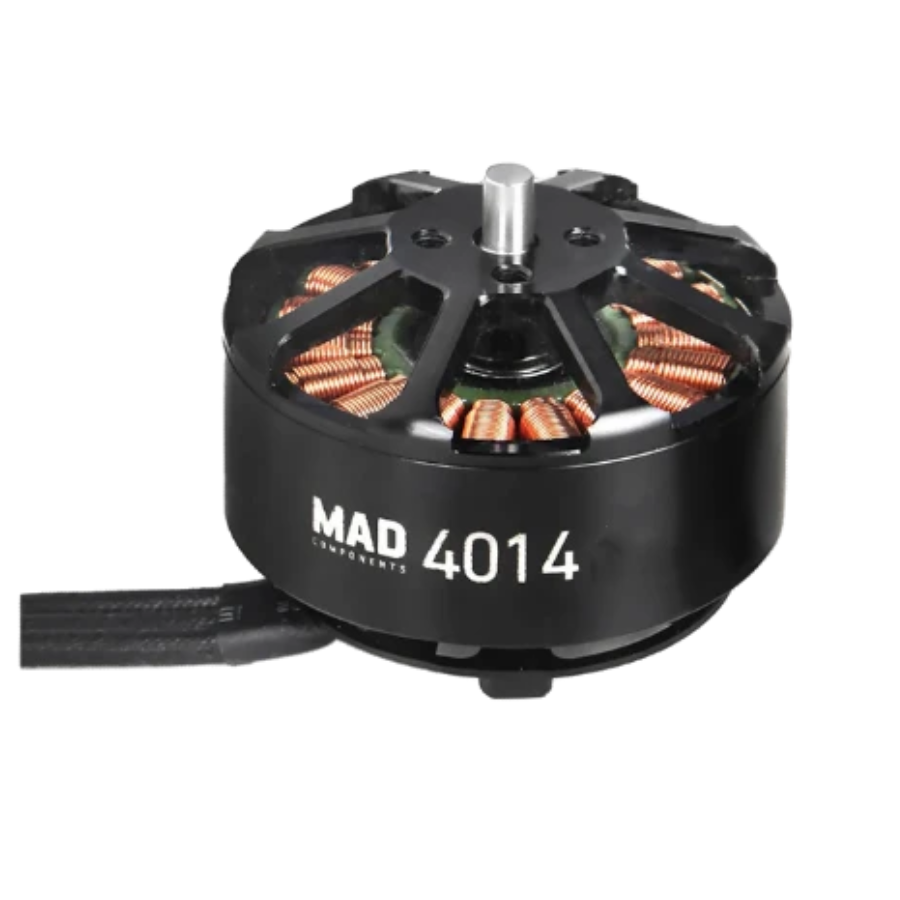

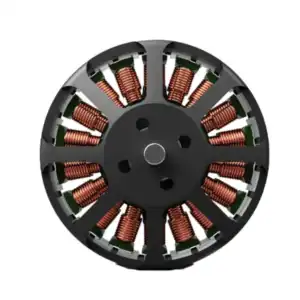

MAD CO 4014 EEE Brushless Motor 370KV (Pack Of 2)
Description:
The MAD 4014 EEE 370KV Brushless Motor (Pack of 2) is a high-performance and energy-efficient motor designed for serious UAV enthusiasts and professionals. With an optimized weight of just 143 g per motor, it delivers up to 3.1 kgf of maximum thrust while maintaining efficiency above 83%. Built for stability and long endurance, it ensures smooth and powerful performance, making it ideal for quadcopters, hexacopters, and octocopters. The motor supports a recommended hover thrust of 1.0–1.5 kgf, ensuring reliable lift and stable flight. Designed for use with 6S LiPo batteries, this motor offers excellent durability, efficiency, and cooling capacity under high loads.
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Energy-efficient design with >83% efficiency
- Lightweight at only 143 g for optimized flight performance
- Provides up to 3.1 kgf maximum thrust
- Compatible with 6S LiPo batteries
- Wide propeller compatibility: 15×5.0, 16×5.4, 17×5.8
- Suitable for quadcopters, hexacopters, and octocopters (4–8 kg take-off weight)
Application:
- Aerial cinematography drones
- Heavy-lift quad/hex/octocopters
- Payload delivery UAVs
- Industrial inspection drones
- Agricultural spraying/mapping drones
- Custom UAV and VTOL projects
Specification:
| Item Type: | Drone motor |
|---|---|
| Model No: | 4014 |
| Motor KV (RPM/V): | 370 |
| Motor Type: | EEE brushless drone motor |
| Compatible LiPO Batteries: | 6S LiPo |
| No-load current (A) | 1.25 A @ 20 V |
| Max Current (A) | 21.4 |
| Max Power Output (W) | 507 |
| Torque: | 0.64 Nm |
| Max Thrust | 3.1 kg |
| Shaft Diameter (mm): | 4 |
| Bearing | EZO 694ZZ*2 |
| Mounting Hole(mm) | D:12 M3×4 |
| Motor Size (mm): | D:44.5 × 26.1 |
| Motor Outer Diameter(mm) | 44.5 |

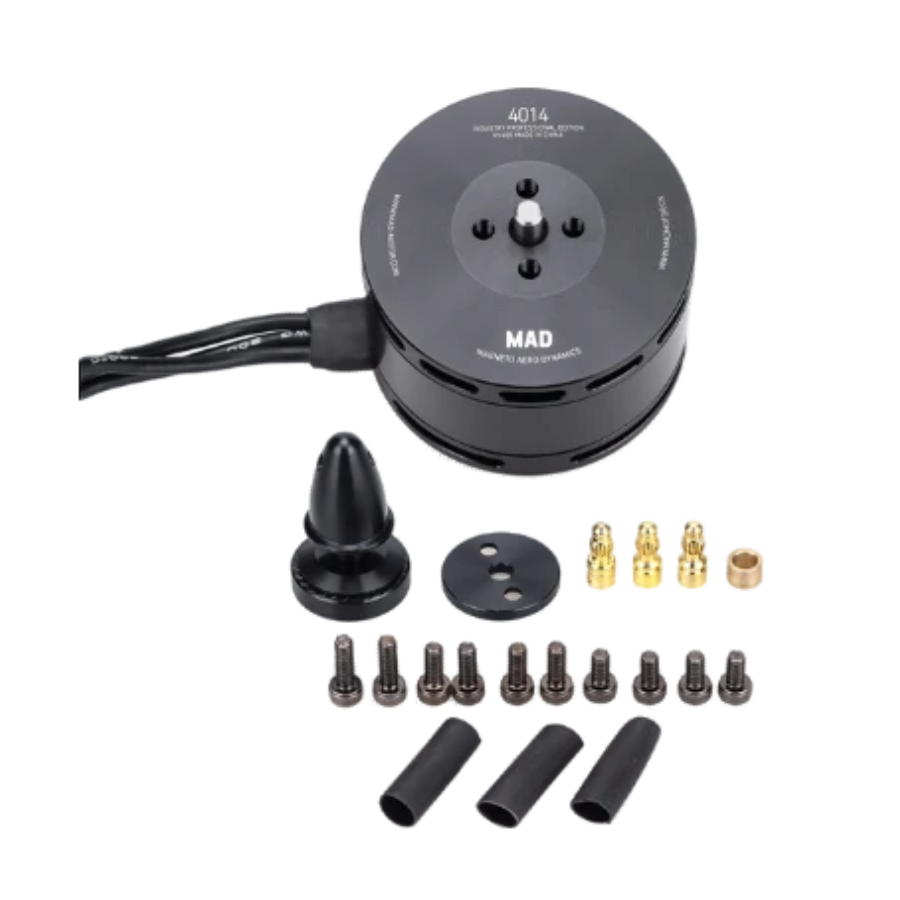

Package Includes:
1 x MAD CO 4014 EEE Brushless Motor 370KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
Voltage Drop on Motor Driver: Causes, Effects & Prevention Methods
You wire up your motor driver, upload your code, and the robot moves perfectly — for about two...
Read More →
How to Set Up Drone Telemetry with Mission Planner
Table of ContentsWhat Is Drone Telemetry?Why Use Mission Planner?Components You NeedWiring the Telemetry ModuleInstalling Mission Planner on WindowsConnecting...
Read More →
TMC2208 Stepper Driver: Silent Motor Control for 3D Printers
If you have ever sat next to a 3D printer listening to it screech through a print, you...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 370KV |
| Package Quantity | 2 pcs |
| SKU | AI8094 |
| Weight | 0.329 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD CO 4014 EEE Brushless Motor 370KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
