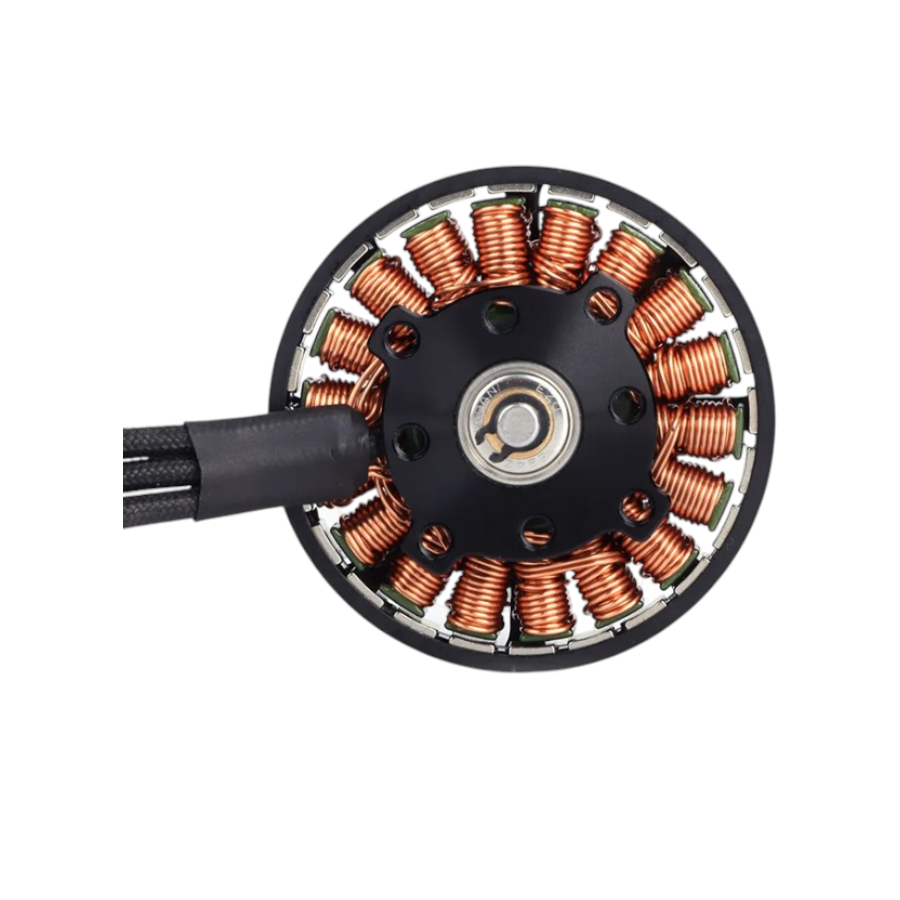

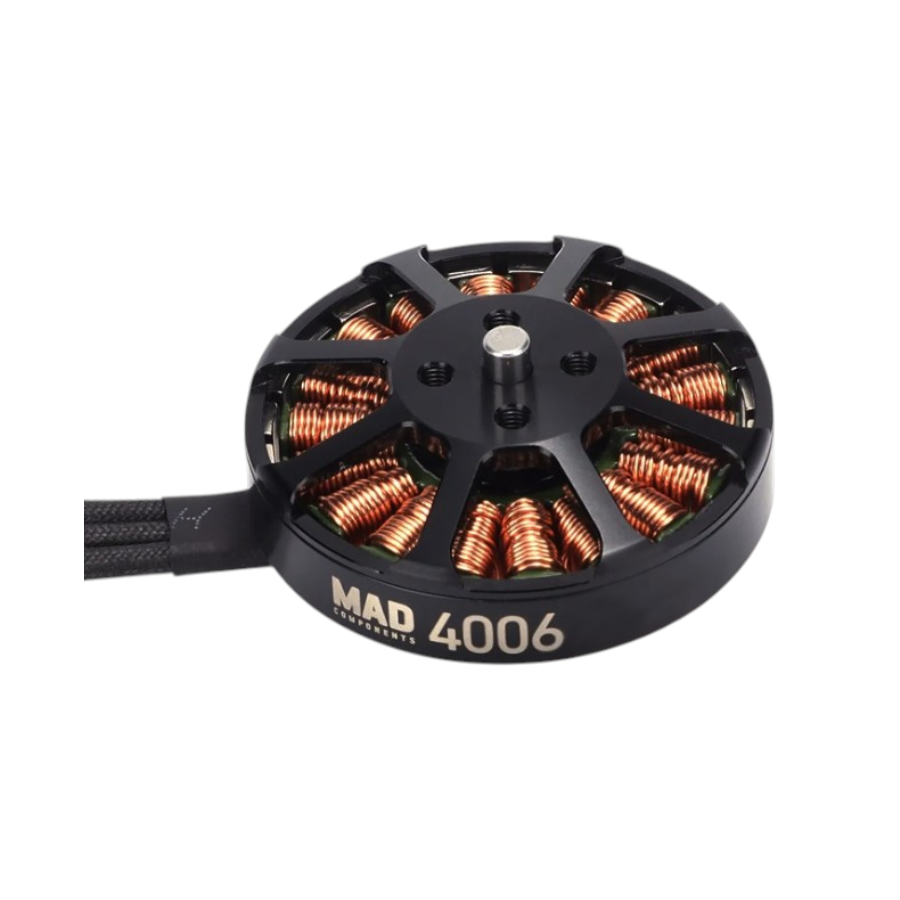

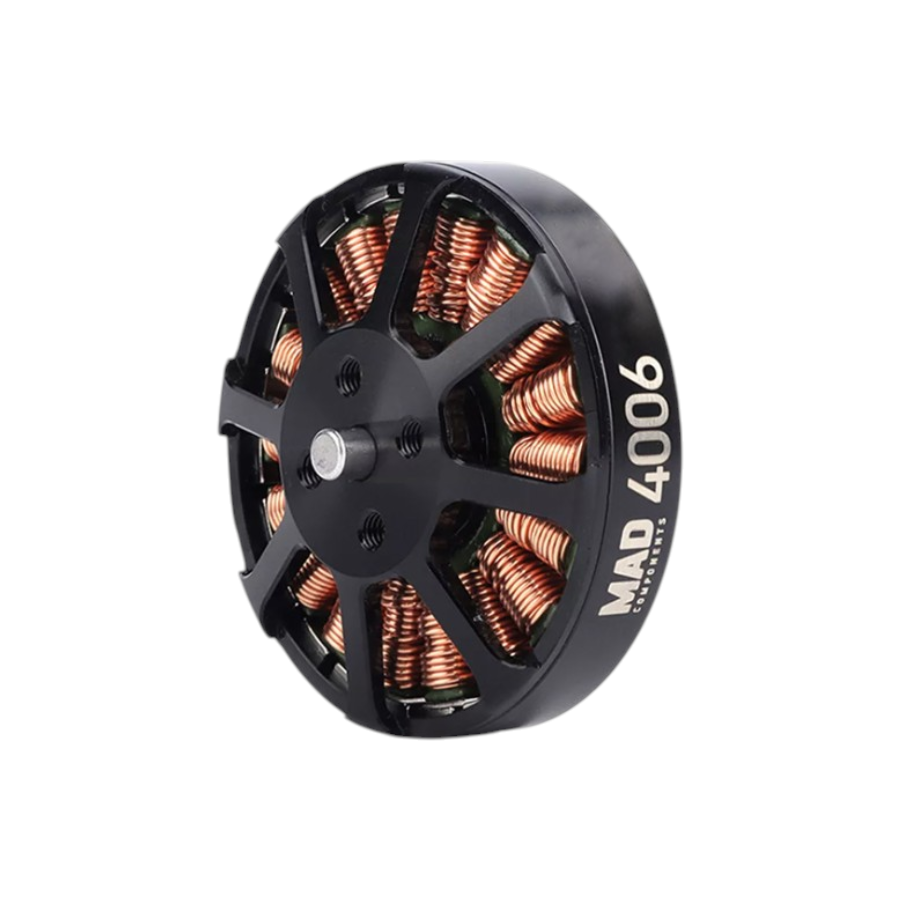

MAD CO 4006 EEE brushless motor 380KV (Pack Of 2)
Description:
The MAD 4006 EEE 380KV Brushless Motor (Pack of 2) is engineered for high-performance multirotor demanding ultra-high efficiency and torque. Delivering up to 2.2kg of thrust per motor while weighing just 72g, it boasts a best-in-class 30.5:1 thrust-to-weight ratio. Compatible with 13–16” carbon fiber props and optimized for 6S–8S LiPo power, it’s perfect for cinematography drones, inspection platforms, cinewhoops, and agricultural UAVs. Featuring low-RPM, high-torque output, and centrifugal heat dissipation, this motor ensures stable, extended flights. Precision-balanced rotors keep vibration under 5mg, providing smooth performance even with heavy payloads like RED Komodo or LiDAR systems.
Features:
- Max Thrust: 2.2kg per motor
- Ultralight: 72g per motor
- Industry-best thrust-to-weight ratio (30.5:1)
- Optimized for 6S–8S LiPo systems
- Compatible with 13–16” carbon fiber propellers
- Precision rotor balancing (<5mg)
- High torque at low RPM for efficiency
- Independent centrifugal heat dissipation
- Rain-protected housing
- Ideal for heavy-payload drones (FX3, Red Komodo)
Specification:
| Item Type: | Drone motor |
|---|---|
| Motor Type: | EEE Brushless Motor |
| Model No: | 4006 |
| Motor KV (RPM/V): | 380 |
| Compatible LiPO Batteries: | Supports 6S |
| Shaft Diameter (mm): | 4 |
| Max. Power (W) | 419 |
| Maximum Thrust (gm) | 2200 |
| Cable Length (cm): | 15 |
| No-load current (A) | ~0.45 @ 20 V |
| Bearing | 694ZZ*2 |
| Propeller Mount Holes | D:12 M3×4 |
| Motor Mount Holes | D:19 M3×4, D:25 M3×4 |
| Motor Size (mm): | D:44.5 × 24.1 |
| Weight (g): | 70.5(Each) |

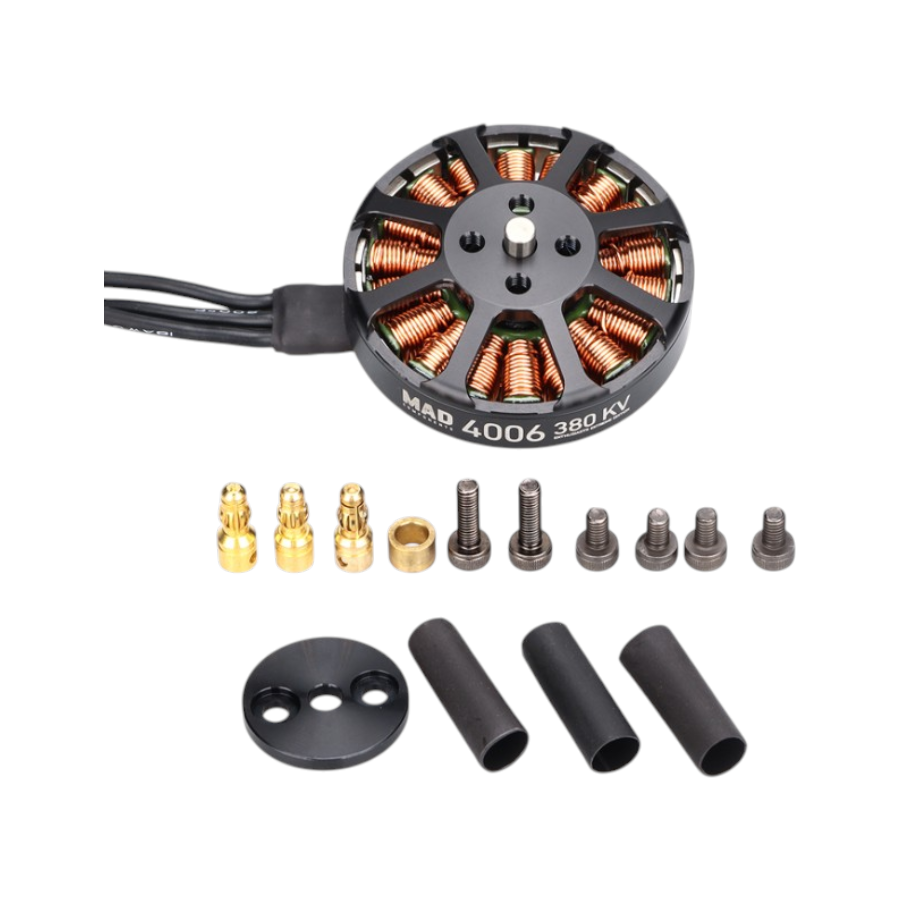

Package Includes:
1 x MAD CO 4006 EEE brushless motor 380KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
Motor Driver PWM Frequency: Impact on Performance & Efficiency
Table of ContentsIntroductionPWM Basics for Motor ControlHow PWM Frequency Affects Motor BehaviourAudible Noise and the 20 kHz RuleDriver...
Read More →
5V DC Motor vs 12V DC Motor: Which to Use in Arduino Projects
Table of ContentsIntroductionDC Motor Basics: Voltage, Torque & Speed5V DC Motors: Strengths & Limitations12V DC Motors: Strengths &...
Read More →
Best Budget FPV Complete Kits India Under ₹5000 in 2026
Table of ContentsThe Budget FPV Reality Check for Indian BeginnersWhat a ₹5000 Budget Actually Gets YouFPV Kit Categories...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 380KV |
| Package Quantity | 2 pcs |
| SKU | AI8099 |
| Weight | 0.306 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO 4006 EEE brushless motor 380KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
