This is the 12V variant of the LY-01 DC12V 0.4A 4.8W Electromagnetic Lock with Feedback Signal in Solenoids and Electromagnets. Available at ₹522.74 (₹443.00 + GST) with free shipping across India.

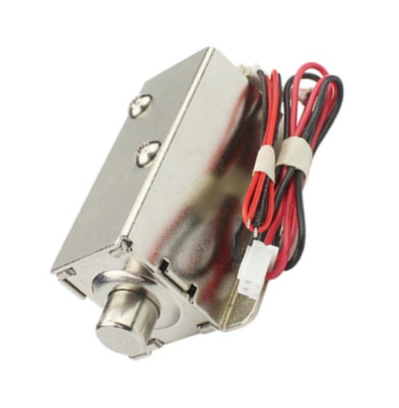

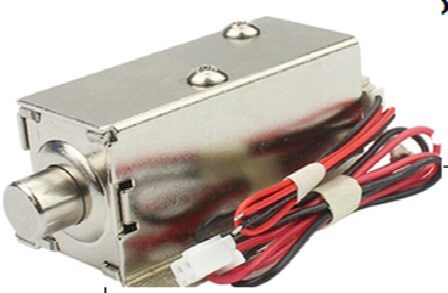

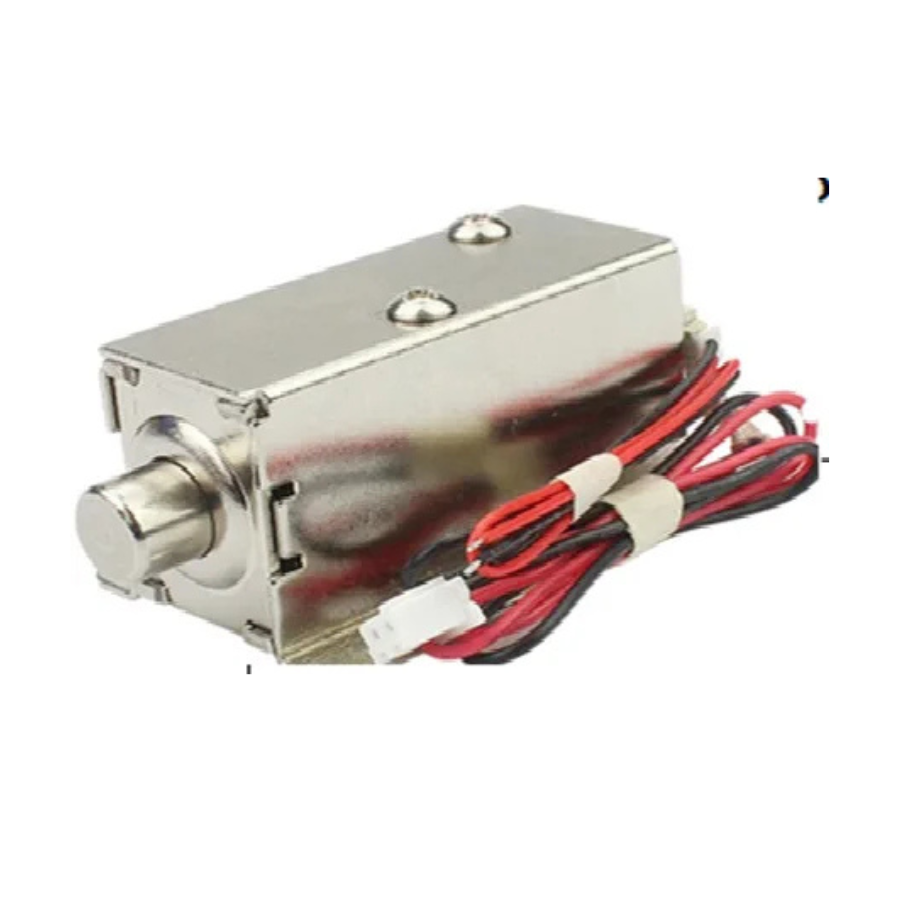

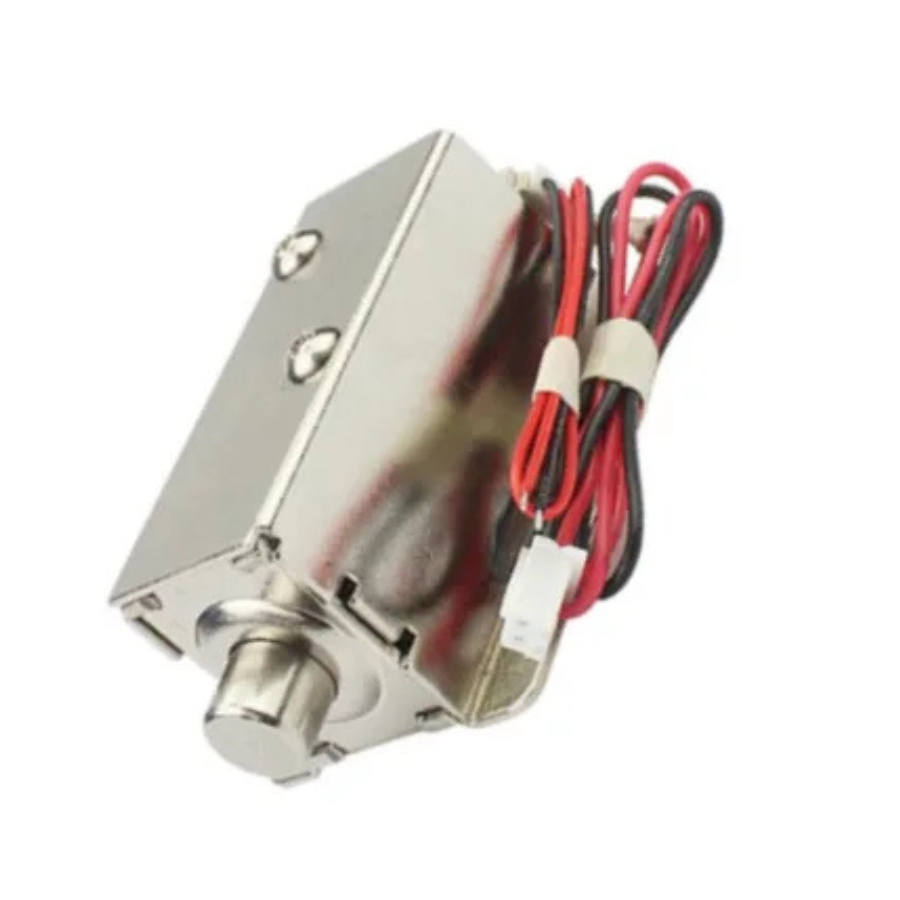

LY-01 DC12V 0.4A 4.8W Electromagnetic Lock with Feedback Signal:
This electromagnetic lock boasts a compact design and a simple structure, ensuring both stability and durability during operation. It is equipped with a lock state feedback signal output, facilitating monitoring of whether the lock is open or closed. Crafted from high-quality industrial iron material, the lock body is resistant to deformation and exceptionally durable. Its internal coil is manufactured to international standards using pure copper, guaranteeing dependable performance.
Designed for extended and frequent use, the lock is capable of continuous operation for up to 24 hours without issue. Moreover, it undergoes electro-zinc-nickel alloy treatment and a rigorous 72-hour salt spray test, ensuring exceptional resistance to rust and corrosion. With its versatility, this electromagnetic lock finds application in various environments.
Feedback Mode: When the lock cylinder extends, the feedback line connects; when it retracts, the feedback line disconnects. Note: It is advisable not to exceed a continuous power-on time of 24 hours. Prolonged operation may cause the lock body to generate heat, with the maximum temperature reaching approximately 70℃.
|
Product number
|
LY-01
|
|
Use voltage.
|
DC12V
|
|
Working current
|
0.4A
|
|
Power consumption
|
4.8W
|
|
Power-on time
|
＜24H
|
|
Telescopic stroke
|
10mm
|
|
suction
|
Initial force: 0.8N Holding force: 5N
|
|
Working temperature
|
-10~+60℃
|
PACKAGE INCLUDES
1 X LY-01 DC12V 0.4A 4.8W Electromagnetic Lock with Feedback Signal
LY-01 DC12V 0.4A 4.8W Electromagnetic Lock with Feedback Overview
The LY-01 DC12V 0.4A 4.8W Electromagnetic Lock is a compact, high-performance locking device designed for secure access control. Featuring an integrated feedback signal, it reports lock engagement or release status to your control system in real time.
Key Features of LY-01 DC12V 0.4A 4.8W Electromagnetic Lock with Feedback
- Compatible with standard 12V DC control systems
- Lock-state feedback signal output for real-time monitoring
- Precision 10mm telescopic stroke for reliable engagement and release
- Durable industrial iron body with pure copper coil for long service life
- Corrosion-resistant zinc-nickel plating passed 72-hour salt spray test
- Capable of continuous operation up to 24 hours
- Fast shipping from Zbotic ensures quick delivery
Applications and Use Cases
- Securing cabinets and lockers in office or laboratory environments
- Enhancing vending machine and retail display safety
- Locking and monitoring server rack or network enclosure doors
- Guarding control panels and machinery in manufacturing settings
- Integration into turnstiles, gates, or barrier systems with status feedback
- Protecting storage units in banks, pharmacies, or archival facilities
How to Use LY-01 DC12V 0.4A 4.8W Electromagnetic Lock with Feedback
Mount the lock body onto a clean, flat surface using the included bracket and hardware, then align the armature plate for full contact. Wire the 12V DC supply and connect the feedback output to your access control or monitoring panel. After securing all connections, power on and test the 10mm stroke to confirm proper locking, release action, and feedback reporting before finalizing installation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What does the feedback signal indicate?
The feedback output changes state to show whether the lock is engaged (closed) or released (open), enabling your control system to monitor security status continuously.
Can the LY-01 operate continuously?
Yes. The LY-01 is designed for up to 24 hours of uninterrupted operation, backed by efficient coil design and robust materials to prevent overheating.
What is the recommended operating temperature range?
This lock performs reliably between –10°C and +60°C. It is best suited for indoor or sheltered installations where extreme weather exposure is minimized.
Technical Specifications
| Model | LY-01 |
|---|---|
| Operating Voltage | 12V |
| Current Rating | 0.4A |
| Power Rating | 4.8W |
| SKU | AI3968 |
| Weight | 0.2 kg |
| Availability | In Stock |
Applications & Use Cases
The LY-01 DC12V 0.4A 4.8W Electromagnetic Lock with Feedback Signal is a versatile solenoids and electromagnets used across a wide range of applications including door locks, valve control, pick-and-place machines, pinball machines, and industrial automation.
Common use cases:
- Building an electronic door lock
- Controlling a water valve remotely
- Actuating a mechanism in an automation line
This product is ideal for automation engineers and mechanical design enthusiasts.
Technical Tip: Solenoids draw significant current — use a MOSFET or relay to drive them, never directly from a microcontroller pin. Add a flyback diode for back-EMF protection.
