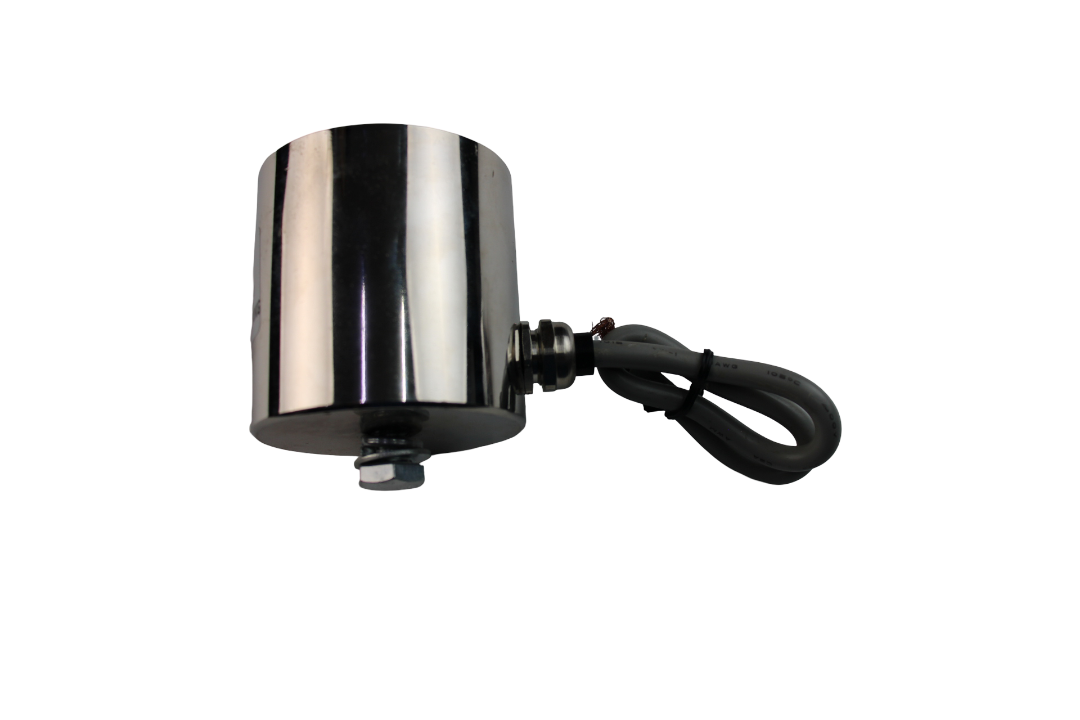

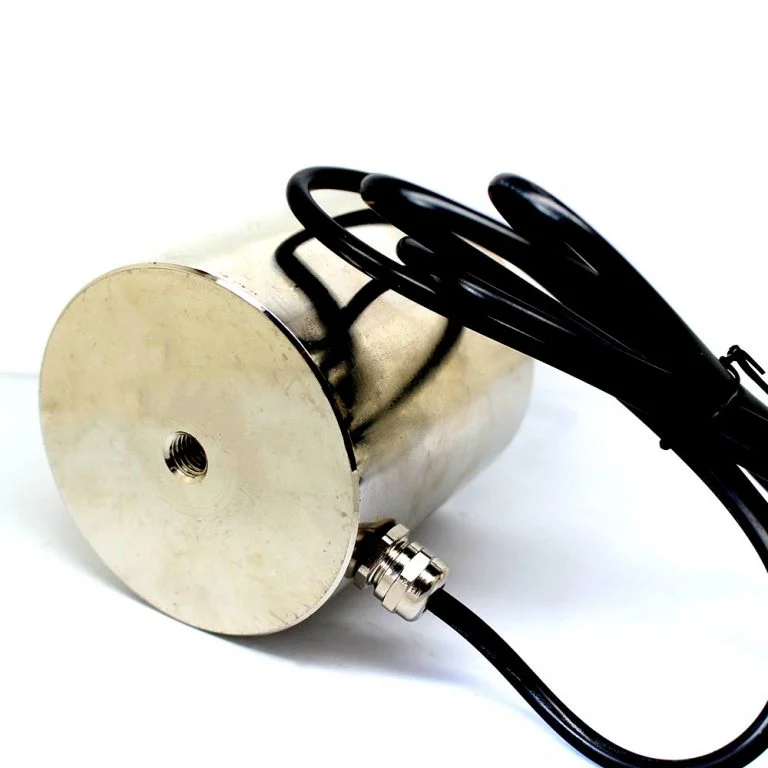

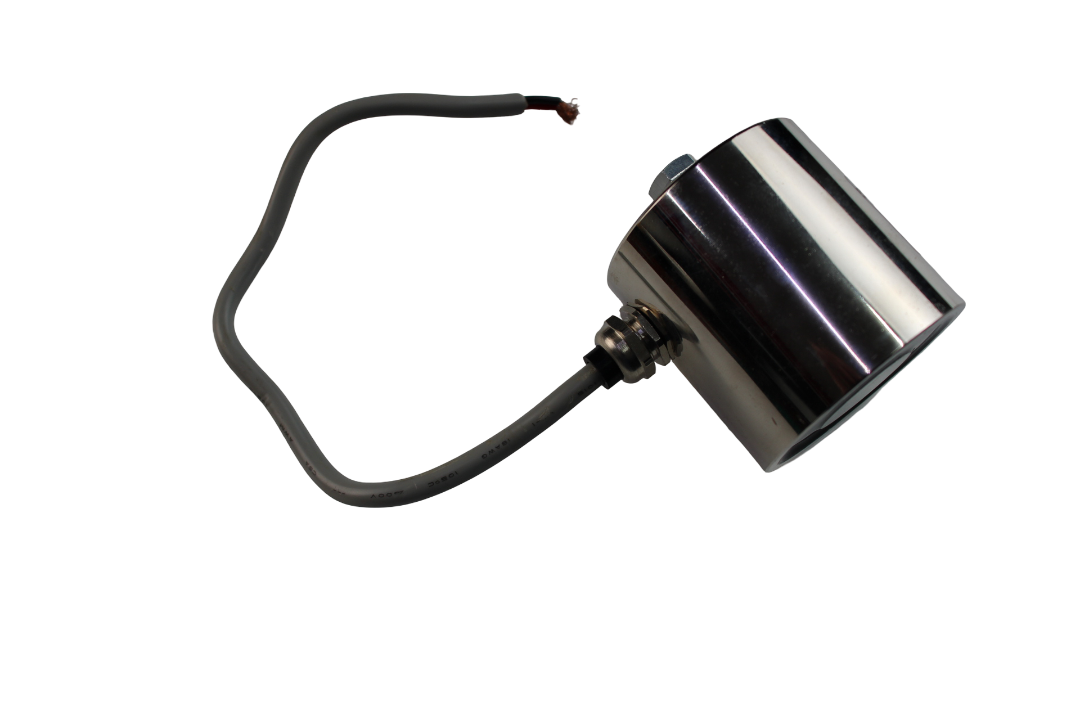

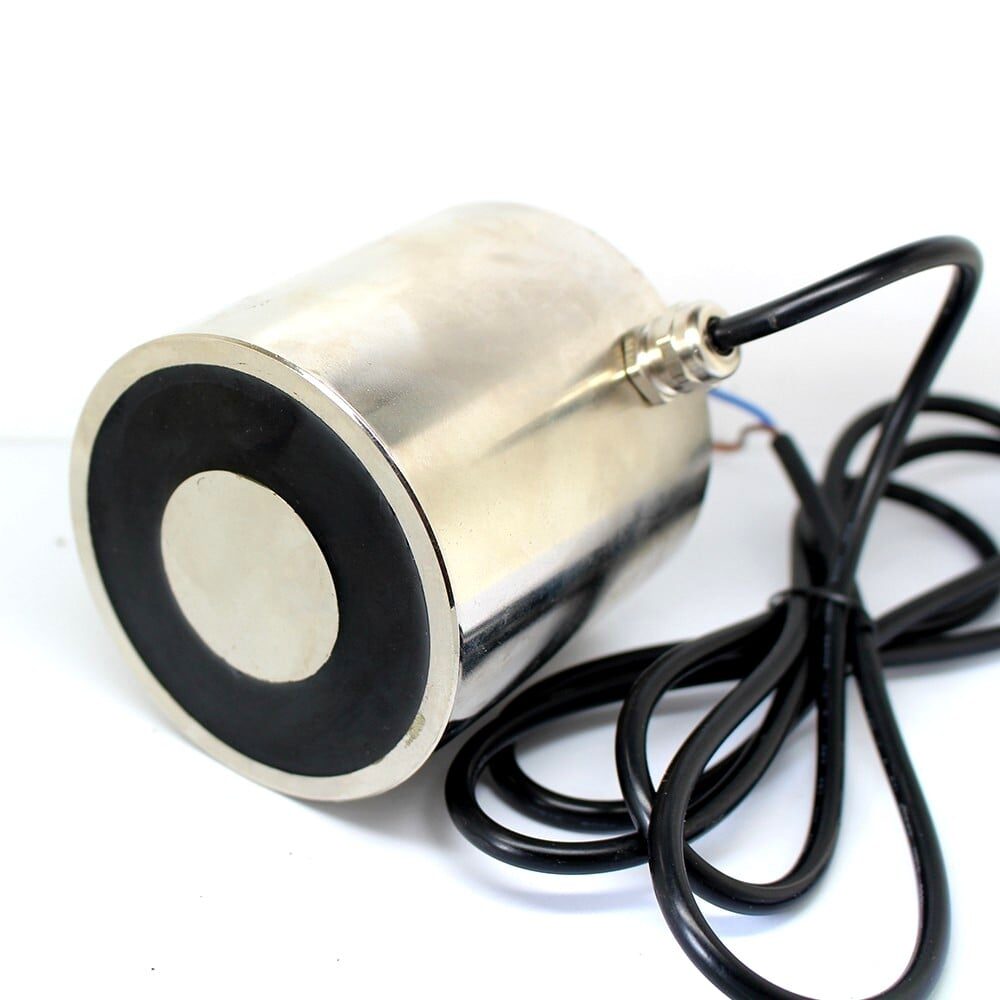

This is the 12V variant of the DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid Electromagnet in Solenoids and Electromagnets. Available at ₹2,027.24 (₹1,718.00 + GST) with free shipping across India.
Looking for P60 60 Large? DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid Electromagnet is available at Zbotic with fast shipping across India.
Description:
A DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid Electromagnet is a device that has an iron core and a coil. It can attract magnetic substances by using the magnetic force generated by electric current, but only when the current is on. This device is compact, powerful and reliable. It also has a special structure and design that reduces the residual magnetism after the current is off.
Working Principles:
An electromagnet is simply a coil of wire. It is usually wound around an iron core. However, it could be wound around an air core, in which case it is called a solenoid. When connected to a DC voltage or current source, the electromagnet becomes energized, creating a magnetic field just like a permanent magnet. The magnetic flux density is proportional to the magnitude of the current flowing in the wire of the electromagnet.
The polarity of the electromagnet is determined by the direction of the current. The north pole of the electromagnet is determined by using your right hand. Wrap your fingers around the coil in the same direction as the current is flowing (conventional current flows from to -). The direction your thumb is pointing is the direction of the magnetic field, so north would come out of the electromagnet in the direction of your thumb. DC electromagnets are principally used to pick up or hold objects
We supply many varieties of electromagnets with a higher power as well as lower, original dimensions, etc to satisfy your unique requirements.
Precautions:
Electromagnets must meet the following conditions to achieve maximum suction:
- The object to be sucked must have a good magnetic permeability.
- Proper use of power supply rated voltage.
- The object to be sucked must be flat and clean.
- The object to be sucked must be greater than or equal to the surface of the magnet(For example the magnet is 20 x 15 mm, so the surface area is S=r²π=10²π mm² so the object to be sucked must be greater than or equal to 10²π mm² )
- The object to be sucked must be greater than 5mm. (If the thickness decreases, the suction decreases)
- The object to be sucked must be close, the middle can’t be interspersed with objects or gaps.
- Suction means more than 5cm in thickness, surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fit together on an iron-based material.
- Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.
Features:
- Our DC-powered electromagnet generates a magnetic field of high-power with high efficiency: This highly efficient electromagnet generates a magnetic field of a strong pull (high attractive force) with low energy consumption. You can adjust to the desired attractive force by changing the power applied and the magnetic gap between the electromagnet and the substance.
- Minimized in residual magnetic: When an electromagnet is energized, the problem is how to release the magnetic force which remains on the device after the power is turned off. Our electromagnet is designed with measures to release and minimize this residual magnetic force.
- Lightweight, compact design for space-saving: Compact mechanism with high reliability.
- Long life: High mechanical strength and excellent durability.
- Widely applied in automation: assembly line, sorting machine, mechanical arm, experimental facility, etc
Specifications:
| Operating Voltage (VDC) | 12 |
|---|---|
| Max. Operating Current (mA) | 1400 |
| Power Consumption (Watt) | 16 |
| Operating Temperature Range (°C): | -40 to 130 |
| Cable Length (cm) | 30 |
| Bolt Size | M8 |
| Body Material | Mild Steel |
| Dimensions in mm (LxWxH) | 61 x 61 (Diameter x Length) |
Package Includes:
- 1 x DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid Electromagnet
- 1 x M8 Bolt with Washer
DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid Overview
The DC 12V KK-P60/60 is a compact lifting electromagnet designed for 12V DC operation, offering a strong 100 kg pull force. With a 60 mm diameter and flat contact surface, it reliably lifts or holds ferrous objects in industrial or workshop settings.
Key Features of DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid
- 12V DC Operation: Low-voltage coil for safe and efficient energizing.
- 100 kg Lifting Capacity: Powerful magnetic force for heavy-duty handling.
- 60 mm Diameter: Compact design fits tight spaces and tooling setups.
- Low Residual Magnetism: Special core design ensures quick release of workpieces.
- Reliable Performance: Smooth, flat surface and ambient tolerance up to 130 °C.
- Genuine Product & Fast Shipping: Authentic unit dispatched quickly from Zbotic.
Applications and Use Cases
- Holding steel parts during welding, grinding or assembly processes
- Automated pick-and-place operations in robotic cells
- Material handling in sheet-metal fabrication and stamping lines
- Sorting and lifting scrap ferrous pieces in recycling plants
- Mounting on fixtures for temporary holding of workpieces
How to Use DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid
Mount the electromagnet on a stable bracket or flat surface using suitable bolts, ensuring the contact face is clean and flush against the workpiece. Connect the red and black leads to a regulated 12V DC supply, observing correct polarity. Energize the coil to generate the magnetic pull, and always switch off the current to release the load. Allow cooling intervals during prolonged use to maintain optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply do I need for this electromagnet?
You need a stable 12V DC source rated for at least 2 A to ensure full pull strength. A regulated power supply or battery is recommended to avoid voltage dips during activation.
Can the solenoid handle continuous operation?
Yes, the KK-P60/60 is designed for continuous duty at ambient temperatures up to 130 °C. For extended use, ensure proper ventilation and avoid covering the housing to prevent heat buildup.
How much residual magnetism remains after switching off?
Thanks to its special core structure, this model minimizes residual magnetism, allowing clean release of parts without manual tapping or demagnetizing steps.
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| SKU | AI2554 |
| Weight | 1.274 kg |
| Availability | In Stock |
Applications & Use Cases
The DC 12V KK-P60/60 Large Suction 100 KG Lifting Solenoid Electromagnet is a versatile solenoids and electromagnets used across a wide range of applications including door locks, valve control, pick-and-place machines, pinball machines, and industrial automation.
Common use cases:
- Building an electronic door lock
- Controlling a water valve remotely
- Actuating a mechanism in an automation line
This product is ideal for automation engineers and mechanical design enthusiasts.
Technical Tip: Solenoids draw significant current — use a MOSFET or relay to drive them, never directly from a microcontroller pin. Add a flyback diode for back-EMF protection.
