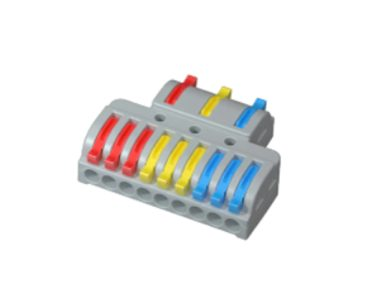

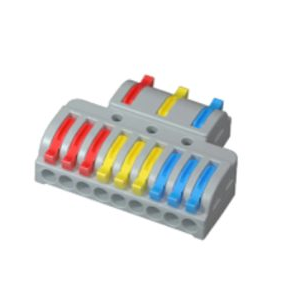

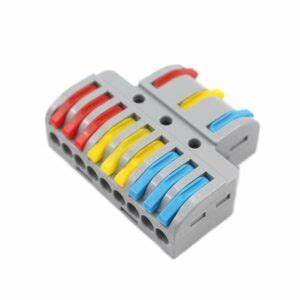

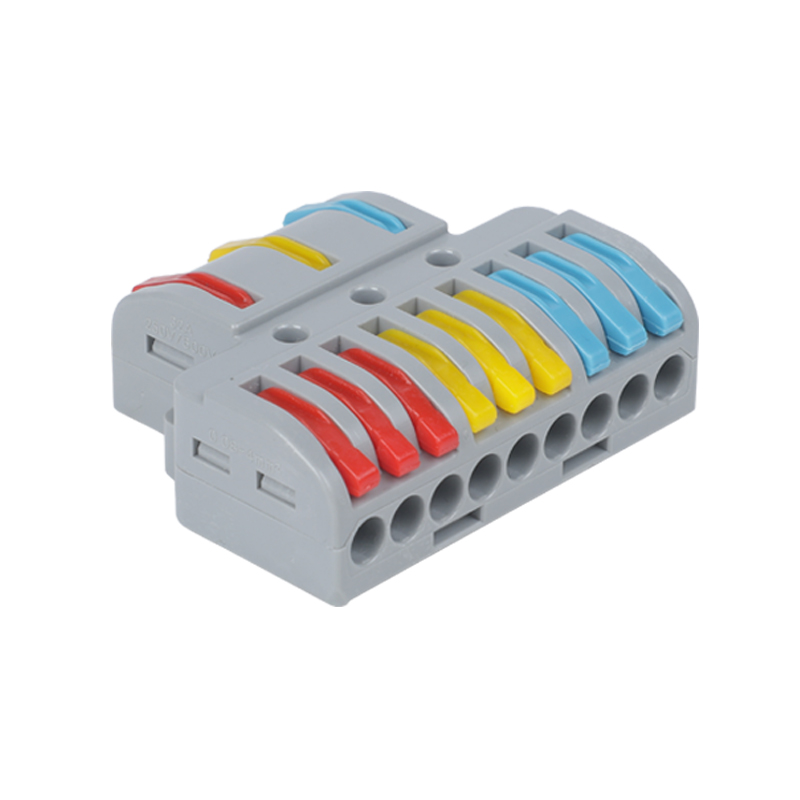

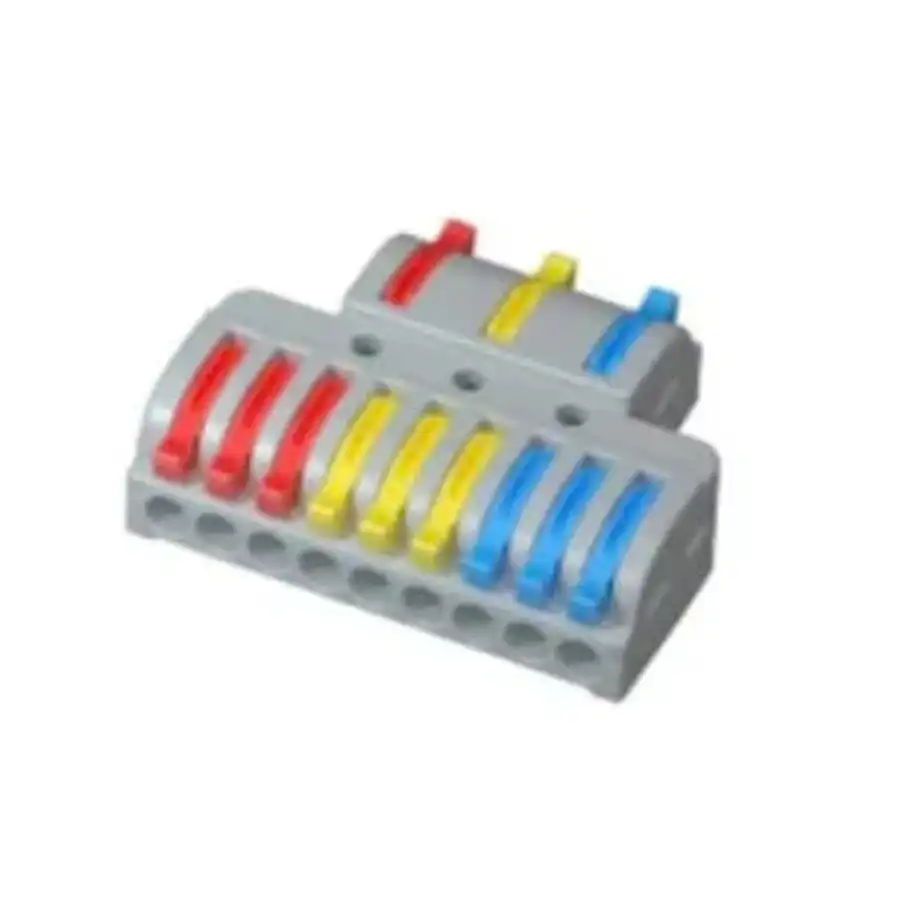

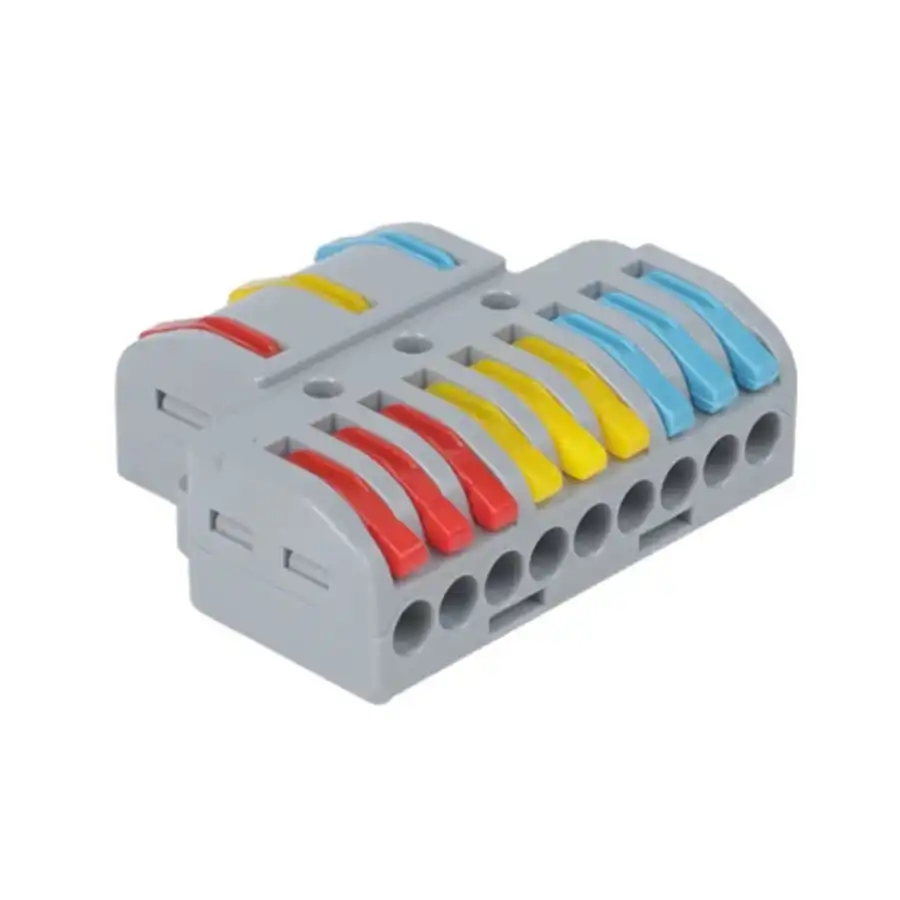

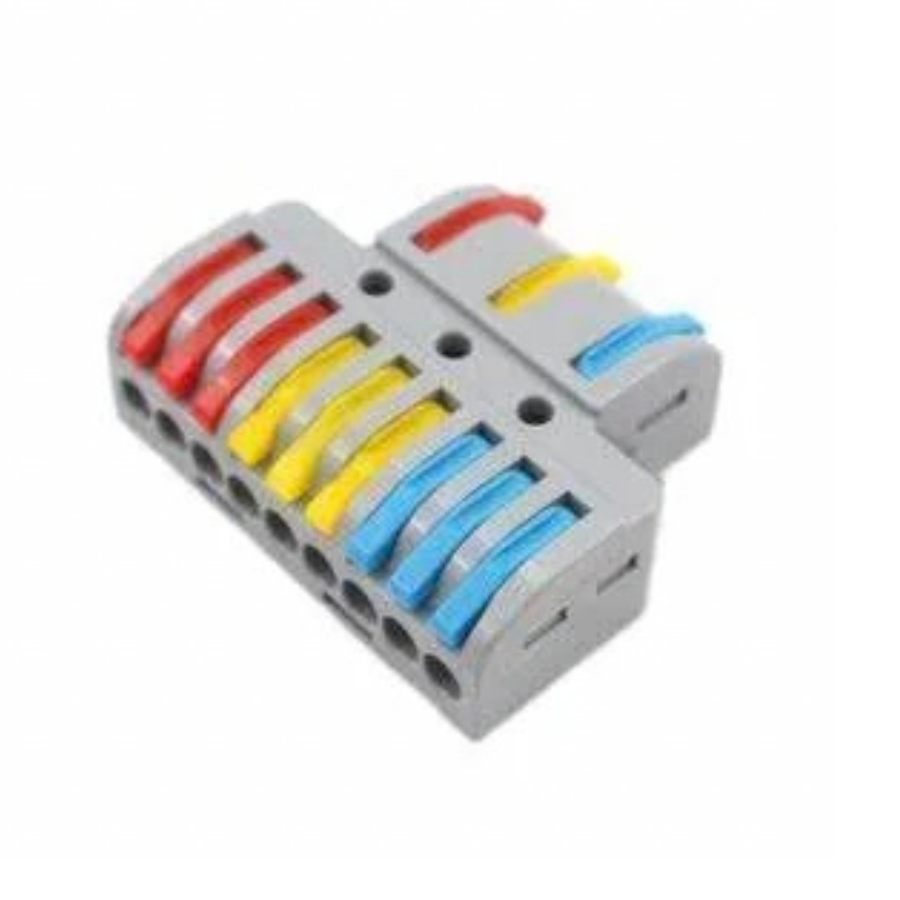

LT-933(SPL-93) Stationary Type Quick Connection Terminal :
the PCT Spring Lever Connector to create a 3-wire connection from 3 pairs of wires.
The PCT Spring Lever Connector is a compact wire connector that locks the wires with a spring lever. It can connect single-strand hard wires with an area of 0.5mm to 2.5mm2 or soft wires with an area of 0.5mm to 4.0mm2 (or AWG28 to AWG12). The connector can handle a rated voltage of up to 400V and a peak electric current of 32A, which means it can support a maximum power of 4KW. The wires should be stripped for 11-12 mm before inserting them into the connector.
There are different models, sizes, and numbers of poles for the connectors, depending on the cables that need to be connected. You can click on the links below to buy the connector that suits your requirement.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 9:3 -Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Specification:
- Model: LT-933(SPL-93)
- Rated Voltage: 450V
- Rated Current: 32A
- Body Material: Modified Nylon (PA66)
- Contact Material: Stainless Steel
- No. of Contact Points: 9:3
- Rated Power: 4 KW
- Allowed Wire Size: 28 ~ 12 AWG
- Color: Grey+Orange+Blue+Yellow
- Operating Temperature Range: -20 to 80°C
Package Includes:
1 x LT-933(SPL-93) Stationary, Type Quick Connection, Terminal
LT-933(SPL-93) Stationary Type Quick Connection Terminal Overview
The LT-933 (SPL-93) is a stationary spring-lever wire connector designed for fast, secure 3-wire connections using three paired circuits. Its robust PA66 nylon housing and stainless steel contacts deliver reliable performance up to 450 V and 32 A in indoor electrical assemblies.
Key Features of LT-933(SPL-93) Stationary Type Quick Connection Terminal
- Rated for 450 V AC and up to 32 A continuous current (4 kW max)
- PA66 modified nylon body resists heat and mechanical stress
- Stainless steel spring-lever contacts ensure vibration-proof clamping
- Supports solid conductors 0.5–2.5 mm² and stranded 0.5–4.0 mm² (AWG 28–12)
- Nine contact points arranged in three paired circuits for multi-wire distribution
- Color-coded levers (grey body with orange, blue and yellow levers) for easy identification
- Fast shipping from Zbotic with genuine factory-sourced inventory
Applications and Use Cases
- Power distribution blocks in control panels and switchgear
- Quick wiring of LED driver outputs and lighting fixtures
- Interconnecting photovoltaic string cables in solar junction boxes
- Signal and power junctions in industrial automation racks
- Building wiring projects requiring tool-free maintenance
- Temporary test setups where circuits are frequently reconfigured

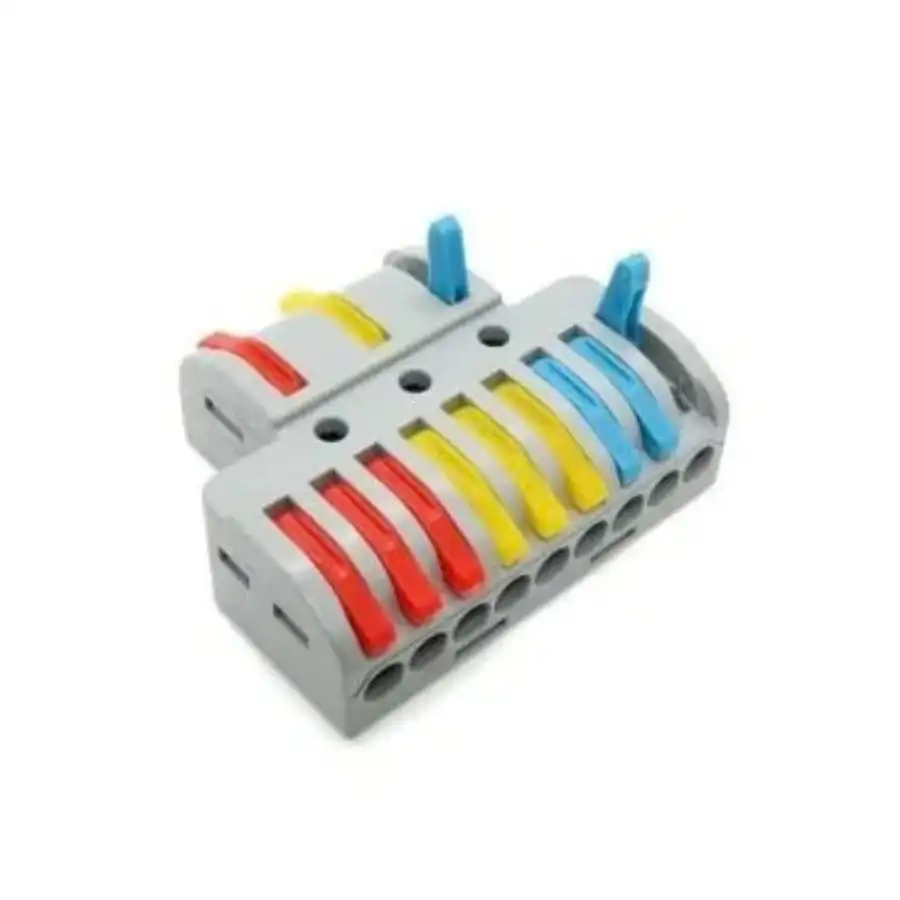

How to Use LT-933(SPL-93) Stationary Type Quick Connection Terminal
Strip each conductor to 11–12 mm, lift the spring lever to open the clamp, insert the wire fully into the port, and then push the lever down until it clicks. Verify all three paired circuits are secure before energizing the system.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire stripping length is required for the LT-933 connector?
Each conductor should be stripped to 11–12 mm to ensure the spring lever clamp fully engages the bare conductor for optimal contact.
Can I reuse the LT-933 terminal after removing the wires?
Yes. The PA66 housing and stainless steel spring contacts are rated for multiple insertion/removal cycles, making the connector reusable for maintenance or circuit changes.
How many independent circuits can this connector handle?
The LT-933 has nine contact points arranged as three independent pairs, allowing you to distribute or combine three separate conductors in a single compact block.
Technical Specifications
| Model | LT-933 |
|---|---|
| SKU | AI2527 |
| Weight | 0.0273 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LT-933(SPL-93) Stationary Type Quick Connection Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
