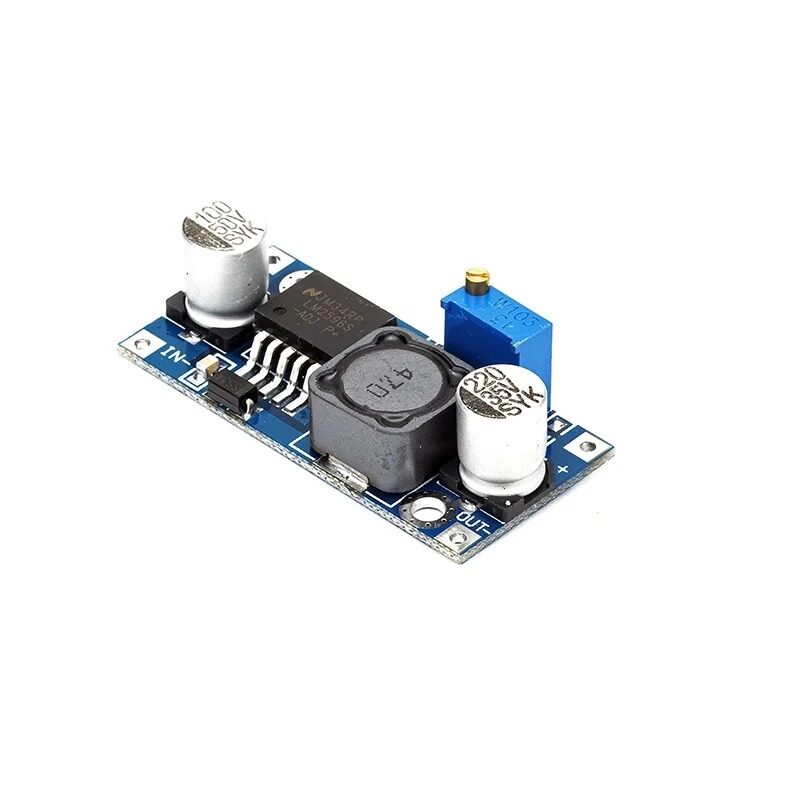

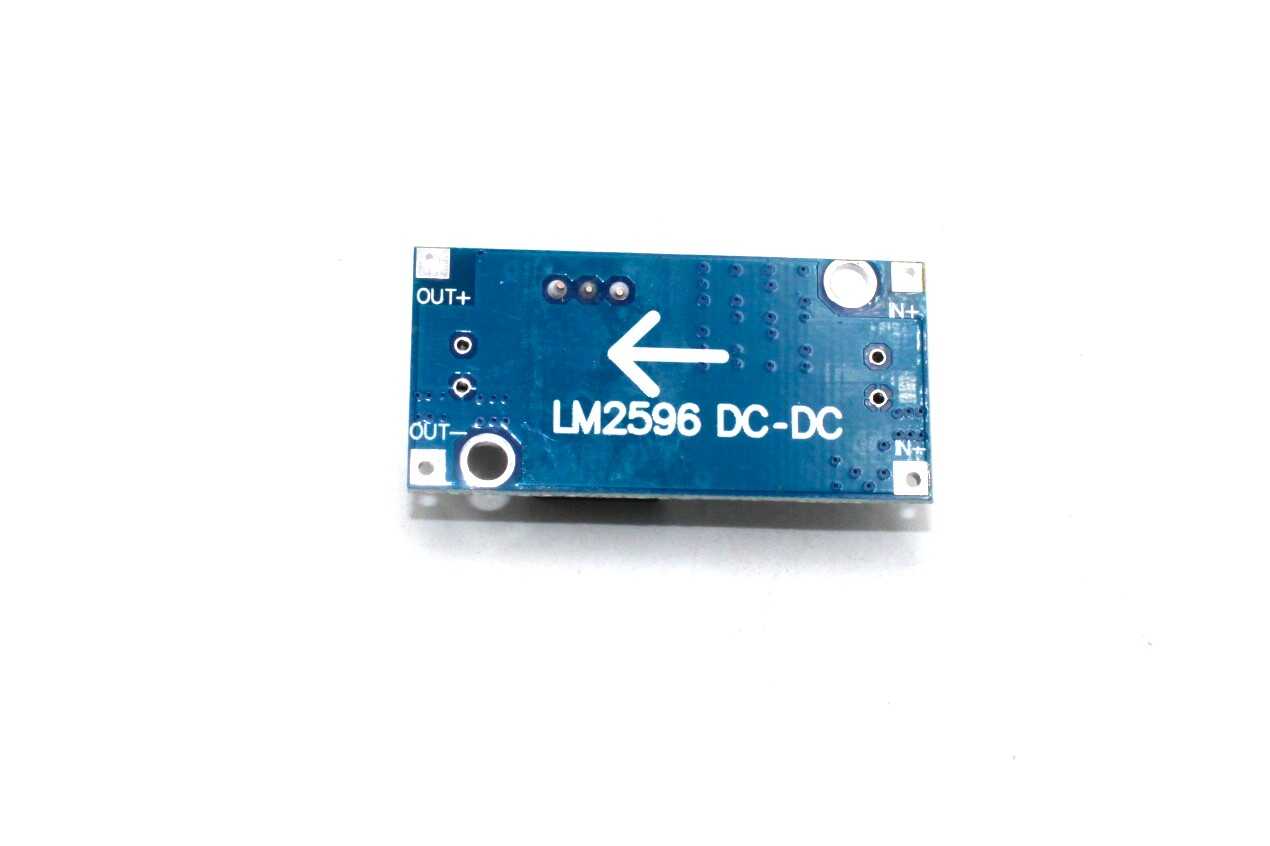

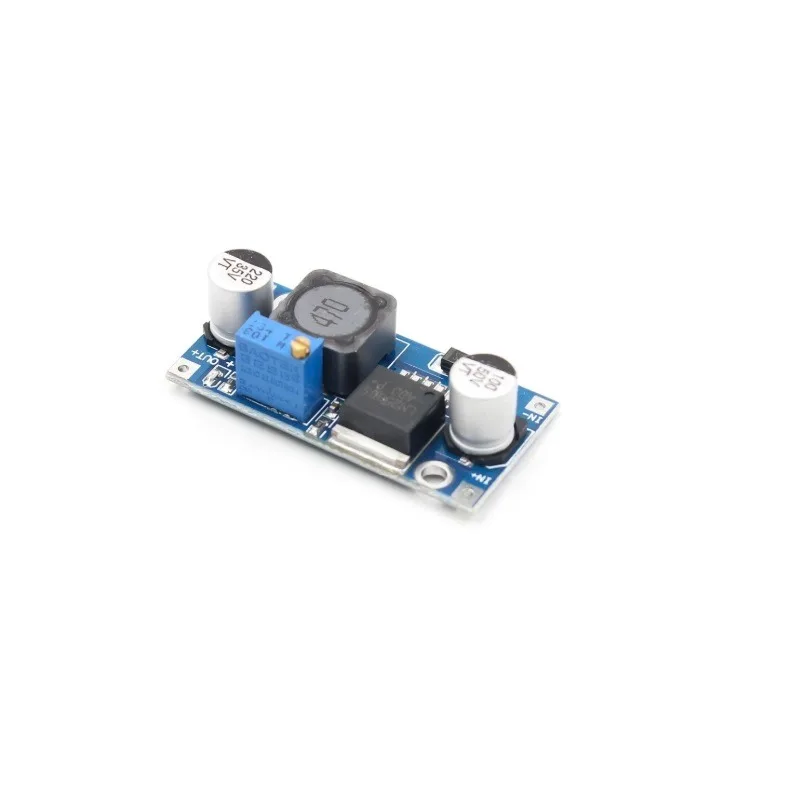

LM2596 DC-DC Adjustable Step Down Buck Converter Power Supply Module
The DC-DC Buck Converter Step Down Module LM2596 Power Supply is a versatile step-down switching regulator known for handling loads up to 3A with excellent line and load regulation. It comes in fixed output voltages of 3.3V, 5V, and 12V, as well as an adjustable version, providing flexibility for various applications.
Operating at a switching frequency of 150kHz, the LM2596 series allows for the use of smaller filter components, helping to create compact designs without compromising performance.
This module features a high-precision potentiometer for accurate load handling up to 3A. It is compatible with Freeduino UNO and other mainboards, ensuring broad compatibility for numerous projects. For loads exceeding 2.5A or 10W, it’s recommended to add a heat sink to maintain optimal performance.
With internal compensation that minimizes the need for external components, this device simplifies power supply design and implementation. Its switch-mode operation is significantly more efficient than traditional three-terminal linear regulators, especially at higher input voltages.
Overall, the LM2596 Buck Converter stands out for its efficiency, compact design, and adaptability, making it an excellent choice for a wide range of electronic applications.
Features
Input voltage:3-40V.
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
Module Properties: non-isolated constant voltage module
Rectification: non-synchronous rectification
Short circuit protection: current limiting, since the recovery
The LM2596 DC-DC Adjustable Step Down Buck Converter Power Supply Module is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
Converting 12V car battery to 5V for USB devices
Powering a Raspberry Pi from a drone battery
Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
