Leadfree so/msop/tssop/soic/sop8 to dip8 Wide-Body Narrow-Body Adapter Board PCB 8p – Pack of 5

Leadfree so/msop/tssop/soic/sop8 to dip8 Wide-Body Narrow-Body Adapter Board PCB

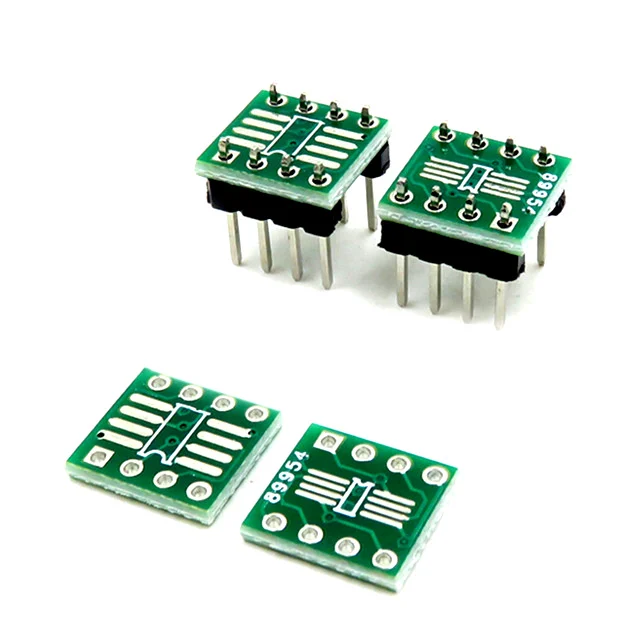

This is a double-sided PCB circuit board with 8 pins. It is compatible with 4-pin, 6-pin, and 8-pin chips. One side of the board has a pin pitch size of 1.27mm, suitable for most SO, SOP, and SOIC packages to be transferred into a 2.54mm DIP format. The other side has a pin pitch size of 0.65mm, suitable for most SSOP, TSSOP, and MSOP packages to be transferred into the same DIP format. When prototyping microcontroller ICs, which are often available in DIP packages, this transfer board makes circuit design and testing easier. You can connect the legs of DIP package microcontrollers directly to the board or use jumper wires. To use it, simply solder the IC onto the board and connect the DIP connections using a breadboard or jumper wires.

1. Pin spacing of 1.27mm, suitable for the common SO8, SOP8, SOIC8 package transfer into DIP8 upright
2. Pin spacing of 0.65mm, suitable for common SSOP8, TSSOP8, MSOP8 encapsulation transfer into DIP8 upright
3. Low cost and easy to use

Specifications:

1. Dimensions: 12 x 12 mm.
2. Pitch: 0.4 mm.

Features:

1. This is a Double-Side PCB Circuit Board, Each PCB board has 8 pins, It is compatible with 4 pins 6 pins and 8 pins chips.

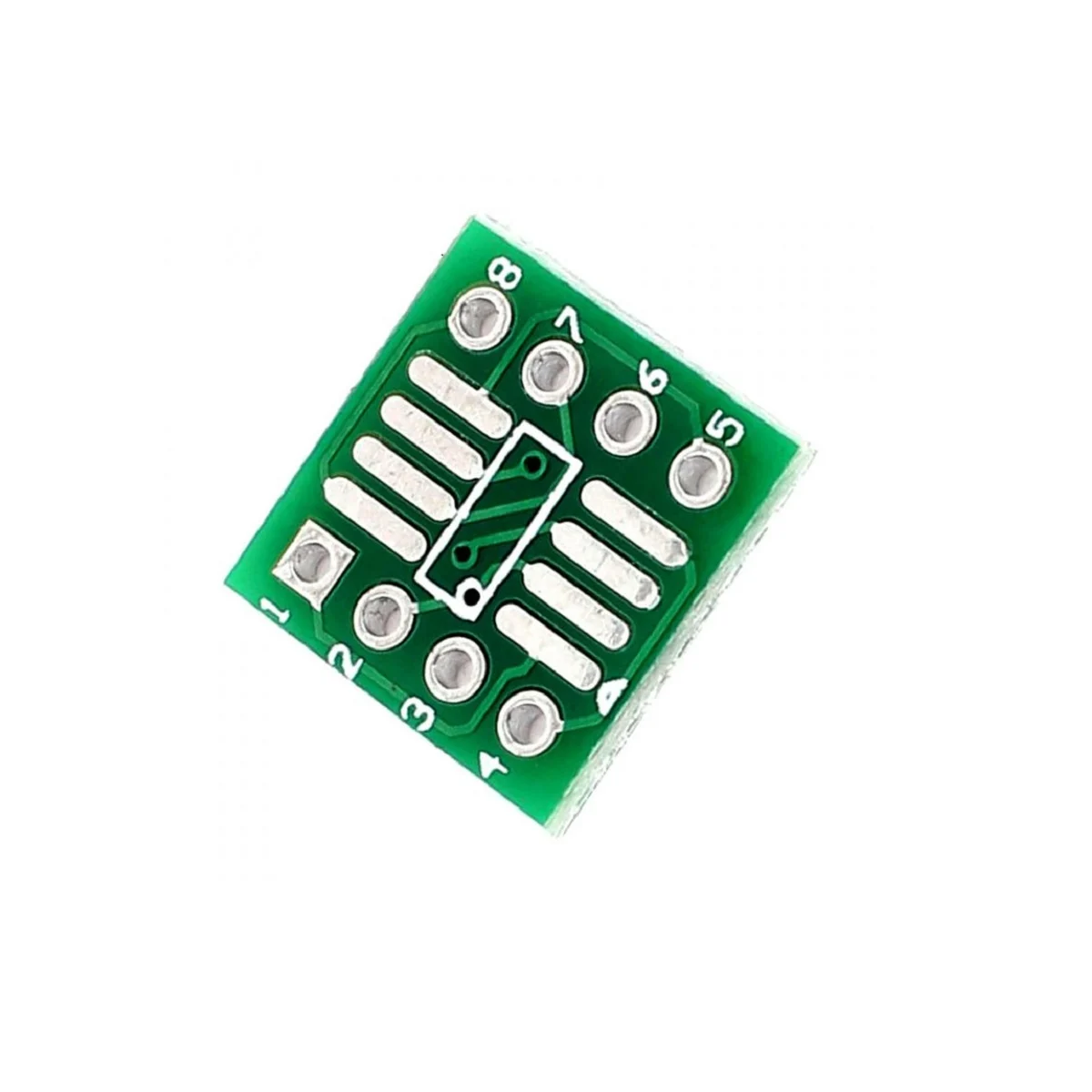

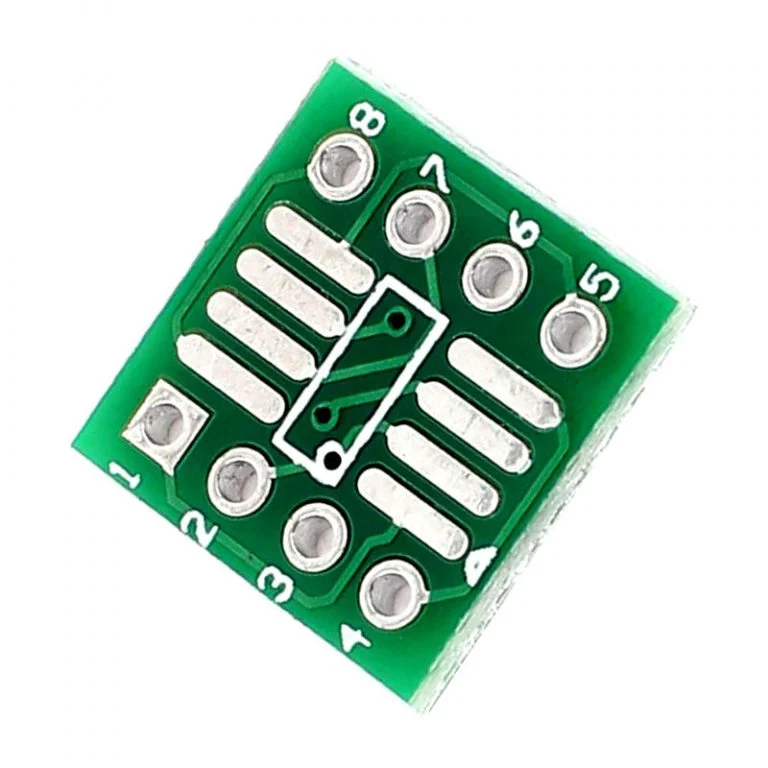

2. The side for pin pitch size is 1.27mm, It can be used for most of the SO, SOP, SOIC to 2.54mm DIP.

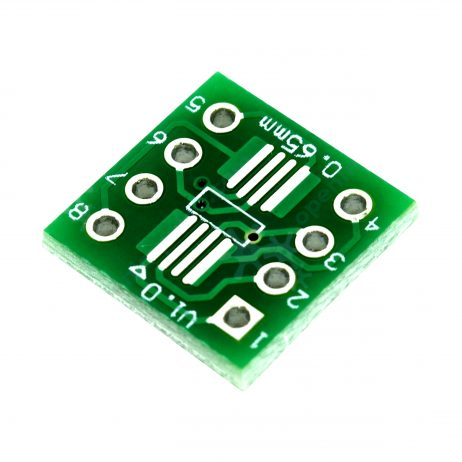

3. B side for pin pitch size 0.65mm, It can be used for most of the SSOP, TSSOP, MSOP to 2.54mm DIP.

Note: Header pins are not included in the Package.

Package Includes:

1 x SO/MSOP/TSSOP/SOIC/SOP8 to DIP8 PCB Board
