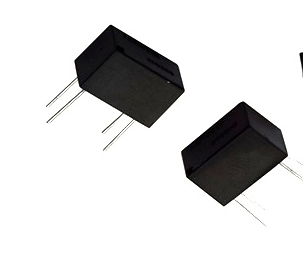

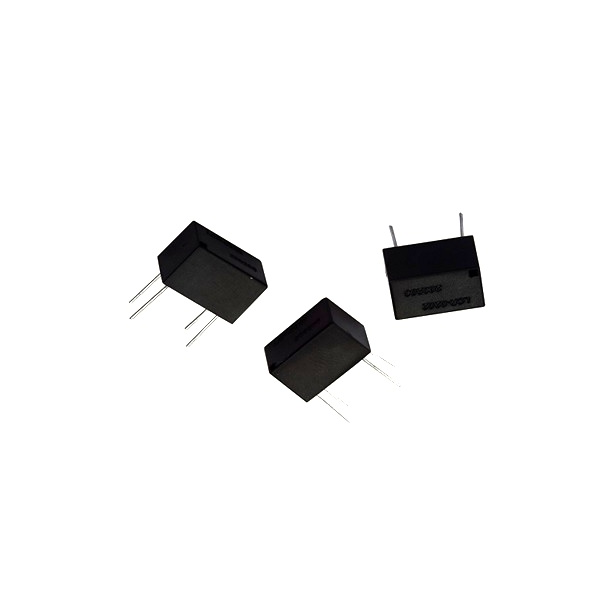

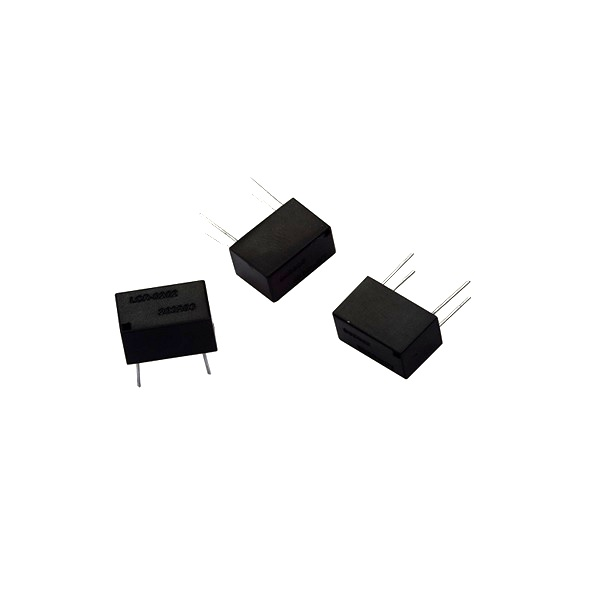

LCR-0202 Analog Optocoupler
LCR-0202 Analog Optocoupler is an optoelectronic device that uses current changes to control resistance. It is a linear optocoupler created through strict selection, aging, and testing. The LCR-0202 consists of a CdS (cadmium sulfide) sensor and an LED (light-emitting diode). Encased in a DIP-4 (cuboid small package), it is widely used in audio power amplifier protection and control. When welding, it is recommended to place the lead wire 4mm away from the optoisolator’s seat and complete the welding as quickly as possible.
Features:
- The pure resistor and non-polarity output
- Wide range of analog liner resistance, “on” at the low resistance. “off” at high resistance
- Simple circuit configuration suitable for DC and AC use
- Input to output isolation, and low distortion coupling.
Specification:
| Type | LCR- 0202 Series |
|---|---|
| Package | DIP-4 |
| Input current | 0- 20mA |
| Input Voltage | 1.6- 2.5Vdc |
| Output Light Resistance | 50Ω – 1KΩ @20mA- 0.01mA |
| Output Dark Resistance | 1Ω – 10MΩ @10 seconds off later |
| Response Period | <2.5mS |
| Insulating Voltage | >2500VRMS |
| Working Frequency | <300KHz |
| Max Power | 100mW |
| Dimension(mm) | 12.5*7.5*8.0 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 6 × 3 × 1 cm |
Package Includes:
1 x LCR-0202 Analog Optocoupler
Technical Specifications
| Model | LCR-0202 |
|---|---|
| SKU | AI5217 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The LCR-0202 Analog Optocoupler is a versatile optocoupler ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
