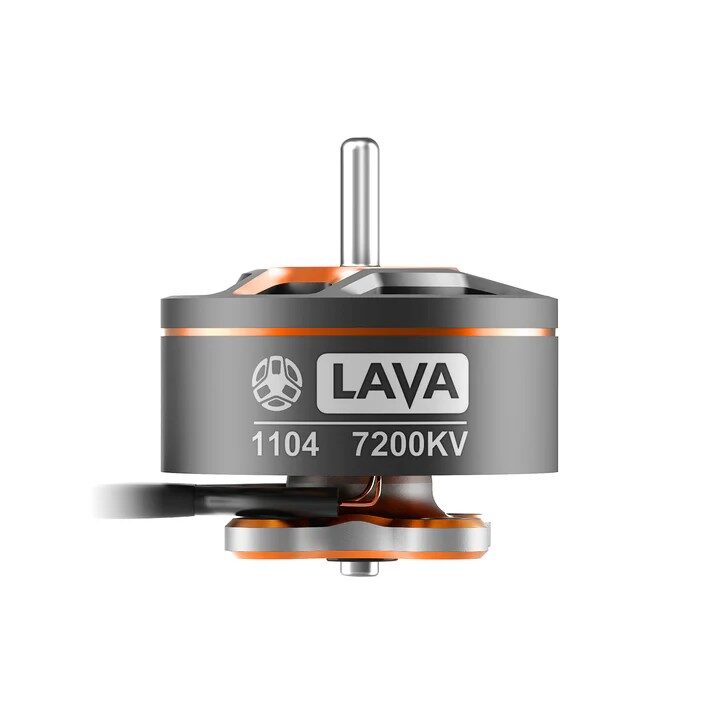

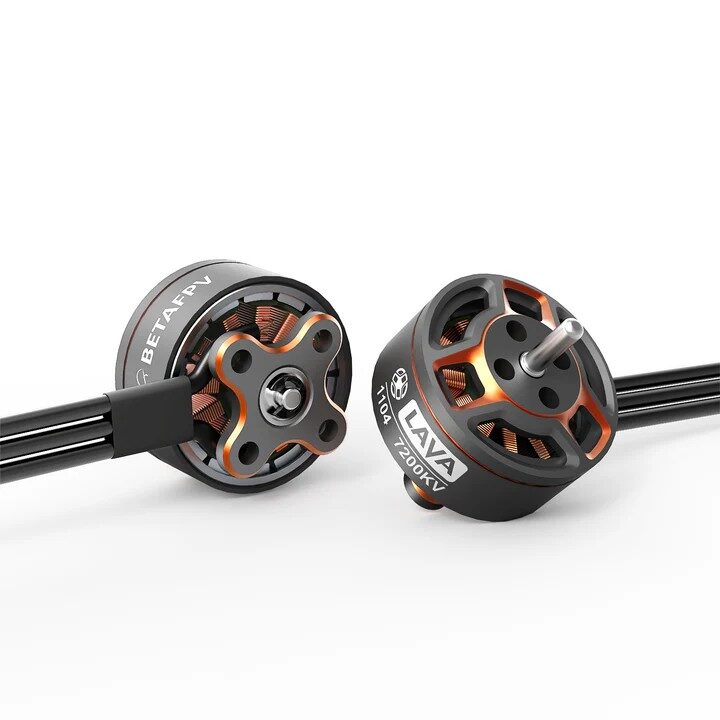

This is the 24mm variant of the LAVA 1104 7200KV Brushless Motors 24mm 1Pcs in Drone Kits, Drone Parts. Available at ₹1,752.30 (₹1,485.00 + GST) with free shipping across India.
Description:
LAVA Series 1104 | 7200KV Brushless Motors is designed for the 3S 2.2” quads, with smoother torque output performance. Combined with the lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft) and the F4 2-3S 20A AIO FC V1, it could enable pilots to swift, agile, and smooth freestyle. Ensuring enough creative space for cinewhoop to explore and capture the most imaginative aerial feats, easily meet professionally shot film creation needs, leading the 3S 2.2” quads for cinewhoop to new heights.
Features:
- Unleash the power of freestyle with the LAVA Series 1104 | 7200KV motors, precision-engineered for 3S 2.2” quads. Experience a quantum leap in performance, taking the Pavo20 Pro Brushless Whoop Quadcopter freestyle experience to new heights.
- With the lower pitch Gemfan 2218 3-Blade Propellers, the max thrust can reach more than 230g, achieving a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle experience.
- Paired with the above GF props, the force efficiency is as high as 4.7g/w when flying at low throttle, and even at full throttle load conditions, it can reach 1.9g/w, providing an efficient propulsion system for the quad.
Specifications:
- Items: LAVA Series 1104 | 7200KV Brushless Motors
- Maximum Power: 122.5W
- Maximum Current: 10.2A
- Shaft Diameter: ø1.5mm
- Shaft Length: 5mm
- Wire Specification: 28AWG
- Wire Length: 24/80mm
- Motor Mounting Hole Size: 4*M2 Ø9mm
- Propeller Mounting Hole Size: 4*M2 Ø5mm
Note: Only the 24mm length Version has a connector, suitable for the Pavo20 Pro.
The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(24mm).
Recommended Parts
- Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
- Quad: Pavo20 Pro Brushless Whoop Quadcopter
- FC: F4 2-3S 20A AIO FC V1
- Battery: LAVA Series 3S 450mAh / 550mAh Battery
Package Includes:
- 1 * LAVA Series 1104 | 7200KV Brushless Motors
- 4 * M2 * 4 Hex Flat Head Screw
- 4 * M2 * 5 Hex Flat Head Screw
DJI FPV System: Digital HD Video for Racing Drones
Table of Contents Overview of DJI FPV Video System DJI Air Unit and Vista Components DJI FPV Goggles...
Read More →
GPS Rescue Mode Setup: Return-to-Home Safety Feature in Betaflight
GPS Rescue Mode in Betaflight: Complete Setup Guide for Return-to-Home Safety Losing your FPV quad in a tree,...
Read More →
Build a Drone LiDAR Terrain Mapper with ArduPilot & ROS: Step-by-Step Project Guide
LiDAR (Light Detection and Ranging) technology has rapidly moved from the domain of military satellites and expensive survey...
Read More →Technical Specifications
| Brand | BETAFPV |
|---|---|
| Size | 24mm |
| KV Rating | 7200KV |
| Package Quantity | 1 pcs |
| SKU | AI7794 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The LAVA 1104 7200KV Brushless Motors 24mm 1Pcs is a versatile drone kits used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
