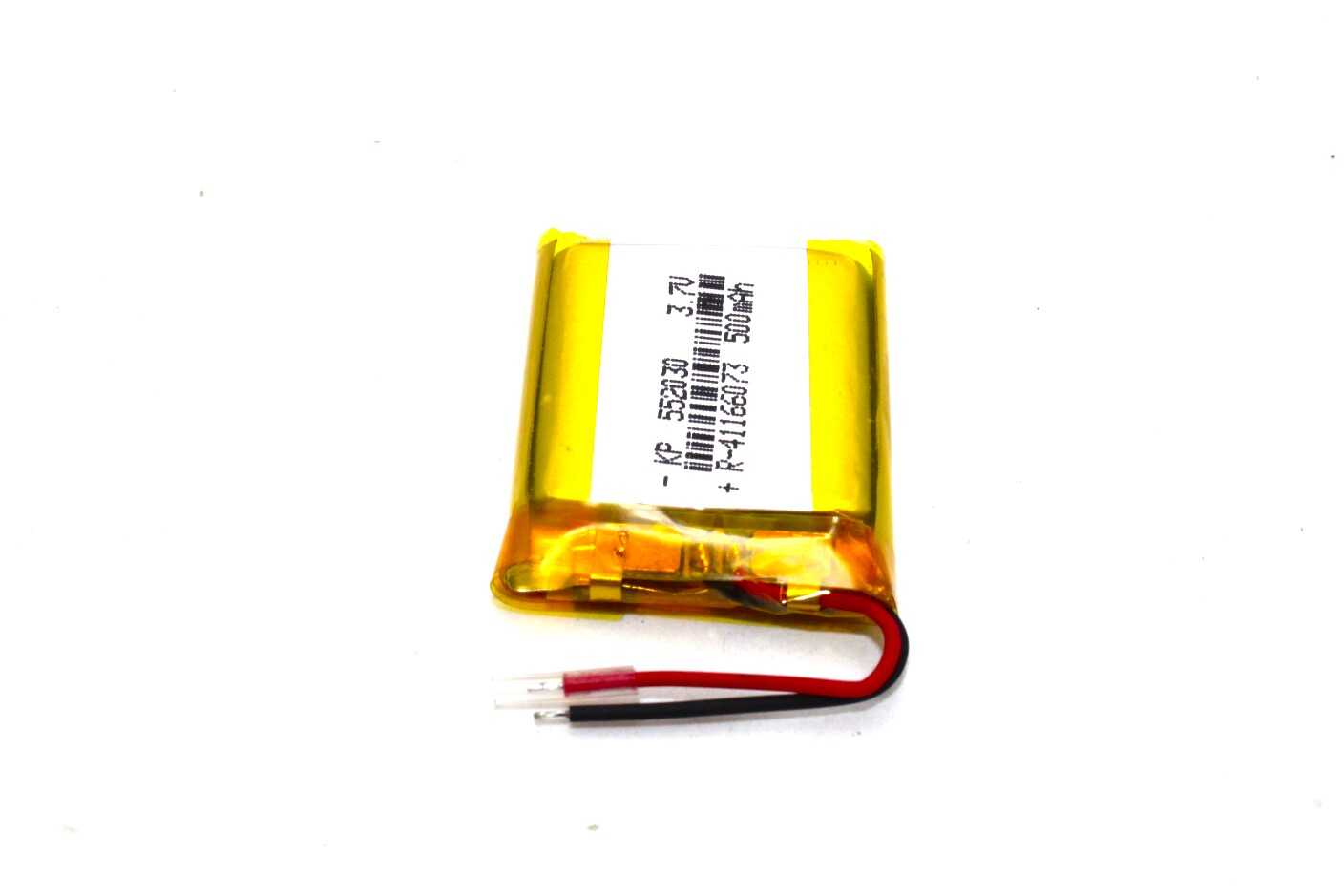

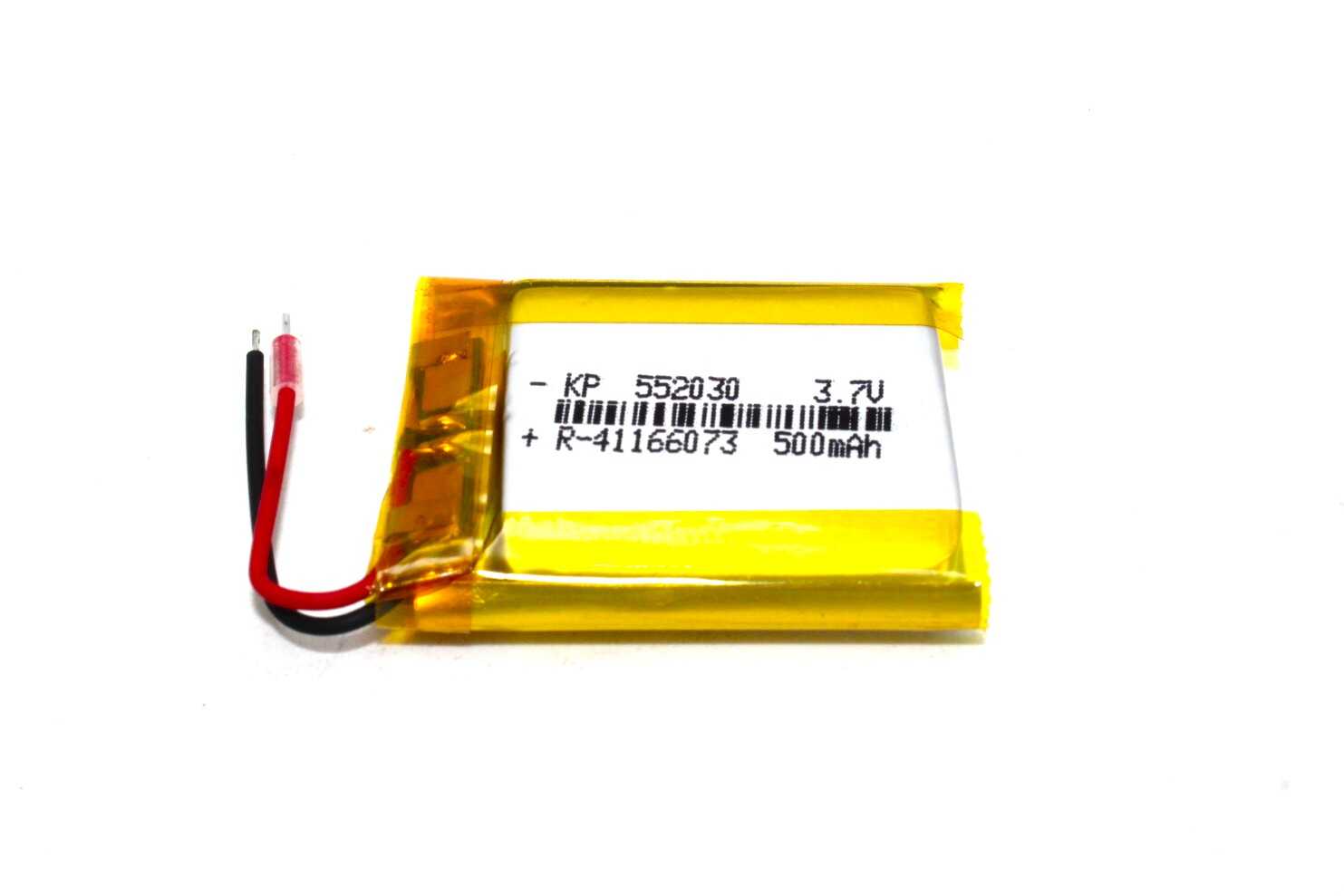

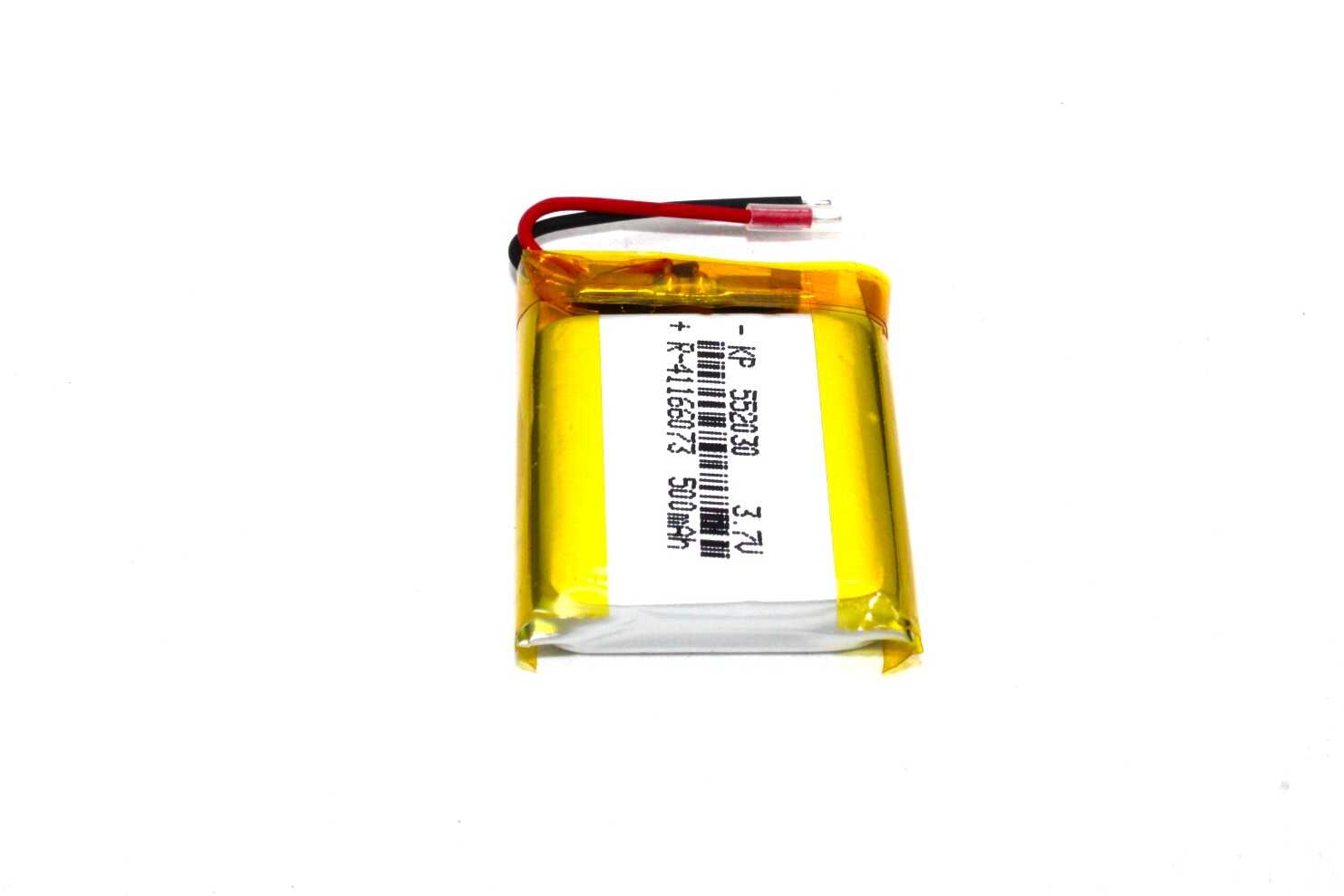

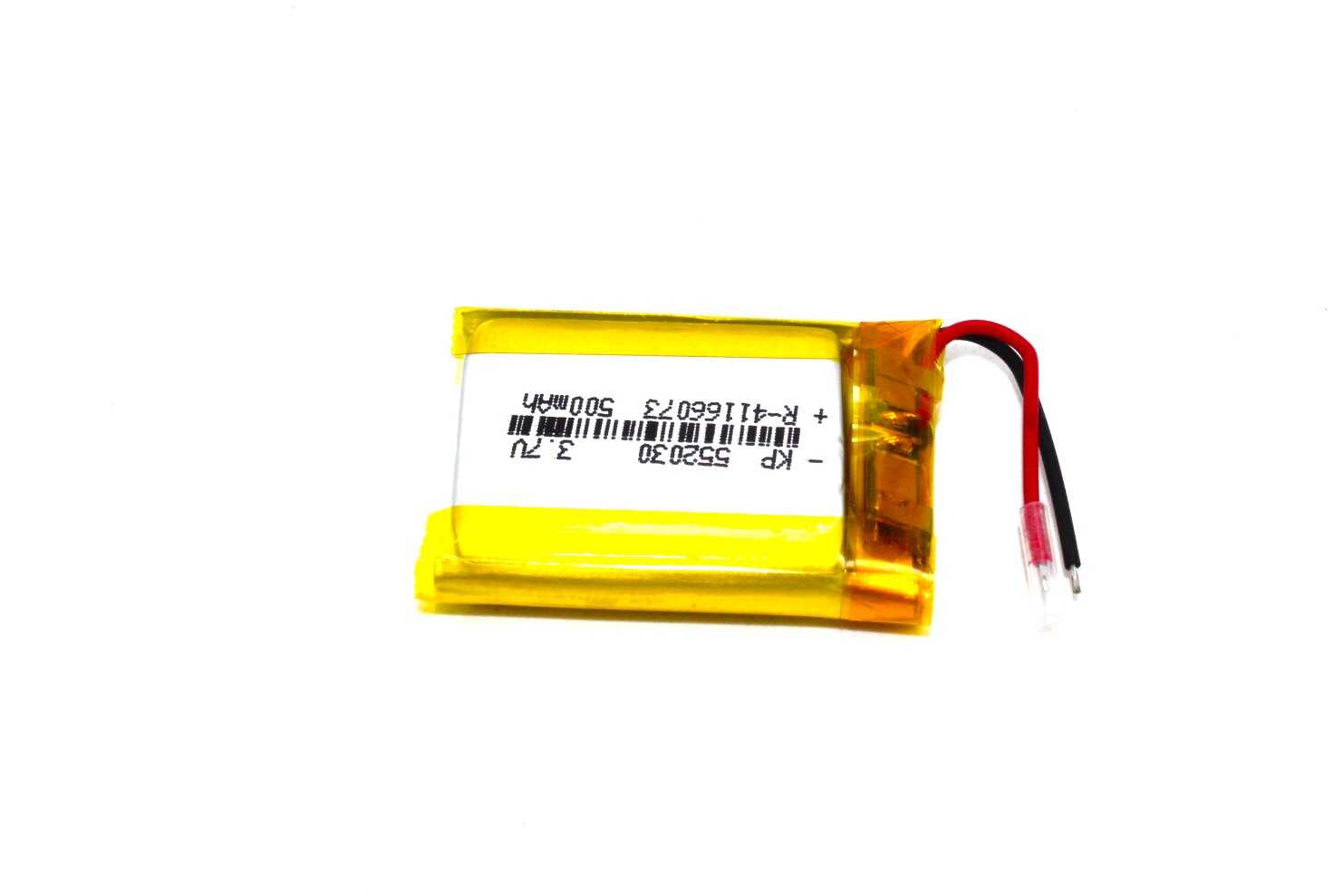

552030 3.7V 500mAh Lithium Polymer (LiPo) Rechargeable Battery
Product Description:
Discover the 552030 3.7V Lithium Polymer (LiPo) rechargeable battery, an ideal power solution for compact devices that require reliability and performance. With a robust capacity of 500mAh, this lightweight and versatile battery is perfect for powering wearables, wireless audio devices, IoT applications, and other portable electronics. Crafted with the latest technology in energy storage, the 552030 LiPo battery guarantees safety and efficiency for all your powering needs.
Technical Specifications:
- Model Number: 552030
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 500mAh
- Dimensions:
- Length: 21.2 mm
- Width: 15 mm
- Height: 4 mm (thickness)
- Weight: Approximately 20 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: Up to 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Approximately 300-500 cycles (dependent on usage and care)
- Connector Type: JST connector (custom options available upon request)
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Store at 40-60% charge in a cool, dry environment to maximize battery life.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Built-in thermal protection
Application Areas:
- Wearable technologies (fitness trackers, smart bands)
- Bluetooth audio devices (headsets, speakers)
- Portable cameras and drones
- Remote controls and toys
- Internet of Things (IoT) devices
Package Includes:
- 1 x 552030 500mAh 3.7V LiPo Battery
Power Bank Build: Custom Capacity 18650 Power Pack
Table of ContentsDesigning Your Power Bank Components List Circuit Assembly Charging Circuit with TP4056 Boost Converter for 5V...
Read More →
Power Supply Sequencer: Ordered Startup for Multi-Rail
A power supply sequencer controls the order in which multiple voltage rails power up and shut down, preventing...
Read More →
Solid State Battery: Future of Energy Storage Explained
The solid state battery represents the most anticipated breakthrough in energy storage technology. By replacing the liquid or...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 500mAh |
| Interface / Protocol | BLE |
| SKU | AI6780 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The KP Original 552030 500mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
