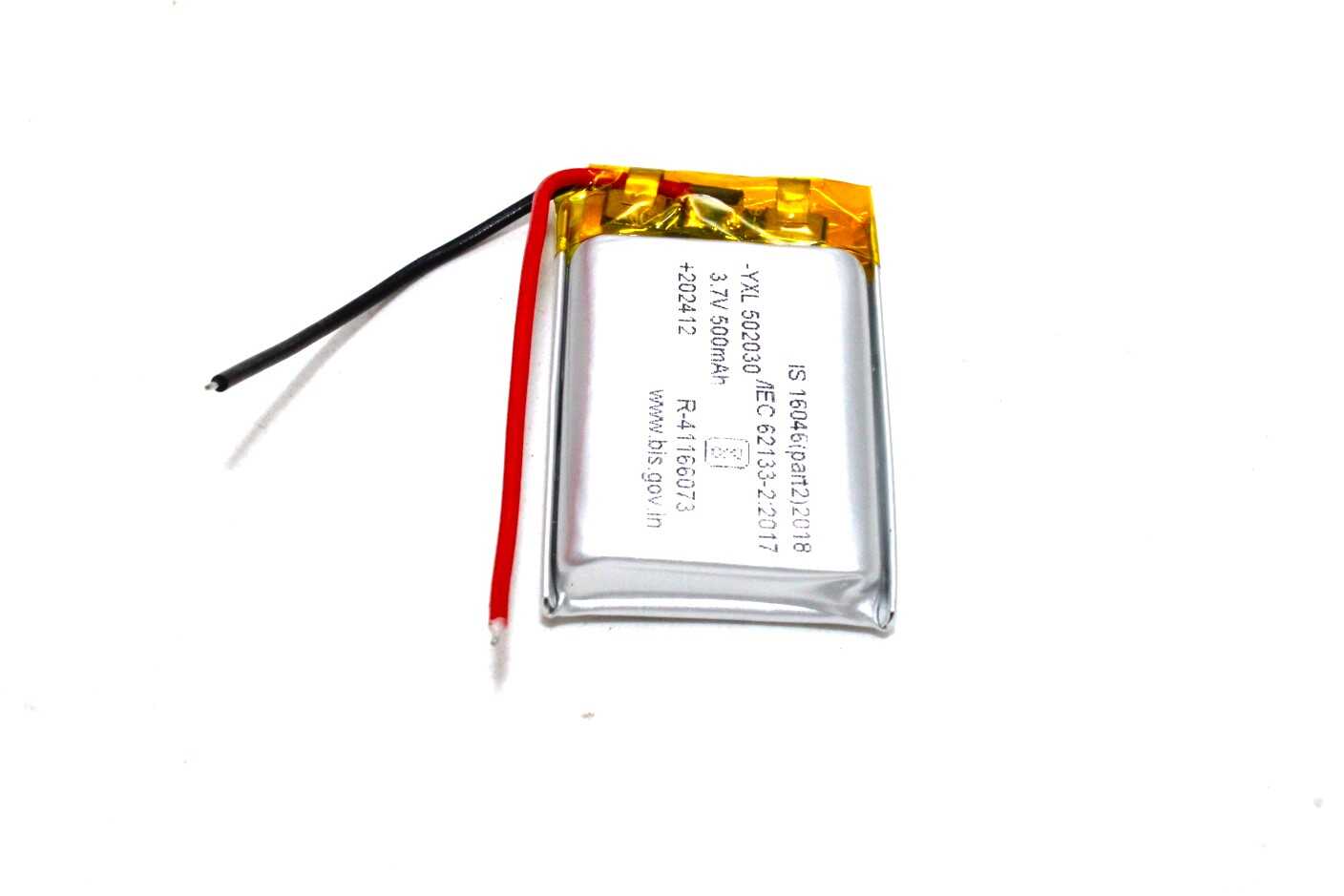

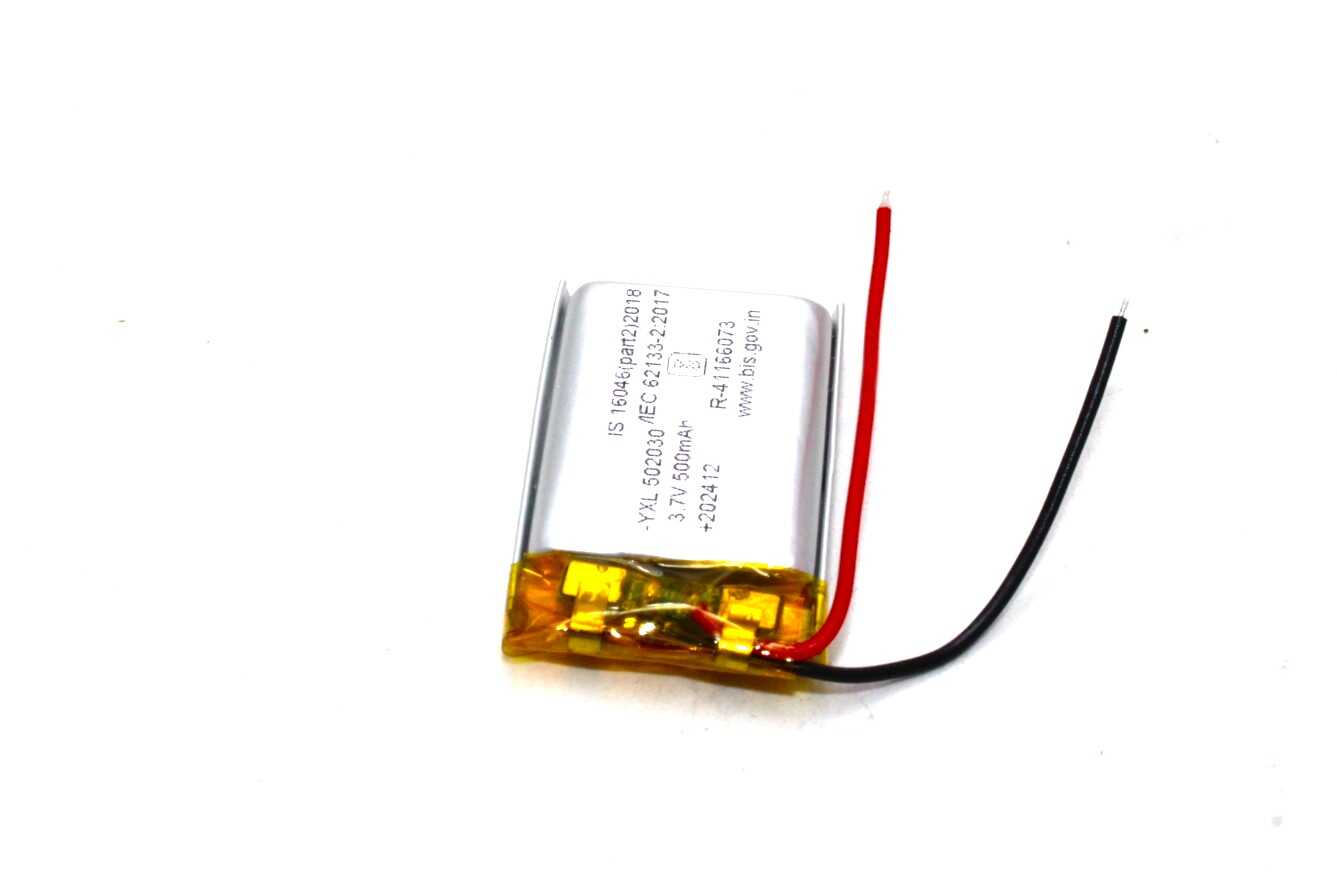

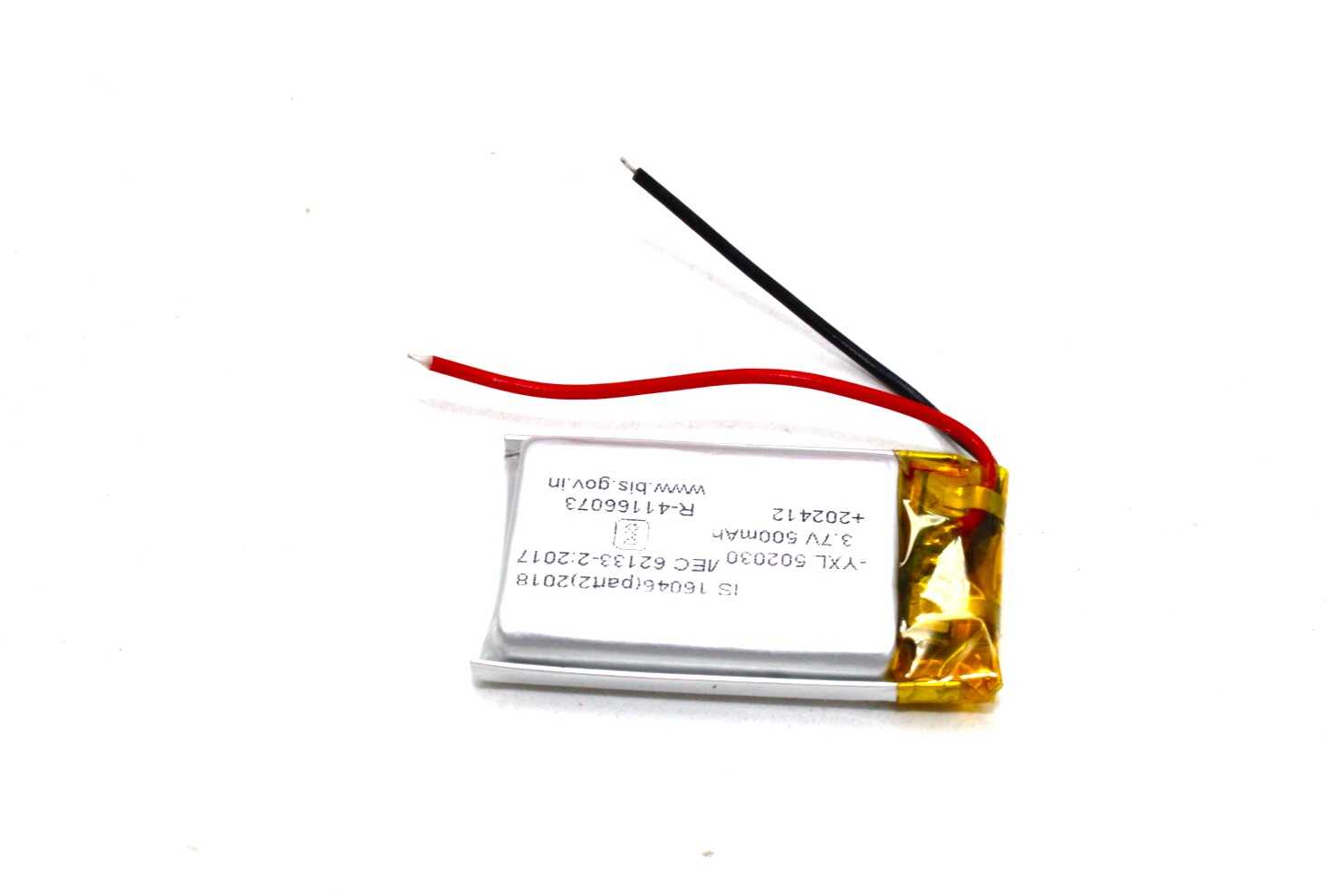

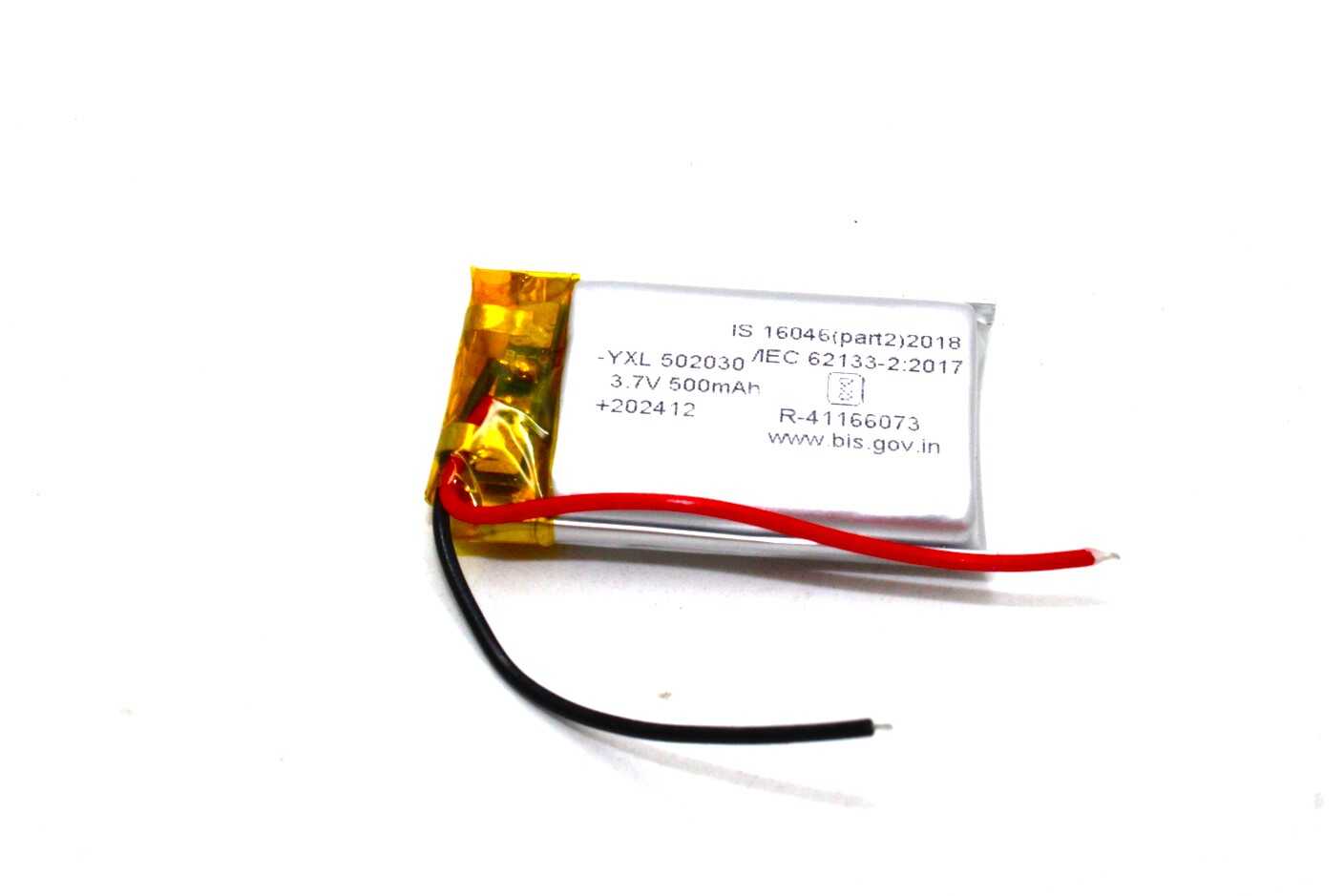

502030 3.7V 500mAh Lithium Polymer (LiPo) Rechargeable Battery
Product Description:
The 502030 3.7V Lithium Polymer (LiPo) rechargeable battery delivers exceptional performance and reliability in a compact form factor. With a capacity of 500mAh, this battery is perfect for a variety of applications, including wearable devices, IoT gadgets, and portable electronics. Engineered with enhanced safety features and optimized for longevity, the 502030 LiPo battery is an ideal choice for anyone seeking a trusted power source.
Technical Specifications:
- Model Number: 502030
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 500mAh
- Dimensions:
- 33mm x 21mm x 5.0mm (L.B.H.)
- Weight: Approximately 20 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: Up to 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Approximately 300-500 cycles (dependent on usage and care)
- Connector Type: JST connector (custom options available upon request)
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Store at 40-60% charge in a cool, dry environment to maximize battery life.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Built-in thermal protection
Application Areas:
- Wearables (fitness trackers, smartwatches)
- Wireless audio devices (Bluetooth headphones, speakers)
- Portable devices (cameras, drones)
- Toys and remote controls
- Internet of Things (IoT) applications
Package Includes:
- 1 x 502030 500mAh 3.7V LiPo Battery
Best LiPo Battery Chargers: ISDT, SkyRC & Budget Options
Choosing the right LiPo battery charger is arguably more important than choosing the battery itself. Charge a LiPo...
Read More →
Gel Battery vs AGM Battery: Sealed Lead Acid Comparison
Gel Battery vs AGM Battery: Sealed Lead Acid Comparison If you are powering a home inverter, a solar...
Read More →
9V Battery Eliminator: AC Adapter for Projects
Table of ContentsWhat Is a Battery Eliminator AC to 9V DC Conversion Using a Buck Converter as Eliminator...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 500mAh |
| Interface / Protocol | BLE |
| SKU | AI6783 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The KP Original 502030 500mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
