Looking for Kp Original 402535 Battery? KP Original 402535 500mAh 3.7Vsingle cell Rechargeable LiPo Battery is available at Zbotic with fast shipping across India.

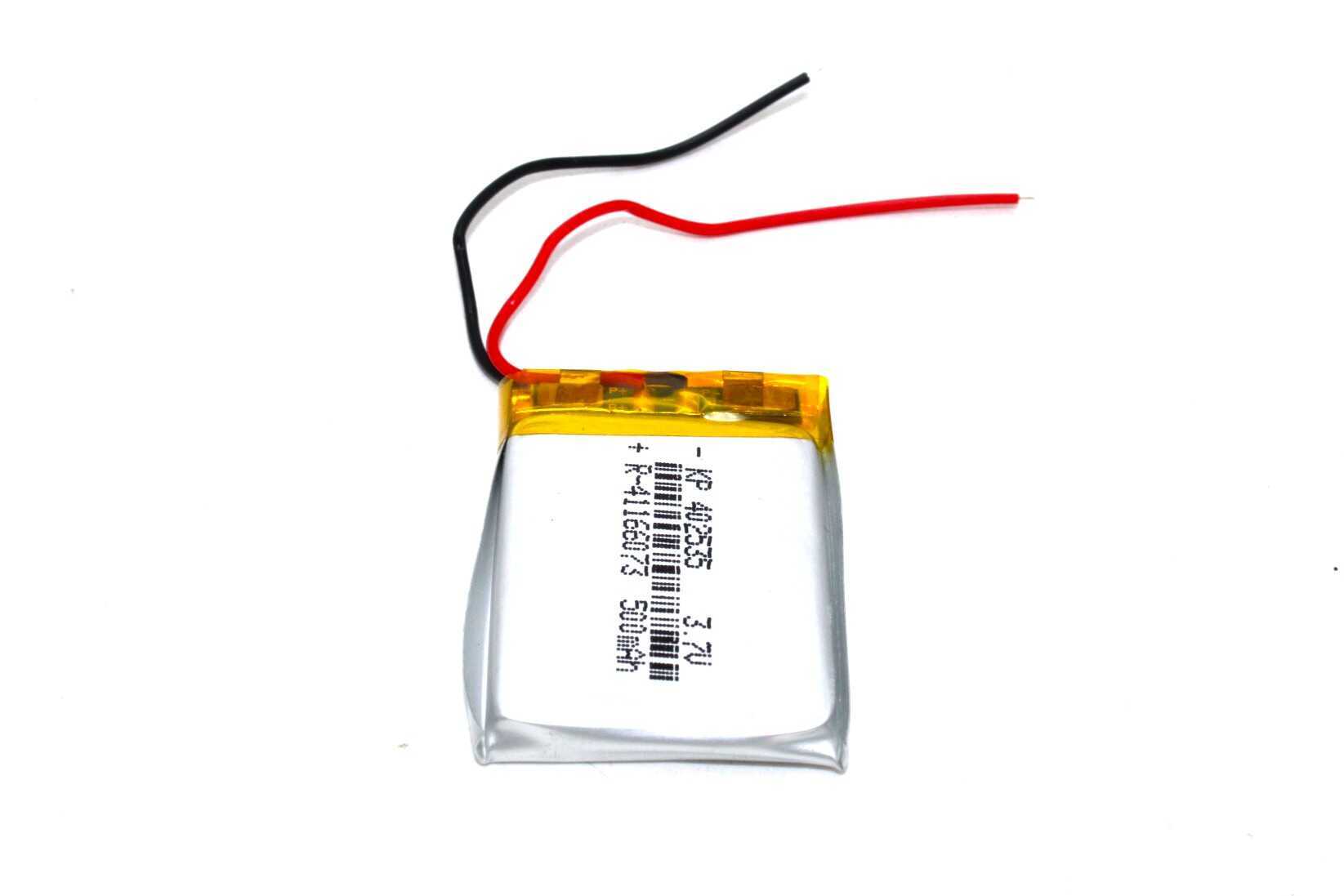

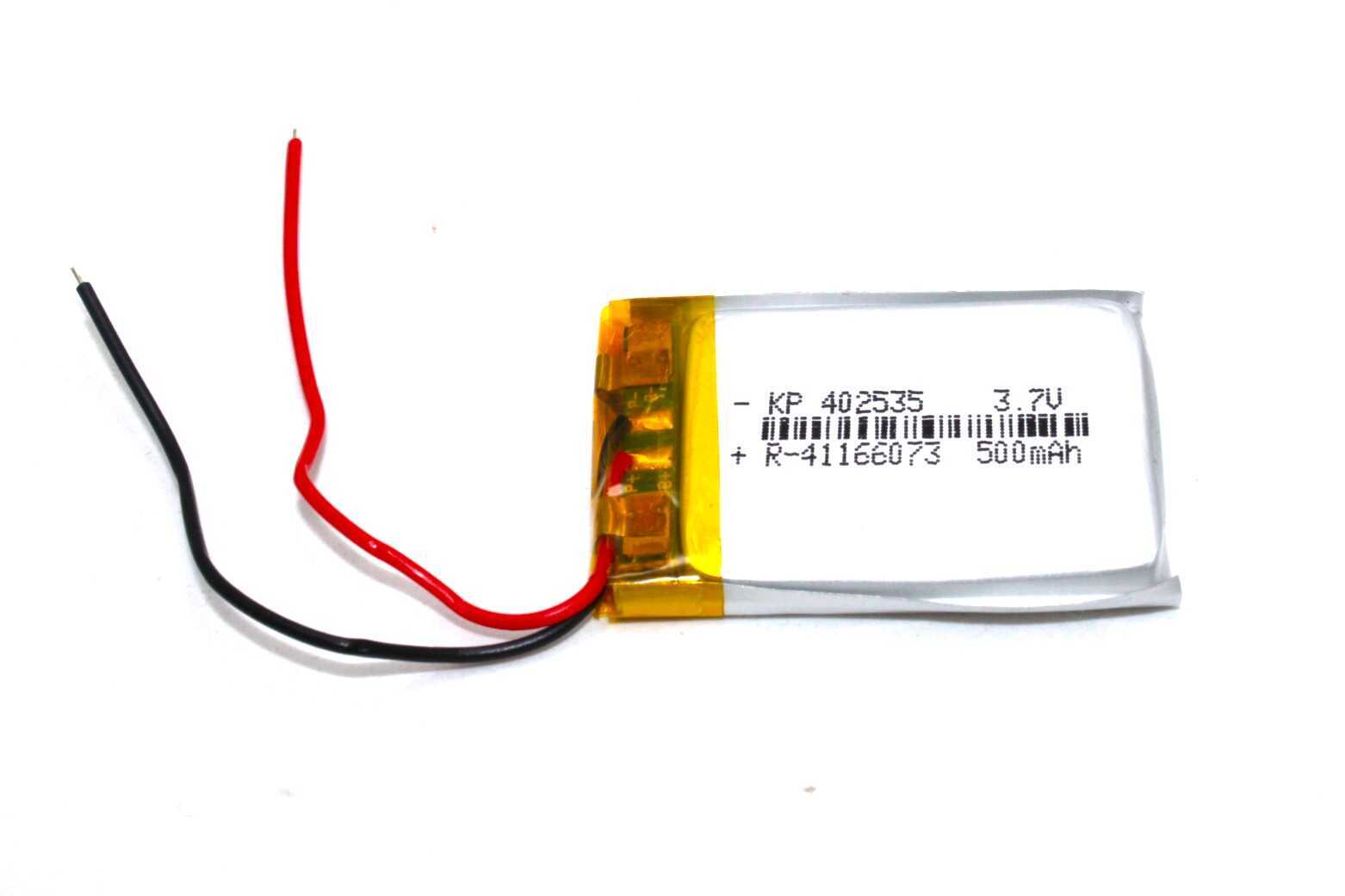

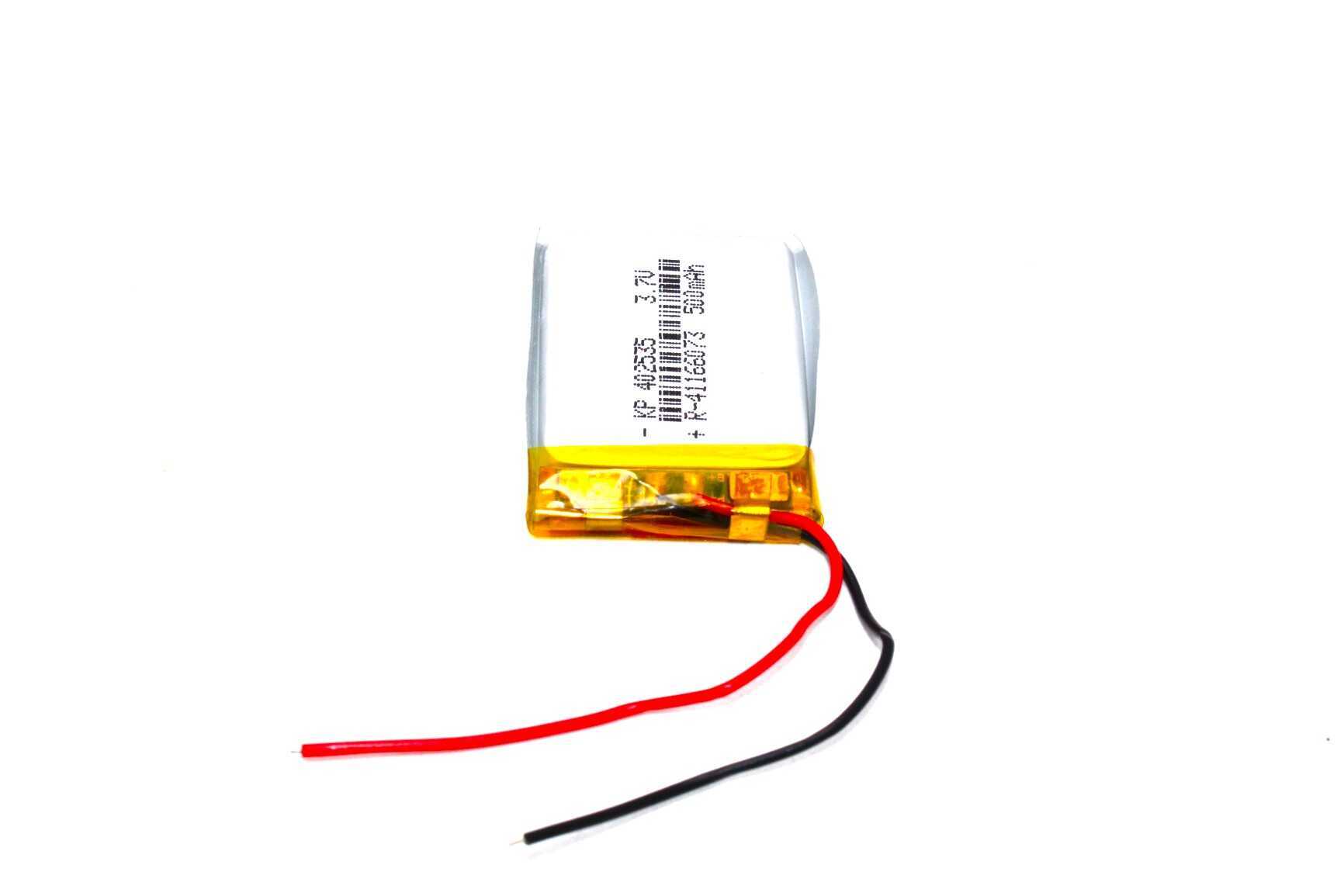

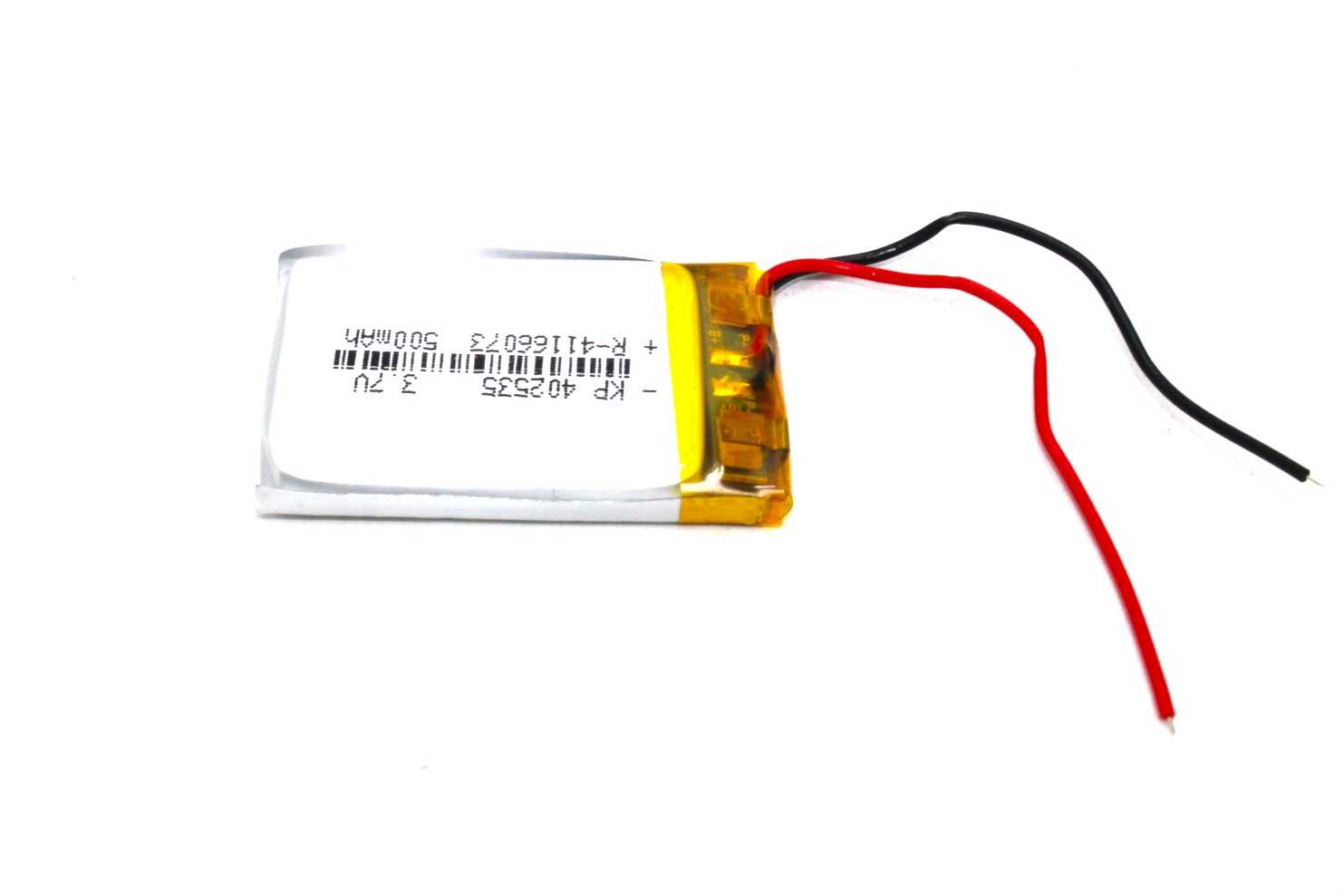

402535 3.7V 500mAh Lithium Polymer (LiPo) Rechargeable Battery
Product Description:
The 402535 3.7V Lithium Polymer (LiPo) rechargeable battery is designed for compactness and efficiency, making it an excellent power source for a wide range of electronic applications. With a nominal capacity of 500mAh, this lightweight battery is suitable for devices such as wearables, IoT gadgets, and portable electronics. This LiPo battery is engineered to deliver reliable performance while ensuring safety and longevity.
Technical Specifications:
- Model Number: 402535
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 500mAh
- Dimensions:
- Length: 35 mm
- Width: 25 mm
- Height: 9 mm (thickness)
- Weight: Approximately 15 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Up to 300-500 cycles (depending on charge/discharge conditions)
- Connector Type: JST connector or customizable upon request
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Store at approximately 40-60% charge in a cool, dry environment for optimal performance.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection system
- Thermal protection mechanism
Application Areas:
- Wearable devices (smart bracelets, fitness trackers)
- Internet of Things (IoT) applications
- Consumer electronics (remote devices and small gadgets)
- Medical devices (portable monitors and trackers)
- Robotics and electronics projects for hobbyists
Package Includes:
- 1 x 402535 500mAh 3.7V LiPo Battery
KP Original 402535 500mAh 3.7Vsingle cell Rechargeable LiPo Overview
The KP Original 402535 is a compact 3.7 V, 500 mAh single-cell Lithium Polymer rechargeable battery designed for tight spaces and lightweight applications. Its slim 35 × 25 × 9 mm profile and 15 g weight make it ideal for portable electronics that require reliable power in a small form factor.
Key Features of KP Original 402535 500mAh 3.7Vsingle cell Rechargeable LiPo
- Nominal voltage of 3.7 V with a capacity of 500 mAh for steady energy delivery
- Compact dimensions (35 × 25 × 9 mm) and light weight (approx. 15 g) for space-constrained designs
- 1C maximum continuous discharge rate (up to 0.5 A) for safe, controlled power output
- High energy density LiPo chemistry for longer run times in small devices
- Rechargeable design compatible with standard LiPo balance chargers
- Genuine KP Original product with fast shipping from Zbotic across India
Applications and Use Cases
- Wearable electronics such as fitness bands and smart patches
- Battery backup for small IoT sensors and data loggers
- Power source for Bluetooth beacons and low-power wireless modules
- Tiny robotics projects including micro quadcopters and crawlers
- Portable audio devices like wireless earphones or pocket speakers
- Embedded systems and development boards requiring compact batteries
How to Use KP Original 402535 500mAh 3.7Vsingle cell Rechargeable LiPo
Before first use, connect the 402535 battery to a compatible LiPo balance charger set to 0.5 A (1C) charge current and observe the correct polarity. Secure the battery inside your device using double-sided tape or a mounting bracket, then wire the output leads to your circuit ensuring proper insulation. Avoid discharging below 3.0 V and store at around 50% charge if not used for extended periods to prolong life.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum continuous discharge current?
The KP 402535 supports up to a 1C discharge rate, which equates to 0.5 A continuous output—suitable for low-power applications without risk of overheating.
How long does it take to fully charge?
Using a 0.5 A (1C) LiPo balance charger, the 500 mAh cell reaches full charge in approximately one hour under normal conditions.
What are the battery’s dimensions and weight?
The cell measures 35 × 25 × 9 mm and weighs about 15 grams, making it easy to integrate into compact and lightweight projects.
Wind Charge Controller: Dump Load and Braking Circuit
A wind charge controller manages battery charging from a wind turbine while protecting the system from overvoltage and...
Read More →
Battery Capacity mAh vs Wh: Understanding the Difference Explained
Battery Capacity mAh vs Wh: Understanding the Difference Explained One of the most common points of confusion for...
Read More →
Piezoelectric Energy: Generate Power from Movement
Table of ContentsPiezoelectric Effect Explained Piezo Element Types Harvesting Circuit Design Rectification and Storage Practical Power Output Applications...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 500mAh |
| Interface / Protocol | BLE |
| SKU | AI6804 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The KP Original 402535 500mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
