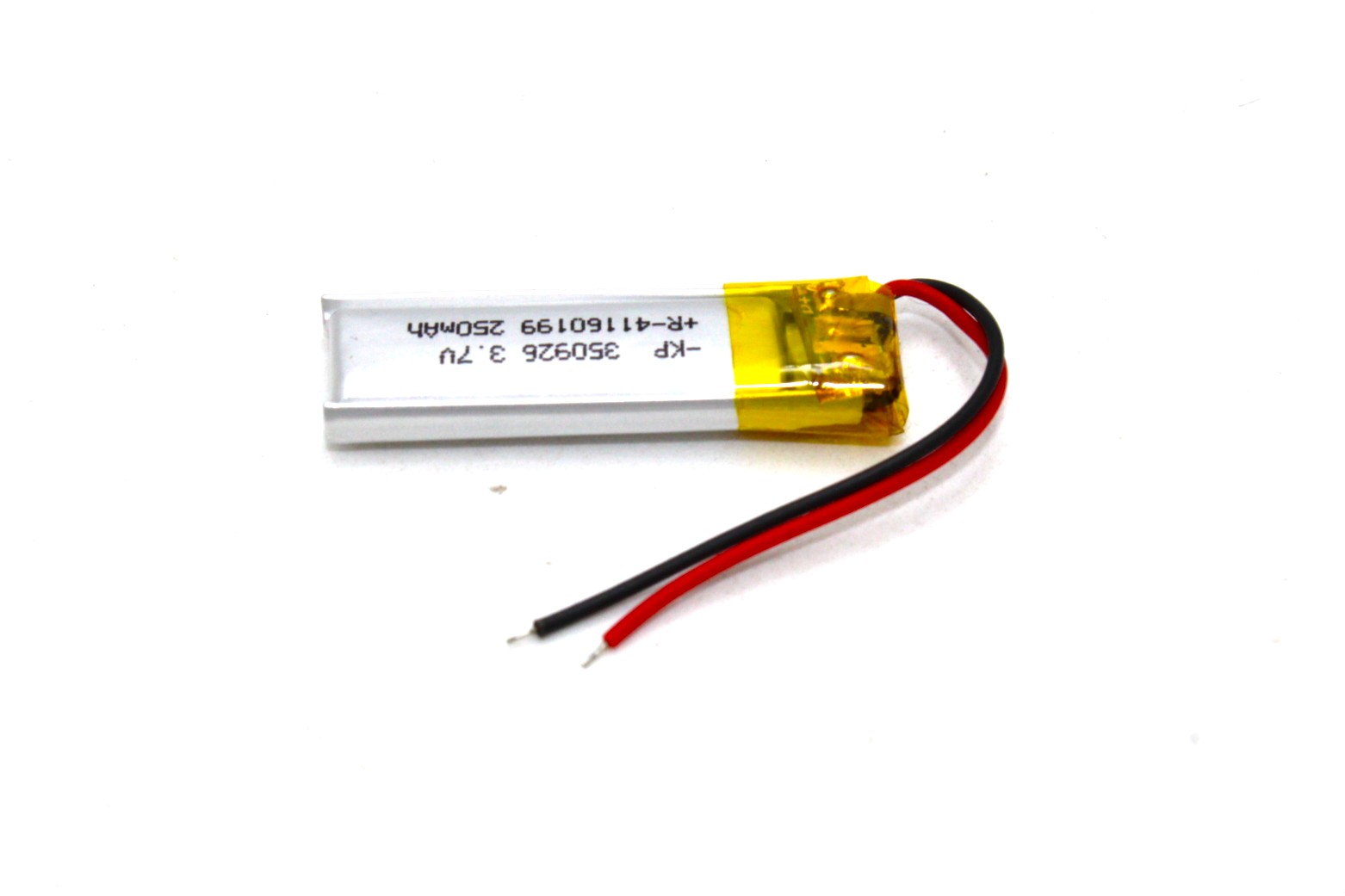

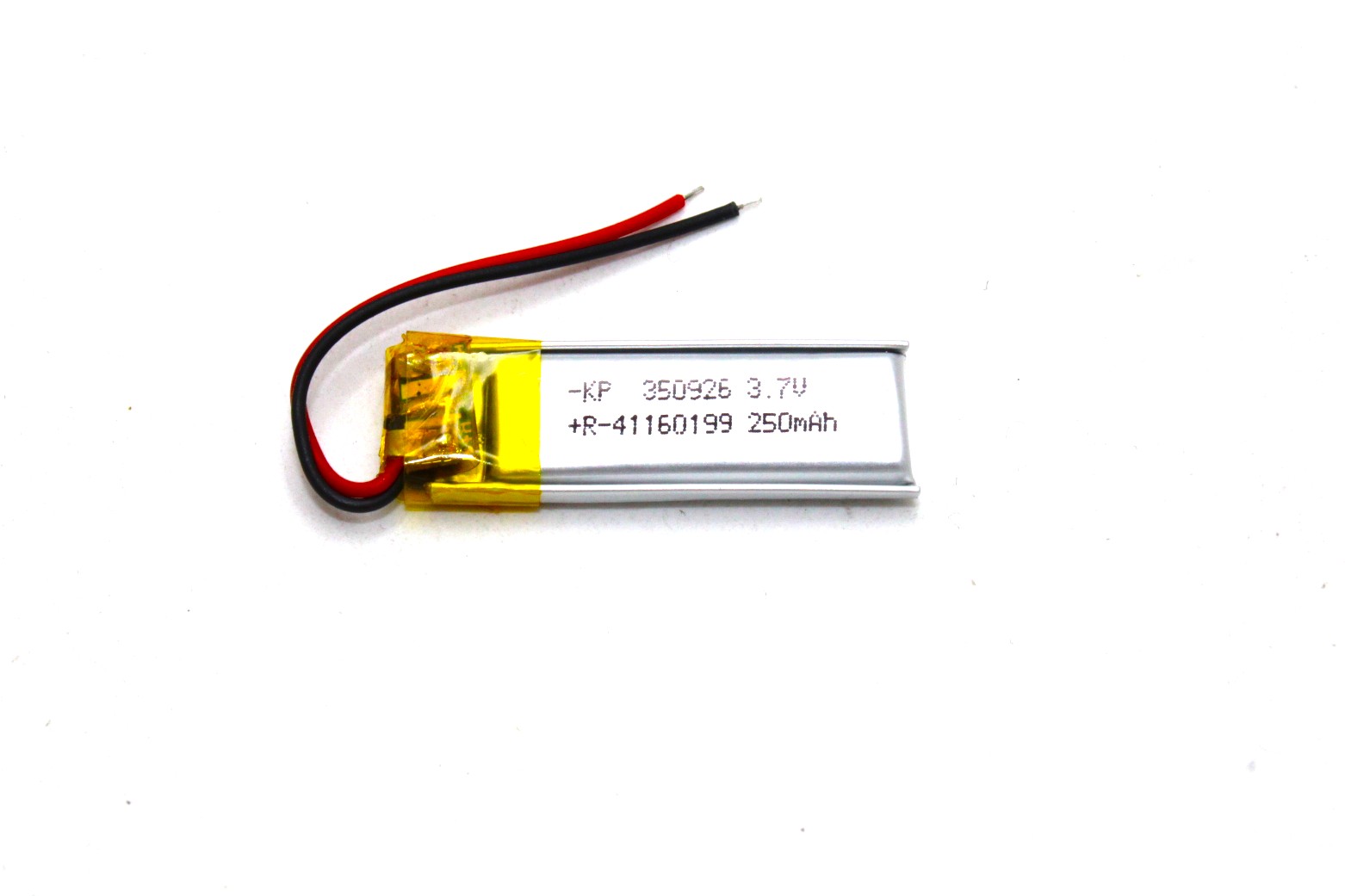

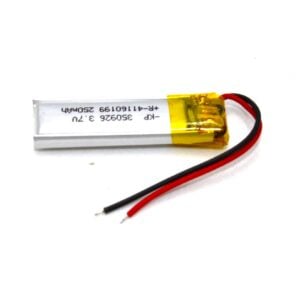

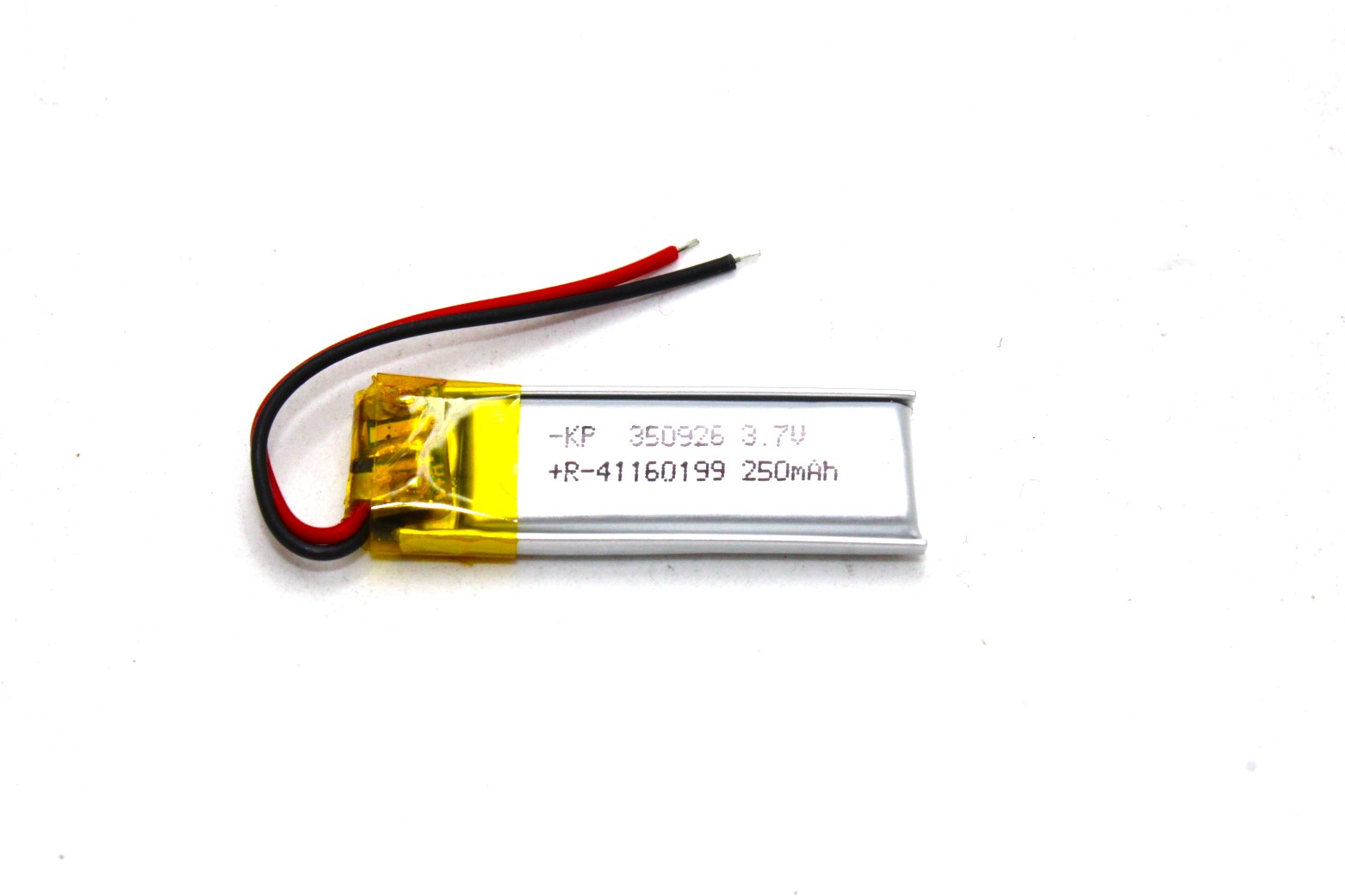

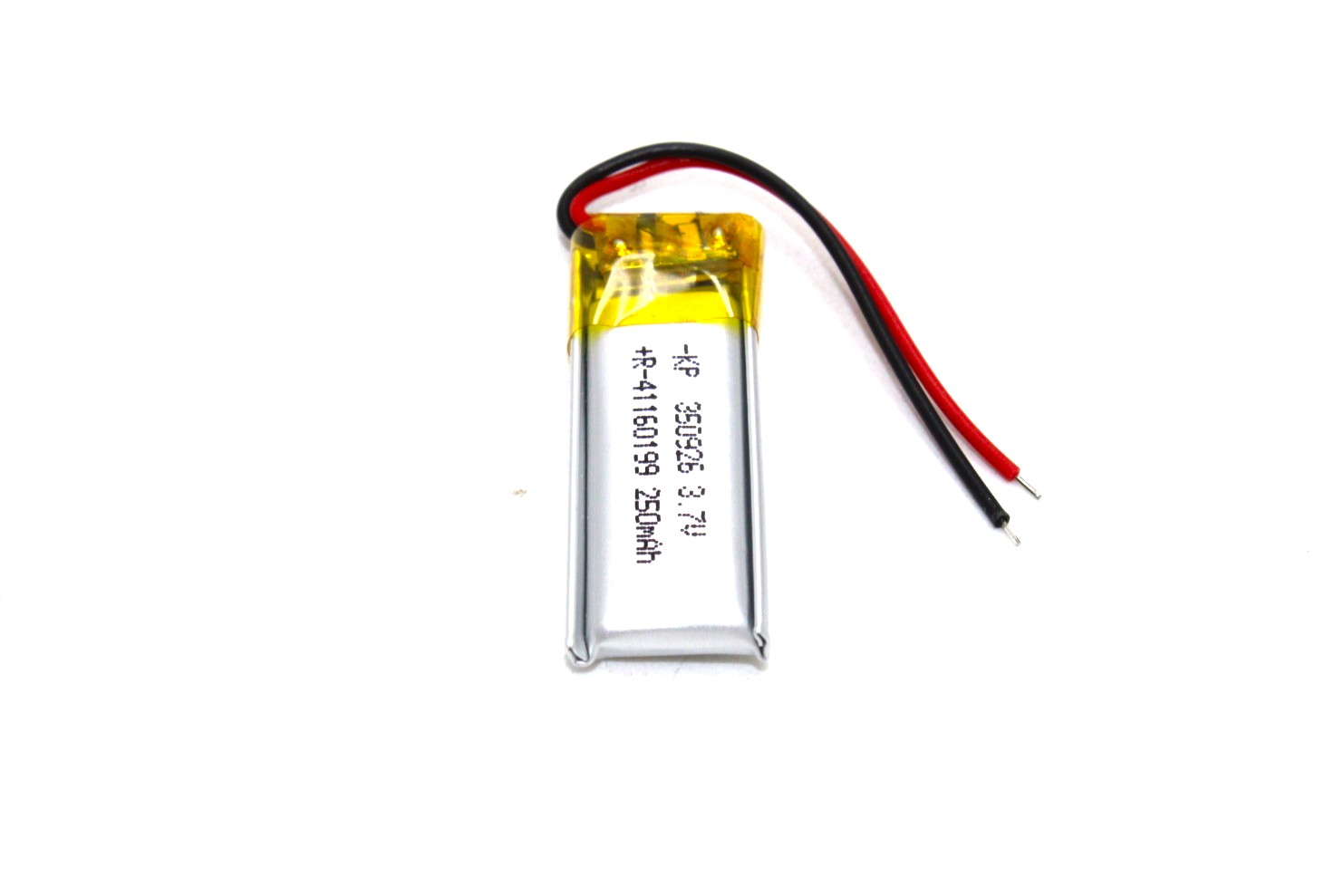

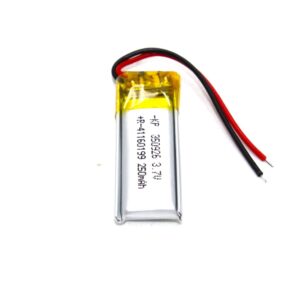

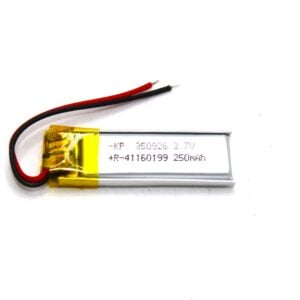

KP Original 350926 250mAh 3.7Vsingle cell Rechargeable LiPo Battery

Looking for Kp Original 350926 Battery? KP Original 350926 250mAh 3.7Vsingle cell Rechargeable LiPo Battery is available at Zbotic with fast shipping across India.

The 350926 250mAh 3.7V Single Cell Rechargeable LiPo Battery is a high-performance energy solution designed for compact electronic devices. With its robust capacity and lightweight design, this battery is ideal for applications such as wearables, remote control devices, and various IoT gadgets that require reliable and portable power.

Technical Specifications:

• Model Number: 350926
• Type: Lithium Polymer (LiPo) Battery
• Total Capacity: 250mAh
• Nominal Voltage: 3.7V
• Configuration: Single Cell
• Dimensions: Approx. 35mm x 9mm x 26mm (Length x Width x Height)
• Weight: Approximately 20g
• Internal Resistance: Typically < 30 mΩ (at 1kHz)
• Discharge Rate:
  • Continuous Discharge Rate: 1C (250mA)
  • Peak Discharge Rate: 2C (500mA, short duration)
• Charge Rate:
  • Standard Charge Rate: 0.5C (125mA)
  • Maximum Charge Rate: 1C (250mA)
• Connector Type: JST or similar [specify based on the actual product]
• Cycle Life: Approximately 300-500 cycles, dependent on usage and conditions
• Operating Temperature:
  • Charging Temperature: 0°C to 45°C
  • Discharging Temperature: -20°C to 60°C
• Storage Temperature: -20°C to 25°C for optimal performance
• Battery Management System (BMS): Integrated safety features to protect against overcharging, over-discharging, and short circuit.

Applications:

• Smartwatches and fitness trackers
• Remote control toys and hobby devices
• Bluetooth accessories and headsets
• Drones and UAVs
• IoT sensors and compact electronic devices

Features:

• Compact and Lightweight: Perfect for devices with limited space requirements.
• High Energy Density: Provides efficient power delivery for long operational life.
• Fast Charging: Reduces downtime and enhances user convenience.
• Low Self-Discharge Rate: Retains charge effectively during non-use periods.
• Safety Features: Designed for safe operation with built-in protections.

Safety Precautions:

• Charging Instructions: Use a compatible LiPo charger; do not exceed recommended charge rates.
• Discharge Limit: Avoid discharging below 3.0V to maintain battery health.
• Storage Conditions: Store in a cool, dry place and use protective enclosures when possible.
• Monitoring: Regularly check voltage and overall battery condition for safety.
• Handling: Handle with care to prevent punctures or physical damage.


  Package Includes:

  • 1 x 350926 250mAh 3.7V LiPo Battery

KP Original 350926 250mAh 3.7Vsingle cell Rechargeable LiPo Overview

The KP Original 350926 is a single-cell Lithium Polymer (LiPo) battery offering 250mAh capacity at a nominal 3.7V. Its ultra-compact dimensions (approx. 29 × 9 × 3 mm) and 20 g weight make it ideal for powering small electronics where space and weight are critical.

Key Features of KP Original 350926 250mAh 3.7Vsingle cell Rechargeable LiPo

• 250mAh capacity delivers stable 3.7V output for extended run times
• Ultra-slim profile (29 × 9 × 3 mm) fits tight enclosures
• Lightweight design at approximately 20 g for mobile applications
• Rechargeable LiPo chemistry with low self-discharge
• Genuine KP Original cell—quality assured
• Fast shipping from Zbotic across India

Applications and Use Cases

• Wearable fitness bands and health monitors
• Micro UAVs, nano-quadcopters and mini drones
• Portable Bluetooth audio modules and headsets
• DIY sensor and microcontroller development boards
• Handheld remote controls and mini game controllers

How to Use KP Original 350926 250mAh 3.7Vsingle cell Rechargeable LiPo

Connect the battery’s solder tabs or installed connector to a compatible LiPo charger with CC/CV profile, charging at no more than 250 mA until reaching 4.20 V. Mount the cell securely in your device using foam tape or a battery holder, observe correct polarity, and integrate a protection circuit to prevent over-discharge.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What charger should I use for the 350926 LiPo battery?

Use a dedicated LiPo charger with constant-current/constant-voltage (CC/CV) mode. Set the charge current to 0.5 C or lower (≤250 mA) and stop when the cell reaches 4.20 V.

Can I mount the KP Original 350926 in a wearable device?

Yes. Its slim 29 × 9 × 3 mm dimensions and 20 g weight are perfect for wearable electronics, provided you secure it with foam tape or a custom enclosure and include necessary protection circuitry.

How do I connect this battery to my project?

The 350926 comes with solder tabs for direct PCB or wire connections. Solder wires or a JST-PH connector to the tabs, observe correct polarity, then anchor the cell inside your device for stable operation.
