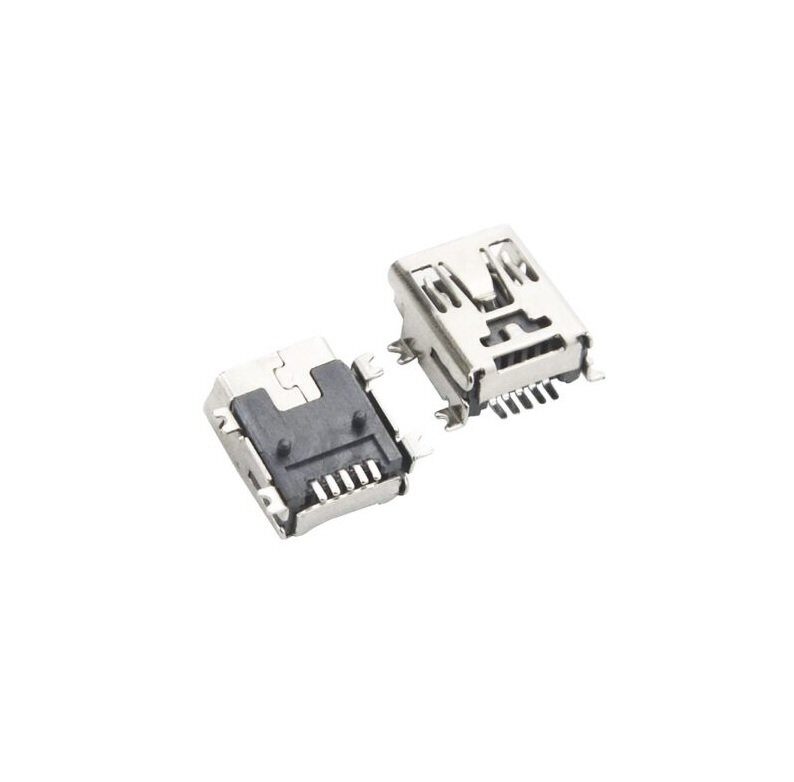

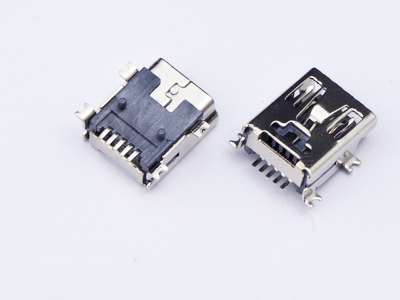

KLS1-229-5FB Mini USB Connector Type B 2.0 PCB Mount Right Angle SMD(Pack of 5)
Presenting the KLS1-229-5FB Mini USB Connector Type B 2.0 PCB Mount Right Angle SMD (Pack of 5), a versatile and dependable choice for your USB connectivity requirements. This USB Type-B 2.0 female connector is tailored for PCB surface mount applications, ensuring smooth integration with your electronic devices.
With its right-angle orientation, this connector offers convenient and compact connections for a variety of devices, such as MP3 players, media/disk readers, USB hubs, and others. The 5-pin Mini-B design guarantees broad device compatibility, rendering it an adaptable option for your projects.
Features:
- Manufacturer: KLS Electronics
- Gender: Female
- USB Type: USB B 2.0
- Current Rating: 1.0A per contact terminal
- Voltage Rating: 30V DC
- Contact Resistance: 50mΩ Max.
- Dielectric Withstanding Voltage: 300V AC at Sea Level
- Insulation Resistance: 100MΩ Min.
- Mate Force: 3.0kgf Max.
- Unmated Force: 0.7kgf Min.
- Terminal Retention: 0.5kgf Min.
- Temperature Range: -55°C to +105°C
- Color: Silver
- Pins: 5
- Package/Case: SMD Female Connector
Specifications:
| Specification | Details |
|---|---|
| Manufacturer | KLS Electronics |
| Gender | Female |
| USB Type | USB B 2.0 |
| Current Rating | 1.0A per contact terminal |
| Voltage Rating | 30V DC |
| Contact Resistance | 50mΩ Max. |
| Dielectric Withstanding Voltage | 300V AC at Sea Level |
| Insulation Resistance | 100MΩ Min. |
This USB connector is meticulously engineered by KLS Electronics, ensuring high-quality performance and durability. With a current rating of 1.0A per contact terminal and a voltage rating of 30V DC, it offers reliable power delivery for your devices.
Upgrade your electronic projects with the KLS1-229-5FB Mini USB Connector Type B 2.0 PCB Mount Right Angle SMD, and experience seamless connectivity and performance like never before.
Package Includes
- 1 x KLS1-229-5FB Mini USB Connector Type B 2.0 PCB Mount Right Angle SMD
Technical Specifications
| Model | KLS1-229 |
|---|---|
| Interface / Protocol | USB |
| Connector Type | USB-C |
| Package Quantity | 5 pcs |
| SKU | AI0867 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The KLS1-229-5FB Mini USB Connector Type B 2.0 PCB Mount Right Angle SMD(Pack of 5) is a versatile interface connector used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
