Jumper Rc Elrs Receiver – 🧾Product description:
CHT1230 5mW(650) Straight -Line Laser Module – RedThe lightweight and compact receiver offers advanced functionality for your RC models, ensuring reliable and long-range communication. Compatible with ELRS 2.4 mode radios, it features a full-range operating distance of over 5KM and supports 16 channels. The receiver is easy to bind with your transmitter and includes a failsafe feature to protect against signal loss. Perfect for high-performance applications where reliability and range are critical.
Binding Procedure:
Put the transmitter or transmitter RF module into binding mode.
Power on the receiver; the green light will flash indicating it is in binding mode.
Bind in the radio; the green light will stay on when binding is complete.
If not bound within 20 seconds, the receiver will enter WiFi firmware updating mode with the green light flashing.
Failsafe is a feature to set a preset channel output position when the control signal is lost. It can be set via the radio interface supporting no pulse, hold, and custom modes for each channel.
Note: Transmitter failsafe settings have higher priority over receiver settings, reducing the risk of falls and damage.
🌟Features:
- Compact and Lightweight: Dimensions of 17.28.84.3mm and a weight of only 1.1g.
- 16 Channels: Supports a wide range of control functions.
- Wide Operating Voltage Range: Operates between 3.5V and 6V.
- Long Operating Range: Full range with a distance of over 5KM.
- Failsafe Function: Ensures safety by maintaining preset channel outputs if the signal is lost.
📐Specification:
| Dimension (L × W × H) | 17.2 × 8.8 × 4.3 mm |
|---|---|
| Number of Channels | 16Ch |
| Operating Voltage Range | 3.5V ~ 6V |
| Operating Current | 60mA @ 5V |
| Operating Range | Full range |
| Distance | ＞5KM |
| Compatibility | Radios in ELRS 2.4 mode |
📦Package Includes:
- 1 x Jumper RC ELRS AION-RX-MINI receiver
Jumper RC ELRS AION-RX-MINI receiver Overview

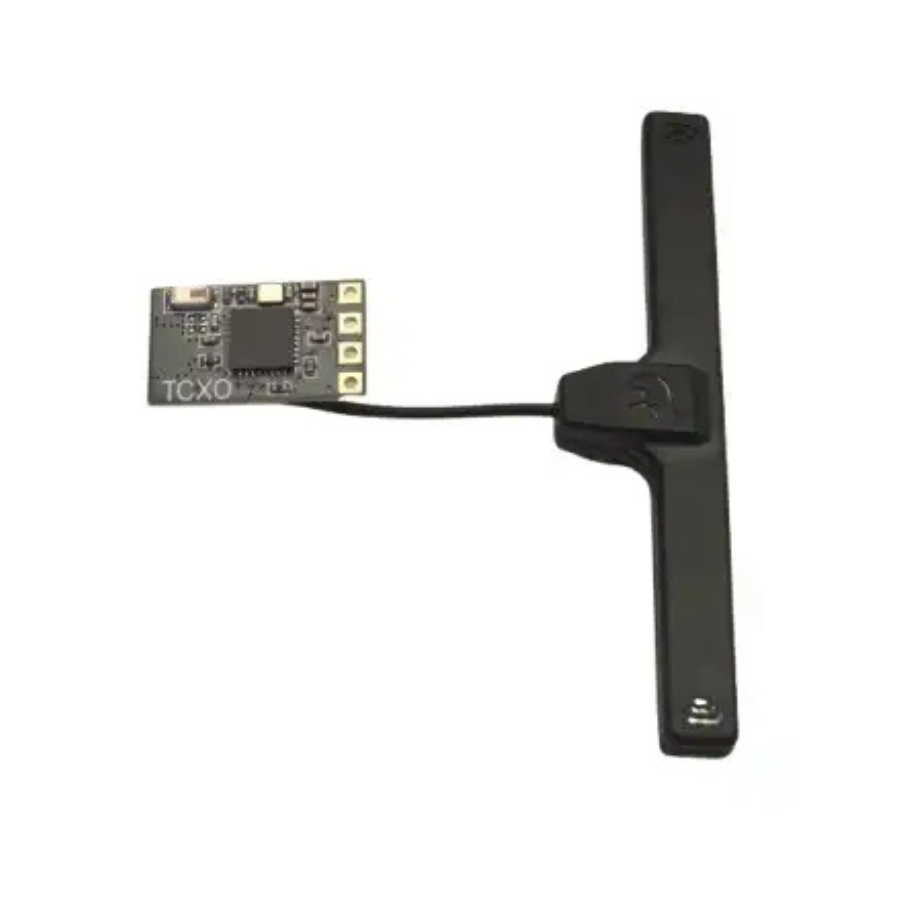

The Jumper RC ELRS AION-RX-MINI is a micro-sized 2.4GHz ExpressLRS receiver designed for FPV and high-performance RC models. Weighing just 1.5g and measuring 17.2×8.4×3mm, it offers up to 16 channels with low latency and long-range connectivity for pilots seeking reliable control in compact builds.
Key Features of Jumper RC ELRS AION-RX-MINI receiver
- Ultra-compact footprint (17.2×8.4×3mm) and featherweight design at 1.5g
- Supports ExpressLRS 2.4GHz protocol with up to 16 controllable channels
- Broad input voltage range from 3.5V to 6V with low 60mA draw at 5V
- Built-in failsafe function ensures model holds position on signal loss
- Full-range connectivity exceeding 5 km for long-distance flights
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Mini and micro FPV racing drones where size and weight are critical
- Fixed-wing models requiring long-range control for aerial mapping
- High-altitude gliders benefiting from reliable signal over extended distances
- Compact RC cars and boats that need lightweight receivers
- Research platforms demanding precise, low-latency response
How to Use Jumper RC ELRS AION-RX-MINI receiver
Mount the AION-RX-MINI in your model ensuring clear antenna placement, then connect a regulated 5V (3.5–6V) power source. Enter binding mode on both your ExpressLRS transmitter and the receiver, wait for the LED to indicate a successful bind, and secure the receiver inside the frame. Finish by configuring channel mapping in your flight controller or radio settings.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I bind the AION-RX-MINI receiver to my ExpressLRS transmitter?
Set your ELRS transmitter or module to binding mode, power on the receiver while holding its bind button or pins shorted, and wait for the LED to blink solid. Release and power cycle to confirm a successful bind.
What voltage should I supply to the receiver?
The AION-RX-MINI operates on 3.5–6V. Most pilots power it from a regulated 5V BEC or flight controller output for consistent performance.
Does the receiver support failsafe settings?
Yes, it includes a failsafe feature. Configure throttle and channel hold positions in your ExpressLRS transmitter settings to ensure safe behavior on signal loss.
