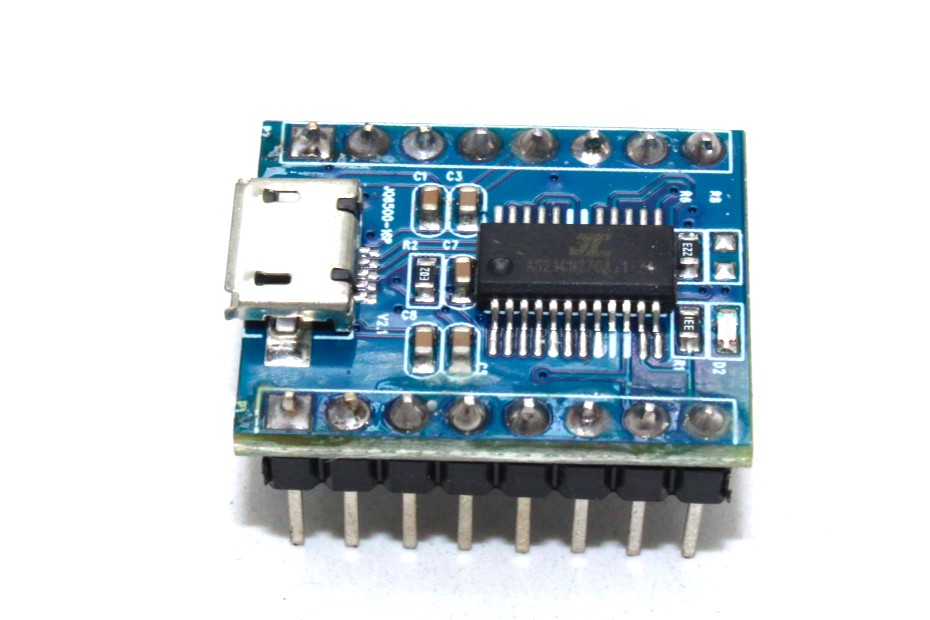

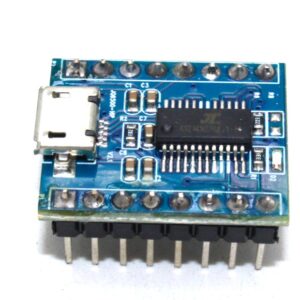

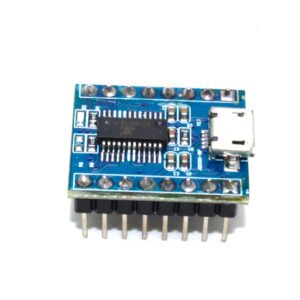

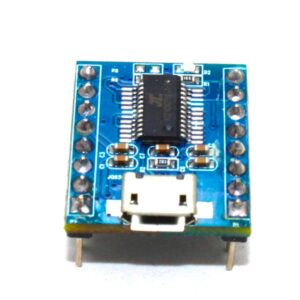

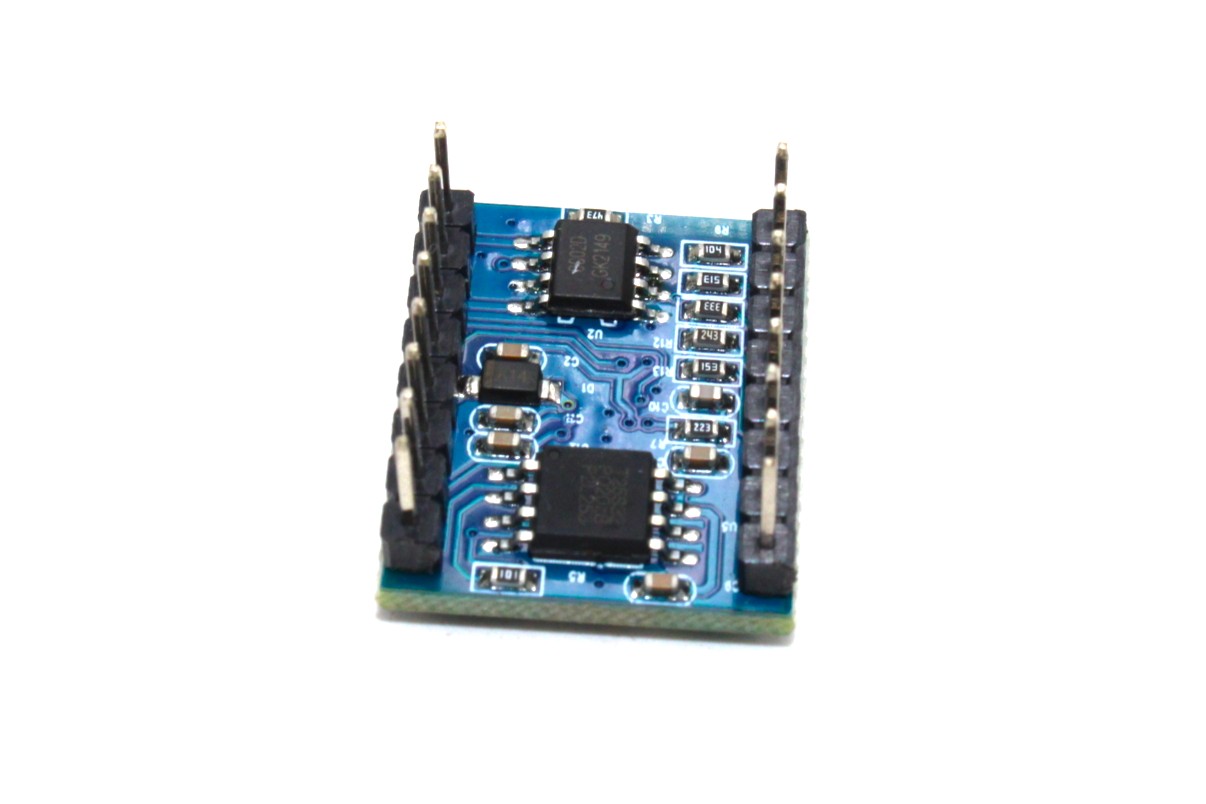

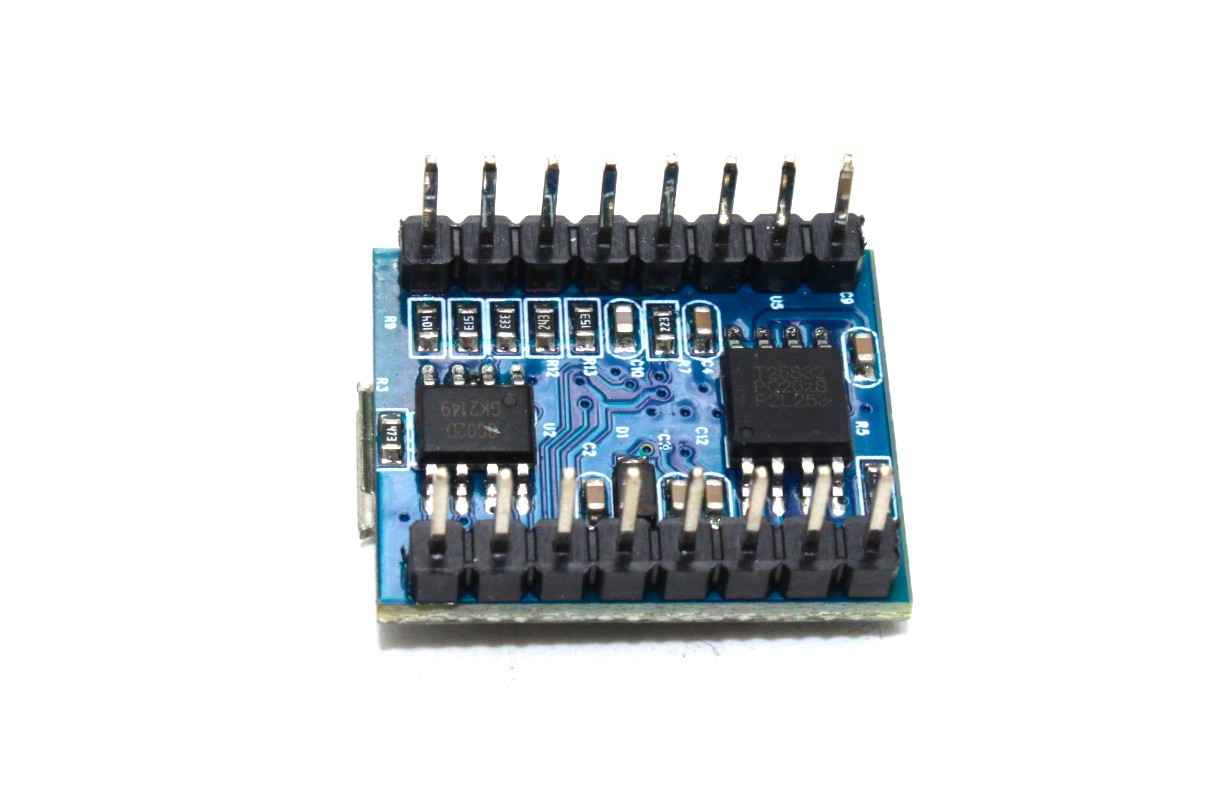

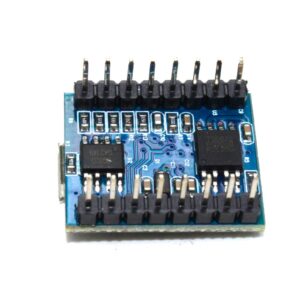

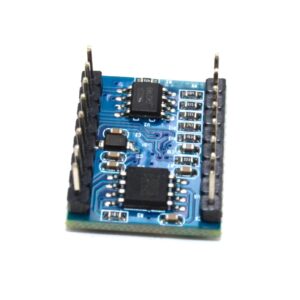

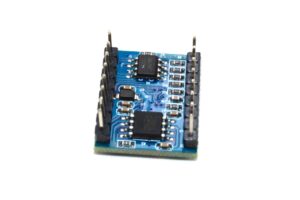

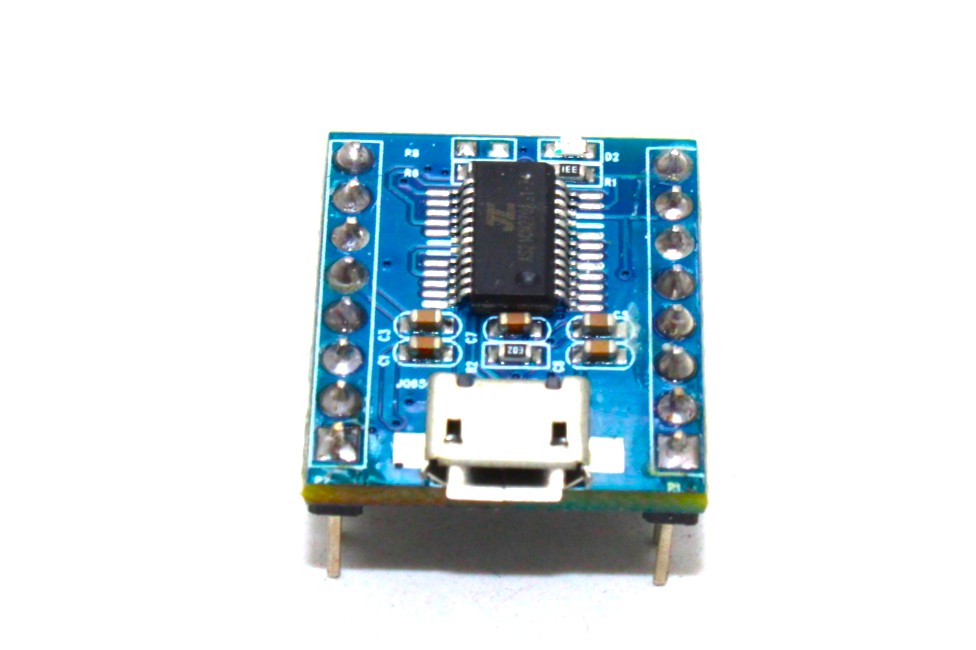

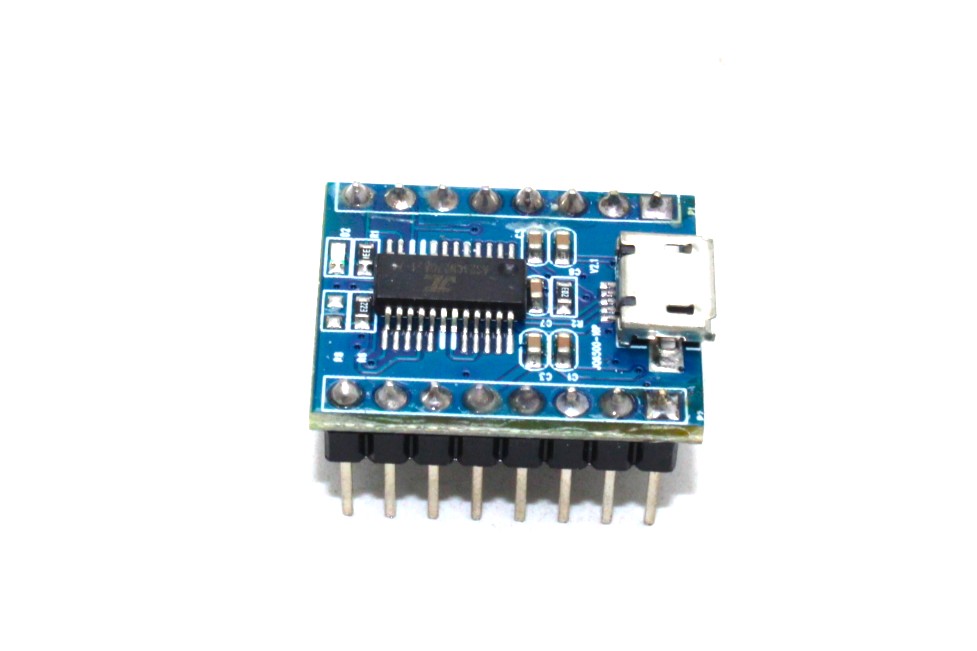

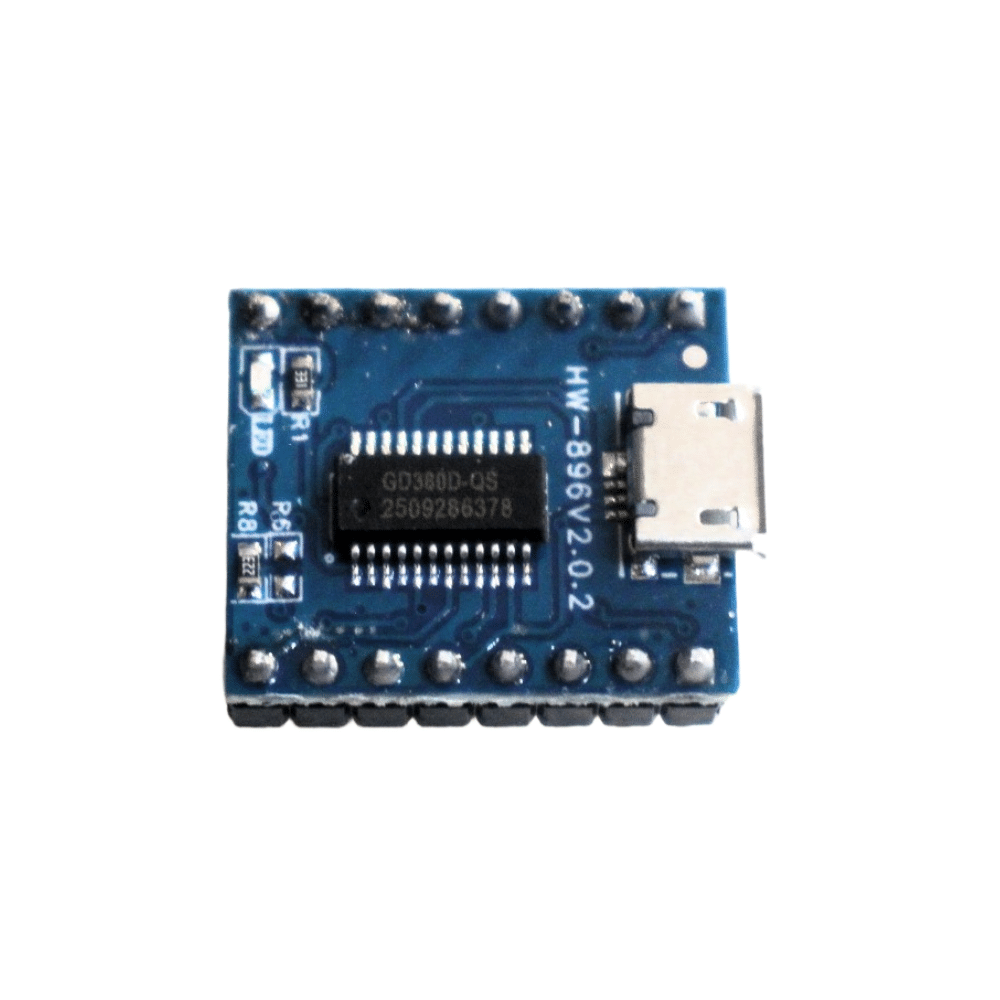

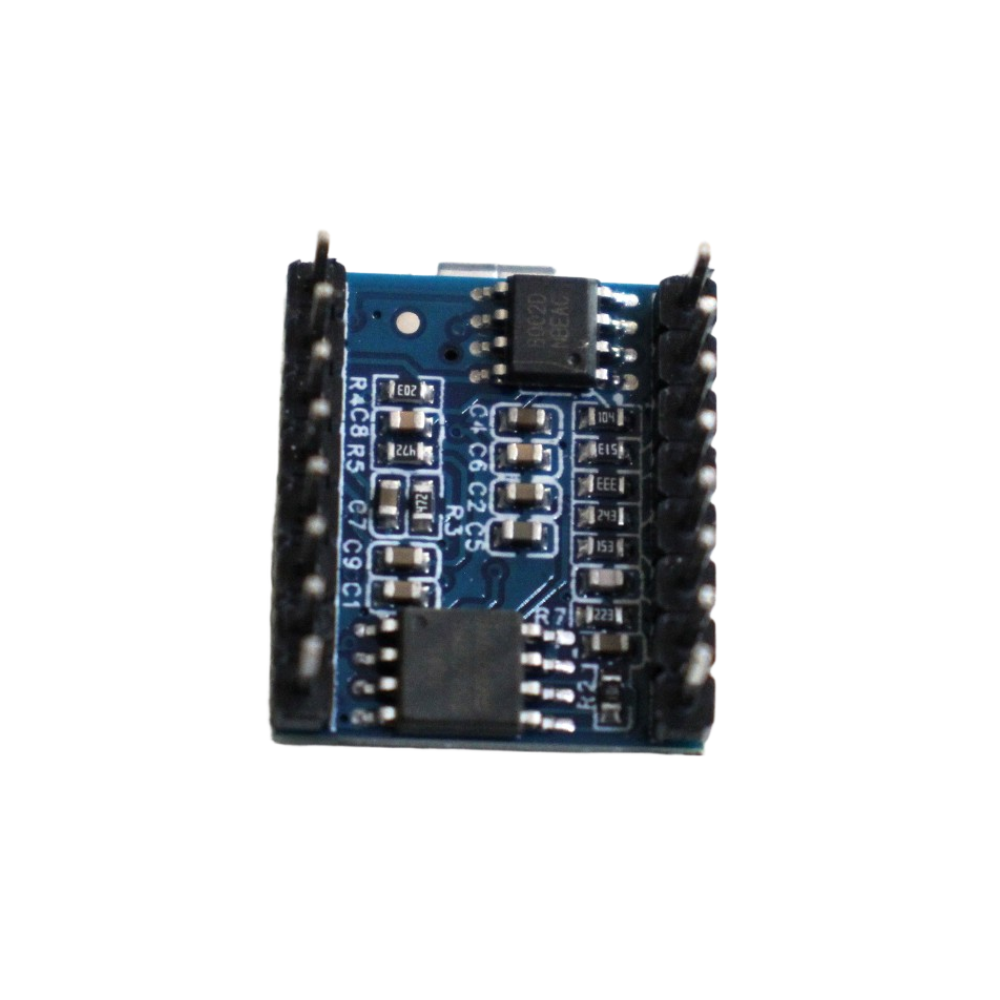

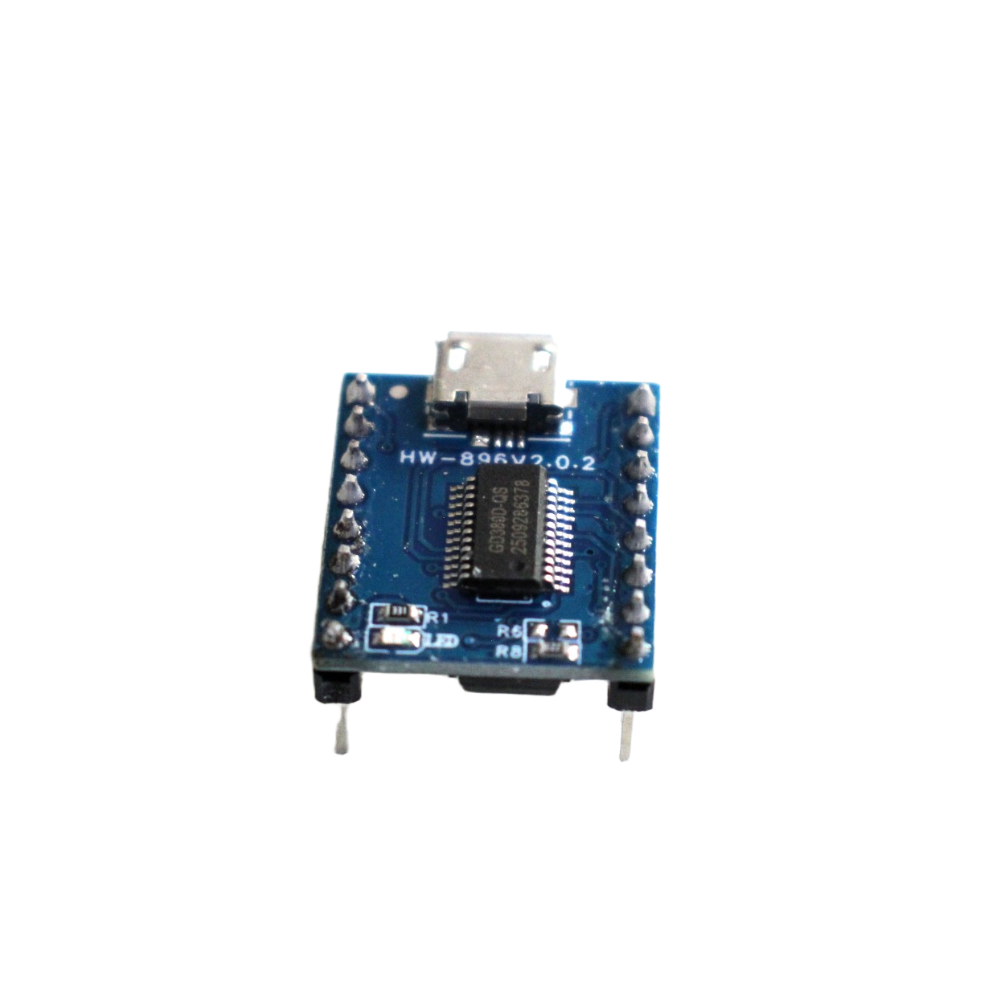

JQ6500 Voice Module MP3 Module MCU Serial Port Control Broadcast one-on-one 5 Way Control Music IC 16Mbit

JQ6500 Voice Module MP3 Module MCU Serial Port Control Broadcast one-on-one 5 Way Control Music IC 16Mbit

The JQ6500 is a chip that can play MP3 and WMV files through serial ports. It has a built-in decoder for these formats and a software that supports the TF card driver. It also allows the computer to update the spi flash content directly and supports the FAT16 and FAT32 file systems. It can play specific music or control how the music is played with simple serial commands, without any complex operations. This product is easy to use, stable and reliable. Moreover, the chip is a customized product that is designed for low-cost solutions in the fixed voice player field.

Features

1.  Support sampling rate (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
2. 24-bit DAC output, dynamic range support 90dB, SNR support 85dB
3. Fully support FAT16, FAT32 file system, maximum support 32G TF card, support 32G U disk, 64M bytes of NOR FLASH
4. A variety of control modes, parallel port control mode, serial port mode, AD button control mode
5. Broadcast language broadcast function, you can pause the background music being played
6. Audio data sort by folder, up to 100 folders, 1000 songs can be assigned every folder
7. Adjustable 7th and 30th volume, 10 adjustable EQ
8. Can be linked to spi flash, connected to the computer can display spi flash drive updates;
9. Can control the playback of designated music through the microcontroller serial port;
10. 10, in the key mode, you can play mode selection: can be interrupted, can not be interrupted, single cycle, large cycle;
11. Can be interrupted: is in the process of playing, press the button will interrupt the current state to perform new;
12. Can not be interrupted: In the process of playing, pressing any key is invalid until the current track is only valid after playing

Application

1. car navigation voice broadcast
2. road transport inspection, toll station voice prompts;
3.  Voice prompts for safety inspections at train stations and bus stations;
4.  voice prompts of power, communications, financial business offices;
5.  the vehicle entering and exiting the channel verification voice prompts;
6. border check voice prompts;
7.  multi-channel voice alert or device operation guide voice;
8.  electric sightseeing car safety driving voice announcement;
9.  automatic fault alarm mechanical and electrical equipment;
10.  fire alarm voice alarm;
11.  automatic broadcast equipment, regular broadcast

Specification

1. MP3 file format:
2. support all bit rate 11172-3 and ISO13813-3 layer3 audio decoding
3. Sample rate support (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48
4. support Normal, Jazz, Classical, Pop, Rock and other sound effects
5. UART interface: standard serial port, TTL level, baud rate can be set
6. Input voltage: 3.2V-5V (best 4.2V);
7. Rated current: 20ma

Package Includes

1 x JQ6500 Voice Module MP3 Module MCU Serial Port Control Broadcast one-on-one 5 Way Control Music IC 16Mbit

Board pinout

JQ6500 library for Arduino
