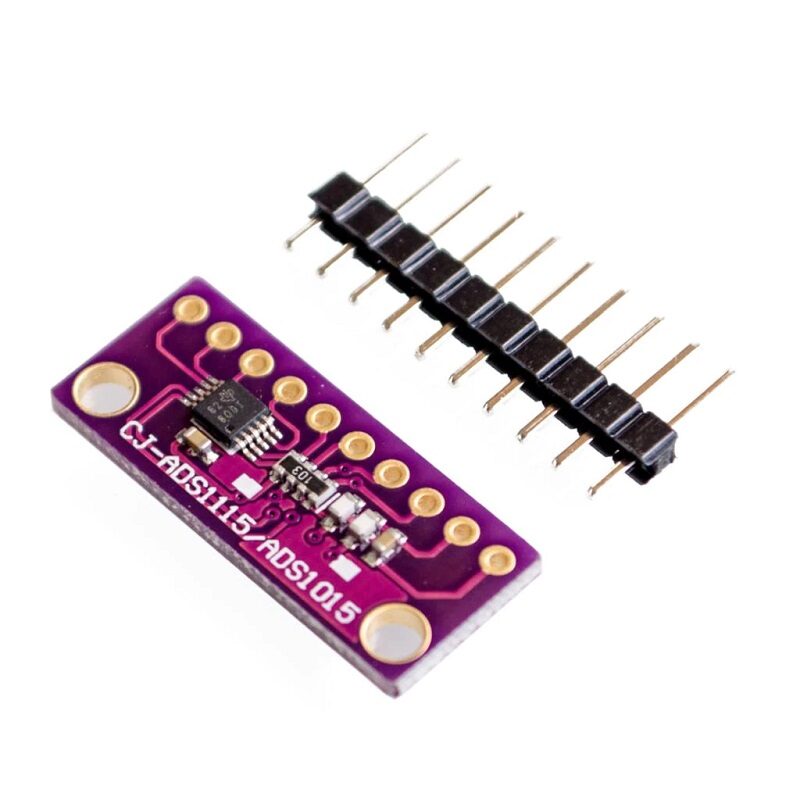

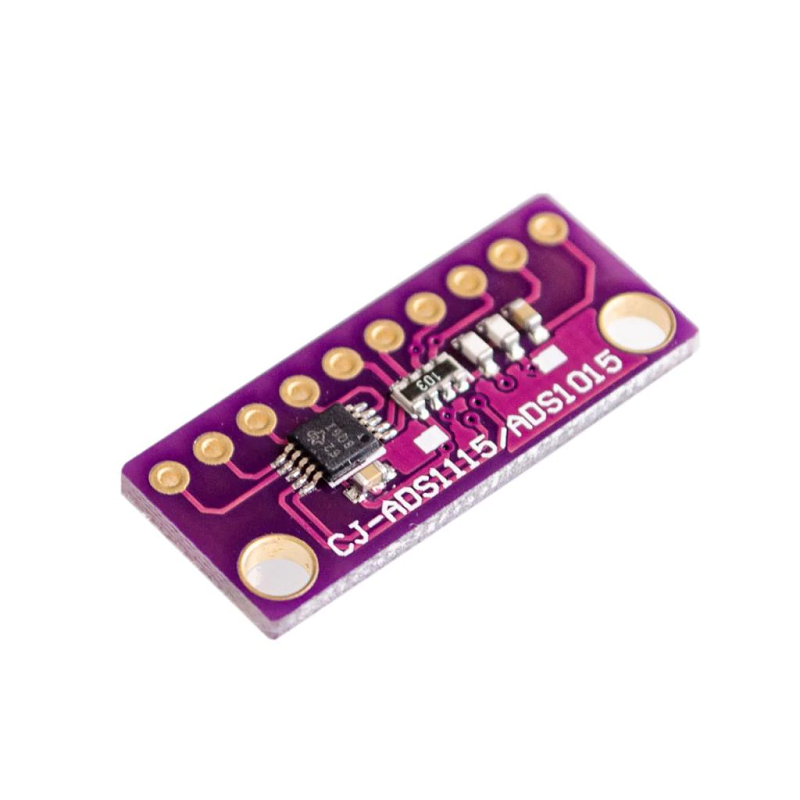

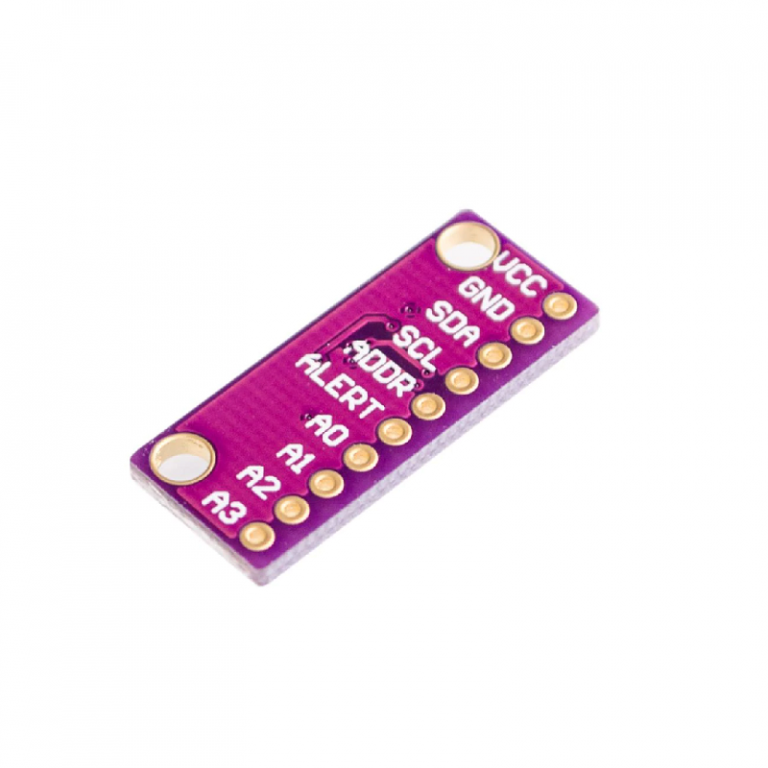

I2C ADS1115 ADS1015 16 Bit ADC 4 channel Module with Programmable Gain Amplifier
Unlock precise data acquisition with the I2C ADS1115 16-Bit ADC Module (4 Channel). Ideal for both professionals and hobbyists, this module delivers exceptional accuracy and versatility for your data measurement projects. Its compact design and durable construction make it easy to integrate, while its efficient conversion of analog signals into digital data ensures reliable performance. Enhance your electronic projects with this high-precision 16-bit Analog-to-Digital Converter (ADC) and enjoy improved accuracy, flexibility, and efficiency in your measurements.
Features:
- 4 Independent Channels
- 16-Bit Precision
- I2C Interface
- Low Power Consumption
- Compact and Durable
- Wide Input Voltage Range
- Built-in Programmable Gain Amplifier
- Versatile Applications
Specification:
| Specification | Value |
|---|---|
| ADC Resolution | 16 bits |
| Number of Channels | 4 |
| Input Voltage Range | Programmable (Dependent on selected gain settings) |
| Programmable Gain | Yes (ADS1115: 2/4/8/16, ADS1015: 1/2/4/8) |
| Interface | I2C (Inter-Integrated Circuit) |
| Input Voltage Polarity | Unipolar |
| Sampling Rate | Up to 860 samples per second (SPS) |
| Input Voltage Range | ±2.048V (ADS1115), ±6.144V (ADS1015) |
| Operating Voltage Range | 2.0V to 5.5V |
| Operating Temperature Range | -40°C to +125°C |
| Supply Current | Typically 150μA |
| External Reference Voltage | Optional (Can be provided externally) |
| Conversion Time | 8ms (Single Conversion) |
| Dimensions | Varies depending on module design |
| Additional Features | Programmable comparator, Internal oscillator, Low-drift voltage reference |
Package Includes:
1 xI2C ADS1115 ADS1015 16 Bit ADC 4 channel Module with Programmable Gain Amplifier
