Description:

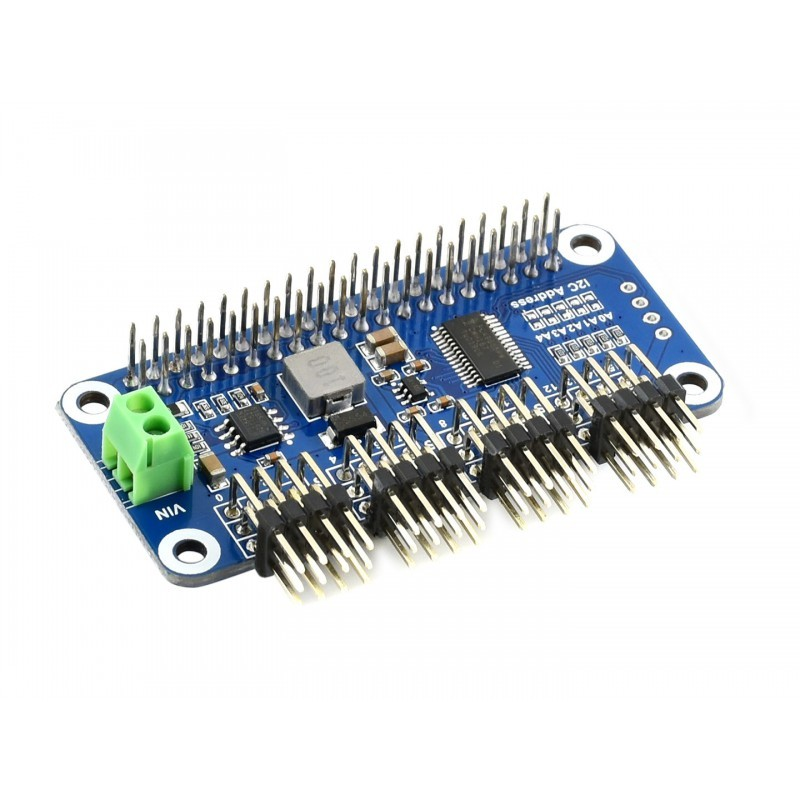

This is a Waveshare Servo Driver HAT (B) for Raspberry Pi, 16-Channel, 12-bit, I2C. While the Raspberry Pi is powerful in most cases, it struggles to provide precise PWM output. Controlling a robotic arm or a hexapod walker directly with the Pi often leads to frustration due to the limited number of PWM outputs and servo jitter. This Servo Driver HAT offers a practical solution, allowing you to bring your projects to life with precise and stable servo control.
Note: Raspberry pi is not included in this kit. You have to buy it separately
Features:
-

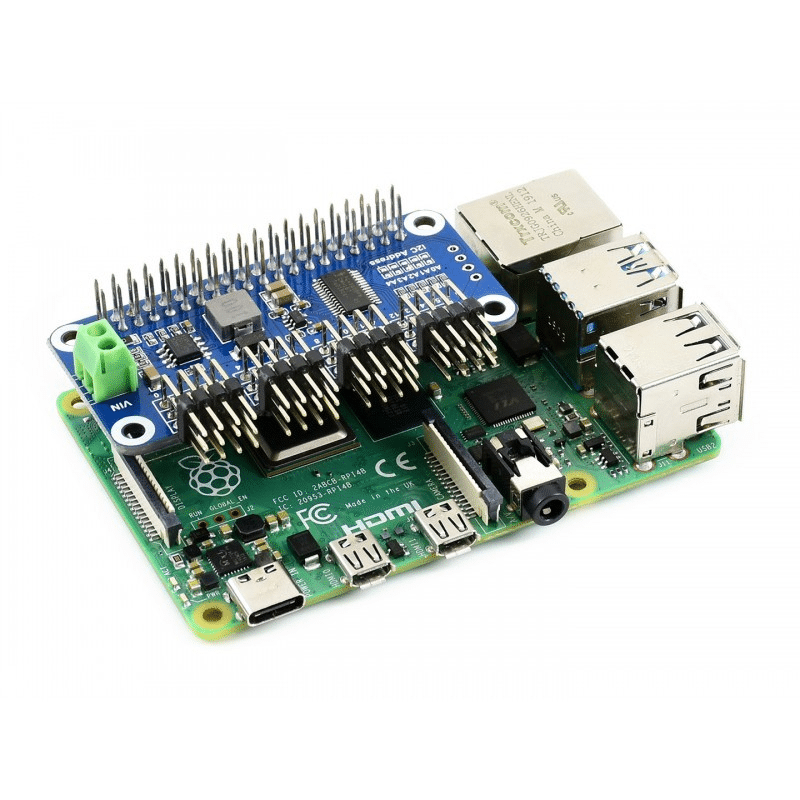

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
-
I2C controlled, using only 2 pins
-
Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
-
Integrates 5V regulator, up to 3A output current, can be powered from the battery through VIN terminal
-
Standard servo interface supports commonly used servo such as SG90, MG90S, MG996R, etc.
-
Reserved I2C control pins, allows working with other control boards
-
Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)
Specification:
| Item Type: | HAT |
|---|---|
| Compatibility: | Pi Series |
| HAT Type: | Servo Driver HAT |
| Input Voltage (V): | 5V (Pi connector) OR 6V~12V (VIN terminal) |
| Logic Input (V) | 3.3 |

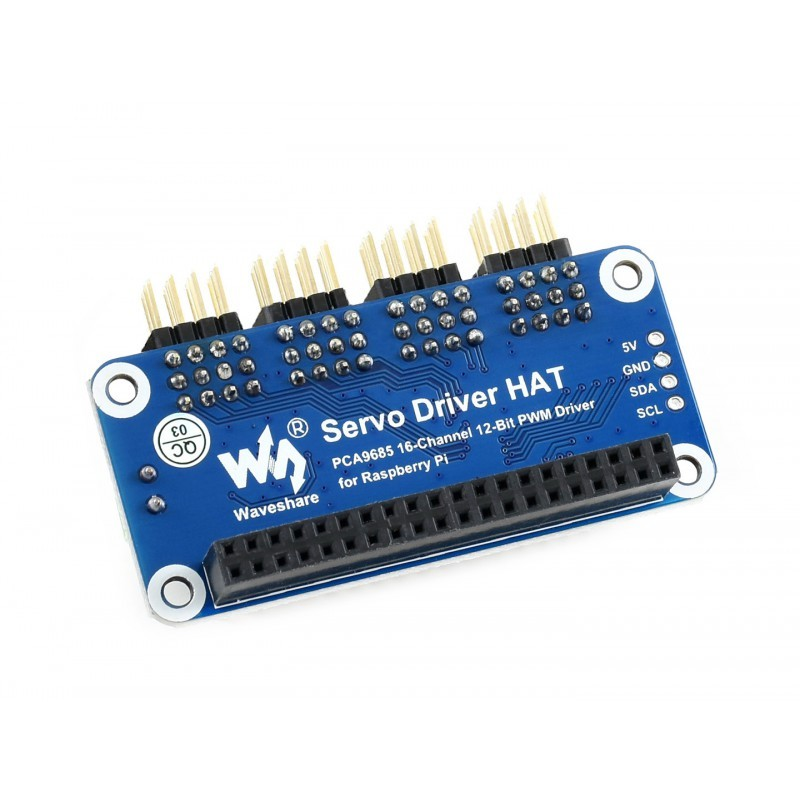

| Driver | PCA9685 |
| Interface: | I2C |
| Mounting Hole Diameter (mm) | 3 |
| Length (mm): | 65 |
| Width (mm): | 30 |
| Height (mm): | 19 |
Package Includes:
-
1 x Waveshare Servo Driver HAT (B) for Raspberry Pi 16-Channel 12-bit I2C
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | I2C |
| SKU | AI7650 |
| Weight | 0.03 kg |
| Availability | In Stock |
