Looking for Holybro Pixhawk Jetson Board? Holybro Pixhawk Jetson Baseboard is available at Zbotic with fast shipping across India.

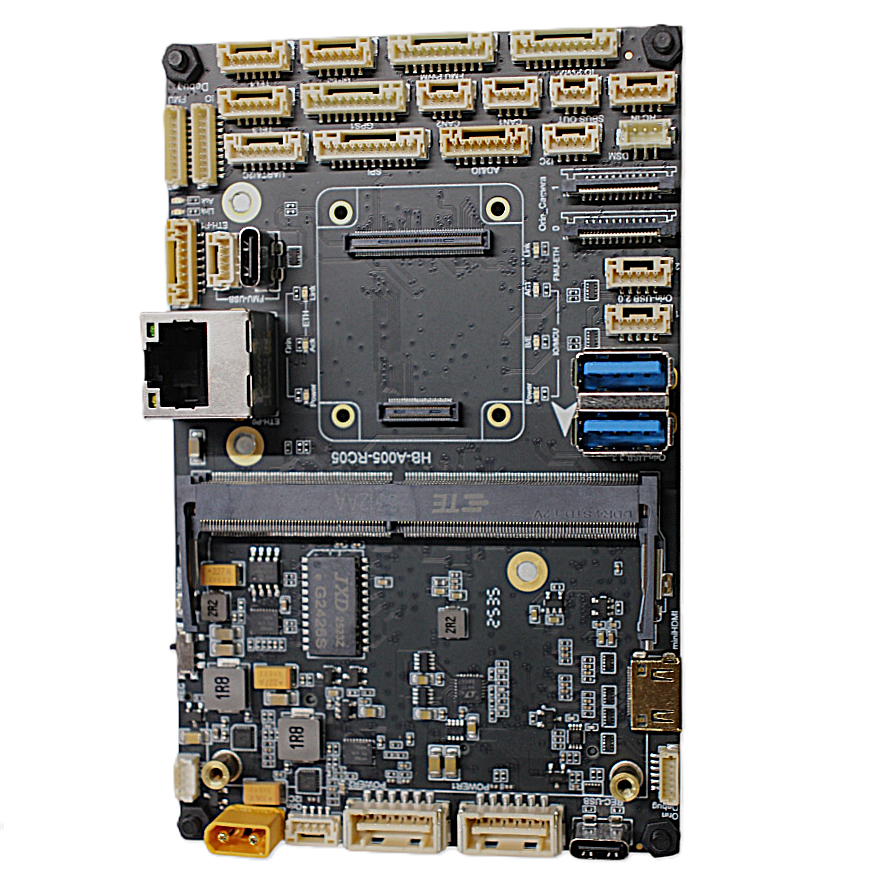

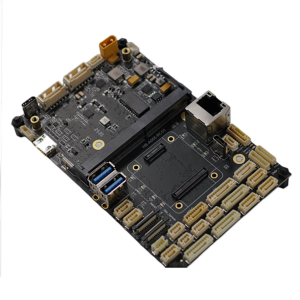

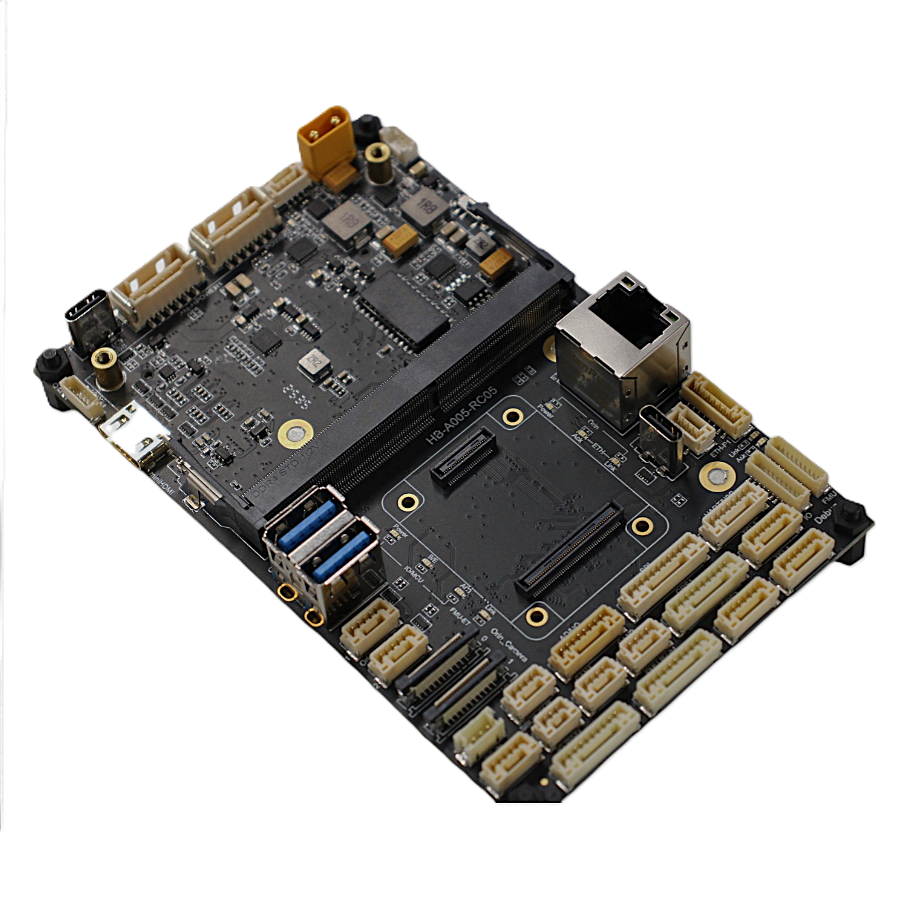

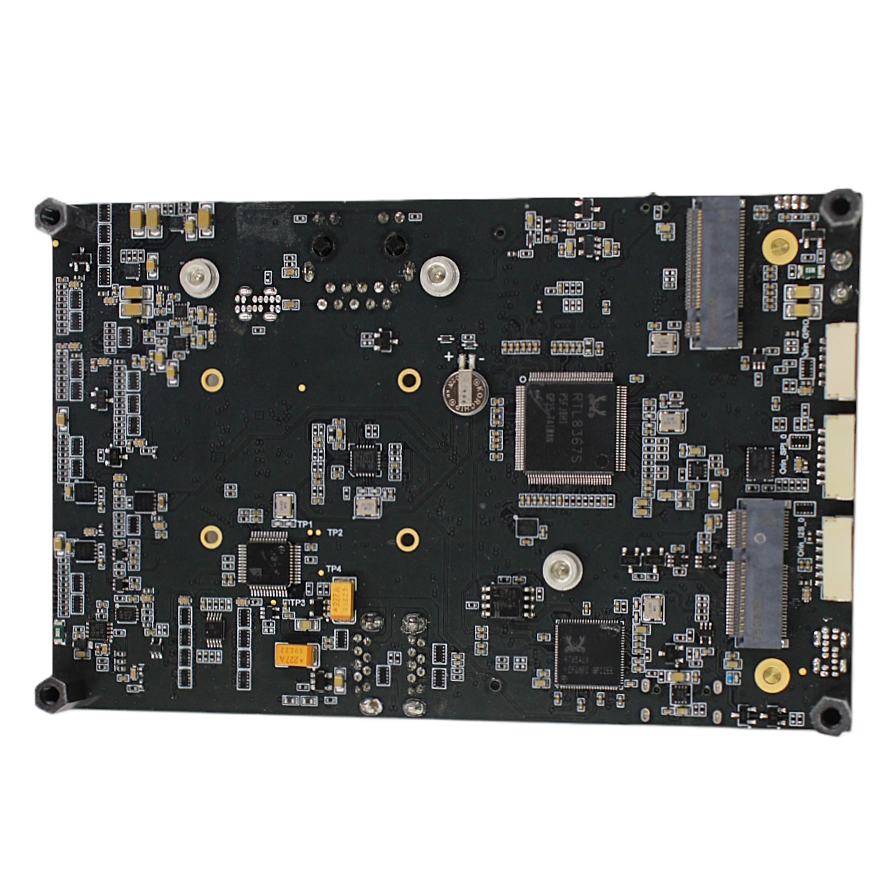

The Holybro Pixhawk Jetson Baseboard is based on the Pixhawk Autopilot Bus open source specification and the NVIDIA Jetson Orin NX/Nano Carrier Board. The Pixhawk Autopilot Bus (PAB) Form Factor enables this to be used with any PAB flight controller such as the Pixhawk 6X.
Features:
- PAB Compatibility: Works with Pixhawk Autopilot Bus (PAB) flight controllers like Pixhawk 6X.
- NVIDIA Jetson Integration: Supports Jetson Orin NX/Nano for AI and advanced computing.
- Open-Source Design: Built on the PAB open-source specification for flexibility.
- Powerful Processing: Enables real-time AI tasks like image recognition and obstacle avoidance.
- Versatile Use: Ideal for UAVs, robotics, and autonomous applications.
Applications:
- UAVs and Drones: Advanced flight control, navigation, and real-time AI processing.
- Autonomous Robotics: Obstacle avoidance, path planning, and object detection.
- Aerial Mapping and Surveying: High-resolution image processing and analysis.
- Search and Rescue: Real-time scene analysis and target identification.
- Agriculture: Crop monitoring and automated spraying.
- Industrial Automation: Precision control and AI-enhanced decision-making.
Specifications:

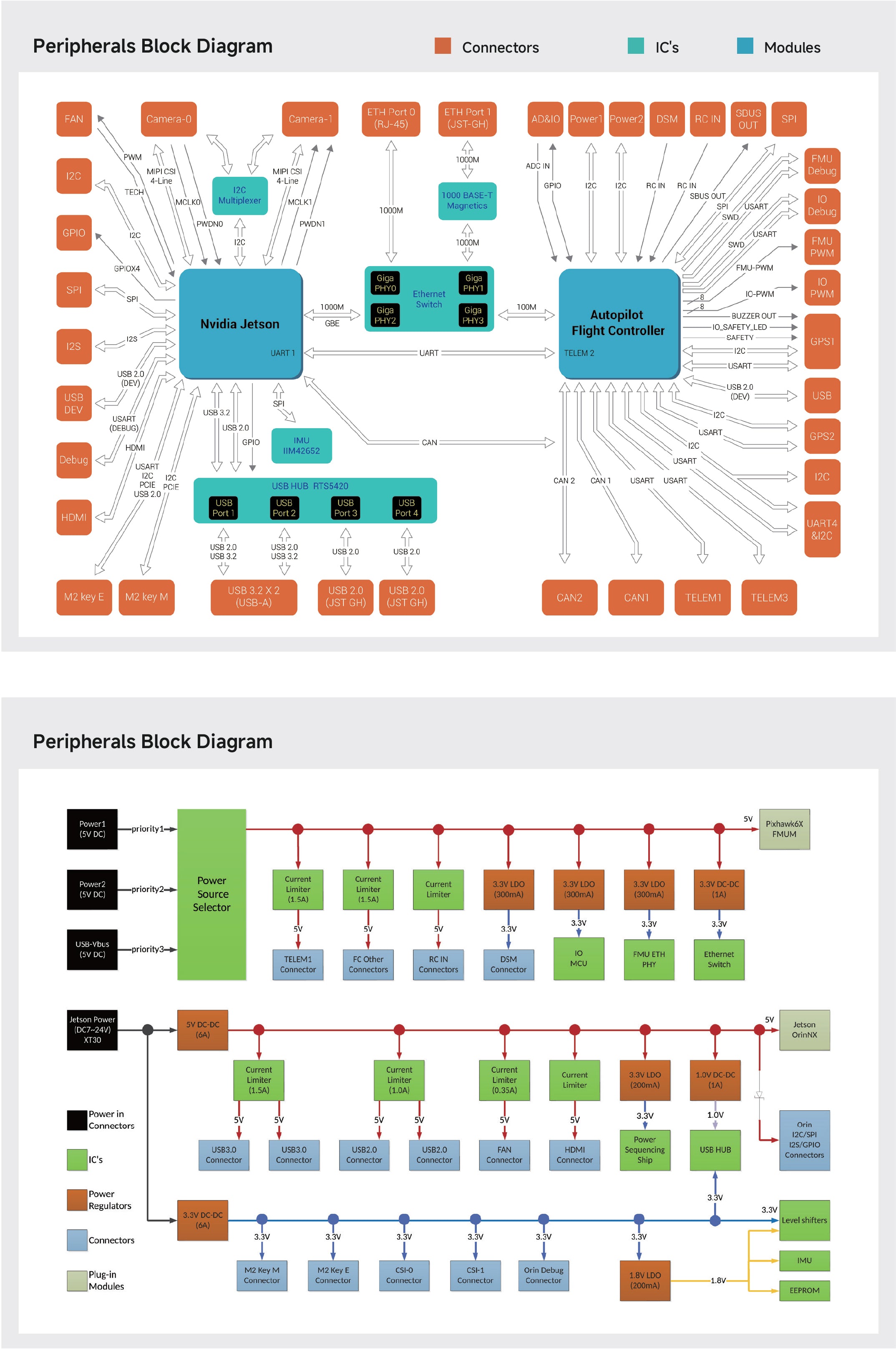

Jetson Connections:
- Ethernet: 2 Gigabit ports via Ethernet switch.
- Cameras: 2 MIPI CSI inputs, Raspberry Pi 22-pin connectors.
- USB: 2x USB 3.0, 2x USB 2.0 (includes USB-C for debugging).
- M.2 Slots: NVMe SSD (Key M), WiFi/Bluetooth (Key E).
- Video Output: Mini HDMI.

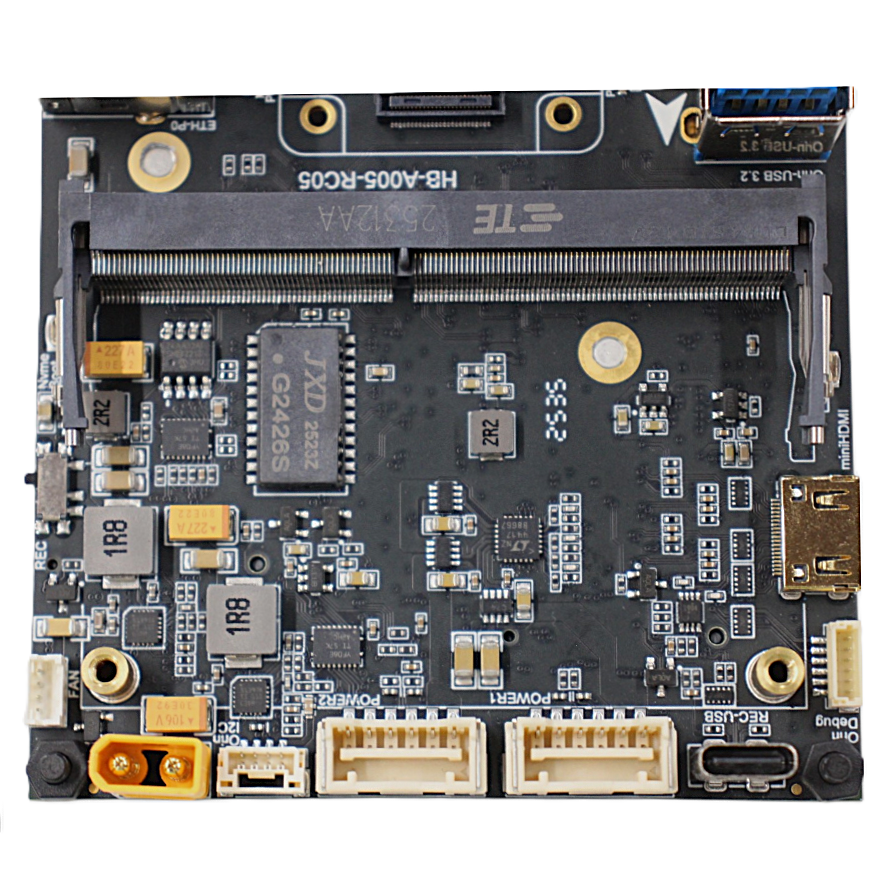

Power:
- Input Voltage: 7–21V (3S-4S batteries).
- External UBEC: Supports 12A for higher voltages.

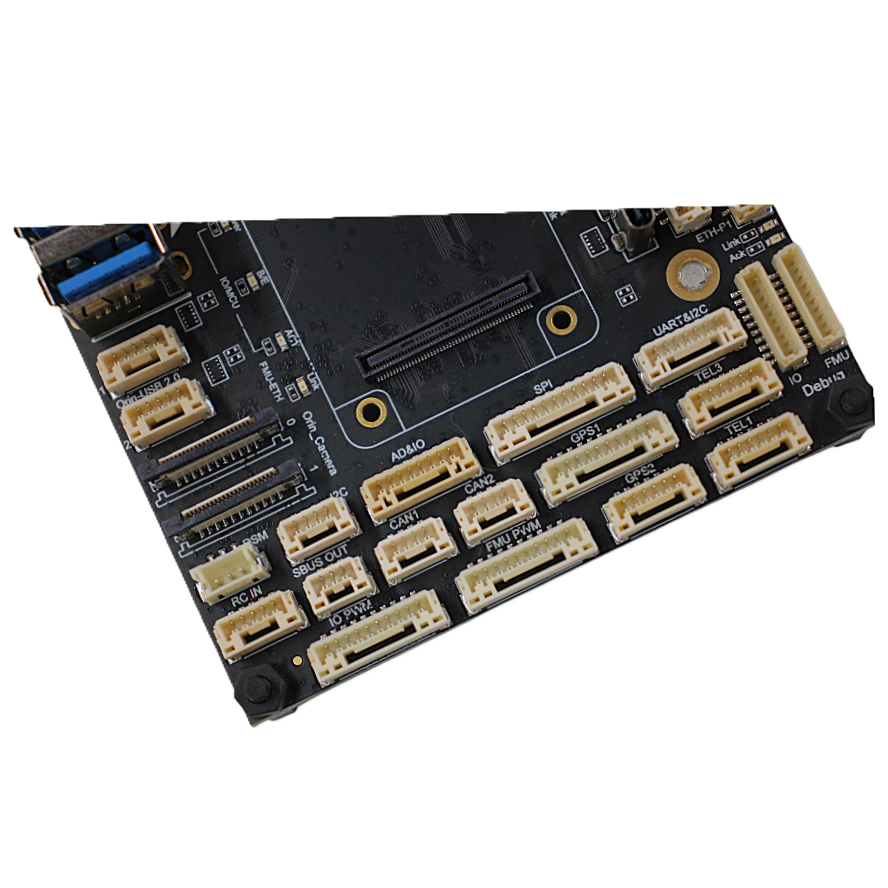

Autopilot Connections:
- Interfaces: PAB connectors, GPS, CAN, SPI, and UART.
- PWM Outputs: 16 channels.
- Telemetry Ports: 3 ports (1 linked to Jetson).
Specifications:
| Item Type: | Other Accessories |
|---|---|
| FMU Processor | STM32H753 |
| IO Processor | STM32F103 |
| Sensor | Accel/Gyro: 3x ICM-45686 Barometer: ICP20100 & BMP388 Mag: BMM150 |
Package Includes:
1 x Holybro Pixhawk Jetson Baseboard
1 x USB TO C Type cable 1 meter
1 x Can and 12C-Splitter
2 x 3 mm pan head screw
2 x 5 mm screw
2 x Screw Washer
2 x PWMIN
1 x RJ45 Male connector
2 x JST-PA Male to Female USB connector
1 x DC barrel connector
1 x JST male Connector 10 wire
1 x JST male Connector 6 wire
2 x JST-PA Male to Female plug connector
2 x JST-XH 6 wire Male to Male connector
3 x JST- PA 4 wire Male to Male connector
3 x JST- PA 6 wire Male to Male connector
1 x JST- PA 8 wire Male to Male connector
2 x JST- PA 10 wire Male to Male connector
3 x JST- PA 7 wire Male to Male connector
1 x JST- PA 11 wire Male to Male connector
Holybro Pixhawk Jetson Baseboard Overview

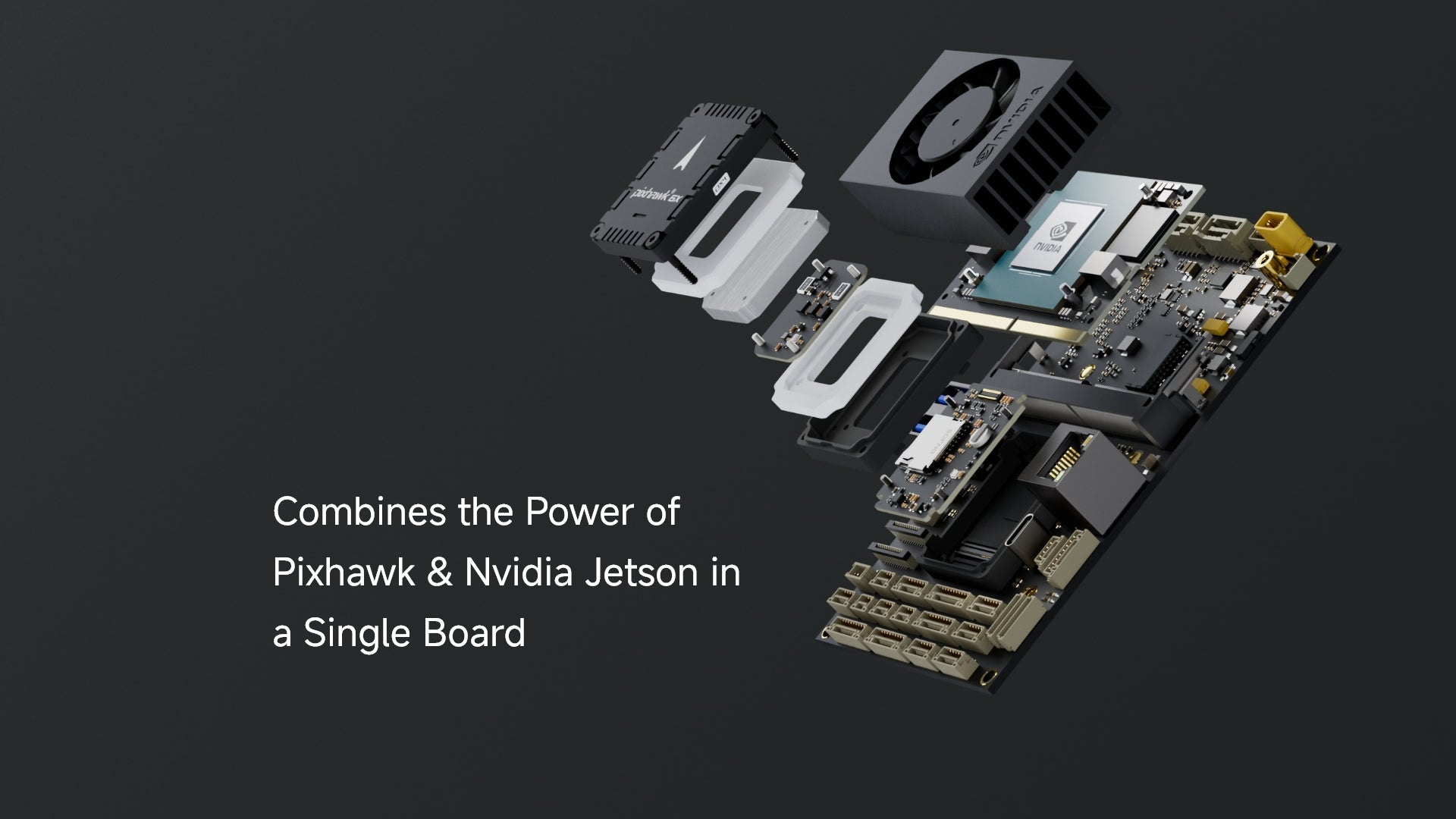

The Holybro Pixhawk Jetson Baseboard is a carrier board designed to integrate NVIDIA Jetson Orin NX or Nano modules with Pixhawk Autopilot Bus (PAB) flight controllers like the Pixhawk 6X. It provides the necessary connectors and power management to run real-time AI tasks aboard UAVs and robotics platforms.
Key Features of Holybro Pixhawk Jetson Baseboard
- Pixhawk Autopilot Bus (PAB) compatibility for seamless connection with PAB flight controllers such as Pixhawk 6X
- Support for NVIDIA Jetson Orin NX and Jetson Nano modules for onboard AI compute
- Ethernet and USB ports for high-speed data communication and peripheral integration
- Dedicated camera inputs to connect MIPI-CSI cameras for vision processing
- Two M.2 slots to install NVMe SSD storage and Wi-Fi modules for expanded capacity and connectivity
- Safe, redundant power design with dual input paths to protect against voltage drop and ensure continuous operation
- Fast shipping from Zbotic across India, ensuring you get your baseboard quickly
Applications and Use Cases
- Autonomous drone platforms running AI-based obstacle avoidance and target tracking
- Computer vision research with onboard image recognition in robotics projects
- Edge computing nodes for environmental monitoring using TensorRT or custom neural networks
- High-speed data logging with NVMe SSD for flight test and sensor fusion experiments
- Wireless telemetry and real-time control via added Wi-Fi modules in outdoor robotics
How to Use Holybro Pixhawk Jetson Baseboard
Start by mounting your Jetson Orin NX or Nano module onto the carrier board’s M.2 connector and secure it with the provided screws. Connect your Pixhawk 6X or other PAB-compatible flight controller via the standard PAB ribbon cable. Plug in Ethernet, USB, and camera peripherals as needed, then attach power inputs to the redundant power terminals. Finally, install any NVMe SSD or Wi-Fi card into the remaining M.2 slot and power up the system for configuration.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which Pixhawk flight controllers are compatible?
The Pixhawk Jetson Baseboard is fully compatible with any Pixhawk Autopilot Bus (PAB) flight controller, including the Pixhawk 6X, via the standard PAB connector.
Can I use both M.2 slots simultaneously?
Yes, one M.2 slot supports NVMe SSD storage and the other can host a Wi-Fi module, allowing simultaneous expansion of storage and wireless connectivity.
How do I power the baseboard safely?
Connect your 5–36 V power sources to the dual power input terminals. The redundant design ensures uninterrupted operation if one input experiences dropouts.
Drone Night Flying: Lights, Settings and DGCA Rules India
Drone Night Flying in India: Lights, Settings, and DGCA Rules Explained Flying your drone at night unlocks a...
Read More →
Drone Surveying: Ground Control Points and Mapping
Table of Contents Understanding Drone Surveying Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
Drone Antenna Guide: LHCP vs RHCP, Omni vs Patch
Table of Contents Understanding Drone Antenna Guide Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| SKU | AI7427 |
| Weight | 0.3 kg |
| Availability | In Stock |
Applications & Use Cases
The Holybro Pixhawk Jetson Baseboard is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
