This is the CW rotation variant of the Hobbywing X6 Plus G2 Motor- CW in Drone Motor. Available at ₹23,190.30 (₹22,086.00 + GST) with free shipping across India.

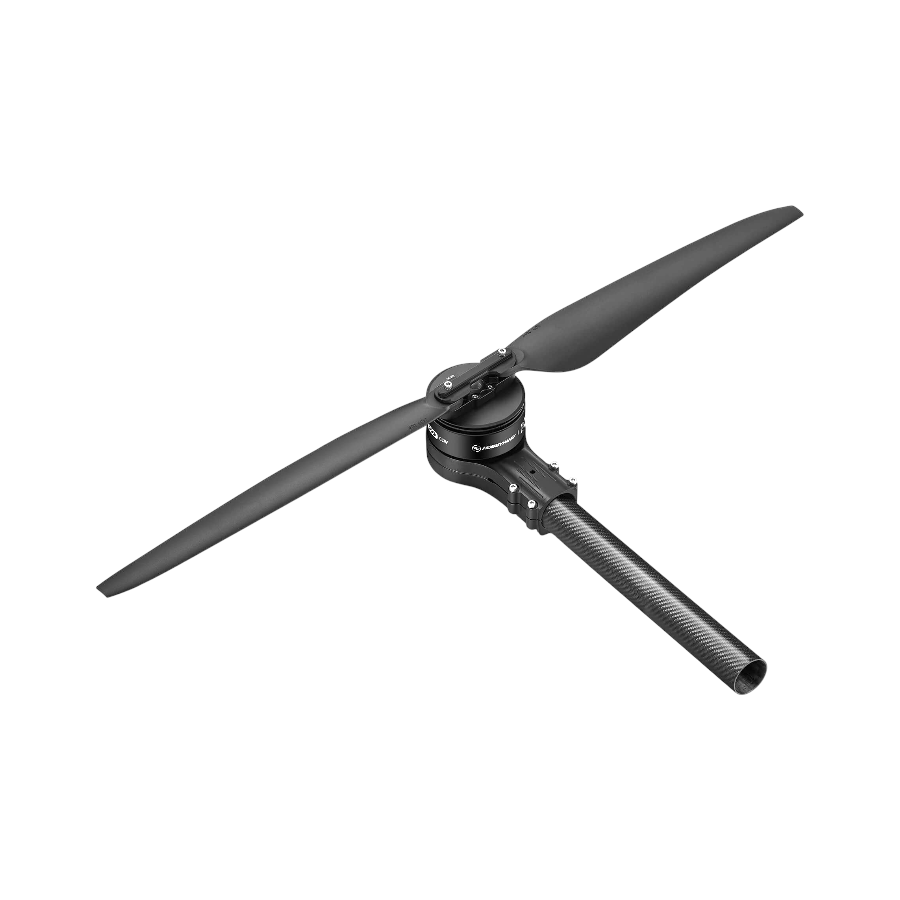

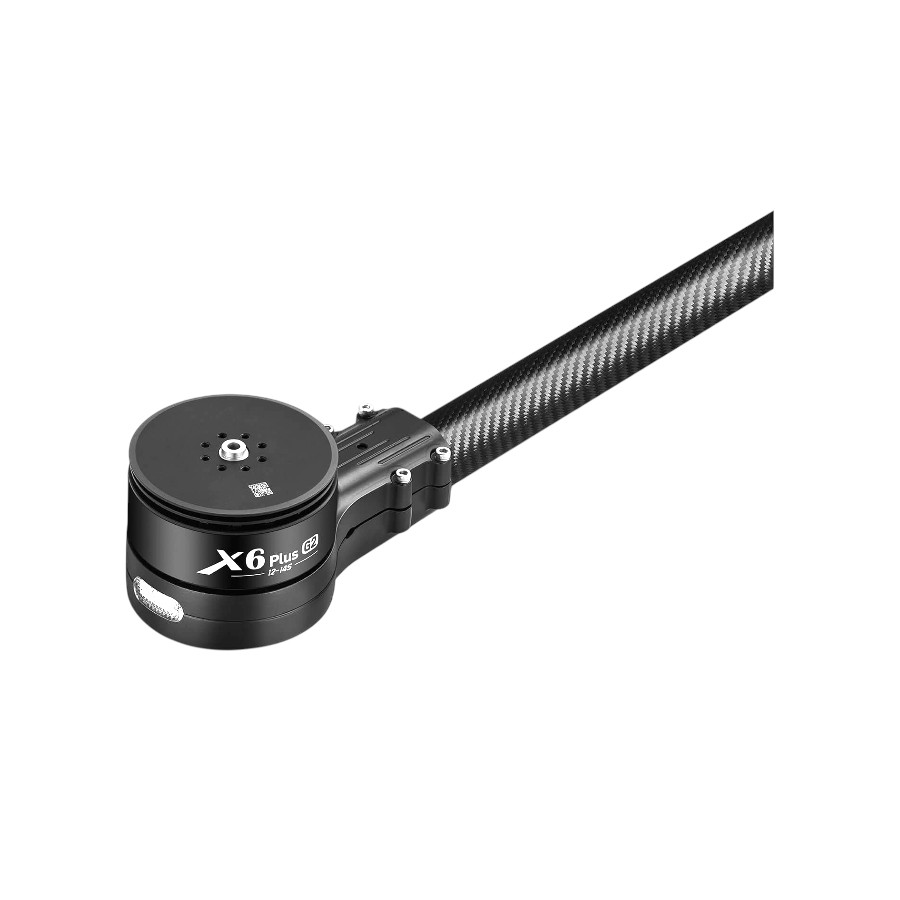

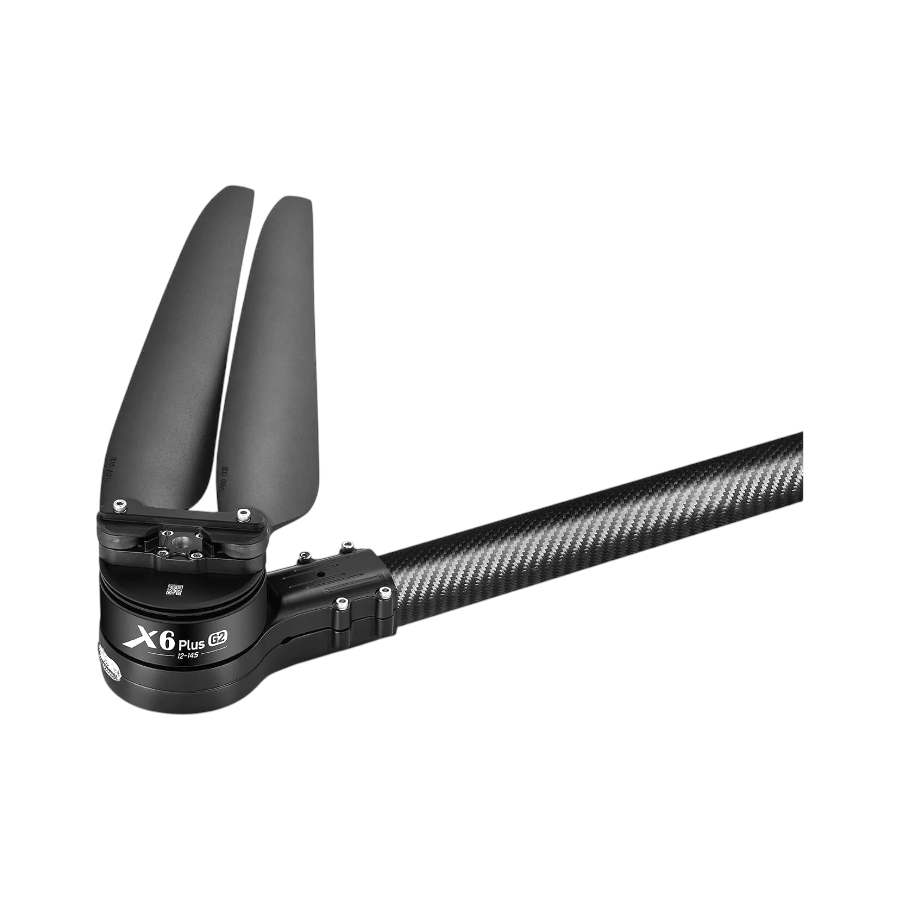

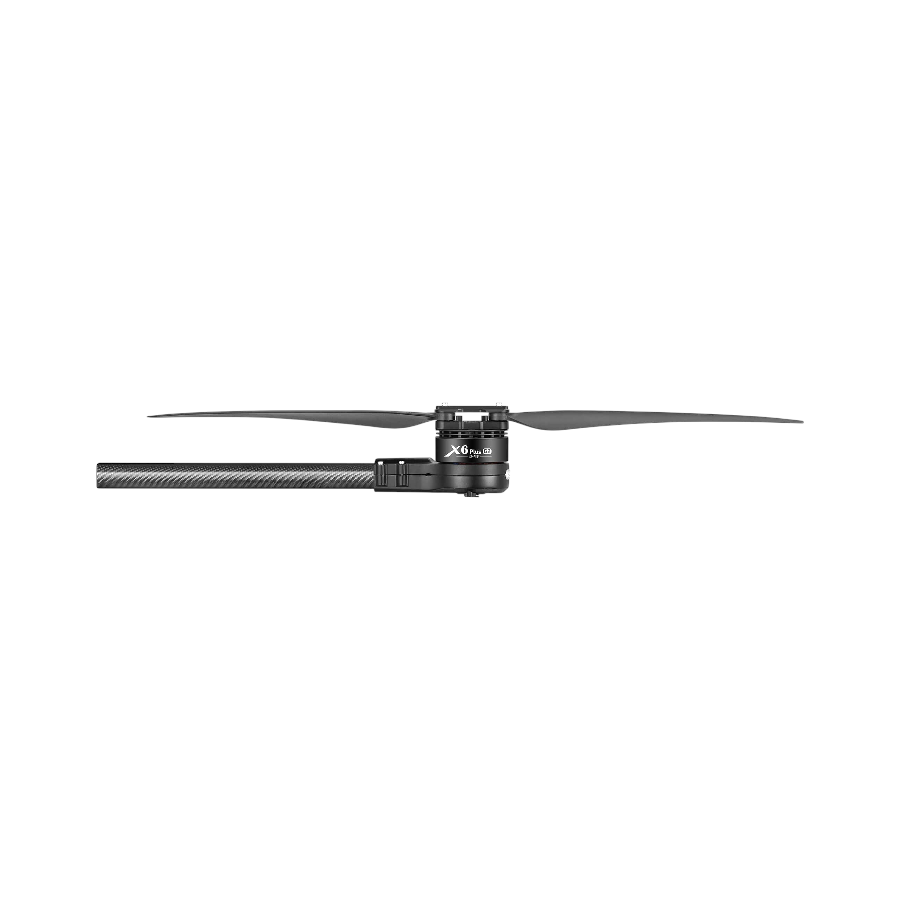

Hobbywing X6 Plus G2 Motor- CW
Description:
The Hobbywing X6 Plus G2 Motor – CW is a next-generation integrated propulsion system designed for small-to-mid-sized industrial UAVs. Built on the proven X6 platform, it delivers enhanced efficiency, improved thermal performance, and higher thrust, making it ideal for agricultural drones, surveillance, and training applications.
-
Specification:
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight(with cable and Props)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 12.5 kg(Sea level)
- 6kg (Sea level)
- 7.3 g/W
- 12S~14S(LiPo)
- 14S-54V / 12S-48V
- 18~63 V
- D30 mm
- 748 g*
- Power cable: 14AWG 870 mm* Signal cable: 10000 mm*
- -20~50 ℃
- IPX6
- 820 W
- 705 W
- Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL
-
- Rated voltage
- Communication protocol
- Peak current (3 seconds)
- Continuous current
- Throttle travel calibration
- Double throttle signal
- Operating pulse width
- Failure storage & Log
-
- 14 S / 12 S
- Cyphal(UAVCAN)
- 80 A (3s)
- 25 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 150 KV
- 28N24P
- 62×18 mm
- 68.9 mm
-
- Model
- Total Weight
- Material of Props
- Single Weight
-
- MFP 24×8.0 (Folding propeller)
- 107 g*
- Carbon fibre-reinforced nylon composite material
- 33.5 g*
Package Includes:
1xHobbywing X6 Plus G2 Motor- CW
Flywoo vs Geprc vs iFlight: Best FPV Drone Frame Brands Compared
Flywoo vs Geprc vs iFlight: Best FPV Drone Frame Brands Compared (2026) Choosing an FPV frame brand is...
Read More →
Drone LiDAR Sensor Guide: Obstacle Avoidance & Mapping
Drone LiDAR Sensor Guide: Obstacle Avoidance and Precision Mapping LiDAR — Light Detection and Ranging — is one...
Read More →
Solenoid Valve Control with Arduino: 12V & 24V Guide
Table of ContentsWhat Is a Solenoid Valve?Types of Solenoid ValvesWhy You Cannot Drive a Solenoid Directly from ArduinoMethod...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Package Quantity | 6 pcs |
| SKU | AI8160 |
| Weight | 0.8398 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hobbywing X6 Plus G2 Motor- CW is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Hobbywing product sourced from authorized channels
