This is the CW rotation variant of the Hobbywing X15 Drone Motor With Propeller Combo Kit- CW in Drone Kit. Available at ₹86,098.95 (₹81,999.00 + GST) with free shipping across India.
Description:
The Hobbywing X15 Drone Motor With Propeller Combo Kit- CW is built for power, endurance, and precision, making it the ultimate propulsion system for large-scale agricultural drones. Delivering up to 72 kg of thrust per rotor, it effortlessly supports payload-heavy missions, even under tough environmental conditions. With a carbon composite 63×24″ propeller, integrated 5500W motor, and waterproof ESC, this system is engineered for efficiency and reliability. Designed to work with 18S LiPo batteries and 60 mm drone arms, it also features CAN communication and advanced parameter tuning. Whether you’re spraying, mapping, or transporting, the X15 is your trusted partner in agricultural drone applications.
Note:
1.Measured in a lab environment at a room temperature of 25°C and sea level altitude with throttle adjustment.
2.Weight errors may occur due to different production batches.
3.Based on HOBBYWING Protocol, the basic parameters of ESC can be adjusted using HOBBYWING Data Link, CAN Analyzer, Drone CAN GUI, etc.(Caution: Parameter modifications will affect actual flight performance; adjust with caution.)
4.Both methods support the change of throttle stroke.
Flight controller: When an open-source flight controller is used, please adjust the stroke of the throttle channel corresponding to the motor to 1050-1950 μs, and change the flight controller parameter PWN_MIN to 1050, and PWM_MAX to 1950; when a closed-source flight controller is used, it is necessary to first change the joystick stroke of the remote controller, save the settings, and enter the flight controller settings. Then, calibrate the joystick stroke of the remote controller, and save the settings.
Motor: Enter the propulsion system for parameter adjustments and change the throttle stroke based on actual needs.
5.Carbon fiber reinforced nylon composite material.
Features:
- Extreme Thrust: Up to 72 kg per rotor for heavy-lift operations
- Optimized Efficiency: Delivers 8.2–7.6 g/W at rated thrust (37.5 kg)
- Rugged & Waterproof: IPX6-rated motor and ESC for harsh environments
- Smart Control: CAN communication and advanced parameter tuning
- Integrated Design: Motor, ESC, and 63×24” propeller in one complete unit
- Heavy Payload Support: Ideal for quadcopters with up to 150 kg total payload
Specification:
| Item Type: | X15 Motor Combo CW |
|---|---|
| Motor Type: | Brushless DC Motor |
| Model No: | X15 |
| Max Thrust | 72 kg (at 69V, Sea Level) |
| Max. Takeoff Weight (kg): | 32.5 – 37.5 |
| Efficiency | 8.2 – 7.6 g/W |
| Operating Temperature (°C): | -10°C to +40°C |
| Diameter | 60 mm |
| Propeller | 63 x 24″ (Carbon Plastic) |
| Propeller Type: | CW |
| Bearing | Waterproof |
| Max Voltage | 78.3 V |
| Max Current (A) | 300 A (≤ 60°C ambient) |
| ESC Type | PWM (3.3V/5V) + CAN |
| Throttle range | PWM + CAN |
| Frequency Range: | 50 – 500 Hz |
| Baud Rate | 500 kbps (CAN) |
| Protocol | Drone CAN, HWCAN |
| Sampling Rate | 83.3% |
| Stator Size (mm) | 156*23 |

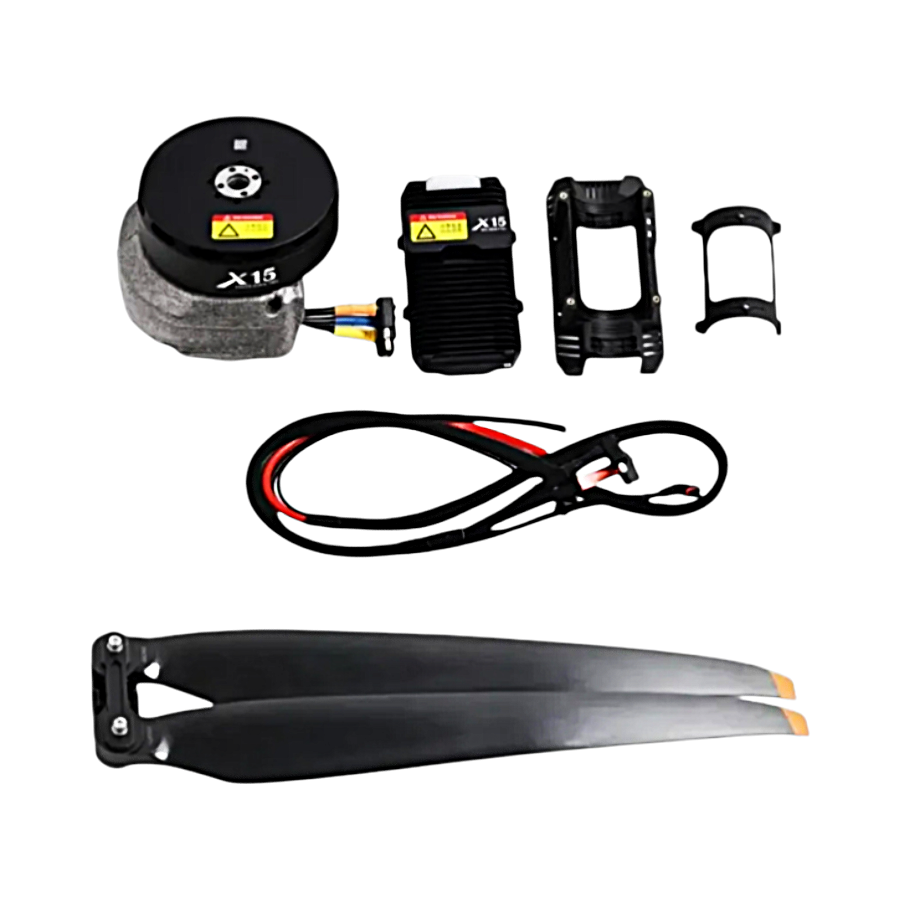

Package Includes:
1 x Hobbywing X15 Drone Motor With Propeller Combo Kit- CW
1 x Electronic Speed Controller (ESC)
1 x Propellers
1 x Power cables
1 x Mounting accessories
