Hobbywing X15 Drone Motor+ Propeller Combo CCW

This is the CCW rotation variant of the Hobbywing X15 Drone Motor+ Propeller Combo CCW in Drone Kit. Available at ₹98,603.19 (₹93,907.80 + GST) with free shipping across India.

Description:

Engineered for high-efficiency and heavy-lift agricultural drones, the X15 propulsion system combines X15 Drone Propeller Combo CCW robust power, intelligent protection, and energy efficiency. With a maximum thrust of 72 kg per arm and compatibility with a maximum takeoff weight of 149 kg, it ensures stable, agile, and precise flight performance.

X15 Drone Propeller Combo CCW Its modular design simplifies installation and maintenance, while smart ESCs and real-time fault protection boost operational safety. The optimized propeller design enhances thrust and flight time while reducing noise. With 15% more efficiency and extended flight duration over previous models, the X15 supports greener agriculture and delivers exceptional reliability in complex flight environments.

Note :

1.Measured in a lab environment at a room temperature of 25°C and sea level altitude with throttle adjustment.
2.Weight errors may occur due to different production batches.

3.Based on HOBBYWING Protocol, the basic parameters of ESC can be adjusted using HOBBYWING DataLink, CAN Analyzer, DroneCAN GUI, etc.(Caution: Parameter modifications will affect actual flight performance; adjust with caution.)
4.Both methods support the change of throttle stroke.
Flight controller: When an open-source flight controller is used, please adjust the stroke of the throttle channel corresponding to the motor to 1050-1950 μs, and change the flight controller parameter PWN_MIN to 1050, and PWM_MAX to 1950; when a closed-source flight controller is used, it is necessary to first change the joystick stroke of the remote controller, save the settings, and enter the flight controller settings. Then, calibrate the joystick stroke of the remote controller, and save the settings.
Motor: Enter the propulsion system for parameter adjustments and change the throttle stroke based on actual needs.
5.Carbon fiber reinforced nylon composite material.

Features:

1. Max Thrust: 72 kg – Heavy-lift optimized for up to 149 kg takeoff weight.
2. ESC: 300A with Redundancy – Advanced fault protection for safe operations.
3. 63″ Propellers – Enlarged blade area for higher efficiency and noise reduction.
4. Modular Design – Simplifies installation, tuning, and maintenance.
5. Smart Protection V2.1 – Auto-response to signal loss, overcurrent, and motor stalls.
6. Flight Data Logging – Stores 3 hours of logs for scenario reconstruction and analysis.

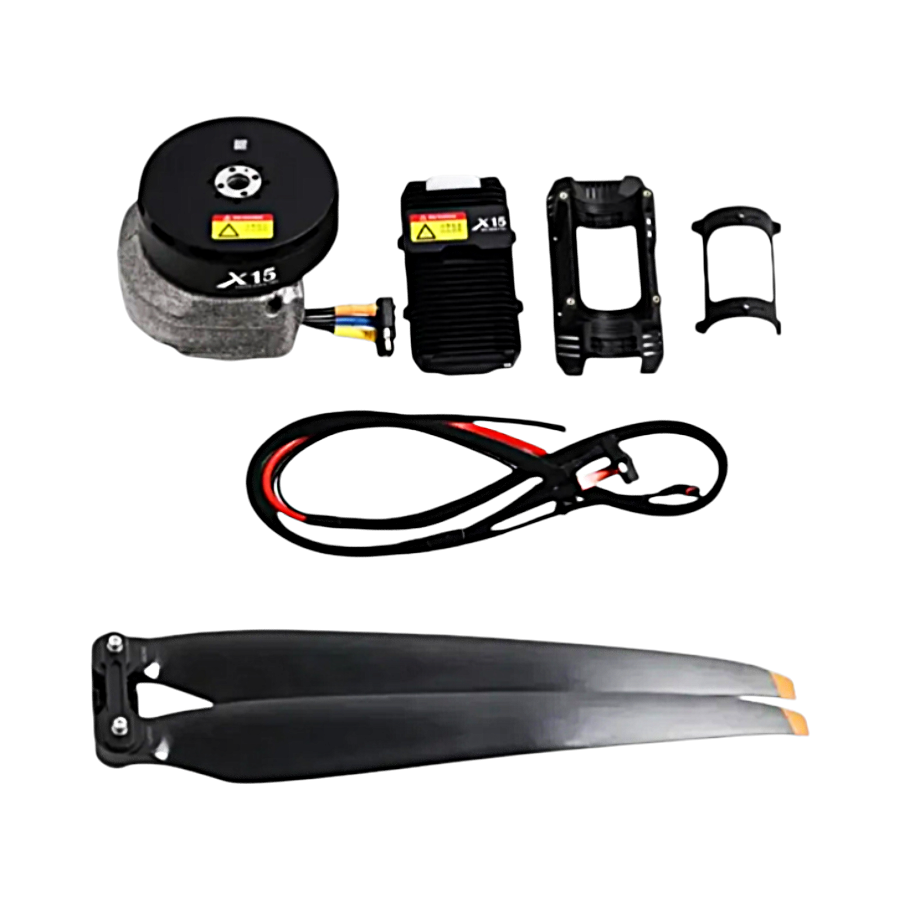

Package Includes:

1 x Hobbywing X15 Motor Combo CCW

1 x Electronic Speed Controller (ESC)

1 x Propellers

1 x Power cables

1 x Mounting accessories
