This is the CCW rotation variant of the HOBBYWING X11-G2 Motor With MFP 4314 Propeller Combo Kit-CCW in Drone Kits. Available at ₹26,458.90 (₹25,198.95 + GST) with free shipping across India.

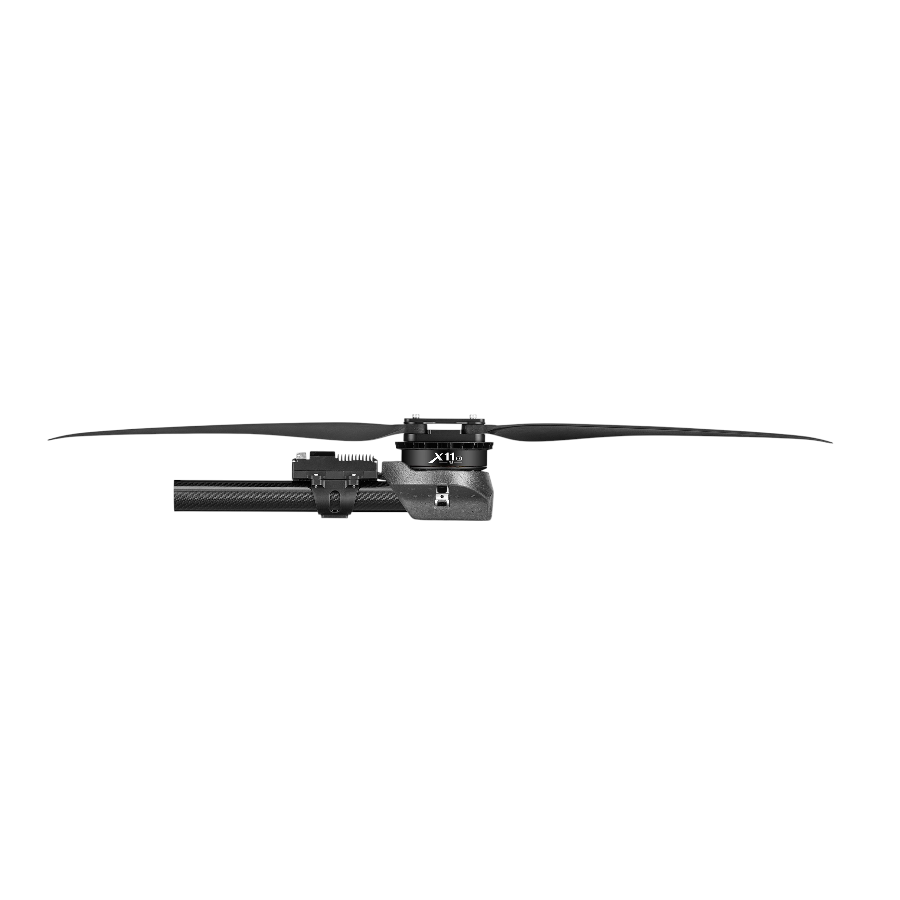

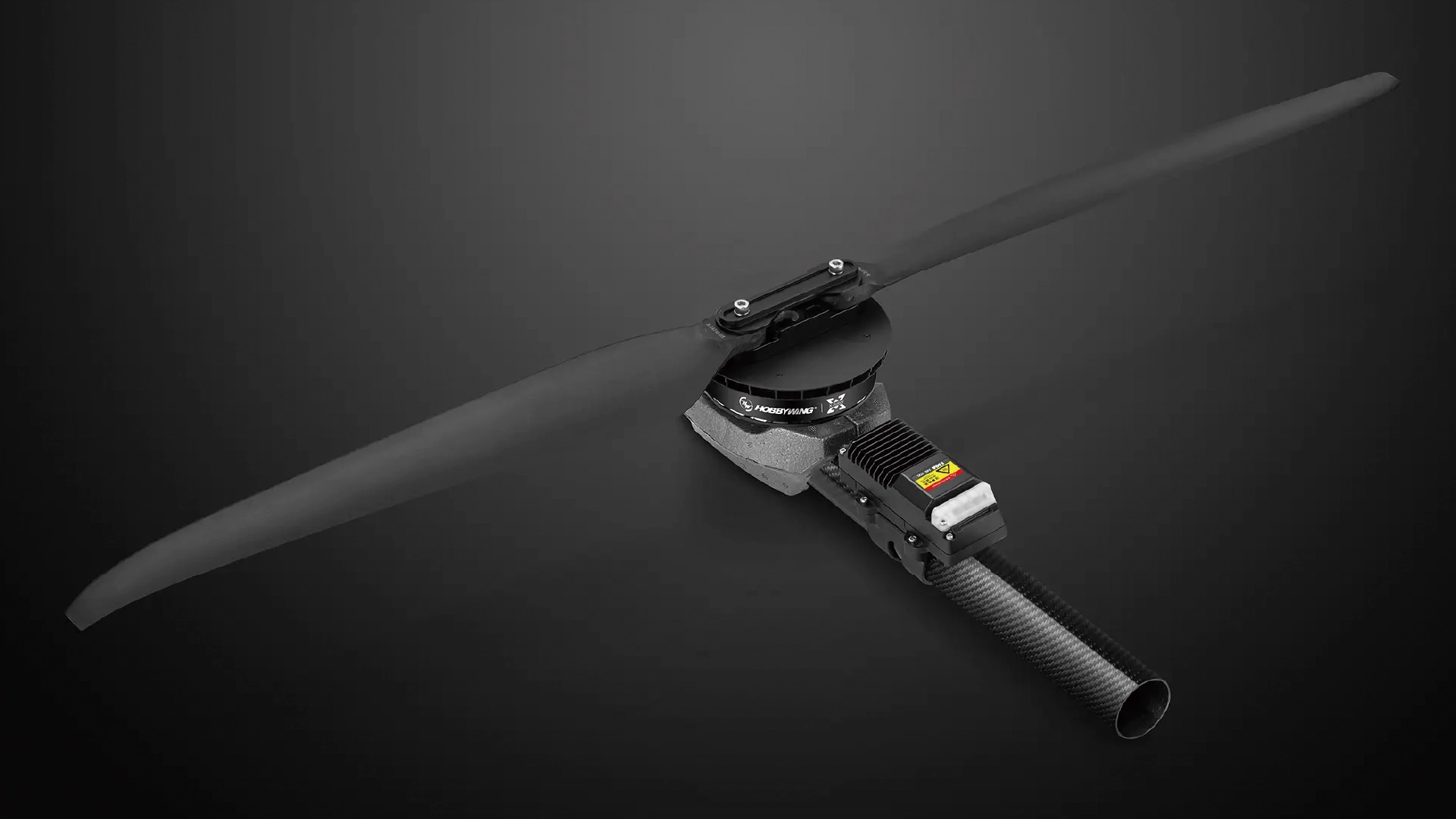

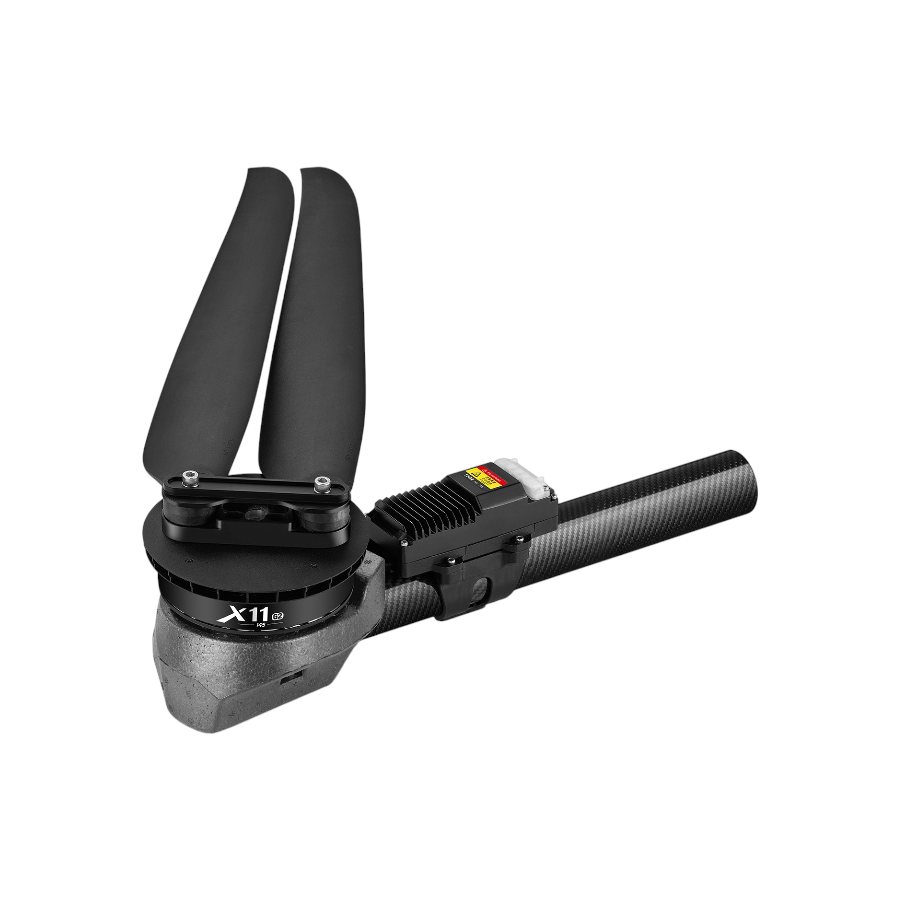

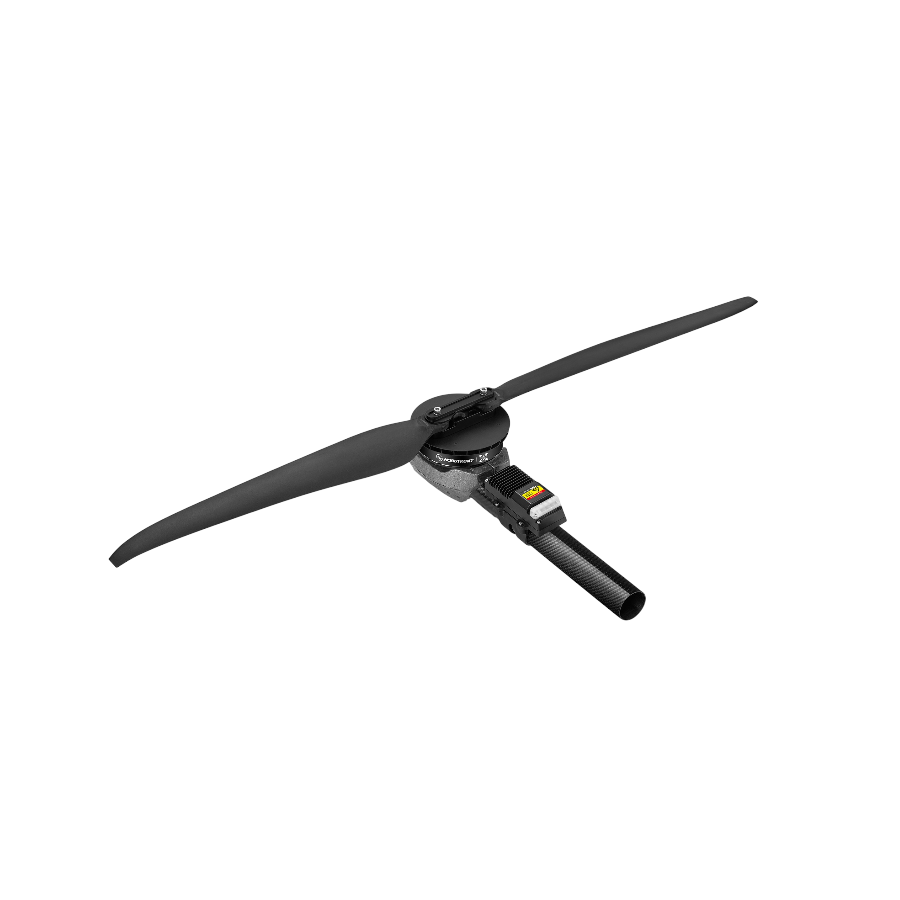

HOBBYWING X11-G2 Motor With MFP 4314 Propeller Combo Kit-CCW
Description:
The HOBBYWING X11-G2 Motor with MFP 4314 Propeller Combo Kit-CW is a high-performance integrated propulsion system designed for agricultural drones and heavy-lift UAVs. It features a powerful 95KV brushless motor, advanced ESC, and a large 43×14-inch folding propeller to deliver high thrust, excellent efficiency, and reliable operation. The system supports 14S LiPo batteries, dual-throttle control (PWM + CAN), and multiple built-in safety protections, making it ideal for professional drone applications. Recommended takeoff weight is up to 17 kg per axis, with a maximum thrust of 32 kg.
Features:
- integrated motor, ESC, and propeller system
- 95KV high-efficiency brushless motor
- 43×14-inch carbon-fiber reinforced folding propeller
- Supports 14S LiPo batteries
- Dual throttle control (PWM + CAN)
- Maximum thrust up to 32 kg
- Recommended payload capacity of 17 kg per axis
- IPX6 water-resistant design
- Multiple protection functions for safer flight operations
- Suitable for agricultural and industrial UAVs
Specification:
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 32 kg (at sea level)
- 17 kg (at sea level)
- 7.5 g/W
- 14S（LiPo）
- 14S-54 V
- 18~63 V
- D45 mm
- 1980 g*
- Power cable: 12AWG 1050 mm* Signal cable: 1090 mm*
- -20~50 ℃
- IPX6
- 2200 W
- 1870 W
- Black-GND, White-PWM & Red-CH, Gray-CL
-
- Rated voltage
- Communication protocol
- Peak current (3s)
- Continuous current
- Throttle range calibration
- Throttle Source
- Operating pulse width
- Fault storage & Log
-
- 14 S
- Cyphal（UAVCAN）
- 150 A（3s）
- 60 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 95KV
- 36N40P
- 111×15 mm
- 120.1 mm (Fan 138 mm)
-
- Model
- Total Weight
- Material of Props
- single Weight
-
- MFP 43×14 (Folding propeller)
- 427 g*
- Carbon fibre-reinforced nylon composite material
- 146 g*
Package Includes:
1xHOBBYWING X11-G2 Motor with MFP 43×14 Propeller Combo Kit-CCW
Drone Motor vs Drone Propeller: How They Work Together
Table of Contents Introduction: The Motor-Propeller Partnership How Brushless Motors Work Understanding KV Rating Propeller Fundamentals: Diameter, Pitch,...
Read More →
Drone 3D Printing: Camera Mounts, Pods, and Accessories
Table of Contents Understanding Drone 3D Printing Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone Mapping with Photogrammetry in India: DroneDeploy vs WebODM Complete Guide 2025
Drone photogrammetry has transformed how Indian industries approach land surveying, construction monitoring, agricultural planning, and infrastructure inspection. Where...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Package Quantity | 11 pcs |
| SKU | AI8256 |
| Weight | 1.980 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HOBBYWING X11-G2 Motor With MFP 4314 Propeller Combo Kit-CCW is a versatile drone kits used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
