This is the CCW rotation variant of the HOBBYWING X11-G2 Motor -CCW in Drone Motor. Available at ₹28,796.72 (₹24,404.00 + GST) with free shipping across India.
HOBBYWING X11-G2 Motor -CCW
Description:

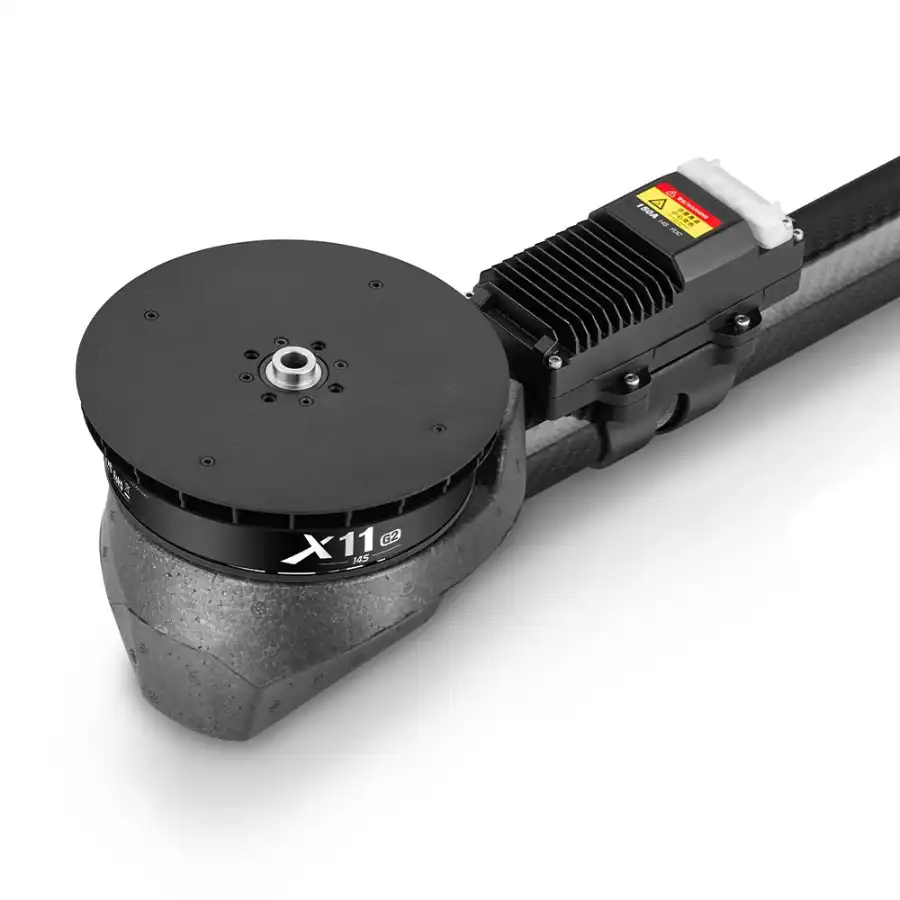

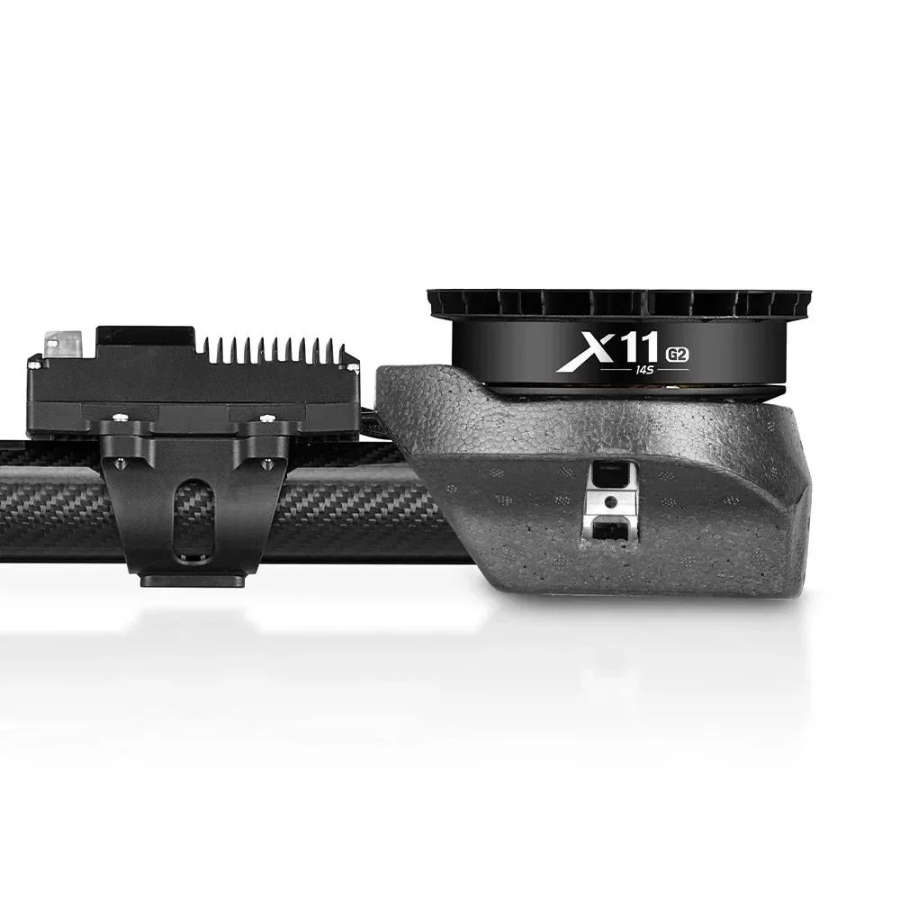

The HOBBYWING X11-G2 Motor – CCW is a high-performance brushless propulsion motor designed for heavy-lift UAVs and industrial multirotor drones. Its counterclockwise (CCW) rotation configuration supports compatible drone propulsion setups, helping deliver stable and efficient thrust. Designed for demanding applications, the X11-G2 propulsion system is suitable for agricultural spraying, aerial surveying, industrial inspection, and logistics operations.
All-in-one thrust system specification
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated output power (Max continuous)
- Pinout
- DataLink Version
-
- 32 kg (at sea level)
- 17 kg (at sea level)
- 7.5 g/W
- 14S（LiPo）
- 14S-54 V
- 18~63 V
- D45 mm
- 1980 g*
- Power cable: 12AWG 1050 mm* Signal cable: 1090 mm*
- -20~50 ℃
- IPX6
- 1870 W
- Black-GND, White-PWM & Red-CH, Gray-CL
- DataLinkBox G3
ESC specification
-
- Rated voltage
- Communication protocol
- Peak current (3s)
- Continuous current
- Throttle range calibration
- Throttle Source
- Operating pulse width
- Fault storage & Log
-
- 14 S
- Cyphal（UAVCAN）
- 150 A（3s）
- 60 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
Motor specification
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 95KV
- 36N40P
- 111×15 mm
- 120.1 mm (Fan 138 mm)

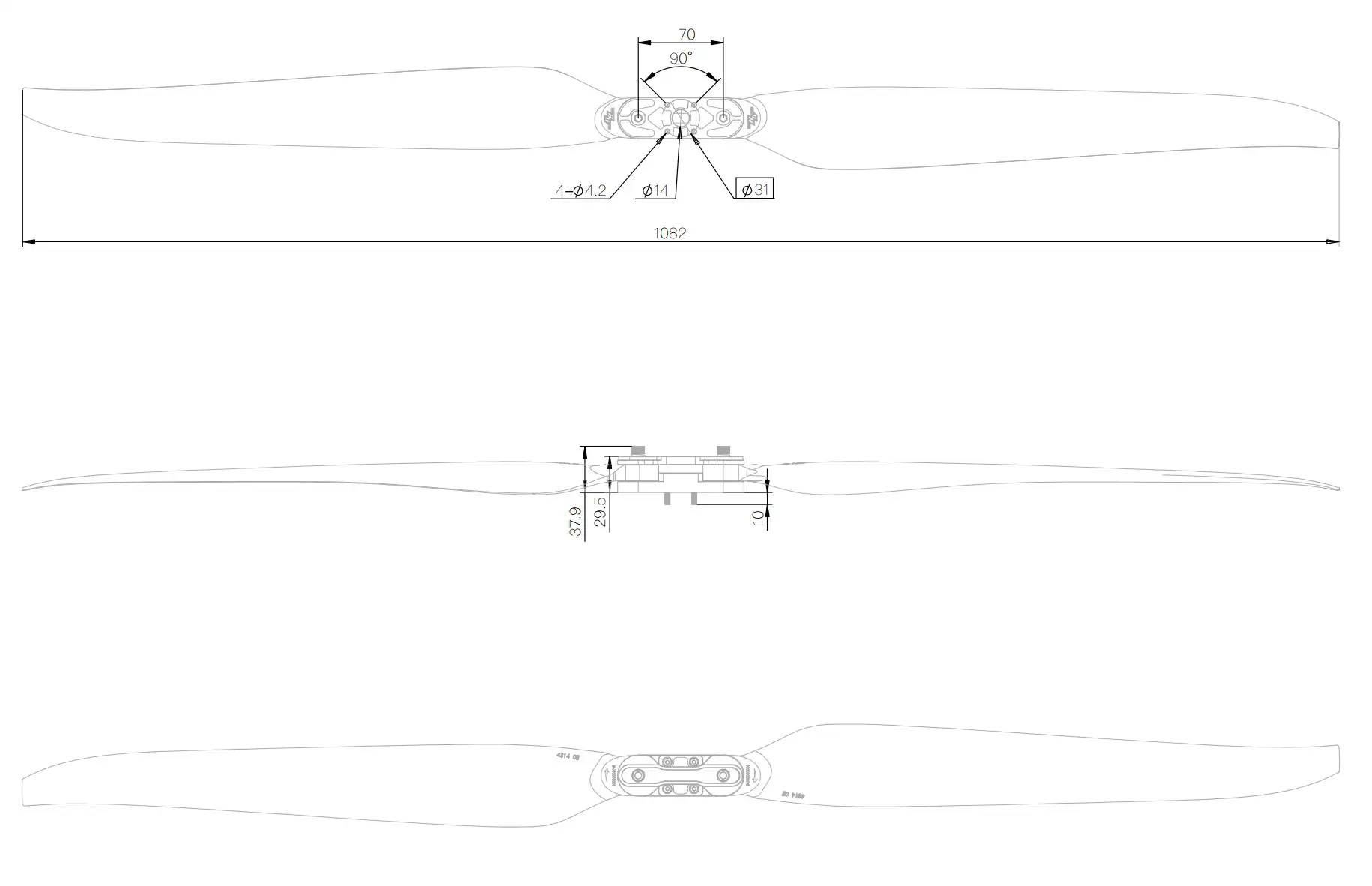

Propeller specification
-
- Model
- Total Weight
- Material of Props
- single Weight
-
- MFP 43×14 (Folding propeller)
- 427 g*
- Carbon fibre-reinforced nylon composite material
- 146 g
Specifications:
Brand: HOBBYWING
Model: X11-G2
Rotation Direction: CWW (please verify the intended label; standard direction abbreviations are CW and CCW)
Motor Type: Brushless UAV Motor
KV Rating: 95 KV
Maximum Thrust: 32 kg per propulsion unit
Recommended Take-off Weight: 17 kg per axis
Battery Compatibility: 14S LiPo
Propeller: MFP 43 × 14-inch folding propeller
Application: Agricultural drones, heavy-lift UAVs, and industrial multirotors
Key Feature: Integrated propulsion system with motor and ESC
Package Includes :
1xHOBBYWING X11-G2 Motor -CCW
L293D Motor Driver IC: Pinout, Circuit & H-Bridge Explained
The L293D motor driver IC is one of the most taught, most used, and most misunderstood components in...
Read More →
Motor Heat Sink: When and How to Add Cooling to Motor Drivers
One of the most common causes of failed motor driver boards is heat. The A4988 overheats and cuts...
Read More →
How to Run Stepper Motor Without Arduino Using EasyDriver
Most stepper motor tutorials assume you have an Arduino or microcontroller to generate the step pulses. But what...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Package Quantity | 11 pcs |
| SKU | AI5371 |
| Weight | 2.730000 kg |
| Availability | In Stock |
Applications & Use Cases
The HOBBYWING X11-G2 Motor -CCW is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
