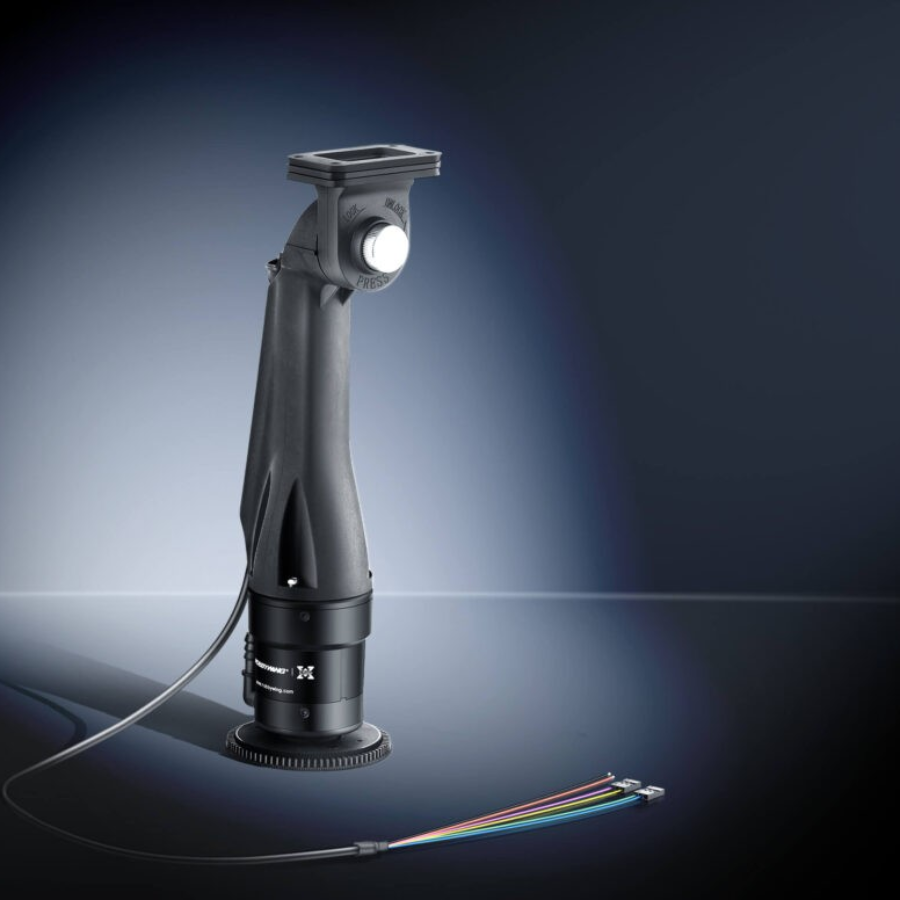

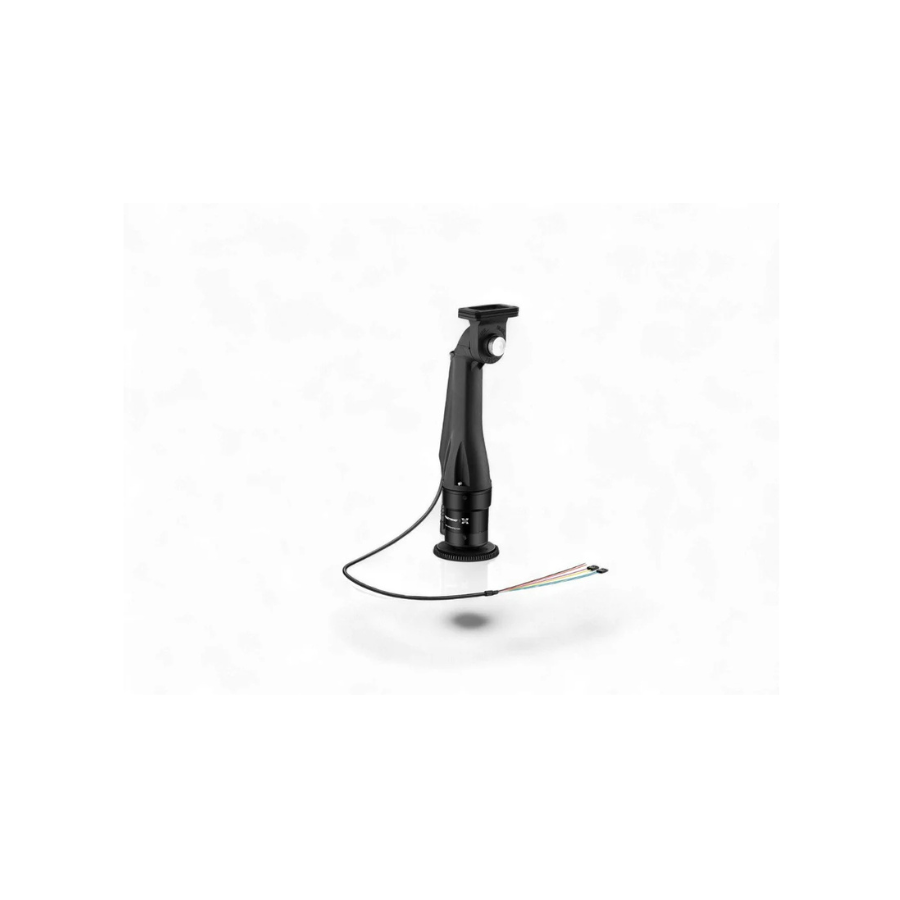

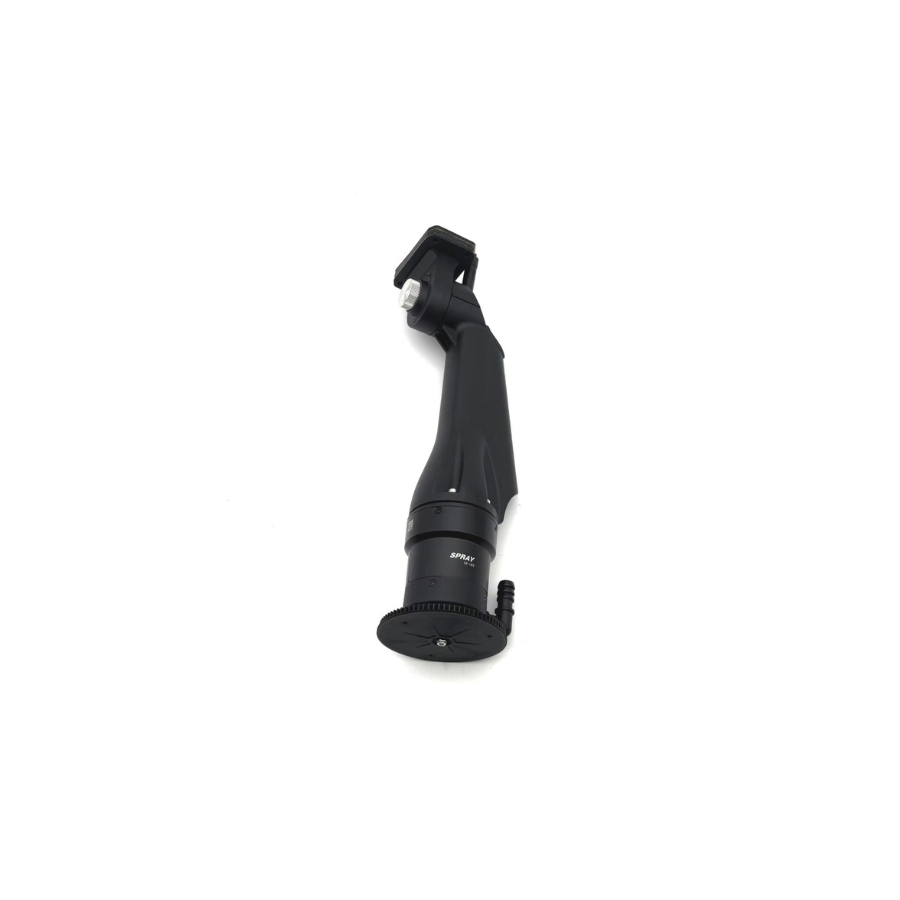

Hobbywing 9L Centrifugal Spray Nozzle for Agricultural UAV Drones
Description:
Hobbywing 9L Centrifugal Spray Nozzle for Agricultural UAV Drones is a high-efficiency spraying nozzle designed for agricultural UAVs. It provides a fine and uniform spray pattern, helping improve coverage while reducing liquid waste during crop spraying applications. The Hobbywing 9L Centrifugal Nozzle Spray is a specialized spraying system designed for agricultural UAV/drone applications. It uses centrifugal atomization technology to produce fine, uniform droplets for efficient crop spraying. The nozzle helps provide consistent liquid distribution across the target area while supporting precise application and reducing unnecessary chemical or fertilizer wastage. Its compact design makes it suitable for integration with compatible agricultural drones and spraying systems.
Excellent Spray Type Compatibility
Regardless of aqueous solutions, emulsifiable concentrates,or suspension concentrates, the centrifugal nozzle can adaptto them without the need to change.
- Pentazole prochloraz
- Pyraclostrobin
- Thiamethoxam
- Tebuconazole
- Profenofos
- Prochloraz
- Amino acid-containing
- water-soluble fertilizer
- Brassinolide
Suspension Concentrates
- Emamectin benzoate
- Pyraclostrobin
- Mancozeb
- Thiamethoxam
- Tebuconazole
- Prochloraz
Emulsifiable Concentrates
- Pyraclostrobin
- Profenofos
- Auxiliary
With a maximum flow rate of 9 L/min and visualized CAN data transmission,the centrifugal nozzle can adjust to the optimal flow rateand atomizing effect based on different crops and types of sprays.This ensures precise spraying and minimizes chemical and water waste,thereby cutting costs and increasing farmers’ income.
Enhanced Durability
Easy to clean and preventsclogging and motor burning Thus ensuring less maintenance andlonger service life
Compatible Structure and Easy to Use

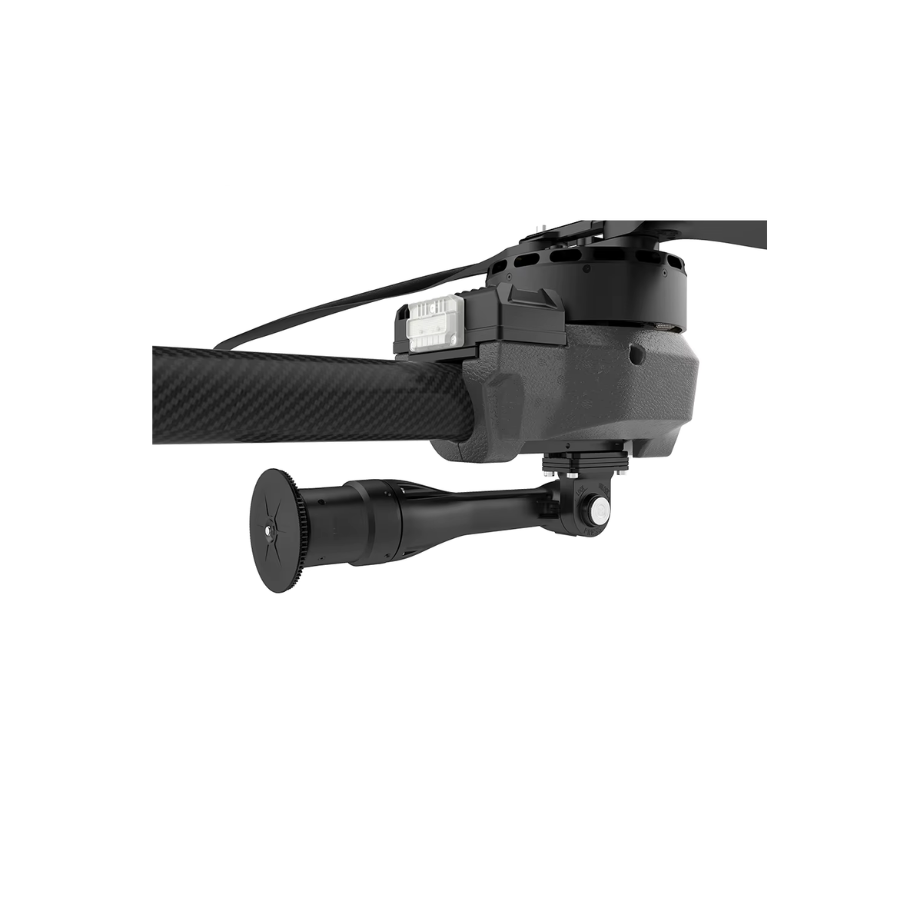

The modular folding design facilitates installation and handling.In addition, it is compatible with the installation sizes ofHOBBYWING X9 / X11 / X13 / X15 propulsion systems,making it ready to use upon installation without the need to evacuate air inside the nozzle
Hobbywing 9L Centrifugal Nozzle Spray for UAV Drones
The Hobbywing 9L Centrifugal Nozzle Spray is designed to deliver high-efficiency, fine-particle atomization for agriculture drones. With a maximum flow rate of 9L/min and wide chemical compatibility, it ensures precise, uniform coverage across crops—improving spray effectiveness and overall yield.
Features:
-
Maximum Flow Rate: 9L/min
-
Spraying Width: Up to 12 meters
-
Spraying Efficiency: 0.99 hectare per minute (measured at 13.8 m/s flight speed)
-
Droplet Size Range: 35–500μm
-
Control Mode: PWM and CAN
-
Foldable Modular Design: Easy to install, clean, and maintain
-
Corrosion-Resistant Build: IPX6 protection rating
-
Supports Aqueous, Emulsifiable, and Suspension Concentrates
Features
Advanced Atomization Technology The high-speed centrifugal spray disc ensures even and fine droplets, allowing sprays to reach even the lower layers of crop leaves.
Precision Flow Control with CAN Communication Real-time CAN data allows automatic adjustment of flow rate and droplet size depending on the crop type and spray liquid, helping reduce waste and chemical overuse.
Wide Chemical Compatibility Compatible with a broad range of agricultural chemicals including:
Aqueous Solutions:
-
Thiamethoxam
-
Tebuconazole
-
Amino acid-based water-soluble fertilizers
-
Brassinolide
Suspension Concentrates:
-
Emamectin benzoate
-
Mancozeb
-
Pyraclostrobin
Emulsifiable Concentrates:
-
Profenofos
-
Pyraclostrobin
Ready-to-Use with Hobbywing Propulsion Systems Fully compatible with the Hobbywing X9, X11, X13, and X15 propulsion systems. No air evacuation required before operation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Hobbywing 9L Centrifugal Nozzle Spray |
| Compatible Battery | 12S to 18S |
| Spraying Width | 4 to 12 meters |
| Droplet Granularity | 35–500μm |
| Maximum Flow Rate | 9L/min |
| Rated Flow Rate | 5L/min |
| Maximum Power | 500W (54V) |
| Rated Power | 350W (54V) |
| Control Mode | PWM / CAN |
| Communication Mode | CAN |
| Throttle Stroke | 1050–1950μs |
| Throttle Calibration | Not Available |
| Dimensions (Unfolded) | 97.8 × 75 × 278.3 mm |
| Dimensions (Folded) | 97.8 × 271 × 76.5 mm |
| Weight | 495 g |
| IP Protection Rating | IPX6 |

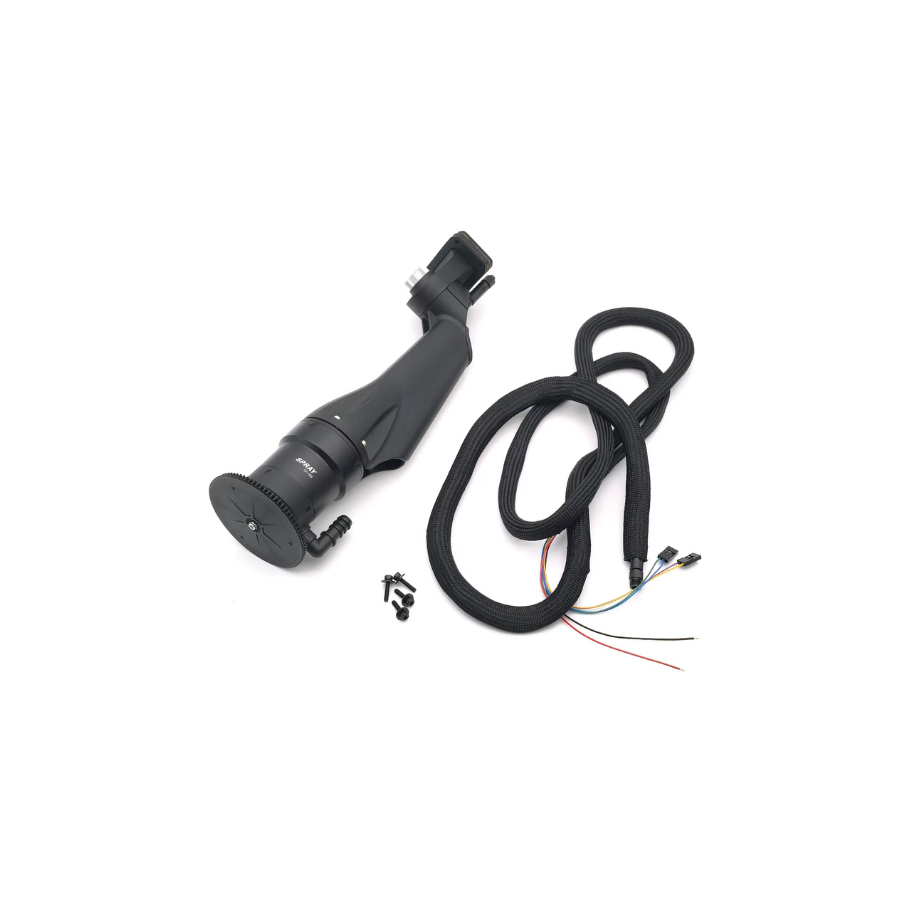

Package Includes:
1xHobbywing 9L Centrifugal Spray Nozzle for Agricultural UAV Drones
