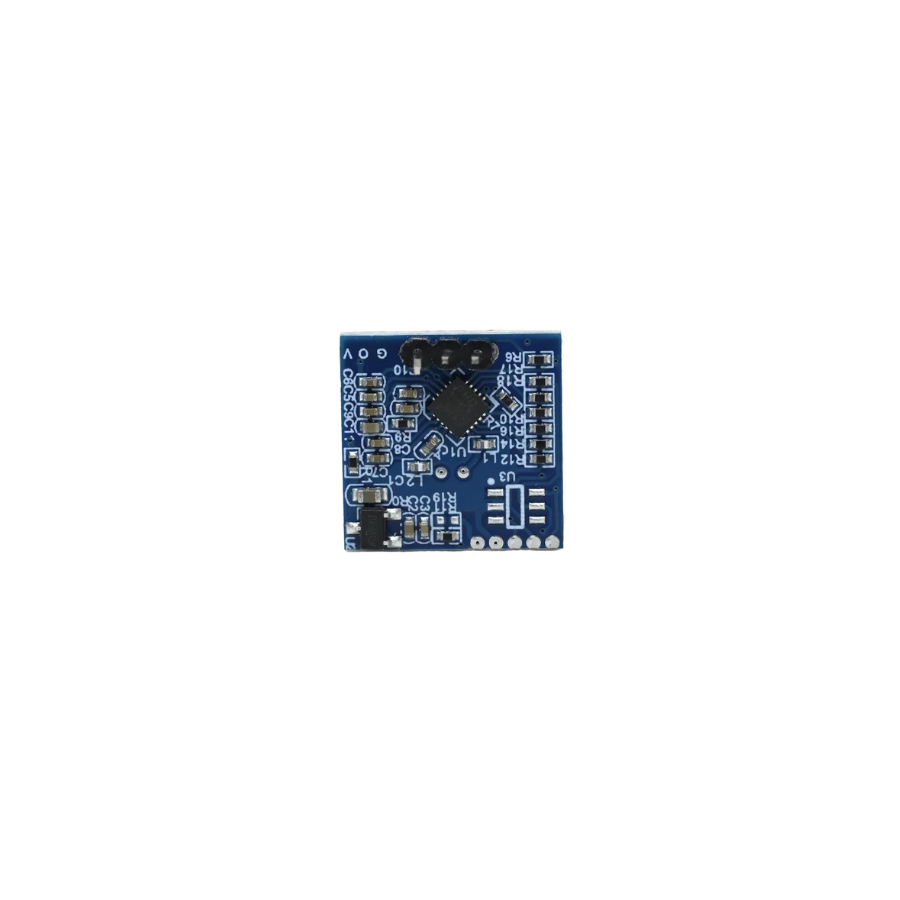

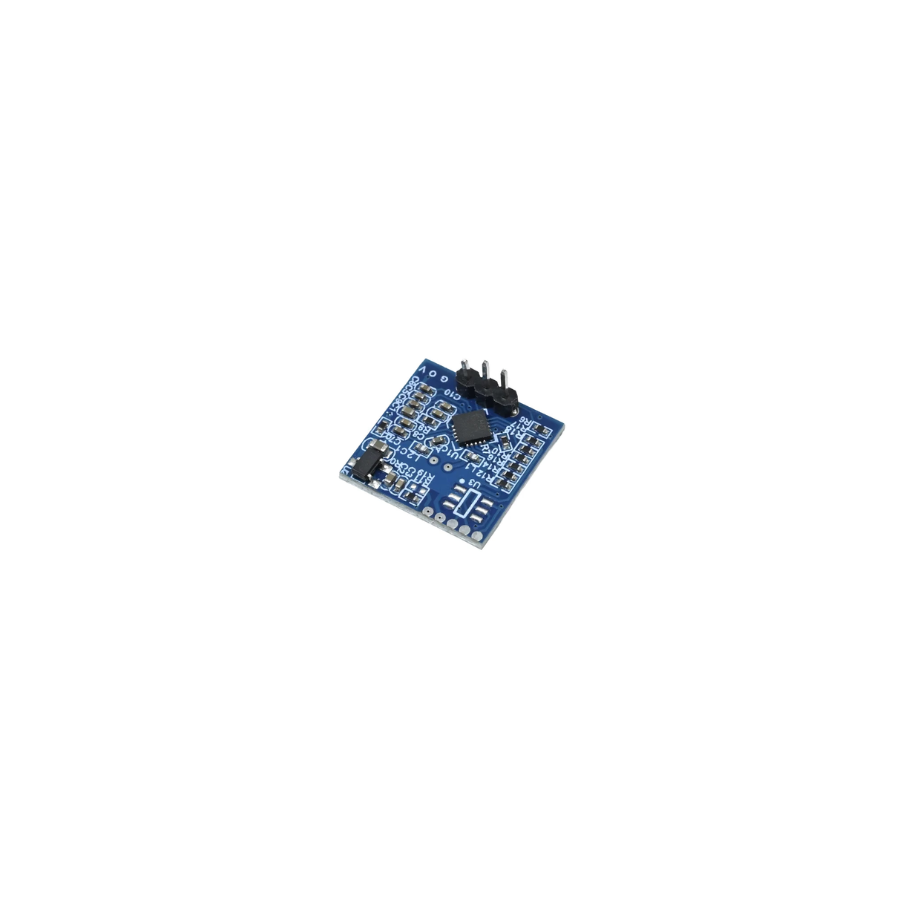

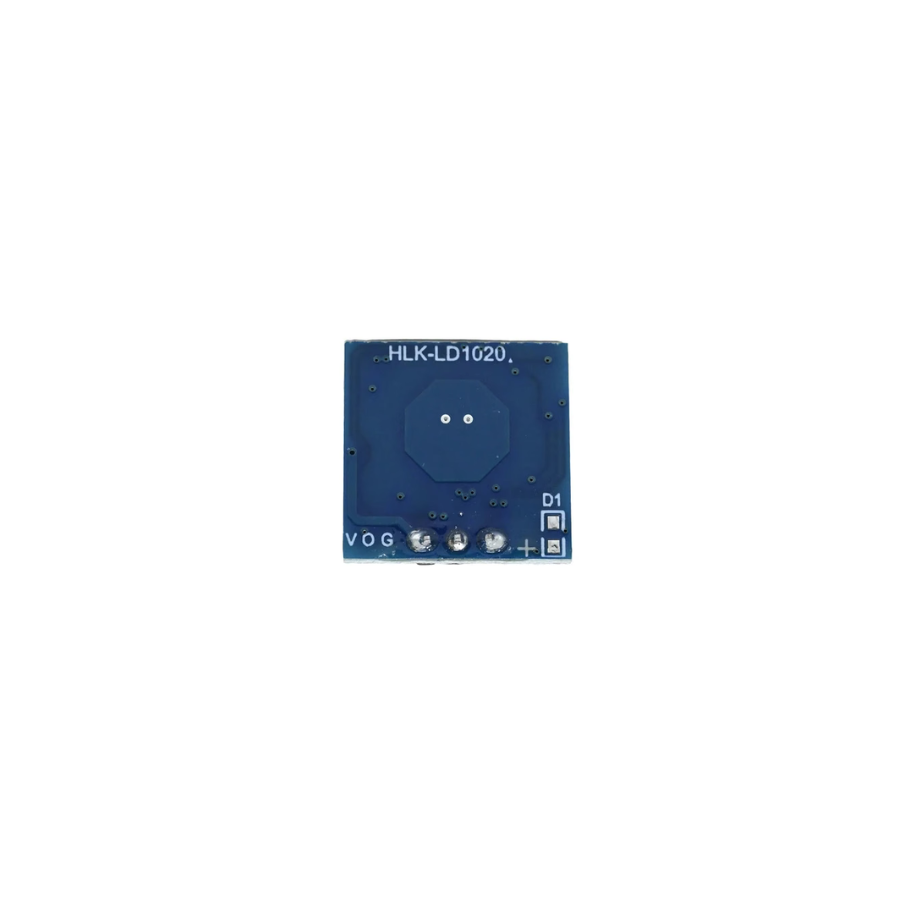

Hi-Link HLK-LD1020-P, 10GHz Radar Motion Sensor Module, Human Presence Detection, Range: 12m

Hi-Link HLK-LD1020-P, 10GHz Radar Motion Sensor Module, Human Presence Detection, Range: 12m

Description:

HLK-LD1020 is a micro/motion sensing module designed based on X-band radar chip with a center frequency of 10.525GHz. The module design adopts fixed-frequency, directional transmitting and receiving antenna (1T1R), integrates the functions of intermediate frequency demodulation, signal amplification and digital processing, and has the ability of delay setting, adjustable sensing range and light intensity detection. This product has the advantages of not penetrating walls, anti-interference, small size, good suppression of clutter and higher harmonics, high stability and consistency.

The integrated algorithm inside the chip can directly output the detection results without the need for an external single-chip microcomputer. In the module pulse power supply mode, the power consumption is at the microampere level. This module is mainly aimed at low-cost, low-power applications. This product is suitable for embedded concealed installation, and is not affected by temperature/humidity, oil fume, water mist, etc. It can be widely used in various lamps, suchasbulb lamps, down lights, ceiling lamps, etc.; Doorbell, peephole, door lock, low-power camera, etc.

Features:

1. Based on Doppler radar principle
2. The product is positioned as a micro/motion perception scene application
3. Sensing distance: hanging height 2-4m (Sensing radius), wall hanging 12m(Radial)
4. Ceiling installation, 3dB beam width: 110°±10°
5.  Capable of photosensitive detection (Optional)

Specifications:

1. Operating Voltage: 3.3V – 12V DC
2. Operating Current: 0.1mA (pulse), up to 16mA
3. Microwave Frequency: 10.40 – 10.65 GHz (Typ. 10.525GHz)
4. Detection Range: 2m – 12m (typical 8m at 3m height)
5. Output Voltage: 3.2 – 3.4V
6. Beam Angle: 110° ±10°
7. Power Stabilization Time: 15s (typical)
8. Delay Time: Default 5s (adjustable up to 3600s)
9. Block Time: 2s
10. Operating Temperature: -20°C to +70°C
11. Humidity Range: 10% – 95%
12. Applications: Smart lighting (home, office, hotel, campus), Doorbells, smart locks, peepholes, Low-power cameras, Home & electrical appliances
13. Size: 15 × 15 × 2 mm
14. Weight: 2 g

Package Includes:

1 x Hi-Link HLK-LD1020-P, 10GHz Radar Motion Sensor Module, Human Presence Detection, Range: 12m
