Hi-Link HLK 20M09 9V/20W Switch Power Supply Module

This is the 9V variant of the Hi-Link HLK 20M09 9V/20W Switch Power Supply Module in Hi-Link Power Supply Module. Available at ₹453.00 (₹383.90 + GST) with free shipping across India.

Looking for Hi-link Module 9v? Hi-Link HLK 20M09 9V/20W Switch Power Supply Module is available at Zbotic with fast shipping across India.

Hi Link HLK 20M09 9V/20W Switch Power Supply Module

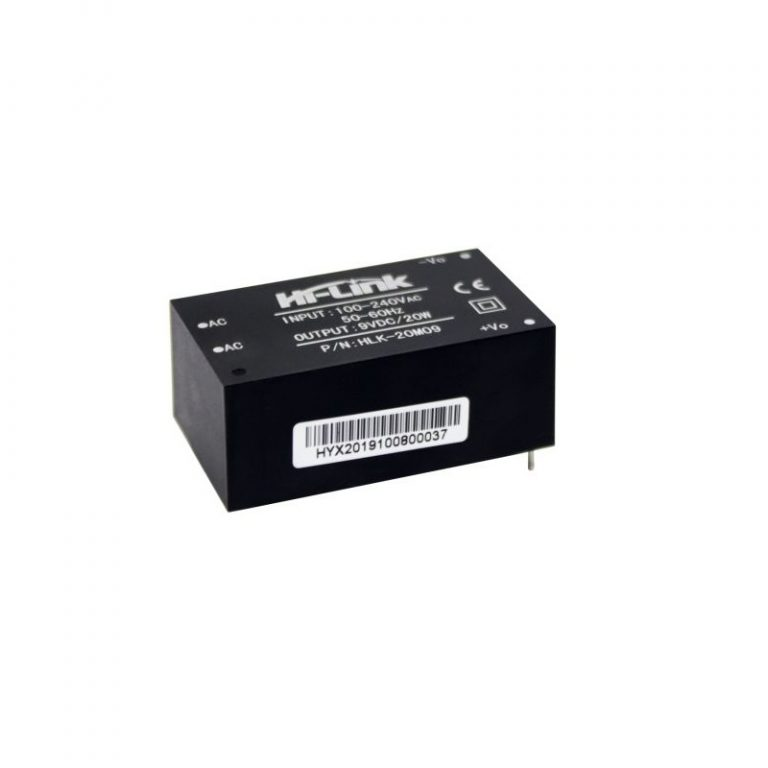

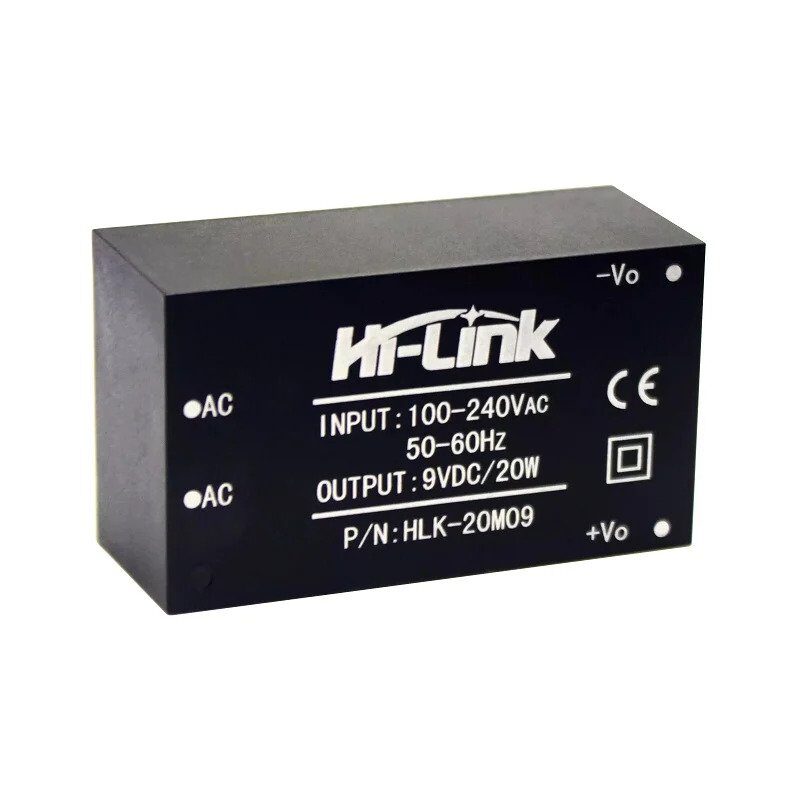

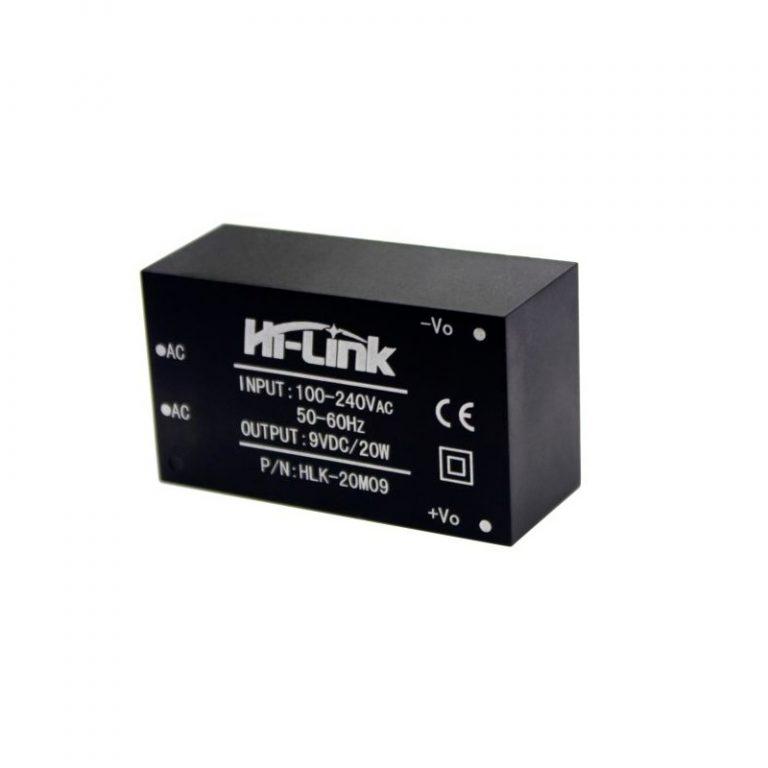

The HLK-20M09 9V/20W Switch Power Supply Module is an isolated, switching step-down module that can be mounted on a PCB and encased in plastic. It converts 100V AC – 240V AC to 9V DC with a 20 Watt power rating, making it suitable for small projects needing a 9-volt supply from the mains. The module offers numerous advantages, including low power consumption, high efficiency, reliable performance, secure isolation, and minimal temperature increase.

Hi-Link’s 20W ultra-small series power supply module is designed as a compact, efficient power solution for customers. It features a wide input range, low-temperature rise, low power consumption, high efficiency, and high reliability. Its applications span smart homes, automation control, and various industries.

The module is a switching power supply capable of regulating output voltage despite input voltage fluctuations. It can be mounted on a PCB to power portable devices and is utilized in fields like smart home technology, automation and control, communication equipment, and instrumentation.

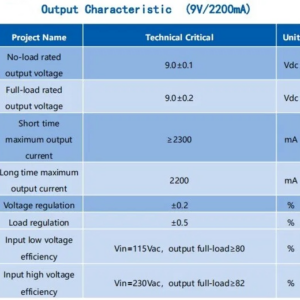

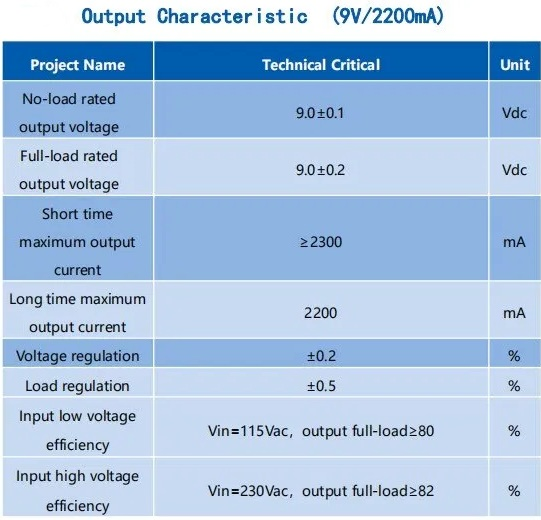

Specifications

Features

1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
3. All voltage input (AC: 100 ~ 240V)
4. Low ripple and low noise
5. Output overload and short circuit protection
6. High efficiency, high power density
7. The product is designed to meet the requirements of the EMC and Safety Test
8. Low power consumption, environmental protection, no-load loss <0.1W

Environmental conditions:

1. Technical indicators: Single bit
2. Working temperature: – 20-60 +degree
3. Storage temperature: + 80-40 -degree
4. Relative humidity: 5-95%
5. The cooling way: Natural cooling
6. The atmospheric pressure: 80-106Kpa
7. The altitude: 2000M or less.

Package Includes

• 1 x HLK-20M09 9V/20W Switch Power Supply Module

Hi-Link HLK 20M09 9V/20W Switch Power Supply Module Overview

The Hi-Link HLK 20M09 is an ultra-compact, isolated switch-mode power supply module that converts 100–240VAC mains input into a regulated 9VDC output at up to 20W. Designed for PCB mounting and enclosure integration, it delivers reliable 9V power for embedded electronics, small appliances, and industrial controls.

Key Features of Hi-Link HLK 20M09 9V/20W Switch Power Supply Module

• Universal AC input: 100–240VAC for global compatibility
• Stable 9VDC output at 20W with low ripple and low noise
• Fully isolated design meeting UL and CE safety standards
• Built-in overload and short-circuit protection for enhanced reliability
• High efficiency, high power density with no-load loss under 0.1W
• Ultra-thin, ultra-small form factor ideal for compact enclosures
• EMC-tested for compliance with industrial and consumer requirements
• Genuine product with fast shipping from Zbotic

Applications and Use Cases

• Powering microcontroller and single-board computer projects requiring 9VDC
• Supplying CCTV cameras and security sensor systems with stable voltage
• Driving LED lighting modules, strips, and control units
• Feeding audio preamps, guitar pedals, and small amplifier boards
• Integration into industrial control panels and instrumentation devices

How to Use Hi-Link HLK 20M09 9V/20W Switch Power Supply Module

Solder the module’s input pins onto your PCB, ensuring correct Live, Neutral, and Earth connections. Mount the module in a ventilated enclosure or with adequate clearance, then connect the 9VDC output pins to your load. Always include proper fusing and grounding when wiring to mains, and follow manufacturer spacing guidelines to maintain isolation.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What input voltage range does the HLK-20M09 support?

The module accepts a wide AC input range from 100VAC to 240VAC, making it suitable for use in most countries without additional components.

Does the module include overload and short-circuit protection?

Yes. The HLK-20M09 features built-in overload and short-circuit protection, automatically reducing output current or shutting down to safeguard connected devices.

How do I mount the HLK-20M09 on my PCB?

The module is designed for through-hole soldering. Align the input and output pins with your PCB footprint, solder securely, and maintain adequate clearance around the module for insulation and heat dissipation.
