This is the 12V variant of the Hi-Link DC power supply module 1D1212 DC-DC isolation module 12V to 12V1W isolation module HLK-B1212S-1WR3 in Hi-Link Power Supply Module. Available at ₹220.16 (₹186.58 + GST) with free shipping across India.

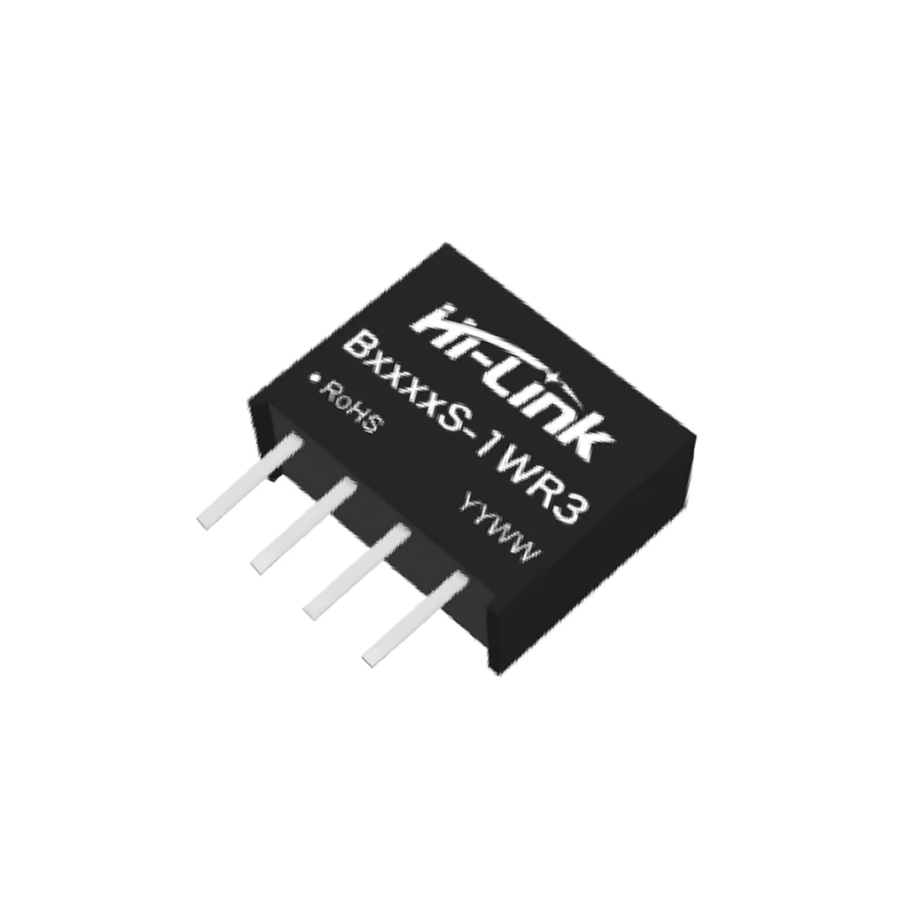

Hi-Link DC power supply module 1D1212 DC-DC isolation module 12V to 12V1W isolation module HLK-B1212S-1WR3
Description:
Hi-Link B1212S-1WR3 DC power supply module 1D1212 DC-DC isolation module 12V to 12V1W isolation module.This module transforms 12V input to 12V output with a 1W power capacity. Featuring isolation capabilities, it ensures electrical separation for enhanced safety. With a small form factor, it is ideal for various applications requiring reliable and isolated power delivery in a 12V environment.
Specifications:
| Item Type: | Power Module |
| Model No. / Name: | B1212S 1WR3 |
| Power Rating: | 1W |
| Input Voltage | 12V |
| Output Voltage: | 12V DC |
| Power Capacity (W) | 1W |
| Maximum Capacitive Load | 560 uF |
| Max Output Current (mA) | 84mA |
| Length (mm): | 11(mm) |
| Width (mm): | 9 |
Features:
- Isolation Voltage: 1500V DC between input and output
- Operating Temperature Range: -40°C to +105°C
- Package: Compact SIP (Single Inline Package) for space-saving designs
- Protection Features: Continuous short-circuit protection with self-recovery
- Efficiency: High efficiency, reducing heat generation and improving reliability
- Compliance: RoHS compliant, meeting environmental and safety standards
Package Includes:
1xHi-Link B1212S-1WR3 DC power supply module 1D1212 DC-DC isolation module 12V to 12V1W isolation module
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Operating Voltage | 12V |
| SKU | AI4846 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link DC power supply module 1D1212 DC-DC isolation module 12V to 12V1W isolation module HLK-B1212S-1WR3 is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Hi-Link product sourced from authorized channels
