This is the 5V variant of the Hi-Link 5V to 12V 2W 167mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0512S-2WR3 in Hi-Link Power Supply Module. Available at ₹249.24 (₹211.22 + GST) with free shipping across India.

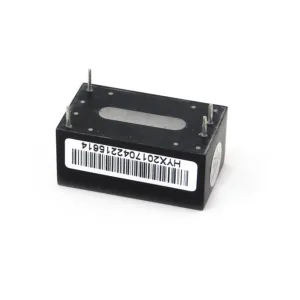

Hi-Link 5V to 12V 2W 167mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0512S-2WR3
Description:
Hi-Link 5V to 12V 2W 167mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0512S-2WR3 is a high-performance DC-to-DC power module converter designed for seamless voltage conversion in electronic applications. With a versatile input range of 5V to 12V, this compact module efficiently delivers a stable output power of 2W, accompanied by a current output of 167mA.
Specification:
| Item Type: | Power Module Converter |
| Model No. / Name: | B0512S 2WR3 |
| Power Rating: | 2W |
| Output Current (mA) | 167 |
| Input Voltage | 5v |
| Output Voltage: | 12V DC |
| Isolation Voltage | 1500VDC |
| Power Consumption | 0.025W(Typ.)(Low) |
| Efficiency | 90%. |
| Operating Temperature (°C): | -40℃~+85℃ |
Features:
- Characteristic: Constant voltage input, isolated non-stabilized voltage single output,2W
- Isolation voltage: 1500VDC
- Low no-load power consumption: 0.025W(Typ.)
- Transfer efficiency: 90%
- Output short-circuit protection: continuous short-circuit protection, automatic recovery
- The voltage of the input power supply is relatively stable. （Voltage variation range±10%Vin）
- Good quality product
- International standard pin， direct installation of PCB board.
- High reliability and long life design, continuous working time MTBF≥3.5 million hours (3500000Hrs)
Package Includes:
Hi-Link 5V to 12V 2W 167mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0512S-2WR3
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Voltage Range | 5V - 12V |
| Current Rating | 167mA |
| Power Rating | 2W |
| SKU | AI4877 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link 5V to 12V 2W 167mA DC to DC Isolation Voltage 1500VDC Power Module Converter B0512S-2WR3 is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
