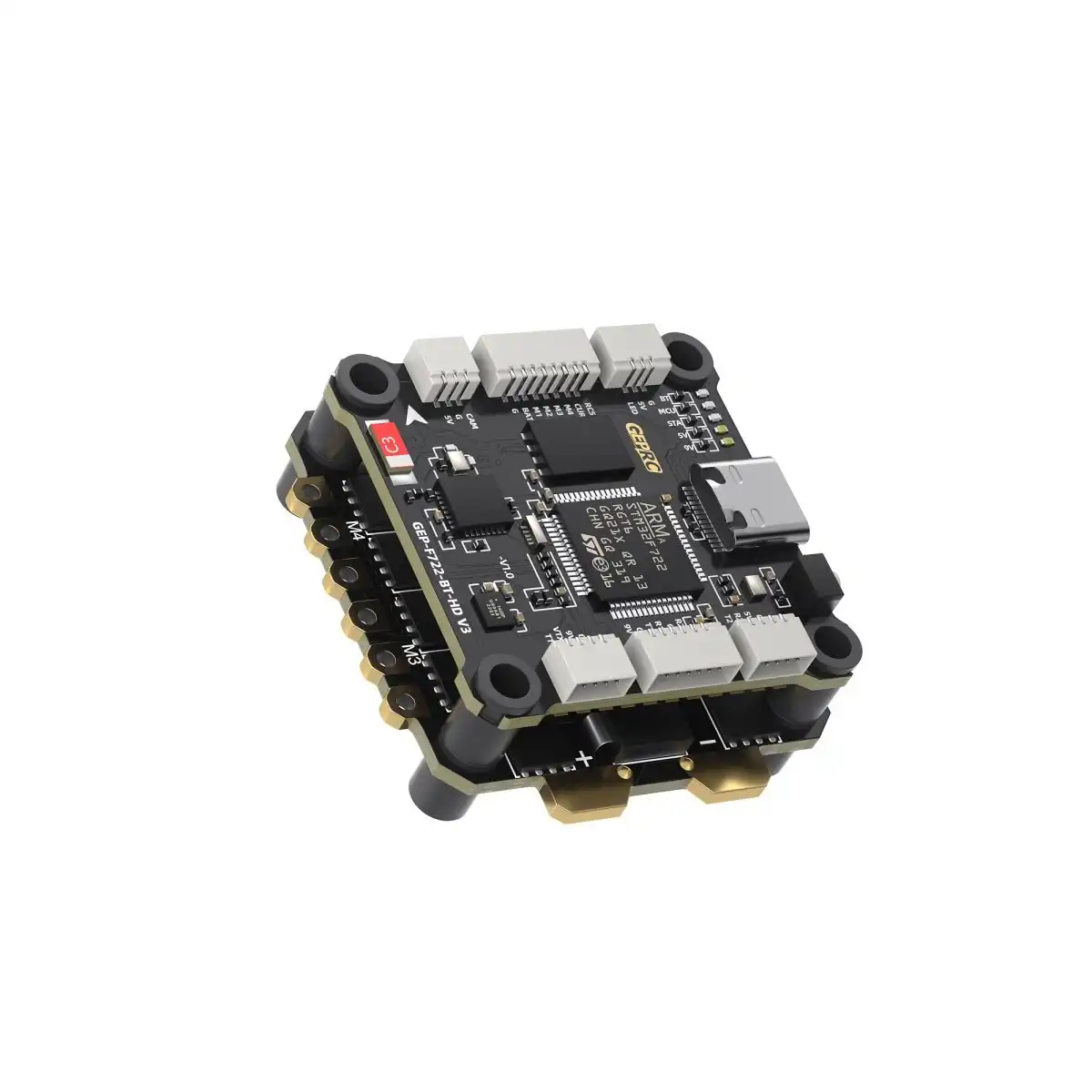

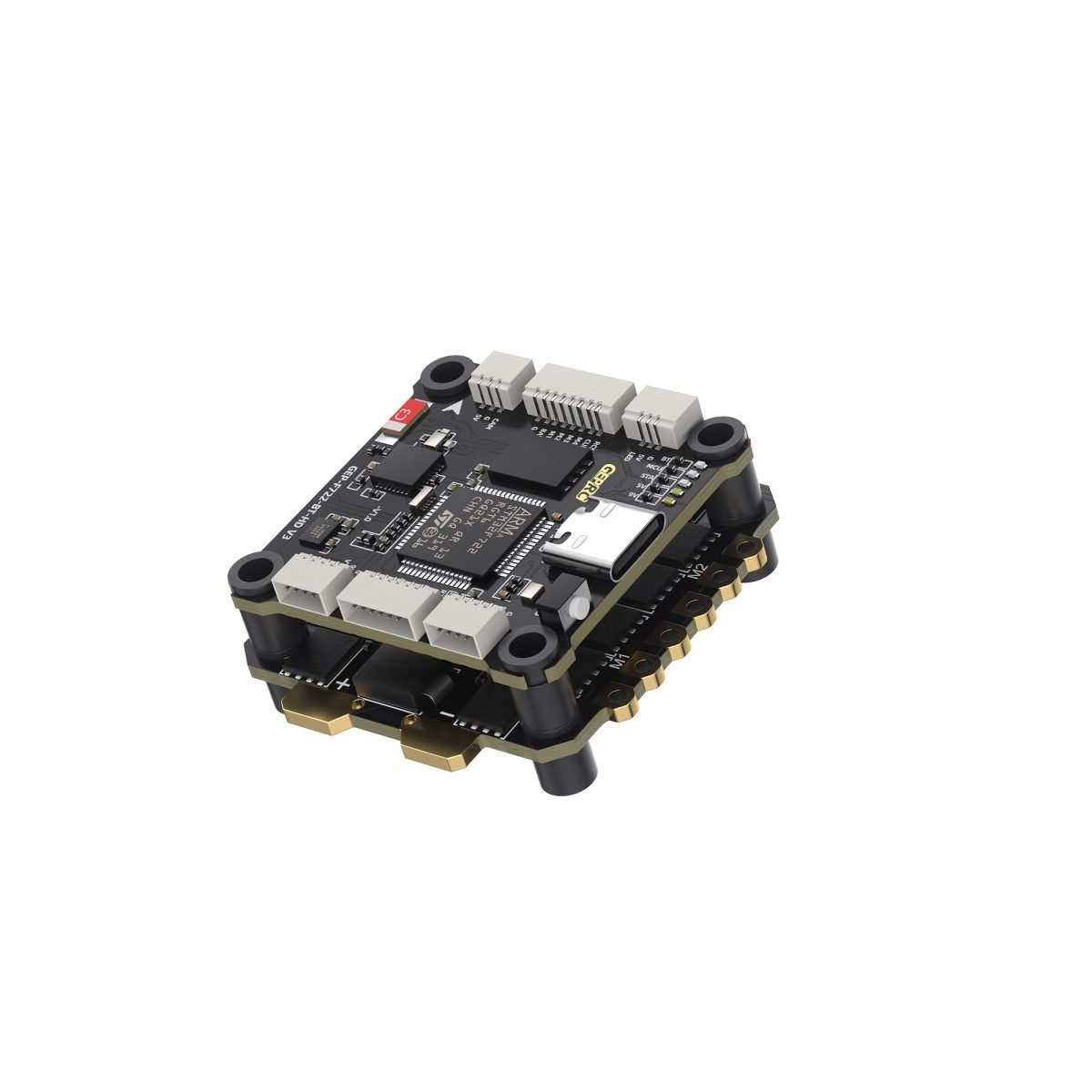

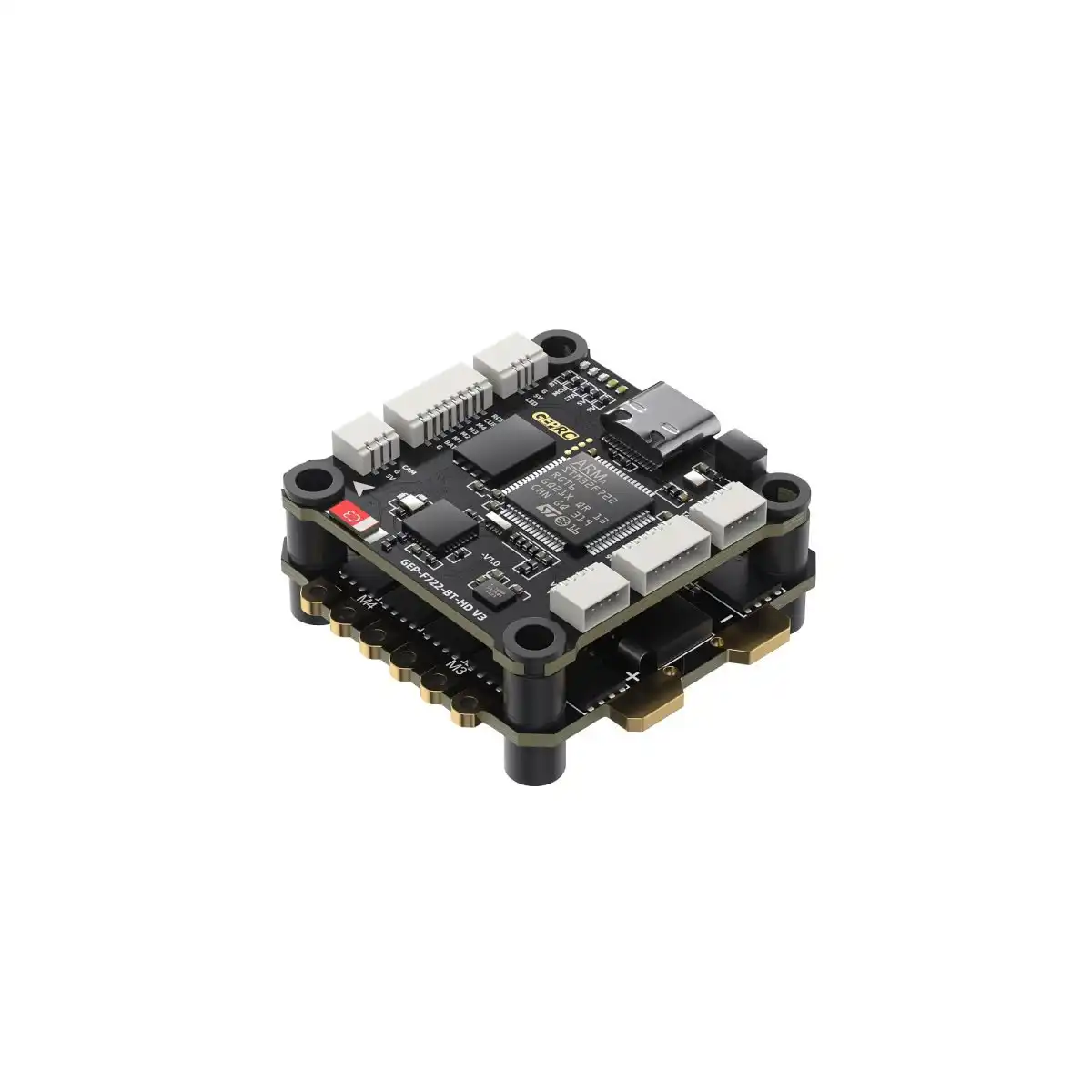

GEPRC TAKER F722 BT 32Bit 50A STACK
Description:
The GEPRC TAKER F722 BT 32Bit 50A Stack is designed for FPV drone builders who need reliable flight control and high-current motor support in a compact stack. The F722 32-bit flight controller provides fast processing for modern FPV flight-control applications, while the 50A ESC delivers dependable motor control for demanding racing and freestyle builds.
Its integrated stack design helps simplify installation and keeps the electronics organized inside the drone frame. It is suitable for FPV pilots building performance-focused racing, freestyle, and other compatible multirotor configurations.
Feature:
- Use mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 512M black box storage
- Support Bluetooth parameter tuning
- Integrated LC filter
- Upgrade type-C USB interface
- With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
- Directly plugs into the DJI Air Unit
- Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
- Integrated Barometer
- [email protected] + 5V@3A dual independent BEC
- Specifications

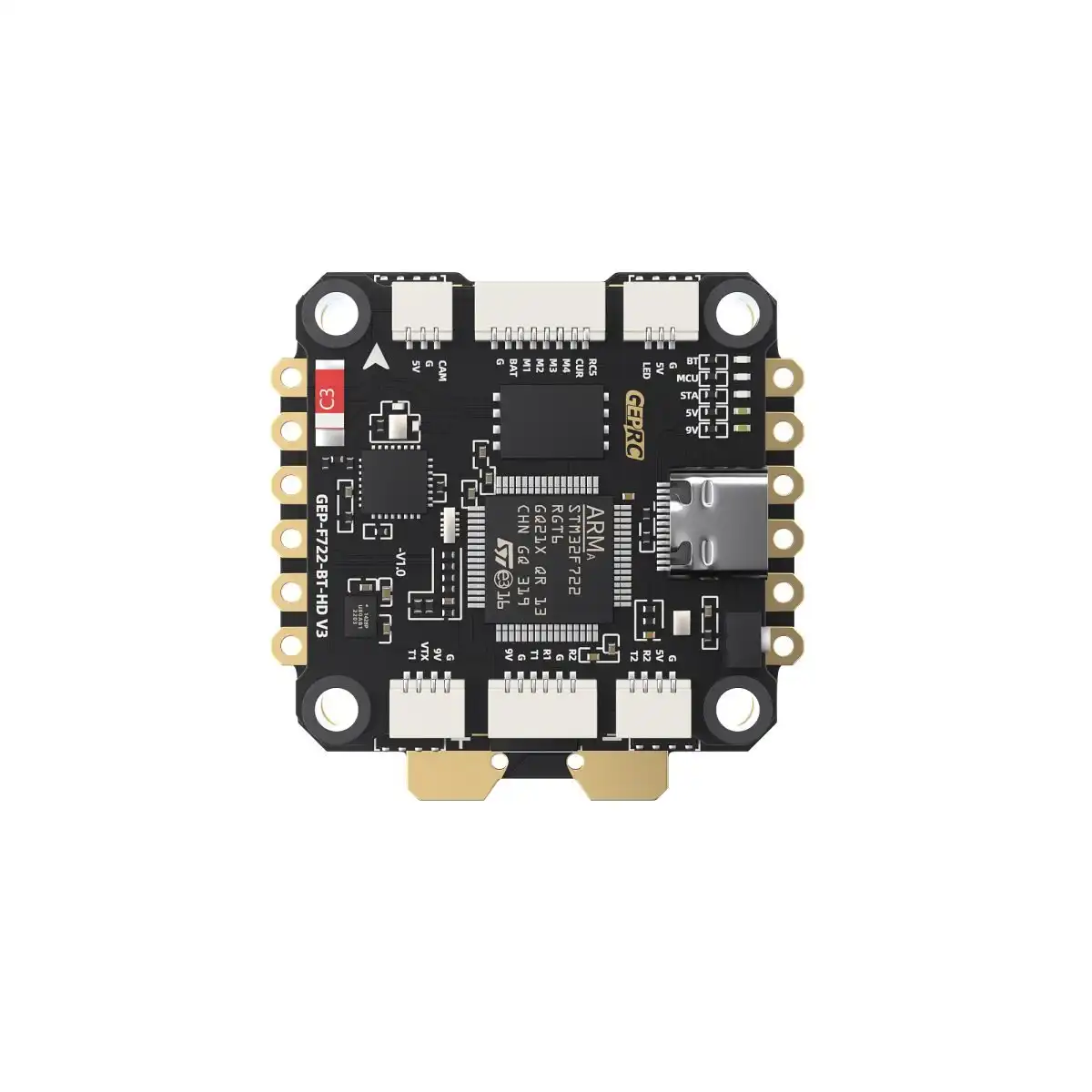

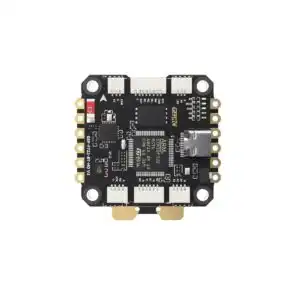

GEP-F722-BT-HD V3 Flight Controller
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Directly plugs into the DJI Air Unit
- Black Box: 512M onboard
- Bluetooth: Supported
- Barometer: Supported
- USB Interface: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A, [email protected] dual BEC
- Firmware Target: GEPRCF722_BT_HD_V3
- Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
- Input Voltage: 3-6S LiPo
- UART: 5 groups (UART4 fixed for Bluetooth)
- Power Filter: Integrated LC filter
- Weight: 8.2g

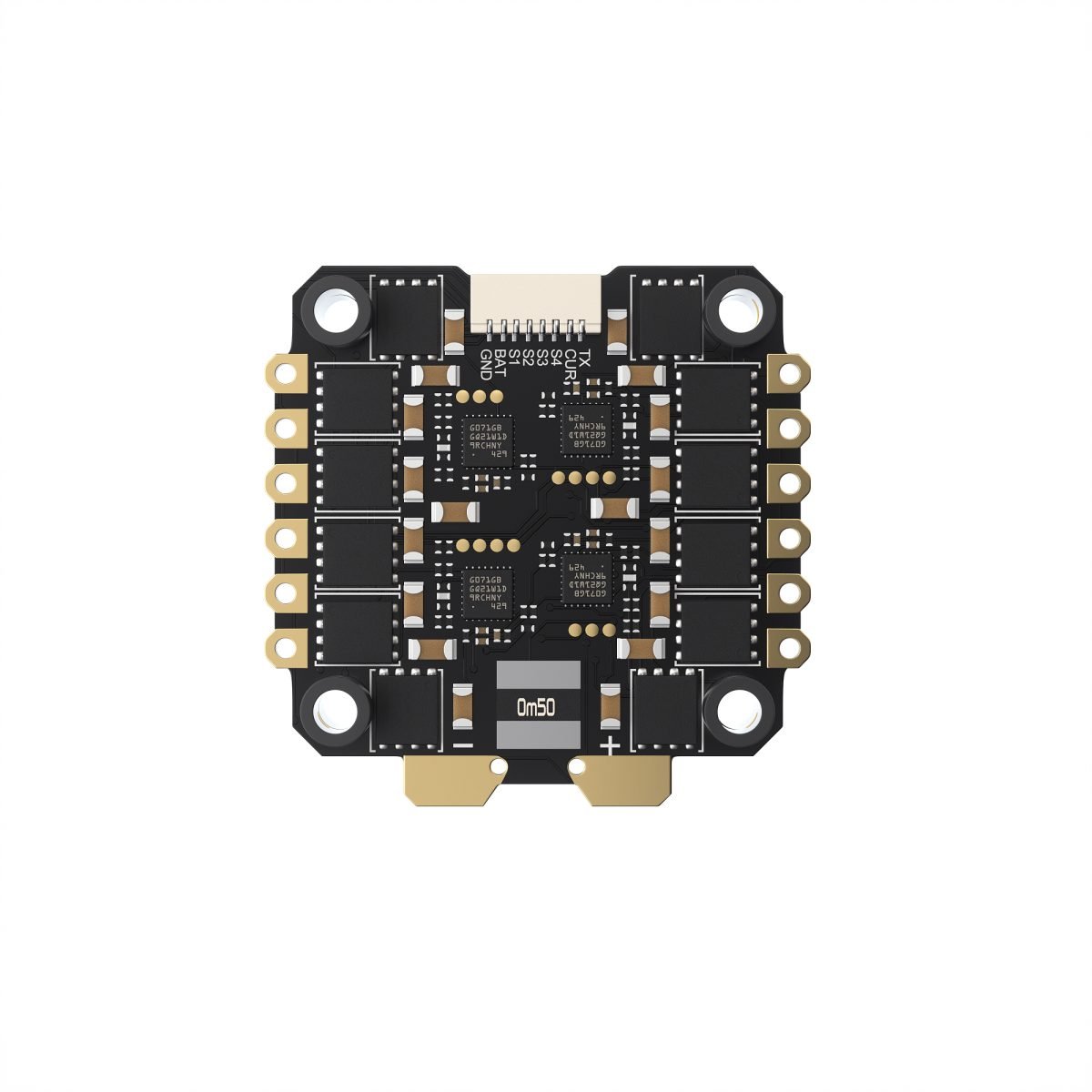

GEP-BL32 50A 96K 4IN1 ESC
- Model: GEP-BL32 50A 96K 4IN1 ESC
- Input Voltage: 3-6S Lipo
- Continue Current: 50A
- Burst Current: 55A (5 second)
- Galvanometer: Support
- Telemetry: Support
- Support Protocol: Dshot 150/300/600
- Size: 42.5×42.1mm，hole30.5×30.5mm
- Weight: 14g
- Target: ST_G0_05 – 31.92
Package Includes :
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
FPV Drone Video Latency: Minimize Delay for Responsive Flight
Table of ContentsWhat is FPV Video Latency and Why Does it Matter?The Complete FPV Latency ChainAnalog vs Digital...
Read More →
Agriculture Drone Parts List: Complete Buying Guide for India
The demand for agriculture drone parts in India has exploded as farmers increasingly adopt drone-based spraying to cut...
Read More →
Cinewhoop Drone Build: Safe Indoor Filming with Ducts
Cinewhoop Drone Build: Safe Indoor Filming with Ducts Cinewhoop drones have completely changed the game for indoor aerial...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 50A |
| SKU | AI5013 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F722 BT 32Bit 50A STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
