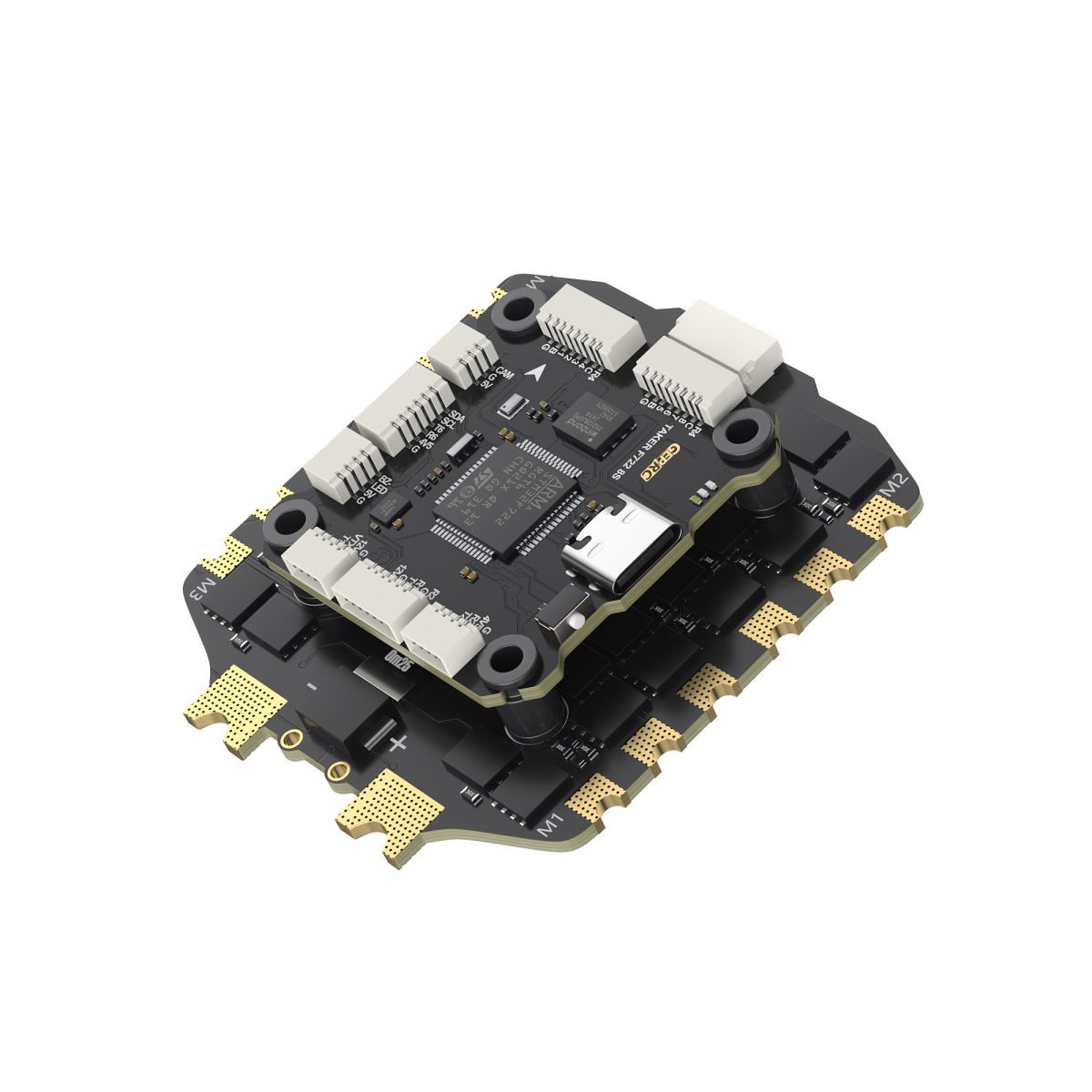

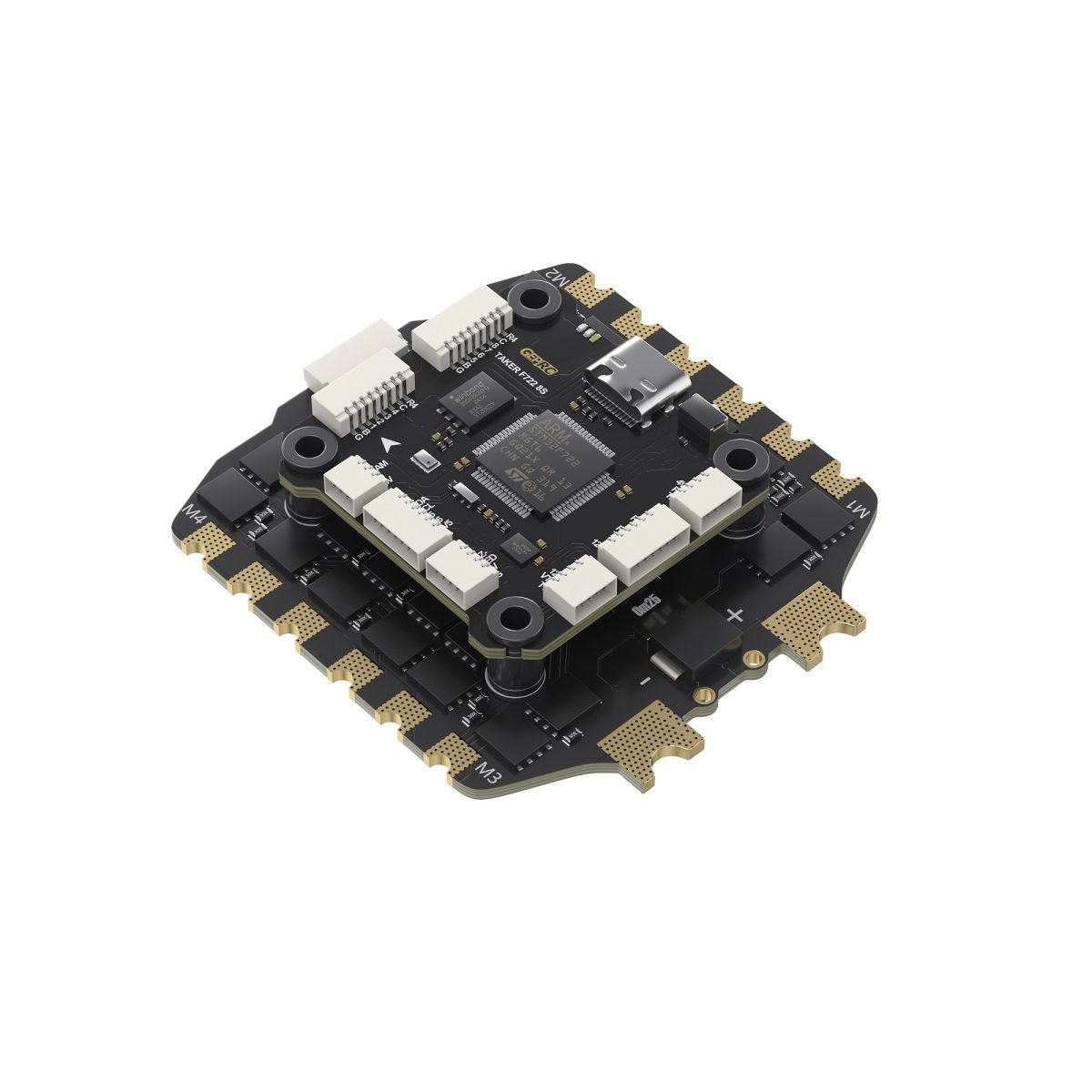

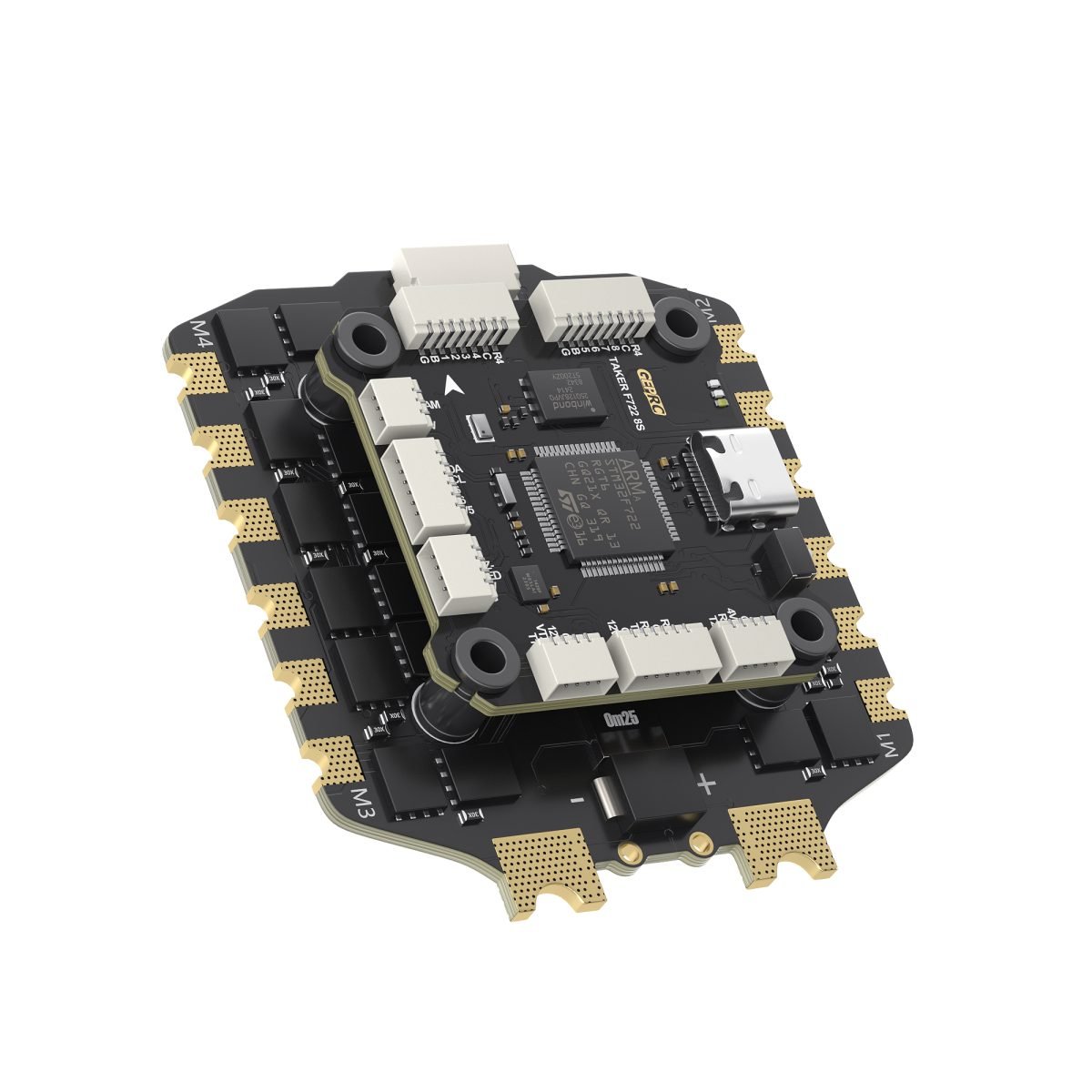

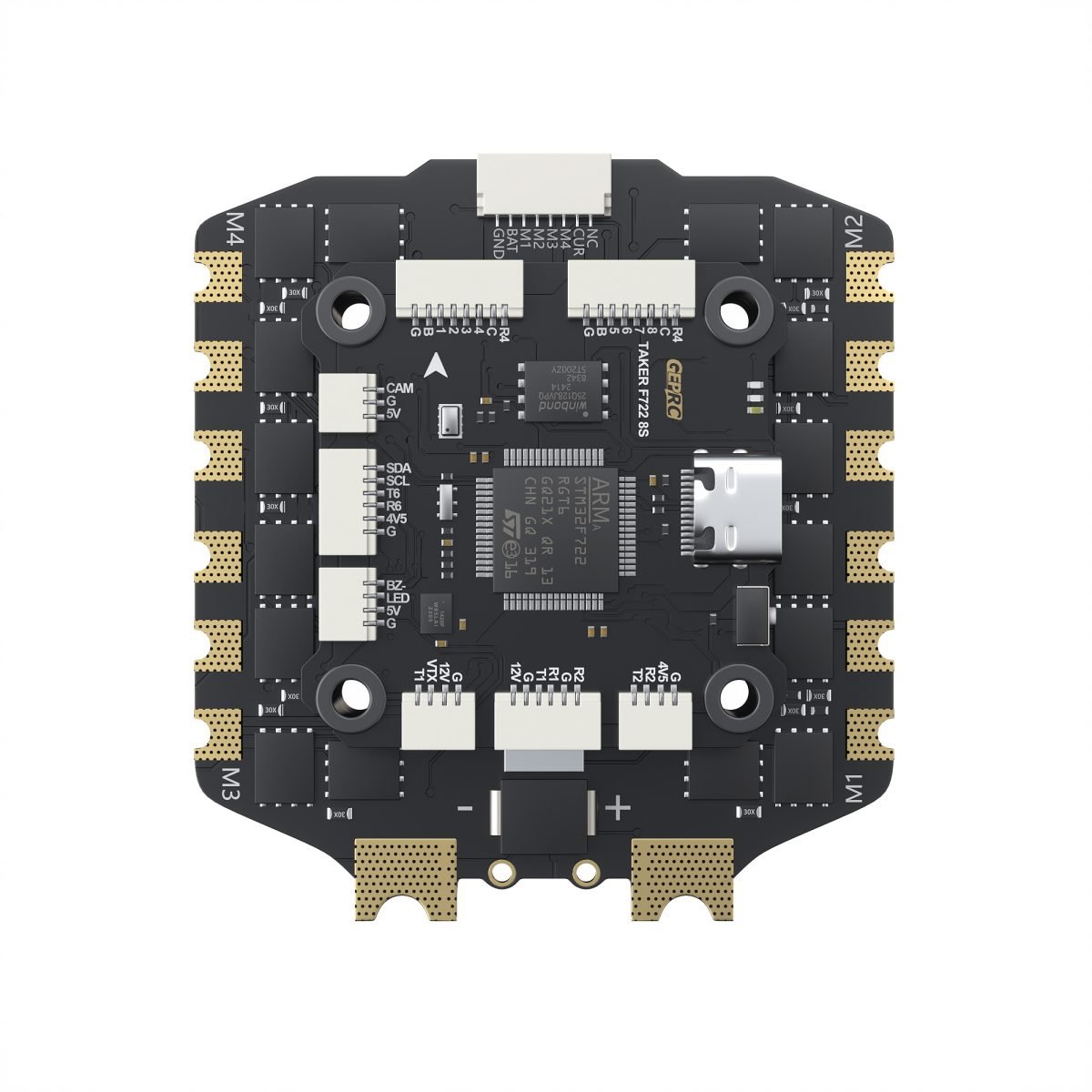

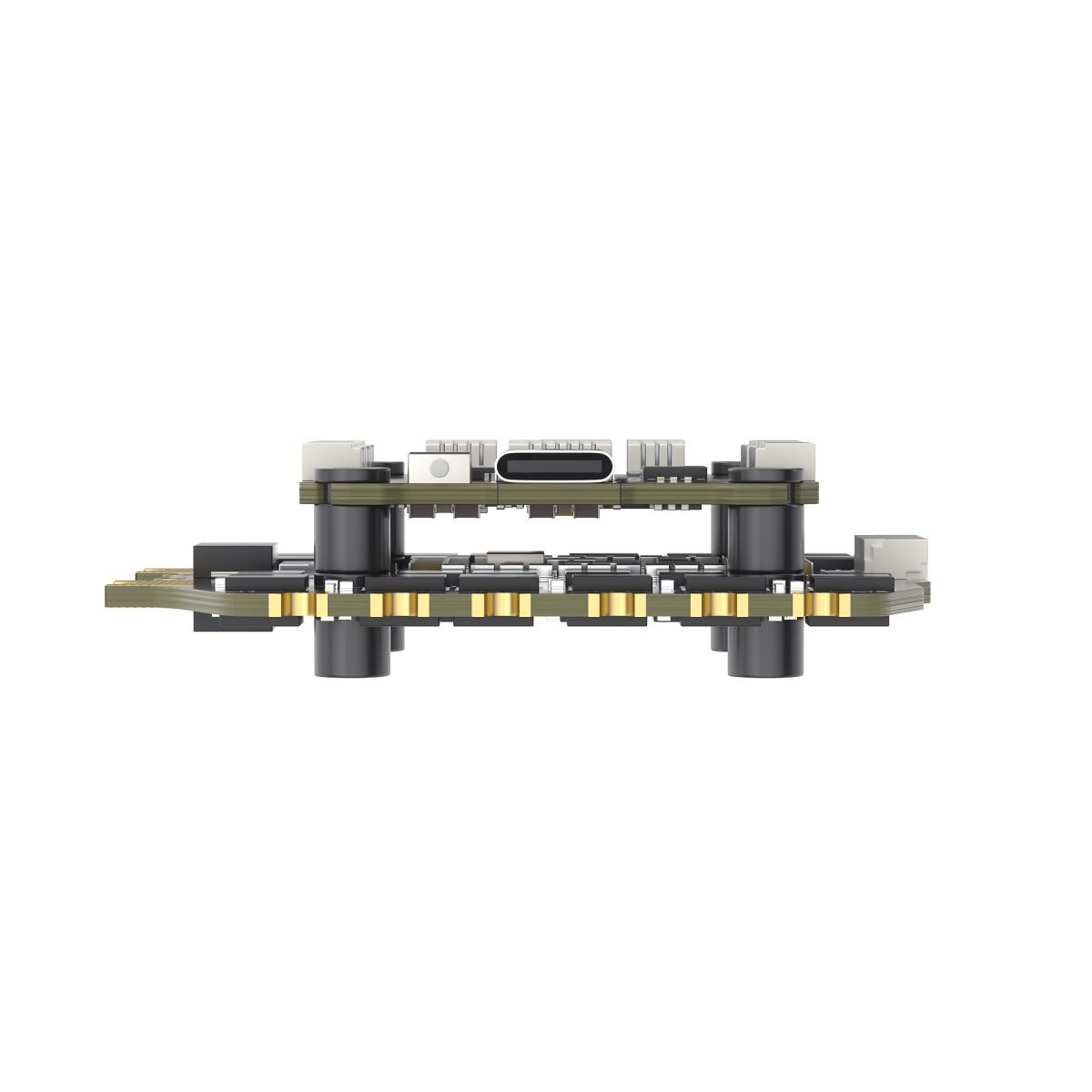

GEPRC TAKER F722 BLS 80A 8S STACK
Description:
The GEPRC TAKER F722 BLS 80A 8S Stack is a high-performance flight controller and 4-in-1 ESC stack designed for powerful FPV drones. It combines an F722 flight controller with an 80A BLS ESC, providing reliable flight control and high-current power delivery for demanding builds. With support for up to 8S LiPo batteries, the stack is suitable for racing, freestyle, and other high-performance FPV applications.
Its integrated stack design helps reduce wiring complexity and provides a clean, compact installation. It is an excellent choice for pilots looking for a powerful and reliable electronics stack for modern high-voltage FPV drones.
Feature :
- Uses the mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16M onboard black box storage
- Integrated LC filter
- Upgraded Type-C USB interface
- Directly plugs into the DJI Air Unit
- Paired with the TAKER H80_8S_BLS 80A 4IN1 ESC, providing a smooth flying experience
- Simple and efficient installation method with shock absorbers for stable gyroscope performance
- Dual independent BECs: 12V@3A and 5V@3A
- Supports 8S Lipo batteries
- Support direct insertion of 8 motors
Specifications :
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugs into DJI Air Unit
- Black Box: 16M onboard
- USB Interface: Type-C
- Barometer: Supported
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A,12V@3A dual BEC
- Firmware Target: GEPRC_TAKER_F722_8S
- Dimension: 38.5×38.5mm,
- Mounfing Hole Size: 30.5×30.5mm
- Input Voltage: 3-8S LiPo
- UART: 6 UARTs
- Input Voltage: 3-8S Lipo
- Ammeter: Support
- Continue Current: 80A
- Burst Current: 85A（5 second）
- Support Protocol: Dshot 150/300/600
- Size: 56.3*61.1mm, hole30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 28.3g
- Target: B_X_30
Package Include :
1 x TAKER F722 8S Flight Controller

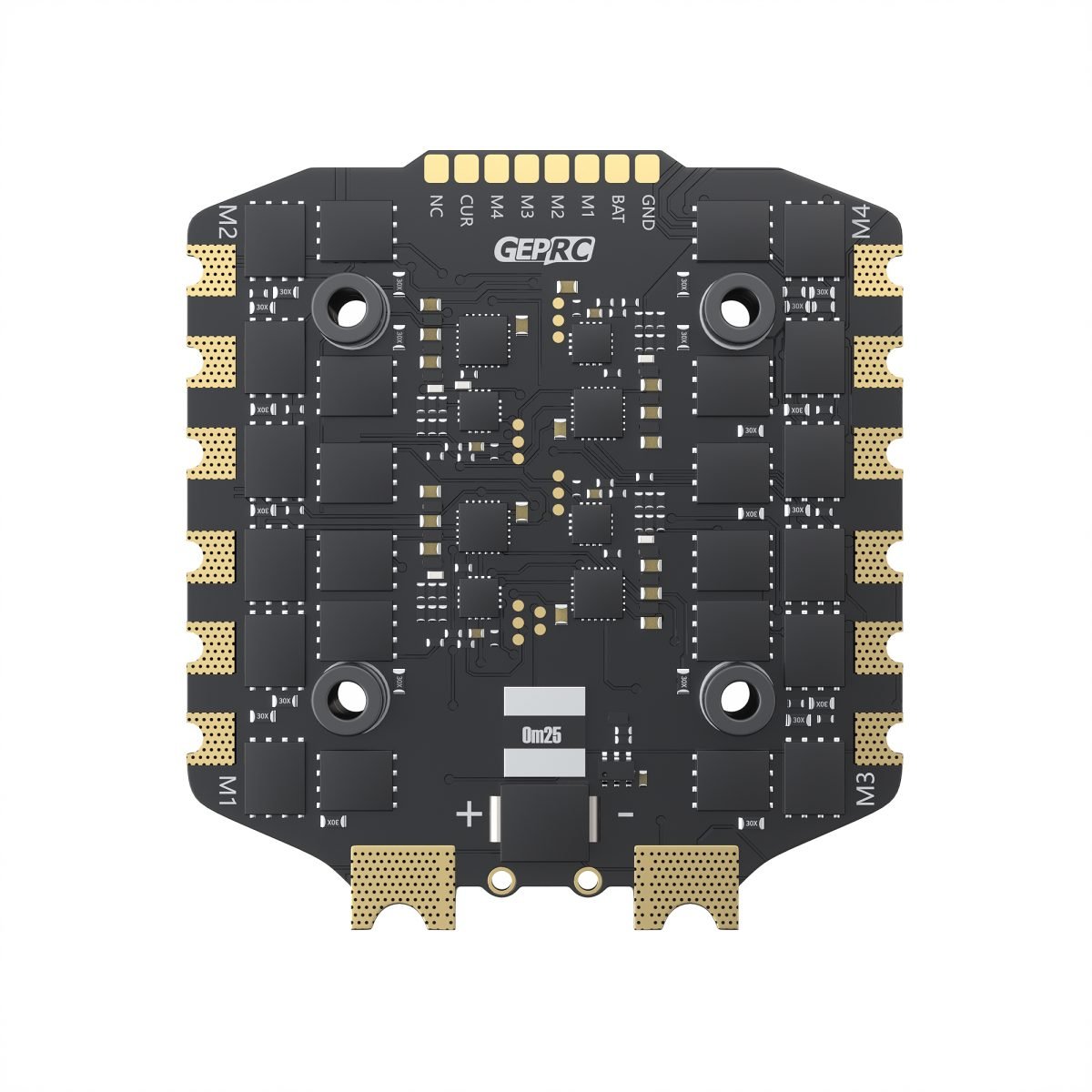

1 x TAKER H80_8S_BLS 80A 4IN1 ESC
1 x Filter board (Dual 50V 2200uF)
1 x DJI connection cable (SH1.0 6pin 100mm)
2 x FC adapter cable (SH1.0 8pin 30mm)
1 x Receiver silicone cable (SH1.0 4pin 150mm)
1 x Camera connection cable (SH1.0-SH1.25 3pin 135mm)
1 x VTX connection cable (SH1.0 4pin-6pin 100mm)
1 x XT90 battery plug
1 x Red and black power cable (10AWG 240mm)
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts (M3)
12 x Silicone anti-shake pads (M3)
Drone Thermal Imaging: Search and Rescue Applications
Table of Contents Understanding Drone Thermal Imaging Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
FPV Goggle Buying Guide 2026: DJI Goggles vs Walksnail
Table of Contents Why Your FPV Goggles Matter More Than Your Drone Analog vs Digital FPV in 2026...
Read More →
Best Flight Controllers for Drones in 2026
The drone flight controller (FC) is the brain of every multirotor -- the circuit board that reads sensor...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 80A |
| Cell Configuration | 8S |
| SKU | AI5004 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F722 BLS 80A 8S STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
