GEPRC STABLE 20A Toothpick Stack AIO
Description:

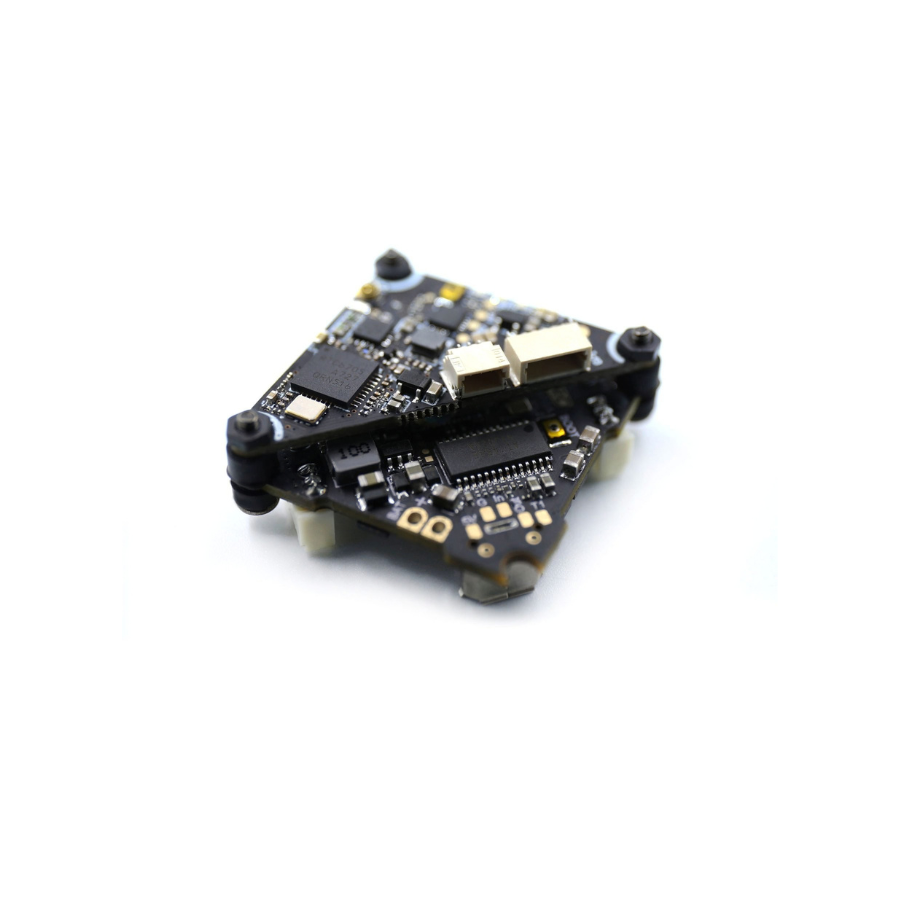

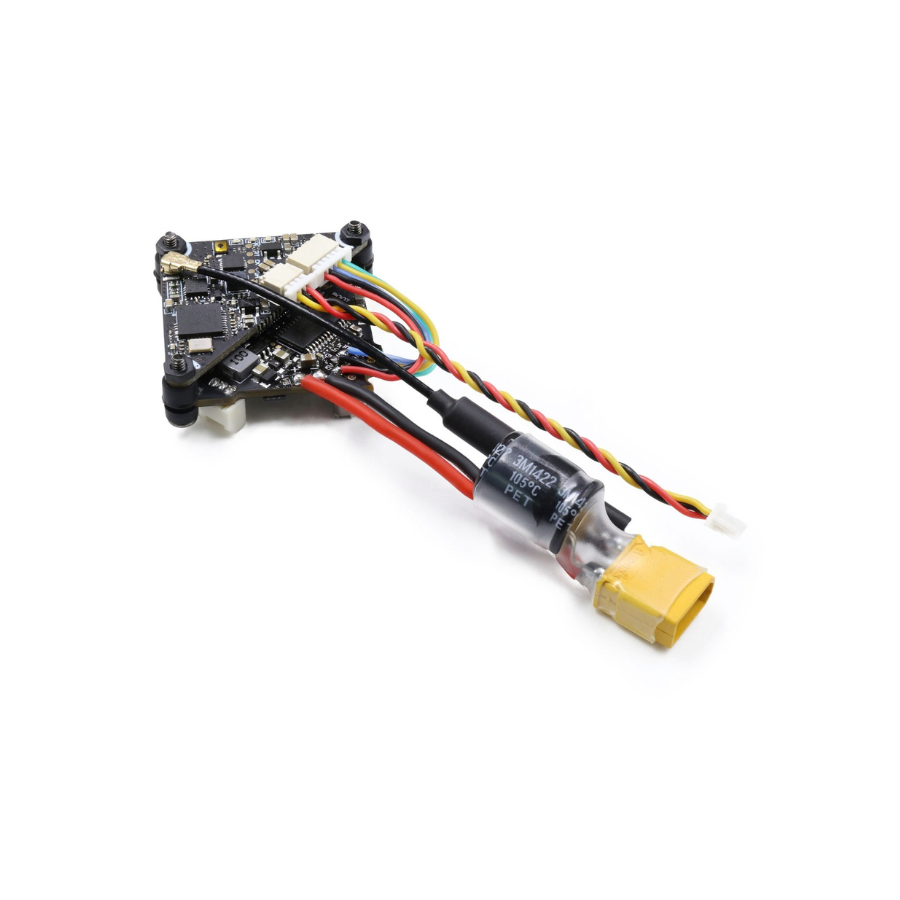

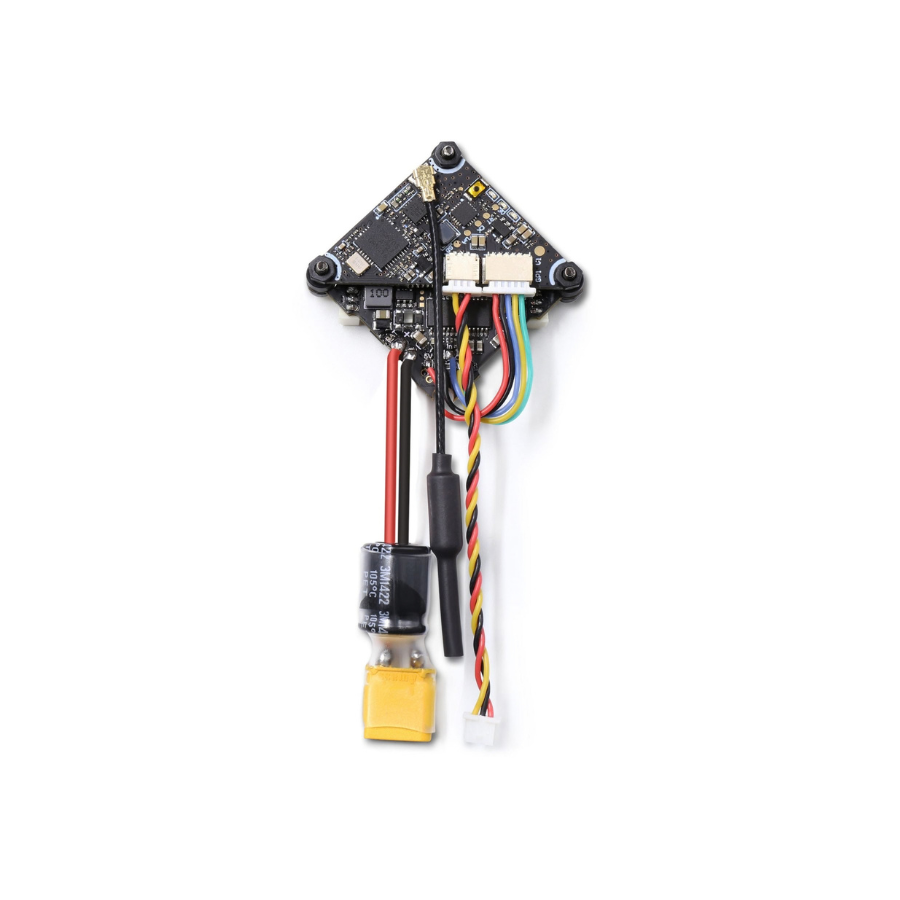

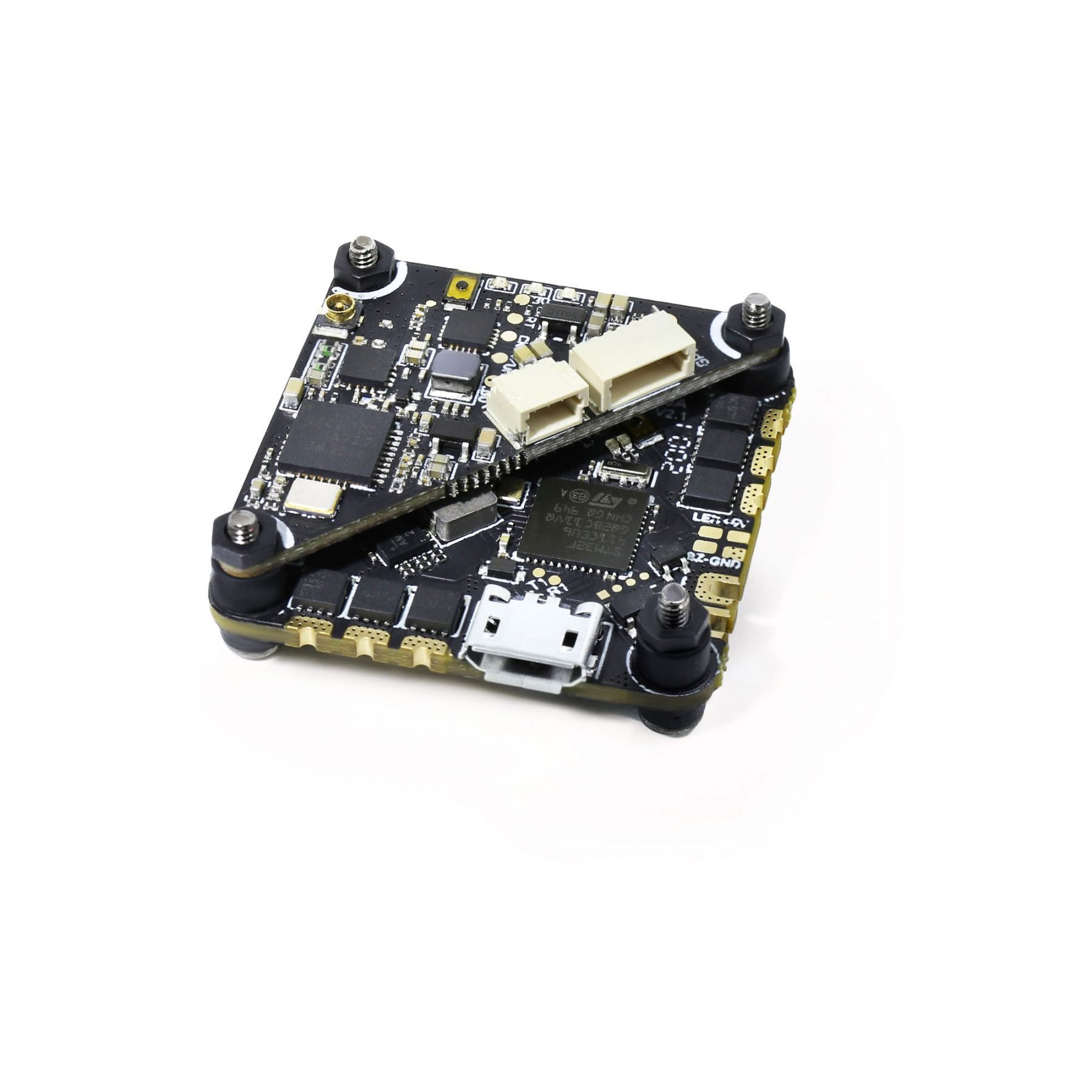

The GEPRC STABLE 20A Toothpick Stack AIO is a compact and lightweight all-in-one flight controller and ESC board designed for toothpick and lightweight FPV drones. With a 20A ESC rating, it delivers reliable motor control, smooth throttle response, and stable flight performance. Its integrated AIO design reduces wiring and saves space, making it well suited for compact FPV builds, freestyle flying, and DIY toothpick drones.
GEP-20A-F4 Flight contorller:
Specifications:
- Model Name:GEP-12A-F4
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- FC Firmware target: GEPRCF411
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:NO
- Current Monitoring : Support
- Betaflight OSD : Support
- External Buzzer : Support
- LED : Support
- USB Port: MicroUSB
- BEC Output: 5V@1A
- Integrated LC Filter
- ESC MCU: BB21F16G
- Continuous current: 20A
- Peak current: 30A
- Input:2-4s lipo
- Supports Dshot600 ,Oneshot,Multishot
- Current meter: 210
- Target: G_H_30
- Size: 32x32mm board,26.5mm mounting holes (M2)
- Installing Hole: 26.5×26.5mm, M2
VTX Specifications:
- Model Name:GEP-VTX200-Whoop
- Item name: 25~200mw 48CH VTX FPV Transmitter
- Output power: Pit/25/100/200mw switchable
- Channels: 48CH
- Input voltage: 4.5V – 5.3V
- Current consumption: 300mA(type)
- Antenna: RG178 antenna U.FL interface
- Frequency: 5.8GHz 5 bands 48 channels With Raceband
- Video Format:PAL/NTSC
- Control protocol：IRC Tramp
- Weight: 2g without antenna
Receiver Support:
- Frsky XM/XM+/R-XSR
- Futaba Receiver
- DSM/DSMX
- FlySky Receive
- TBS Crossfire Receiver
- AC900
- Most receivers that support SBUS

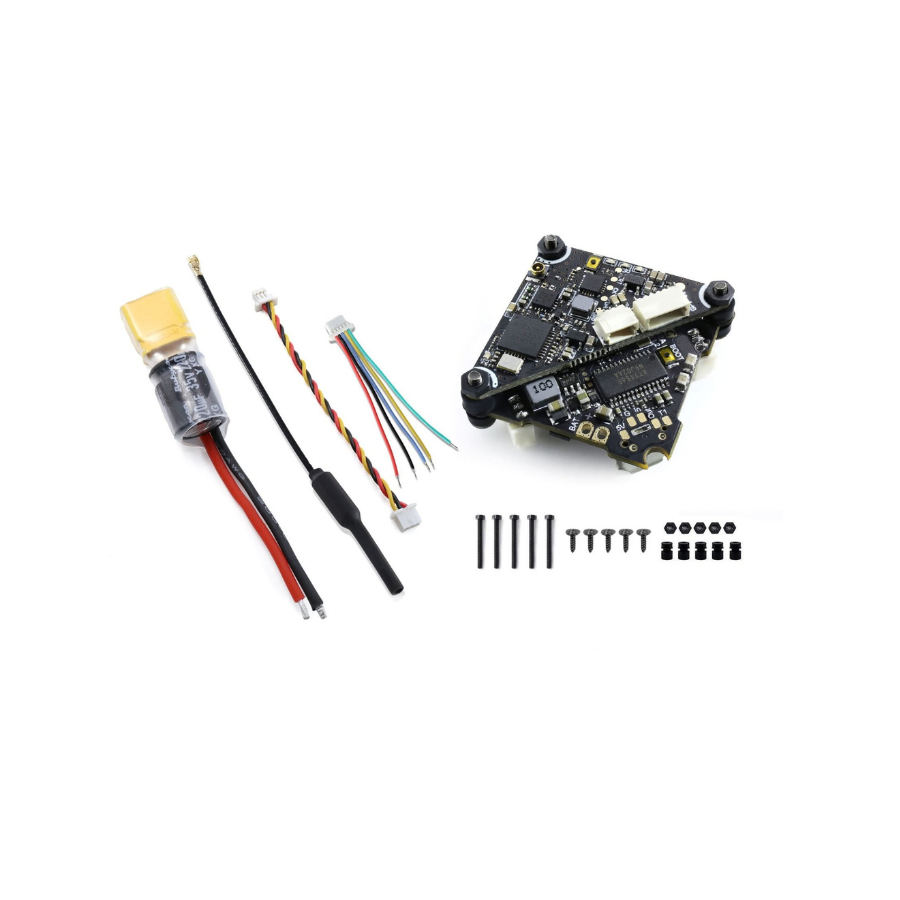

Package Includes:
- Product Name: GEPRC STABLE 20A Toothpick Stack AIO
- Type: All-in-One (AIO) Flight Controller + ESC
- ESC Rating: 20A
- Designed for: Toothpick and lightweight FPV drones
- Compact and lightweight design
- Integrated AIO board saves space and reduces wiring
DigiSky Drone Registration Walkthrough: Step-by-Step India
Every drone owner in India must complete DigiSky registration before flying. The DGCA's DigiSky platform is the official...
Read More →
INAV vs Betaflight vs ArduPilot: Which Flight Firmware?
Table of Contents Overview: The Three Firmware Giants Betaflight – The FPV Racer's Choice INAV – Navigation Made...
Read More →
Altitude Hold Drone Build: Barometer and Optical Flow Sensor Fusion Guide
Table of ContentsWhat Is Altitude Hold and Why Does It Matter?Barometer vs Optical Flow: Understanding Each SensorHow Sensor...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 20A |
| Interface / Protocol | BLE |
| SKU | AI5032 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC STABLE 20A Toothpick Stack AIO is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
