Looking for Ct30 Frame? GEPRC -CT30-O3-COB Frame is available at Zbotic with fast shipping across India.
GEPRC -CT30-O3-COB Frame:
The GEPRC CT30-O3-COB Frame is purpose-built for the DJI O3 Air Unit, offering advanced stability and exceptional durability. With a refined gimbal damping module, COB light integration, and support for larger 15-20 series motors, it delivers powerful flight performance. Its modular structure, premium materials, and compatibility with action cameras make it a perfect choice for cinematic drone builders seeking high-quality footage with unmatched visual flair and customization.
Features:
- Engineered for O3 Air Unit with aesthetic design.
- Newly developed gimbal damping structure eliminates jello.
- Quick-release system for easy upgrades or repairs.
- Injection-molded PC+PET body with 7075 aluminum alloy.
- Supports multiple action cameras with TPU mounts.
- COB light strip offers stunning illumination effects.
- Wide compatibility with AIO FCs and VTX standards.
- Durable yet lightweight for agile performance.

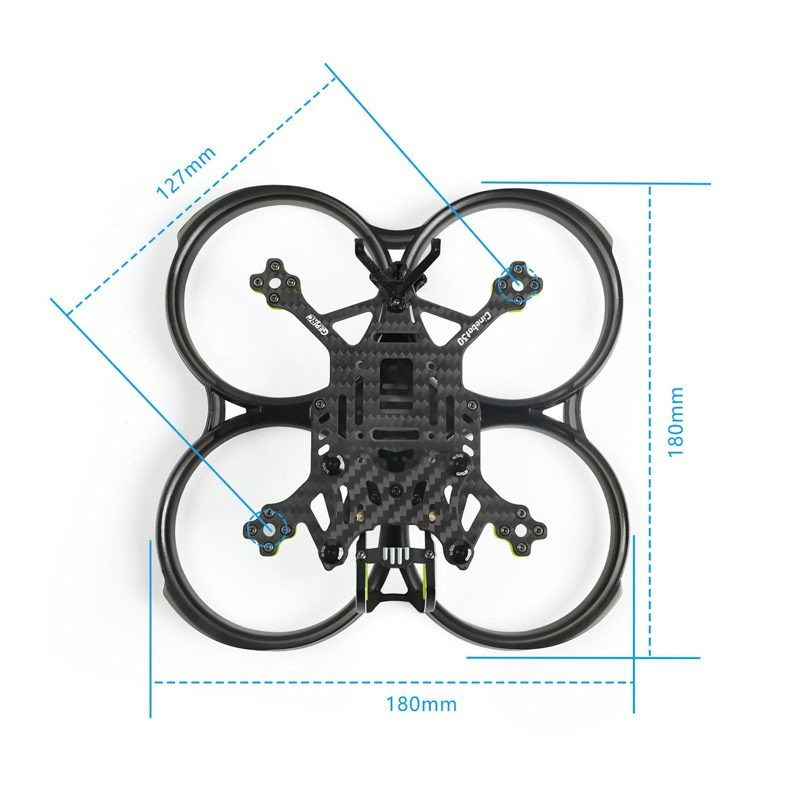

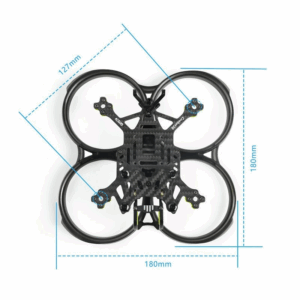

Specification
| tem Type: | Drone Frame |
|---|---|
| Model Type: | CT30-O3-COB |
| Material: | PC+PET & 7075 Aluminum Alloy |
| Color: | Black |
| Compatibility: | Action Cameras, Analog & Digital VTX, DJI O3 |
| Motor Hole Dia. (mm) | 12 X 12 |
| Top plate thickness (mm) | 2 |
| Bottom Plate Thickness(mm) | 1.5 |
| Compatible Prop (inch): | 3 |
| Thickness of Arms | 3 |
| Shipping Weight | 0.25 kg |
Package Includes:
- 1 x Main Plate (3.0mm)
- 1 x Bottom Plate (1.5mm)
- 1 x Isolation Plate (2.0mm)
- 1 x Set of Screws
- 1 x BEC Module (optional)
- 1 x COB Light Strip (optional)
- 1 x Set of 3D Printed Parts
- 1 x 3-inch One-piece Injection-molded Propeller Guard
- 1 x Naked GP Camera Base Mount
- 2 x Battery Non-slip Mats
- 2 x Receiver Antenna Tubes (100mm)
- 1 x Battery Strap M15×200
- 1 x Battery Strap M15×220
- 1 x Naked GP Camera Power Cable (4S Balance Head)
- 1 x Naked GP Camera Power Cable (6S Balance Head)
- 1 x L-shaped Screwdriver 1.5mm
- 1 x L-shaped Screwdriver 2.0mm
- 1 x Carbon Fiber Keychain
- 2 x GEPRC Stickers
- 1 x Service Card
- 1 x Packaging Box

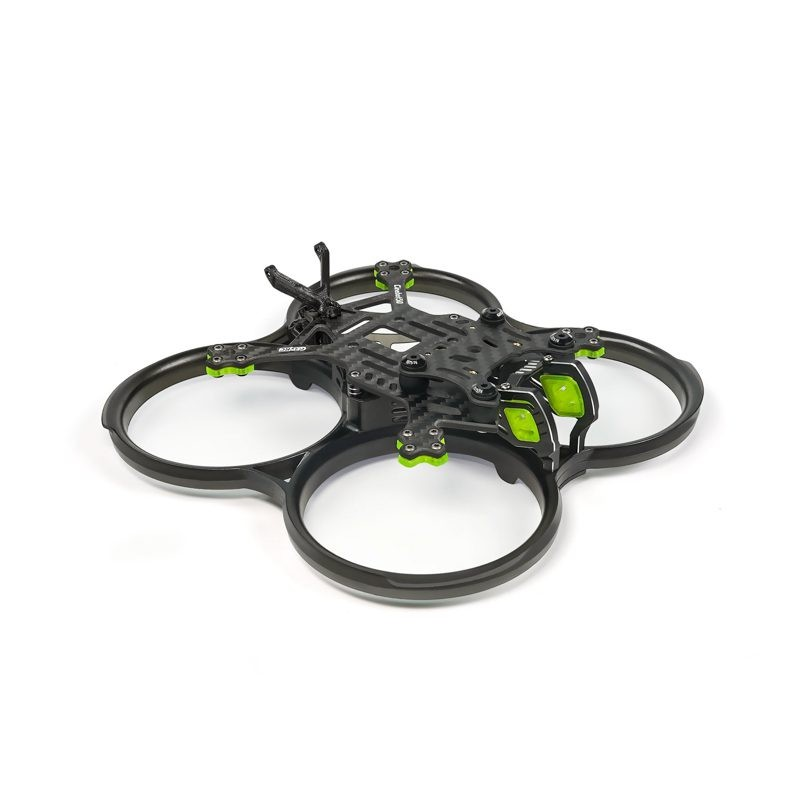

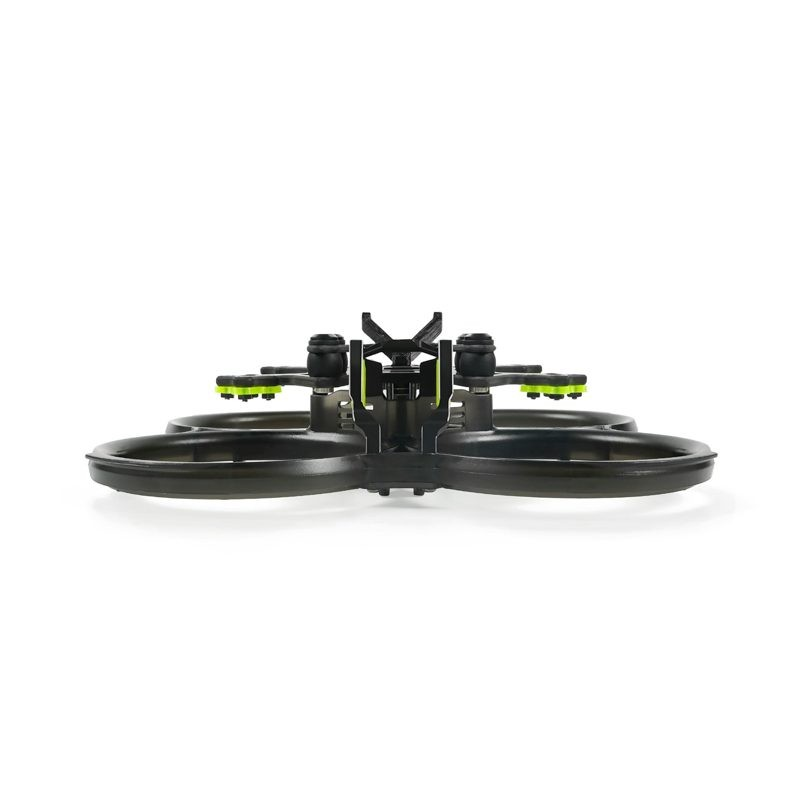

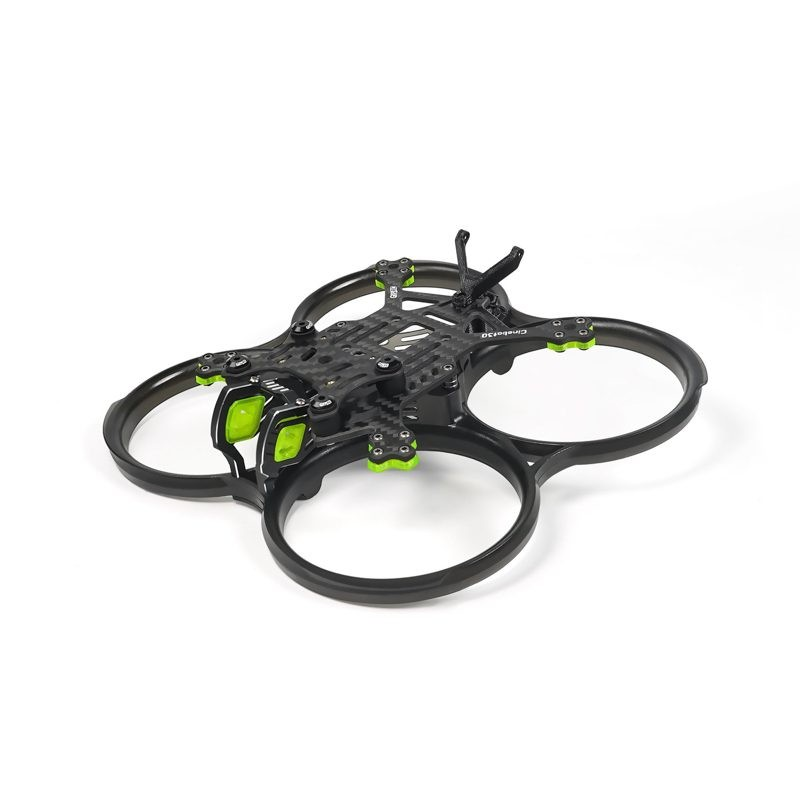

GEPRC -CT30-O3-COB Frame Overview
The GEPRC CT30-O3-COB Frame is a lightweight, modular FPV drone chassis specifically engineered to house the DJI O3 Air Unit. Designed for 3″ propellers and 15–20 series motors, it delivers a vibration-free platform ideal for capturing smooth cinematic footage.
Key Features of GEPRC -CT30-O3-COB Frame
- Purpose-built mounting pattern for seamless DJI O3 Air Unit integration
- Advanced gimbal damping module to eliminate jello and minimize vibrations
- Integrated COB light ring for improved day and night visibility
- Supports 15–20 series brushless motors and 3″ propellers for agile flight
- Modular quick-release design allows fast upgrades, repairs, and camera swaps
- Fast shipping across India when you order from Zbotic
Applications and Use Cases
- Aerial cinematography with DJI O3 for filmmaking or real estate tours
- FPV freestyle and acrobatic flying, leveraging the lightweight 3″ frame
- Low-light or nighttime inspections using the integrated COB light ring
- Outdoor sports coverage with action cameras mounted on the frame
- Custom payload setups for educational and R&D drone prototypes
How to Use GEPRC -CT30-O3-COB Frame
Begin by securing the DJI O3 Air Unit into the designated frame bay, fastening it with the supplied screws. Install your 15–20 series motors to the motor mounts, attach 3″ propellers, and connect ESC leads to the flight controller. Route power to the COB light ring via the PDB or 5 V–12 V output, then affix any action camera or AV transmitter. Perform a balance check and vibration test before your maiden flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use the CT30-O3-COB Frame with analog FPV cameras?
The mounting pattern and clearances are optimized for the DJI O3 Air Unit. While you can physically attach a small analog camera, slide-in guides and cable routing are tuned for the O3’s dimensions and connectors.
What motor and propeller sizes does this frame support?
This frame is designed for 15–20 series brushless motors and 3″ propellers. Common pairings include 1506, 1806, or 2006 motors with 3×3 tri-blades, offering a balance of thrust and efficiency.
How do I power the integrated COB light ring?
The COB light ring comes with pre-tinned pads and a connector cable. Simply solder or plug it into a 5 V–12 V output on your power distribution board or ESC, secure the ring under the canopy, and configure your flight controller’s LED channel.
