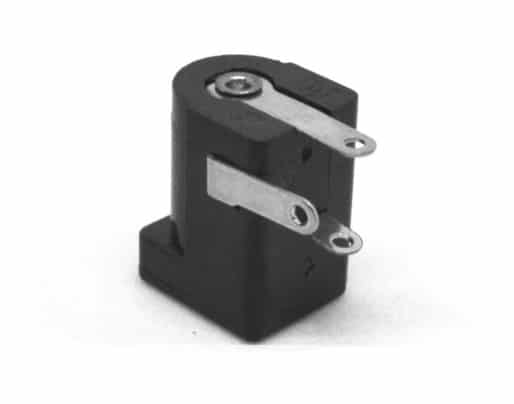

Female DC Power Jack Barrel Connector Plug (Pack of 2):
The DC-005 Female DC Power Jack Socket (5.5×2.5mm) is a robust and versatile connector designed to work with 5.5mm male power jacks. Its compact 2.1×5.5mm size allows for easy integration into PCBs, making it an excellent choice for DIY electronics, robotics, and various other applications.
This power jack supports DC voltage inputs up to 30V, ensuring a stable and reliable power connection for a wide array of electronic projects that require consistent voltage supply.
Features
- Temperature: -30°C ~ +70°C.
- Rated load: up to DC 30V / 1.0A.
- Withstand voltage: AC 500V (50Hz)/min.
- Actuating force: 3N – 20N.
Specifications:
| Item Type: | DC Jack |
|---|---|
| Rated Current (A) | 1 |
| Rated Voltage (V): | 30 |
| Allowed Wire Size (AWG): | 20 ~ 18 |
| DC Jack OD x ID (mm) | 5.5 x 2.1 |
| No. of Pin | 3 |
| Operating Temperature (°C) | -30 ~ +70 |
| Rated Speed (RPM) | DC 30V / 1.0A |
| Contact Resistance | ?0.03 |
| Insulation Resistance (Mohm) | ?100 |
| Center Pole Diameter (mm ) | 2.1 |
| Compatibility | 5.5 mm jack |
Package Includes
2 x Female DC Power Jack Barrel Connector Plug
Dimensional Drawing
