Name: EFT Z80P Drone Frame
Brand: EFT
SKU: AI4909
Price: 318346.88 INR
Availability: OutOfStock

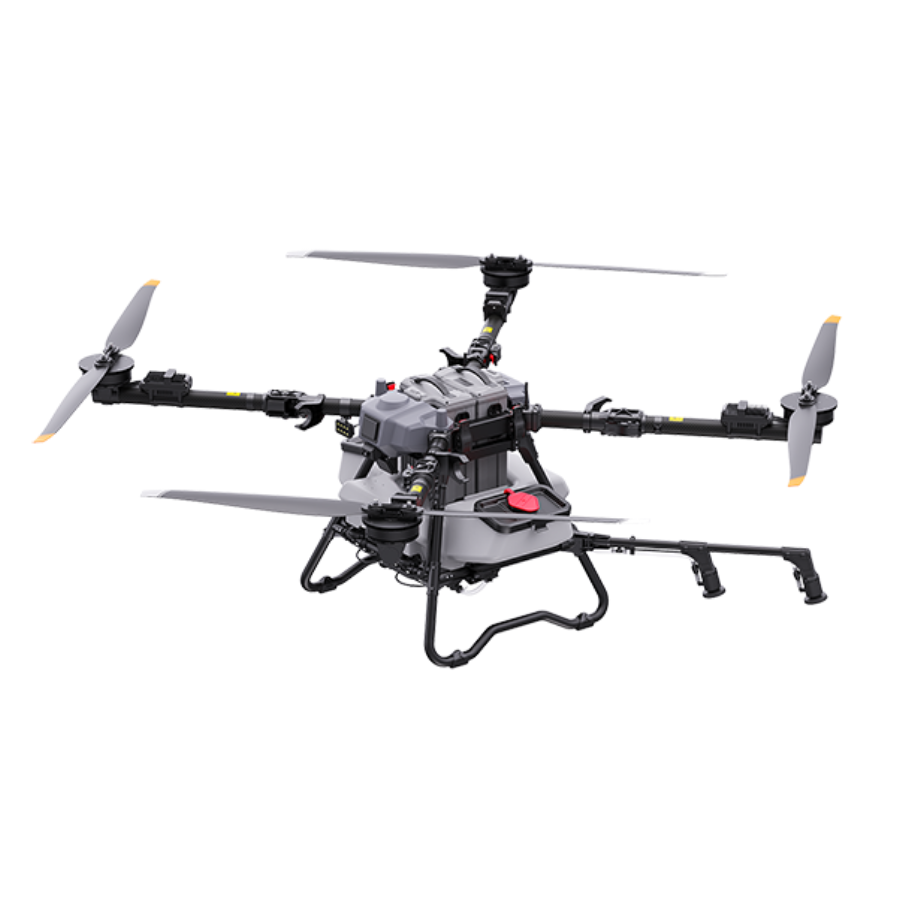

EFT Z80P Drone Frame

Description:

The EFT Z80P Drone Frame is a heavy-duty agricultural drone platform designed for high-payload spraying and spreading applications. It features a strong and durable frame structure that provides excellent stability during flight while supporting large propulsion systems and payload equipment. The foldable design makes transportation and storage more convenient, while the robust construction is suitable for demanding agricultural operations and professional drone applications.

Specifications :

General Specifications

Parameter	Specification
Product Model	EFT Z80P
Weight Without Battery – Spraying	54.5 kg
Weight Without Battery – Spreading	55.2 kg
Weight Without Battery – Lifting	46.8 kg
Weight With Battery – Spraying	70.7 kg
Weight With Battery – Spreading	71.4 kg
Weight With Battery – Lifting	63 kg
Maximum Take-off Weight	149.9 kg
Weight Tolerance	±1 kg*
Wheelbase	2380 mm
Maximum Wind Resistance	6 m/s
Operating Temperature	0°C to 40°C
IP Rating	IP65
Maximum Flight Speed	13.8 m/s

Dimensions

Configuration	Unfolded Size	Folded Size
Spraying	3283 × 3283 × 903 mm	1146 × 1146 × 885 mm
Spreading	3283 × 3283 × 1076 mm	1146 × 1146 × 1058 mm
Lifting	3283 × 3283 × 903 mm	1146 × 1146 × 885 mm

Motor System

Parameter	Specification
Motor Model	E15-M
Input Voltage	18S
KV Rating	45 KV
Propeller Size	63 inch
Rotor Quantity	4

Spraying System

Parameter	Specification
Tank Capacity	80 L
Pump Maximum Flow Rate	36 L/min
Nozzle Type	Centrifugal Nozzle × 4
Atomization Size	50–500 μm
Spray Width	5–10 m

Spreading System

Parameter	Specification
Tank Capacity	120 L
Maximum Flow Rate	Up to 400 kg/min*
Large Auger Granule Range	0.5–10 mm
Large Auger Applications	Fertilizer, wheat, feeds
Medium Auger Granule Range	4–6 mm
Medium Auger Application	Rice
Spreading Width	5–10 m
Discharge Method	Auger Feeding

Lifting System

Parameter	Specification
Lifting Capacity	80 kg
Rope Length	10 m
Control Mode	CAN
Operating Voltage	60–80 V

Spotlight

Parameter	Specification
Rated Power	80 W
Illumination Distance	25 m
Operating Voltage	12–18S
Working Temperature	−10°C to 45°C

Remote Controller

Parameter	Specification
Display Screen	7 inch
Operating Time	4–6 hours
Charging Time	3.5 hours
Transmission Range	2 km
Test Condition	Clear, unobstructed airspace; flight altitude 2.5 m

Power System

Parameter	Specification
Battery Specification	18S 35,000 mAh
Battery Weight	16.2 kg/unit
Charger Input Voltage	AC 100–240 V, 50–60 Hz
Charger Output Voltage	DC 20–80 V
Maximum Charging Current	120 A
Charger Weight	14 kg

Features:

Heavy-duty frame designed for high-payload applications.
Strong and durable construction for reliable performance.
Stable flight platform for agricultural operations.
Supports large propulsion systems and payload equipment.
Foldable design for easier transportation and storage.
Suitable for spraying and spreading applications.
Designed for professional agricultural and industrial drones.

New Flagship, All-In-One

Z80 — a new flagship drone for heavy-load,

spraying, spreading and lifting, all-in-one.

Featuring a robust metal truss frame and quick-swap design for multi-scenario use.
Equipped with dual flexible-impeller pumps, four centrifugal nozzles, and an auger spreader,
it delivers powerful and consistent output. Take control with the EFT 4.0 App, enjoy smart, smooth operations.

80L

Spraying Capacity

120L

Spreading Capacity

149.9KG

Max Takeoff Weight

Terrain Prediction

Automatic Slope Ascent*This option applies only to terraces under 30° slope and 3 m height.

Virtual Gimbal

Stable Image, Wide Vision

EFT 4.0 APP

New UI, Smoother Operation

New Motor

Powerful Thrust

Modular Platform

Quick Swapping

New Spraying System
Powerful Flow, Thorough Spray

The integrated spraying system with an 80L tank, new flexible pumps, and four high-power centrifugal nozzles, delivering 36 L/min of atomized spray. New motor system with 63inch propellers generate stable airflow for full coverage, while intelligent feedback and real-time weighing ensure precise and efficient operations.

36 L/min

High-Flow Spraying
5-10 m

Effective Spray Width
50-500 μm

Droplet Size

Dual Flexible Impeller Pumps

Simplified structure with high wear and corrosion resistance, providing smooth and precision liquid supply.

Anti-Surge Tank

Internal baffles reduce liquid sloshing, ensuring stable flight.

Foldable Spray Booms

Foldable design for compact storage, and easy to carry.

Auger Spreading System
Efficient and Even Spreading

120L large spreading tank with two enlarged openings for easy refilling. Dual interchangeable augers enable precise control of seeds, fertilizers, and other materials. It achieves a maximum output of 400 kg/min, while the high-torque design ensures smooth spreading, and optimized disc spacing delivers more uniform spreading.

400 kg/min

Efficient Spreading(Compound fertilizer)
5-10 m

Effective Spread Width
0.5-10 mm

Granule Size

Note: Data tested with compound fertilizer, flow rate may vary with different fertilizer types and densities.

Dual-inlet Large Tank

120L tank handles 2.5 bags of fertilizer at once, reducing refills and boosting efficiency.

High-torque Motors

Powerful feeding for consistent, smooth spreading of various materials.

Centrifugal Spinning Disc

Large disc with optimized paddle curves for more even spreading.

Modular design

Motor, auger, and spreader disc modules can be independently removed for easy maintenance.

Two auger options

The large auger fits 0.5–10 mm granules,
The medium auger fits 4–6 mm granules.

Smart Lifting System

Efficient Heavy-Load Transport

Precise Weighing

Prevents overloading and facilitates accurate settlement.

Emergency Fuse

One-touch activation to free the drone from entanglement.

Shock Absorption

Equipped with shock absorbers to enhance flight stability.

EFT 4.0 APP
Smarter Control, Smoother Operation

EFT Flight Assistant app, with new UI for clearer, smoother operation.
Automatic mode recognition and smart route planning boost efficiency.

Multi Work Mode

Spray, spread, and lift modes are automatically recognized for quick deployment.

Supports KML File Import

Quickly recognizes mapping data for precise operations.

Intelligent Fault Detection

Automatically alerts for faster maintenance and lower operating costs.

Metal Truss Frame

Aluminum truss structure with excellent compression and deformation resistance, triple safety factor, strong and durable.

Quick-Release Design

Snap-fit quick-release system enables easy swapping of different landing gears for multi-purpose use.
New Motor System

Efficient cooling motor with 63-inch propellers and injection-molded motor base, delivering powerful and stable thrust.
High-Current PDB

500A High-current distribution board with bolt-type connection，strong power capacity, low temperature

1x EFT Z80P Drone Frame

Technical Specifications

Brand	EFT
SKU	AI4909
Weight	0.0 kg
Availability	Out of Stock

Applications & Use Cases

The EFT Z80P Drone Frame is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.

Common use cases:

Building a new racing quad
Replacing a broken frame arm after a crash
Mounting a camera gimbal on a custom platform

This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.

Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
