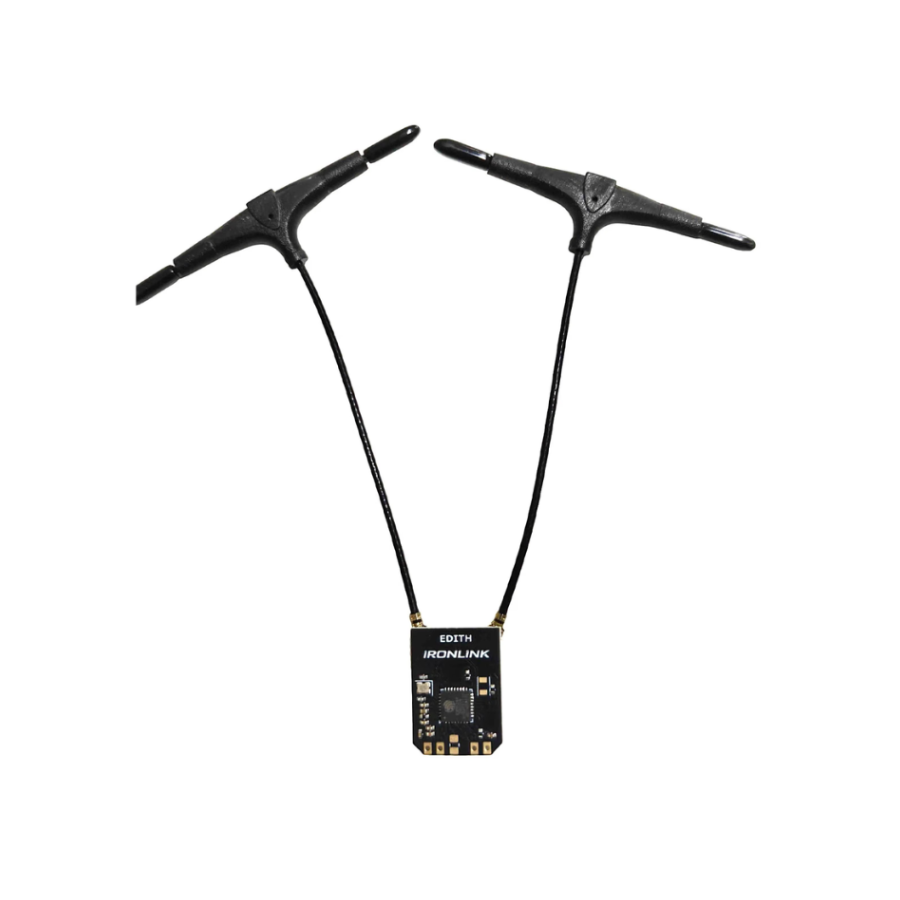

EDITHFPV IronLink Rx-TD ELRS (True Diversity)
The IronLink RX-TD is a high-performance ExpressLRS 2.4GHz true diversity receiver engineered to provide dependable long-range control, ultra-low latency, and exceptional link stability for demanding FPV and UAV applications.
At its core, the receiver utilizes an ESP32 microcontroller paired with 2.4GHz RF transceiver, delivering the fast packet rates, robust telemetry, and responsive control performance that ExpressLRS is known for.
Featuring true diversity, the RX-TD continuously monitors signal quality and significantly improving resistance to signal fading, multipath interference, and challenging flight environments with its two antenna in each RF path.
An integrated 2.4GHz front-end amplifier stage enhances receiver sensitivity and supports telemetry transmission power up to 100 mW per RF path, helping maintain a strong and reliable return link even at extended distances and minimizes any dropouts.
Built-in Wi-Fi connectivity allows seamless over-the-air firmware updates and configuration through the ExpressLRS WebUI, eliminating the need to disconnect or remove the receiver from the aircraft.
Despite its advanced capabilities, the IronLink RX-TD maintains a lightweight and compact footprint, making it suitable for everything from racing quads and long-range platforms to fixed-wing aircraft and professional unmanned systems.
Key Features
- Supports Gemini mode
- ExpressLRS 2.4GHz protocol support
- ESP32 high-performance microcontroller
- High-sensitivity RF front-end for improved link robustness
- 2X Max 100 mW telemetry output power
- Integrated Wi-Fi for wireless firmware updates and configuration
- Ultra-low latency control with high packet rate support
- Uses TCXO for utmost stability
- 26mm X20 mm dimensions
- Compact and lightweight design for space-constrained builds, weighs 1.69grams (without antenna)
- Optimized for FPV, long-range, fixed-wing, and professional UAV applications
Specifications:
| Connectivity Technology | USB |
|---|---|
| Wireless Communication Technology | RF |
| Are batteries included? | No |
| Includes Remote? | No |
Pacakge Includes:
1 x EDITHFPV IronLink Rx-TD ELRS (True Diversity)
Long Range Cruiser Drone: 7-Inch Build for Exploration
Table of Contents Understanding Long Range Cruiser Drone Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Agriculture Sprayer Drone: Complete Guide to Tank, Pump and Nozzle Selection
Table of ContentsWhy Agriculture Sprayer Drones Are Transforming Indian FarmingSprayer System Components OverviewTank Selection: Capacity, Material, and MountingPump...
Read More →
Fixed Wing RC Plane: Build and Fly Guide India
Table of Contents Understanding Fixed Wing RC Plane Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | EDITH |
|---|---|
| Interface / Protocol | ELRS |
| SKU | AI5080 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The EDITHFPV IronLink Rx-TD ELRS (True Diversity) is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
