If you’re looking to build an E-bike but aren’t sure how to choose the right motor, zbotic has you covered with everything you need.

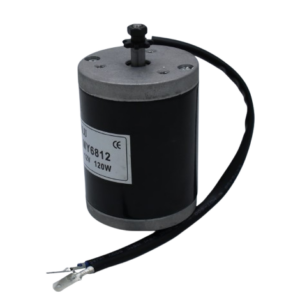

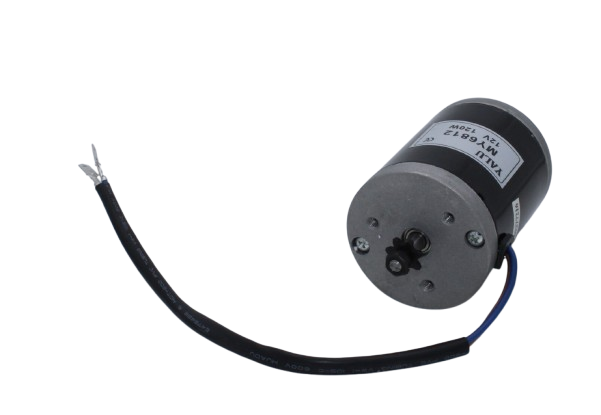

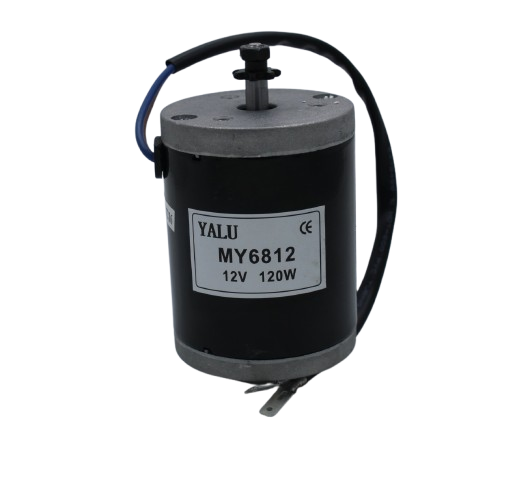

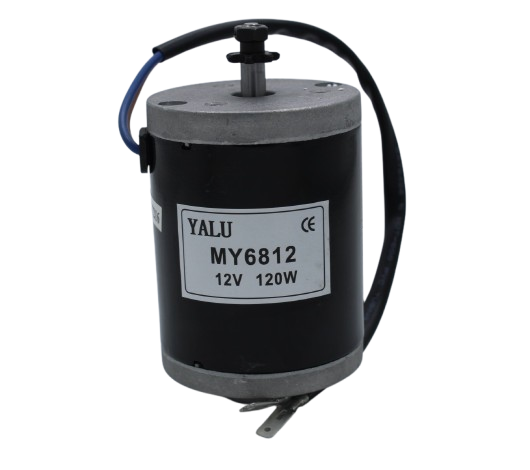

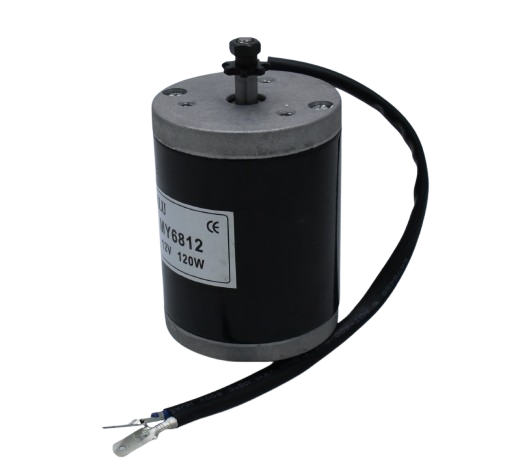

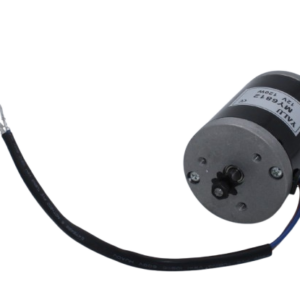

The Ebike MY6812 120W 12V DC Motor is a high-quality reduction DC motor, perfect for scooters, bikes, and quads. It’s also ideal for various DIY projects like Segways, electric cars, and robots. Designed for durability and power, this motor can tackle a range of terrains and challenges.
This motor is perfect for anyone wanting to create a custom electric vehicle, whether it’s a scooter, an electric bike, or something uniquely innovative. It provides greater low-end torque compared to standard motors, and you can easily reverse the motor direction by switching the wires. Additionally, you can pair it with the recommended products for optimal performance.
Recommended Product with this Motor:
Specification:
| Operating Power | 120W |
|---|---|
| Operating Voltage (VDC) | 12 |
| Rated Current(A) | 7 |
| Rated Torque (Kg-Cm) | 4.58 |
| Gearbox | No |
| Efficiency | >72~75% |
| Rated Speed (RPM) | 2650 |
| Weight (Kg) | 1.06 |
| Dimensions (LxD) | 120mm x 68mm |
| Cable Length (cm) | 25 |
| Shipping Weight | 1.2 kg |
| Shipping Dimensions | 13 × 8 × 6 cm |
Package Includes :
1 x Ebike MY6812 120W 12V 3350RPM DC Electric Motor for Bicycle.
