Looking for D2826 Motor? DYS D2826 2200KV Outrunner Brushless Drone Motor (Original) is available at Zbotic with fast shipping across India.
DYS D2826 2200KV Outrunner Brushless Drone Motor
The DYS D2826 2200KV Outrunner Brushless Drone Motor (Original) is tailor-made for powering Quadcopters and Multirotors, boasting a 2200kV rating. Engineered for high performance, exceptional power output, and remarkable efficiency, these motors are ideal for medium-sized quadcopters equipped with 7 propellers.
Featuring a convenient 3mm banana male connector pre-attached, these motors can seamlessly interface with 30A ESCs without requiring any soldering. When paired with a 3S LiPo battery, 40A ESC, and efficient 10″ propellers, each motor can deliver an impressive thrust of up to 960 grams. By employing four of these motors, a quadcopter equipped with orange propellers can achieve a combined thrust of 3.84 kilograms, enabling the construction of robust and high-performance quadcopters.
Offering a blend of affordability and top-notch quality, this Brushless Motor comes equipped with pre-soldered Bullet Connectors, further simplifying the assembly process.
APPLICATION:
- Drones
- Quadcopters
- Multirotor
- RC Airplanes
- UAV
Features:
- The steel design is capable of withstanding competitive conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.
Specification:
| Maximum Power (W) | 342 |
|---|---|
| Compatible Propellers Size (inch) | 7×3/ 7×4 |
| Required ESC (A) | 40 |
| Width (mm): | 28 |
| Height (mm): | 34 |
| Weight (g): | 42 |

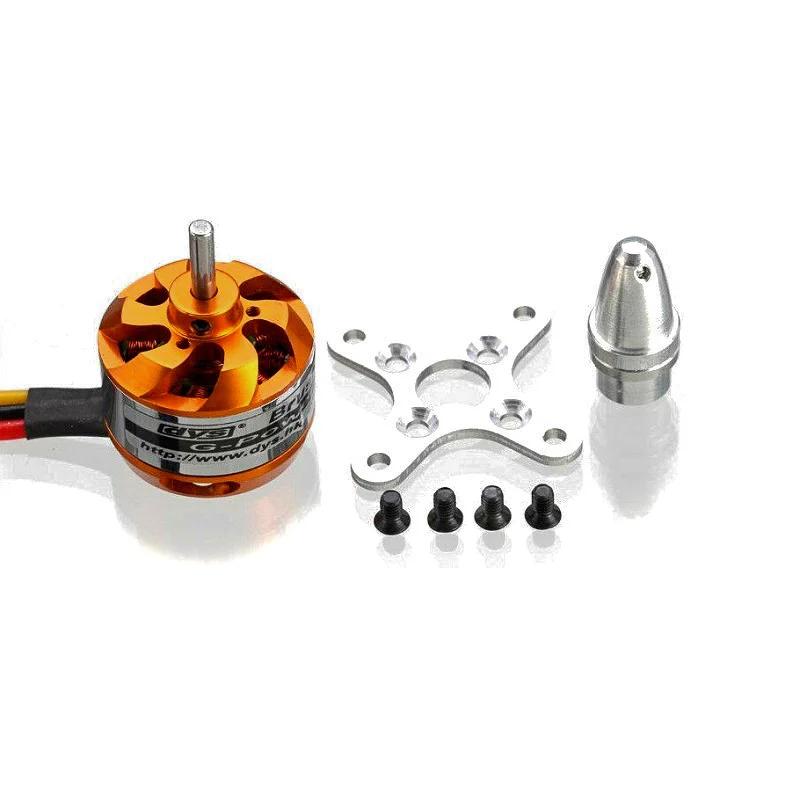

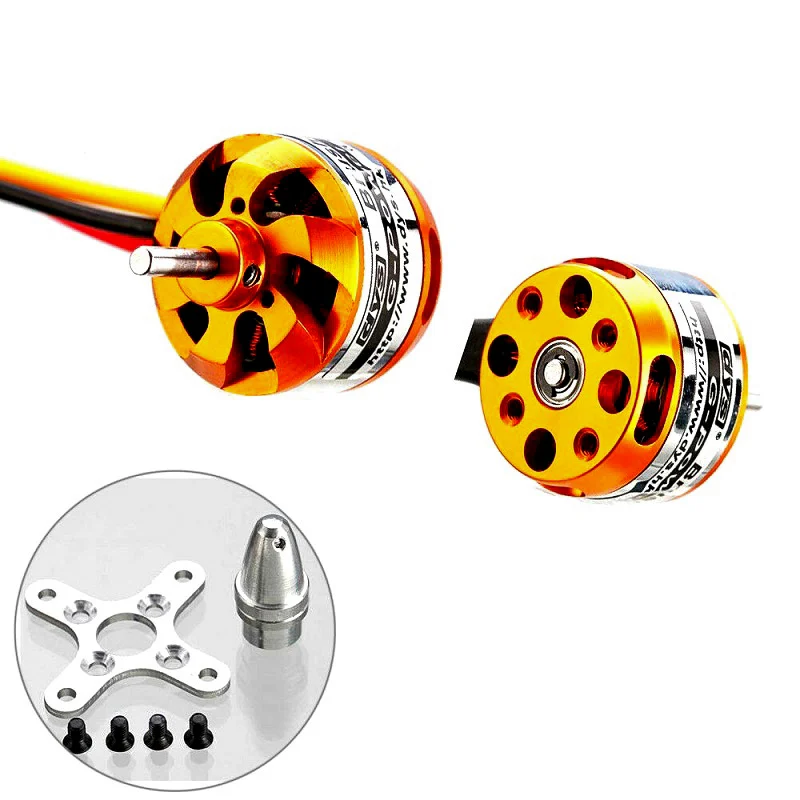

Package Included:
1 x DYS D2826 2200KV Outrunner Brushless Drone Motor
1 x Prop Adapter
A Motor Holder (X-type) and set of screws
DYS D2826 2200KV Outrunner Brushless Drone Motor Overview
The DYS D2826 2200KV is an original outrunner brushless motor designed for medium-sized quadcopters and multirotor drones. Its high 2200 KV rating delivers rapid throttle response and efficient power output when paired with 2S–3S LiPo batteries.
Key Features of DYS D2826 2200KV Outrunner Brushless Drone Motor
- 2200 KV Rating: Provides fast acceleration and high top-end RPM.
- 2–3S LiPo Compatibility: Operates optimally on 7.2 V–11.1 V input.
- Robust Construction: 3 mm steel shaft (10 mm length) with M3 mounting holes.
- High Power Output: Capable of 342 W peak power with a 40 A ESC.
- Solder-Free Setup: Pre-attached 3 mm banana male connectors for quick ESC integration.
- Genuine & Fast Shipping: Original DYS motor shipped swiftly from Zbotic.
Applications and Use Cases
- Custom FPV racing drone builds requiring high RPM.
- Aerial photography and videography quadcopters.
- Educational multirotor and robotics projects.
- Replacement motor for hobby-grade drone repairs.
- Lightweight UAVs for surveying or mapping tasks.
How to Use DYS D2826 2200KV Outrunner Brushless Drone Motor
Secure the motor onto your drone’s motor mounts using M3 screws, then slip a 10″ propeller onto the 3 mm shaft and fasten with the appropriate collet or nut. Plug the banana connectors into a 40 A ESC, connect the ESC to a 2S–3S LiPo battery, and calibrate throttle range in your flight controller software. Balance props and perform a bench thrust test before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use a 4S LiPo on this motor?
No. The D2826 2200KV is rated for 2S–3S LiPo (7.2 V–11.1 V). A 4S battery (14.8 V) can overheat the windings and exceed the ESC’s safe current draw.
What propeller size works best?
This motor performs optimally with 10″ props, delivering up to 960 g thrust on a 3S setup with a 40 A ESC. Smaller props increase RPM but reduce thrust; larger props may overload the ESC.
How do I secure the propeller on the shaft?
Use the motor’s 3 mm shaft adapter or collet. Slide on the prop hub, add the locknut or adapter cap, and tighten firmly to prevent slippage during operation.
