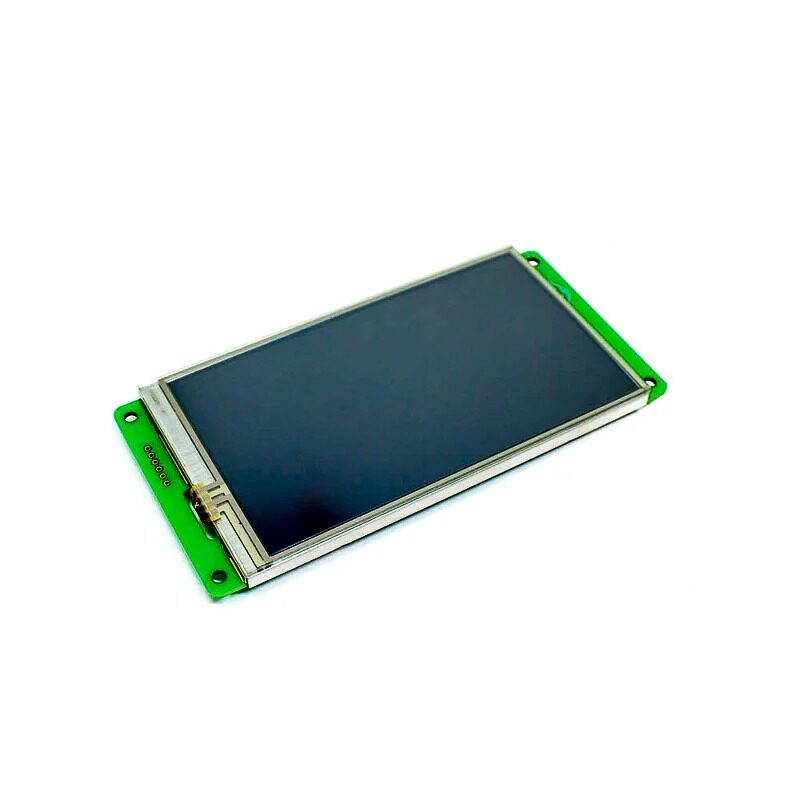

DWIN HMI 5 Inch IPS LCD Resistive Touch Display
Description:
This DWIN 5 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Suh as a button, slider, Graph, Text Display, etc on their own.
User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 250nitnit brightness which makes it visible in daylight too.
It is compatible with All micro-controller Boards. which can be interface with I2C communications.
Features:
- Built-in DGUS II intelligent software
- Integrated smart screen
- Powerful data management
- Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
- Dimensions:143.5(W) × 80.9(H) × 15.8(T) mm
- 16.7M colours
- Capacitance touch screen, Buzzer
Display:
- Size -5″
- Display Format -480×800 Pixel Matrix
- Brightness -250nit
- Active Area – 108.0mm (W) ×64.8mm (H)
- Colour – 24-bit colour 8R8G8B
- Backlight – LED
Interface:
- UART4: Mode is determined by Jumper used after OS configuration )
- ON=N81/E81/O81/N82, 3.3V&5V TTL/COMS ;
- OFF=N81/E81/O81/N82, RS232.
Datasheet:
Package Includes :
1 x DWIN HMI 5 Inch IPS LCD Resistive Touch Display
About Dwin Hmi Inch Display
DWIN HMI 5 Inch IPS LCD Resistive Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by DWIN, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: DWIN
- SKU: AI1813
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dwin Hmi Inch Display and other products.
Applications
Dwin Hmi Inch Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dwin Hmi Inch Display today and start building.
DWIN HMI 5 Inch IPS LCD Resistive Touch Display Overview
The DWIN HMI 5 Inch IPS LCD Resistive Touch Display is a compact human-machine interface panel featuring a high-contrast IPS screen and precise resistive touch input. Designed for embedded systems, it comes pre-installed with DGUS II firmware and TA development software to help you build custom UIs.
Key Features of DWIN HMI 5 Inch IPS LCD Resistive Touch Display
- 5-inch IPS LCD with 16.7 million colors for wide viewing angles
- Resistive touch panel for accurate finger or stylus input
- 250 nit brightness ensures readability in daylight
- 16 Mbyte FLASH and 128 Kbyte RAM for UI assets and data
- Pre-installed DGUS II firmware and TA UI development software
- Operating voltage 4.5 V–5.5 V DC (typical 5 V)
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Industrial control interfaces for CNC routers and PLCs
- Home automation panels for lighting, HVAC and security
- Data-logging displays in laboratory and test equipment
- Embedded HMI screens on 3D printers or robotic controllers
- Custom demo units at trade shows or sales presentations
How to Use DWIN HMI 5 Inch IPS LCD Resistive Touch Display
Secure the display in your enclosure, connect 5 V DC (within 4.5 V–5.5 V) and link the UART pins to your microcontroller. Launch the TA development software to design screens—adding buttons, sliders, graphs and text—then upload the compiled UI via microSD card or serial cable into the module’s FLASH memory.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What communication interfaces are available?
The DWIN HMI 5 Inch IPS supports UART serial communication at standard baud rates, making it easy to integrate with Arduino, STM32 or other microcontrollers via RX/TX pins.
How do I upload a custom UI?
Design your screens in the TA development software (DGUS II), compile the project, and transfer it to the module’s FLASH memory via microSD card or serial link without needing external drivers.
Can I adjust the screen brightness?
Yes. You can control the 250 nit backlight level through DGUS II commands in your UI script, allowing you to optimize visibility for different ambient lighting conditions.
