This is the 12V variant of the DC12V 3010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:30*30*10MM in Cooling Fans. Available at ₹206.50 (₹175.00 + GST) with free shipping across India.

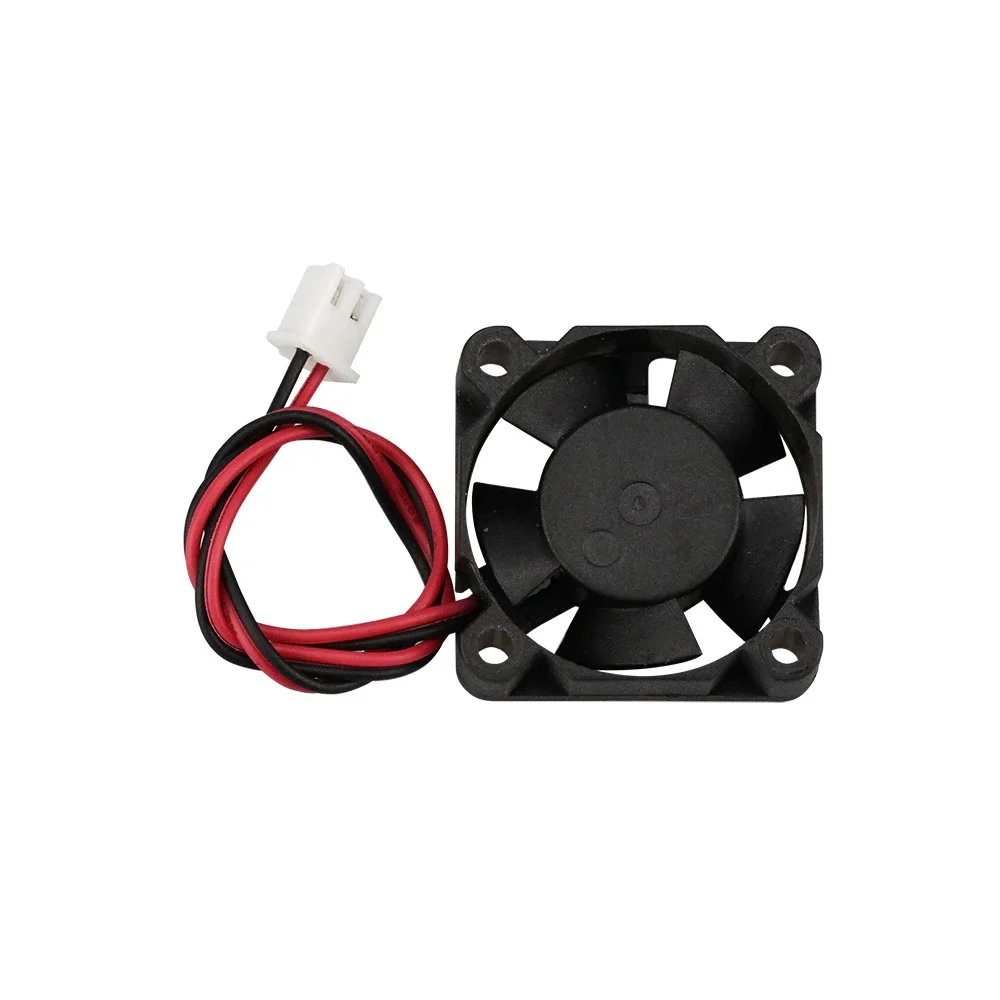

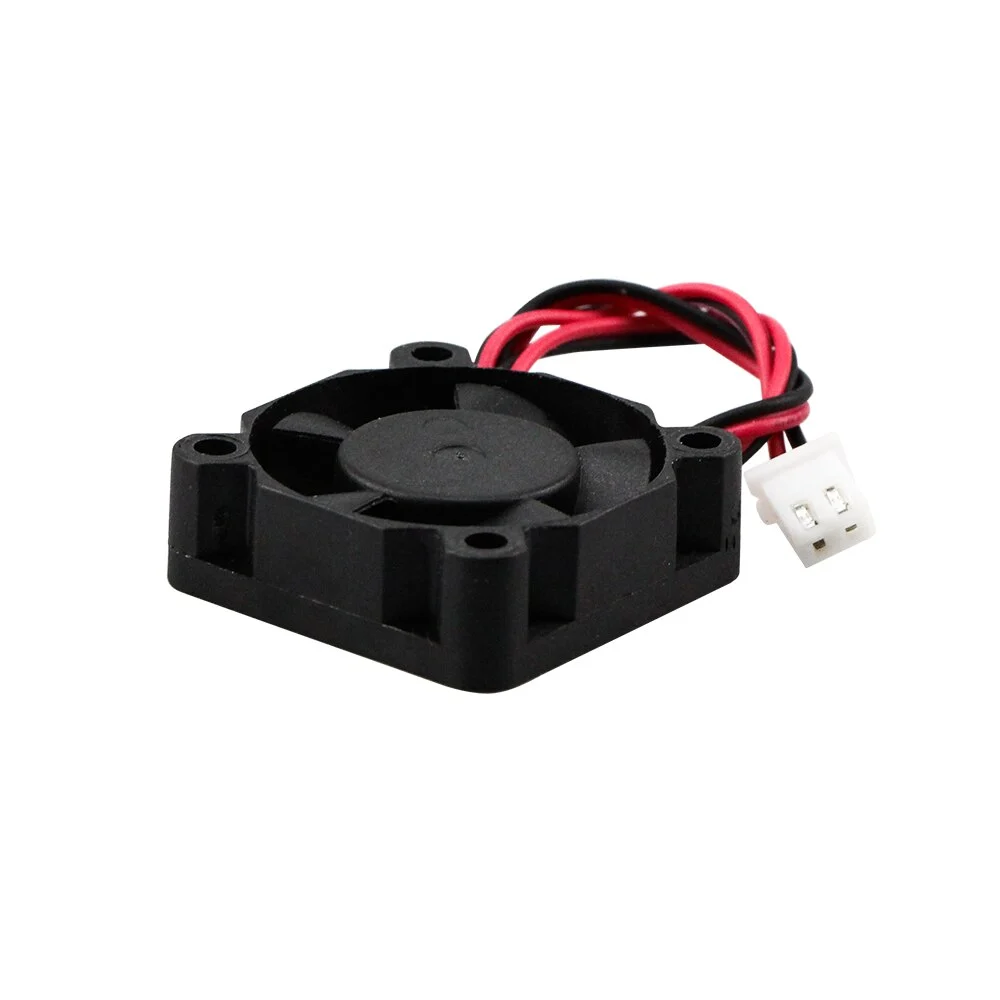

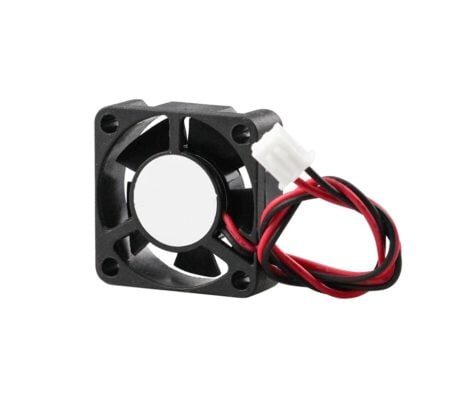

DC12V 3010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:30*30*10MM:
This is a high-quality 3010 12V cooling fan. You can use this compact 12V fan to cool down your projects. It has easy mounting and a connector for onboard connection. You can connect this fan directly to Raspberry Pi pins 4 and 6. This fan is also suitable for high-ampere motor drivers and PC CPU boxes.
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specifications and Features:
- 30 x 30 x 1o mm casing Frame size
- 26 mm mounting hole spacing
- Cable Length 90 CM
- Ready to plug Connector for Pi board
- Colour: Black
Specification:
- Operating Voltage (VDC)12
- Max. Operating Current (mA): 100
- Cable Length (cm): 90cm

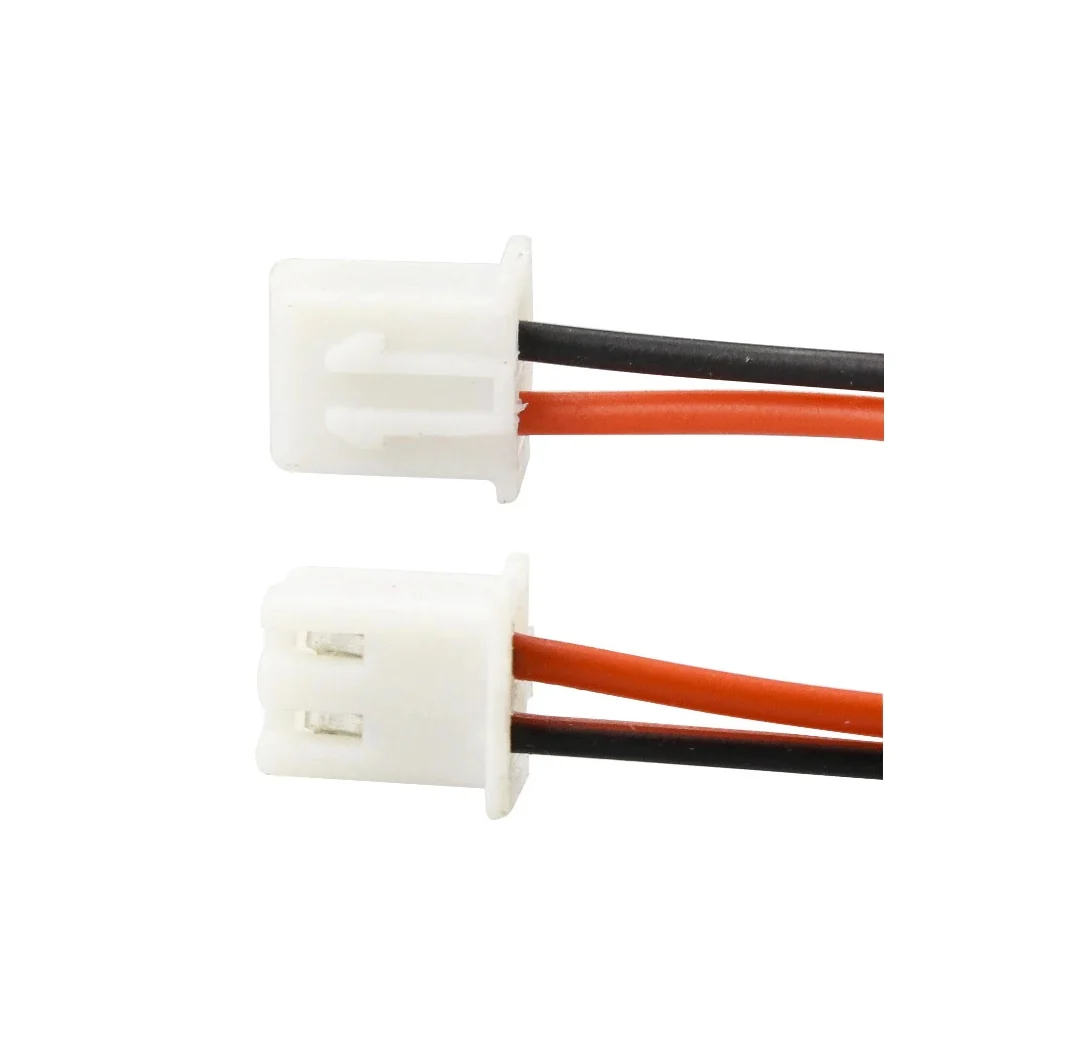

- Connector: XH2.54-2P
- Dimensions in mm (LxWxH): 30 x 30 x 1o
- Material: High-Quality Plastic
Package Includes:
1 x 3010 12V Cooling Fan
DC12V 3010 Double Ball Cooling Fan with XH2.54-2P 30CM Overview
The DC12V 3010 Double Ball Cooling Fan is a compact 30×30×10 mm axial fan designed for efficient heat dissipation in small electronic projects. Featuring a durable double ball bearing and a ready-to-plug XH2.54-2P connector with a 90 cm cable, it’s ideal for Raspberry Pi boards, motor drivers or any space-constrained application requiring reliable 12 V cooling.
Key Features of DC12V 3010 Double Ball Cooling Fan with XH2.54-2P 30CM
- Compact 30 × 30 × 10 mm frame fits tight enclosures and heat sinks
- Double ball bearing design for up to 50,000 hours lifespan and low noise
- Operates at 12 V DC with maximum current draw of 100 mA
- 26 mm mounting hole spacing for easy installation with M3 screws
- 90 cm cable with XH2.54-2P plug to connect directly to Raspberry Pi 12 V pins
- Black housing for discreet integration in any project
- Genuine product quality and fast shipping from Zbotic
Applications and Use Cases
- Cooling Raspberry Pi 4 or Compute Module boards under heavy CPU load
- Heat management for high-ampere motor driver modules in robotics
- Supplemental airflow in small PC cases, network switches or NAS units
- Temperature control for 3D printer control boards and stepper drivers
- Active cooling in embedded systems, single-board computers and IoT hubs
How to Use DC12V 3010 Double Ball Cooling Fan with XH2.54-2P 30CM
Mount the fan using M3 screws at the 26 mm hole spacing, ensuring the airflow direction arrows point toward your heat source. Connect the red and black wires of the XH2.54-2P plug to the 12 V and ground pins (pin 4 and pin 6) on your Raspberry Pi or any 12 V supply. Secure cable routing to prevent obstruction of the fan blades and power on to start efficient, low-noise cooling.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the power consumption of this fan?
The DC12V 3010 fan draws up to 100 mA at 12 V, making it energy-efficient and suitable for low-power electronics.
Can I connect this fan directly to my Raspberry Pi?
Yes. The included XH2.54-2P connector plugs into the Pi’s 12 V (pin 4) and ground (pin 6) header, providing hassle-free installation.
Which mounting hardware is required?
Use standard M3 screws or standoffs with the 26 mm hole spacing. Ensure screws are just long enough to secure the fan without contacting the PCB beneath.
Technical Specifications
| Model | DC12V |
|---|---|
| Operating Voltage | 12V |
| Size | 10mm |
| Interface / Protocol | BLE |
| SKU | AI3195 |
| Weight | 0.01105 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC12V 3010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:30*30*10MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
