This is the 4cm variant of the Fence Sink Bracket for 4CM Cooling Fan in Cooling Fans. Available at ₹17.46 (₹14.80 + GST) with free shipping across India.
PRODUCT DESCRIPTION

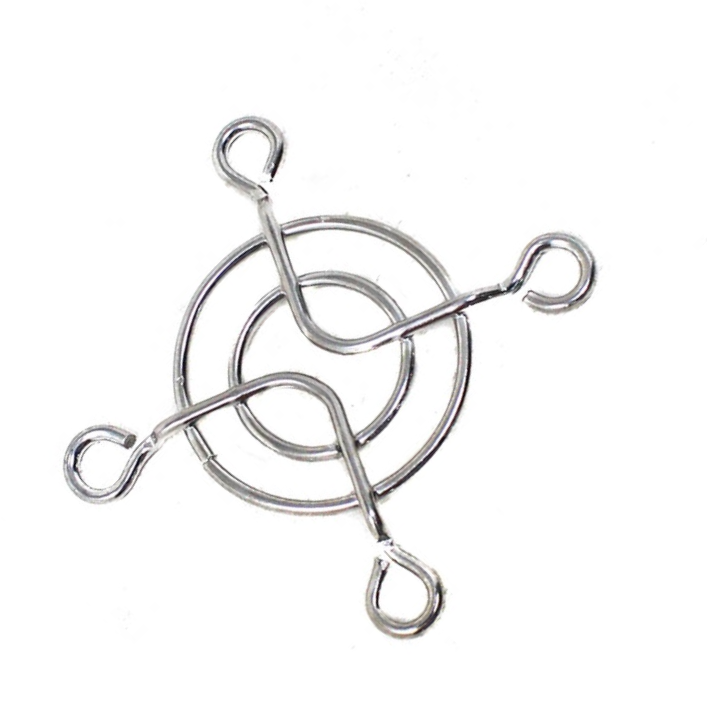

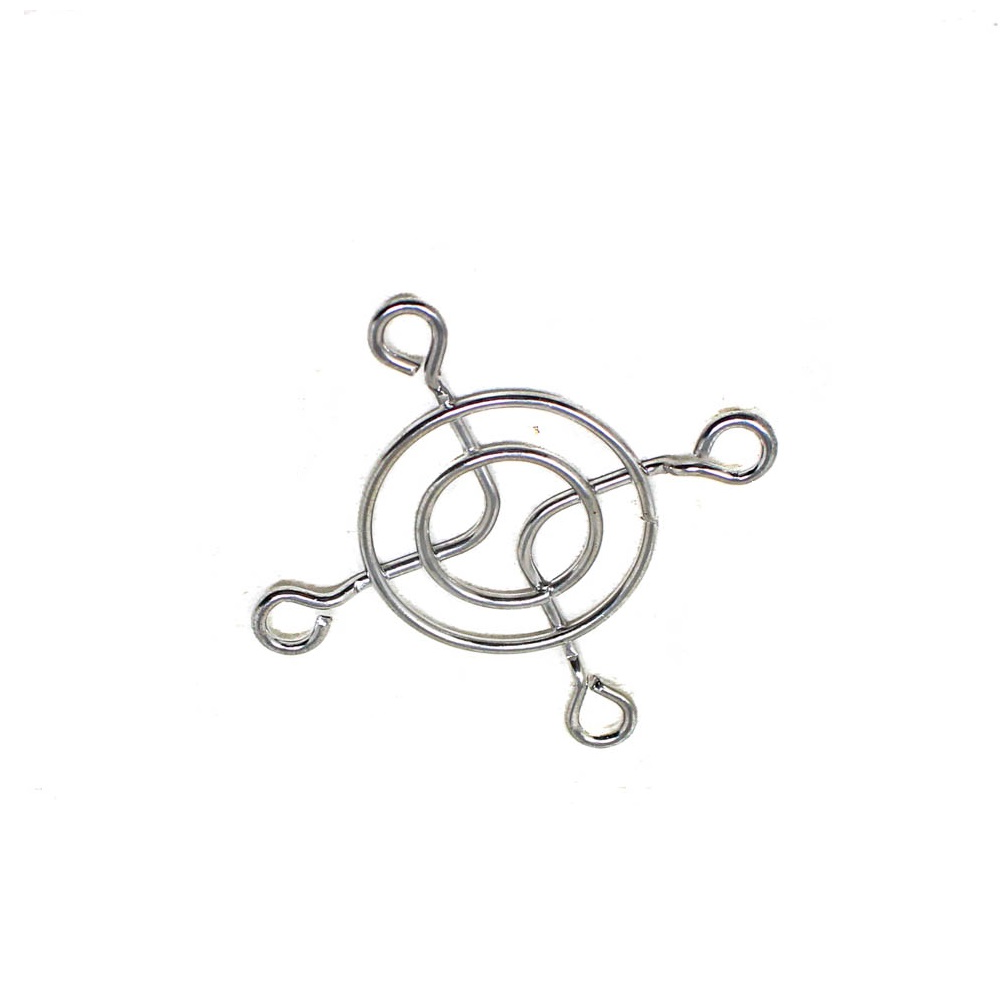

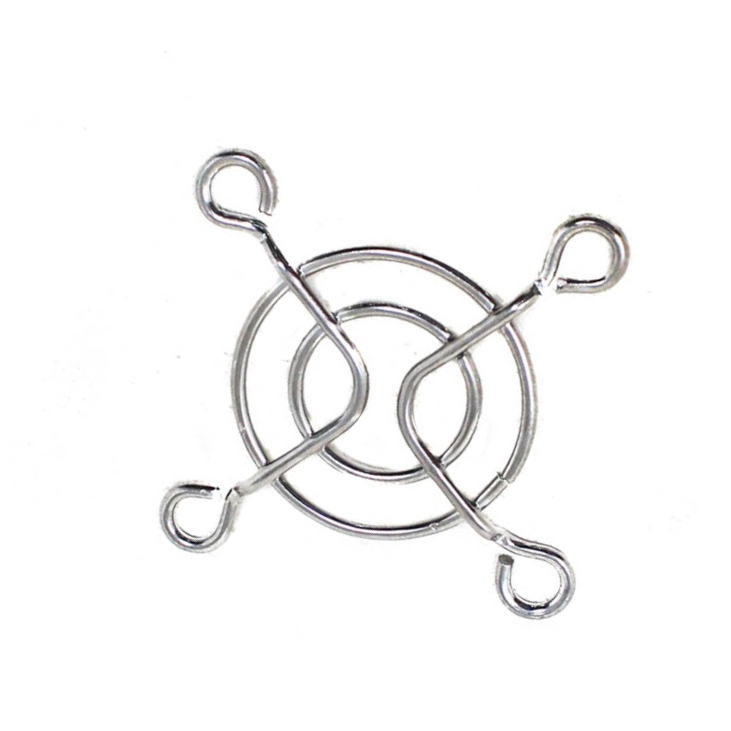

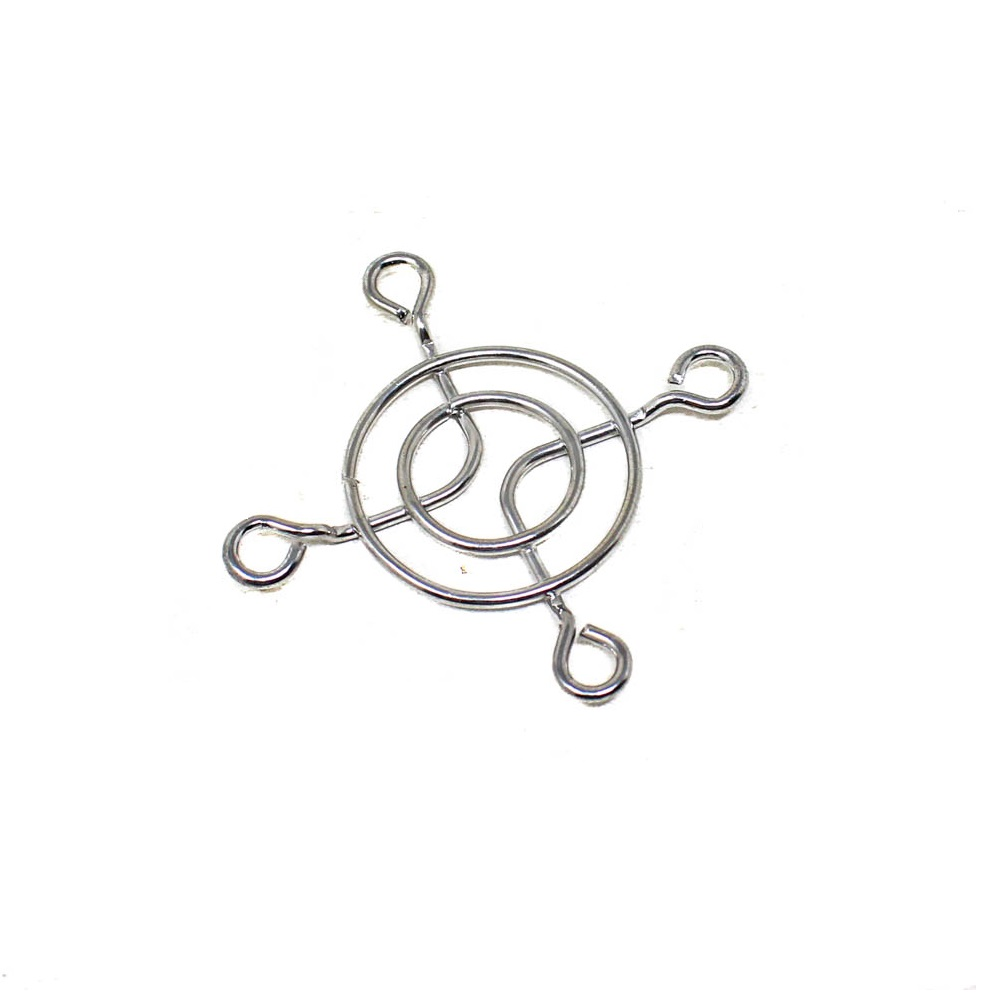

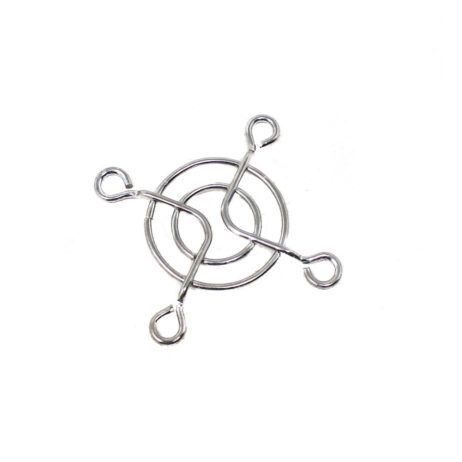

This guard is made of C1008 Steel and has a nickel-chrome coating. It can be attached to any 40-millimetre square cooling fan with four screws. The guard is very durable and can resist 220 pounds of force at each joint.
Application:
- The fan guard creates a protective barrier between a fan’s blades and any foreign objects it may come into contact with.
- The blade is fragile and can be damaged if impacted by a foreign object during use.
- At high speeds, it can also cause damage to wires and fingers on contact.
Specification:
- Product: Fence Sink Bracket
- Total Dimensions (36 x 36 x 5 mm)
- Hole to Hole Distance (3.5 x 3.5 mm)
- Screw Hole Size Ø .2 in. (Ø 4.9 mm)
- Fan Size 40 mm
- Material C1008 Steel
- Finish Nickel Chrome
- Ring Diameter Ø 1.5mm
- Rib Diameter Ø 1.8mm
- Pull Force 220 lbs
- Plug Guage Test Ø 6.355mm
| Product | Fence Sink Bracket |
|---|---|
| Hole to Hole Distance | 3.5 x 3.5 mm |
| Screw Hole Size | Ø 4.9 mm |
| Fan Size | 40 mm |
| Material | C1008 Steel |
| Ring Diameter | Ø 1.5mm |
| Rib Diameter | Ø 1.8mm |
| Pull Force | 220 lbs |
| Plug Guage Test | Ø 6.355mm |
| Shipping Weight | 0.004 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |
Package Includes:
1 x Fence Sink Bracket 4cm
Technical Specifications
| SKU | AI2898 |
|---|---|
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Fence Sink Bracket for 4CM Cooling Fan is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
