This is the 5V variant of the DC5V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:40*40*10MM in Cooling Fans. Available at ₹177.00 (₹150.00 + GST) with free shipping across India.
Looking for Dc5v Cable 30cm? DC5V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:40*40*10MM is available at Zbotic with fast shipping across India.

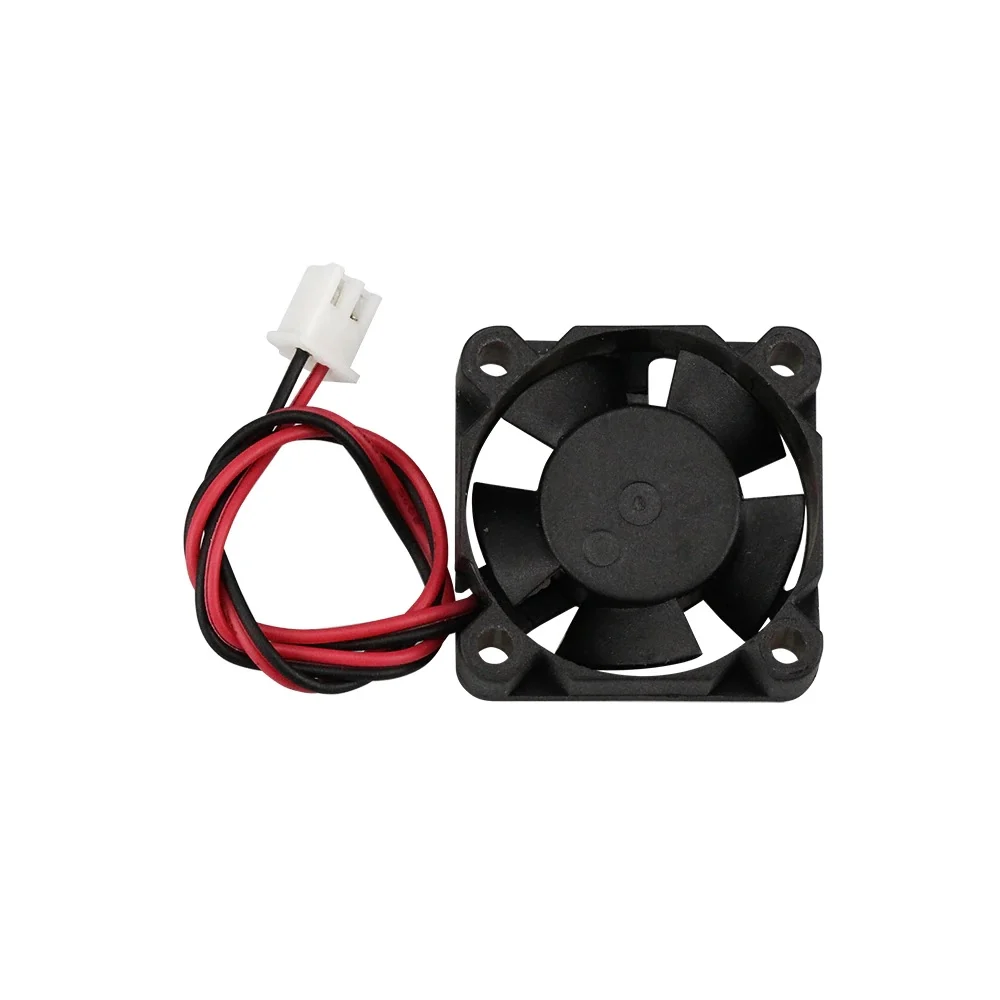

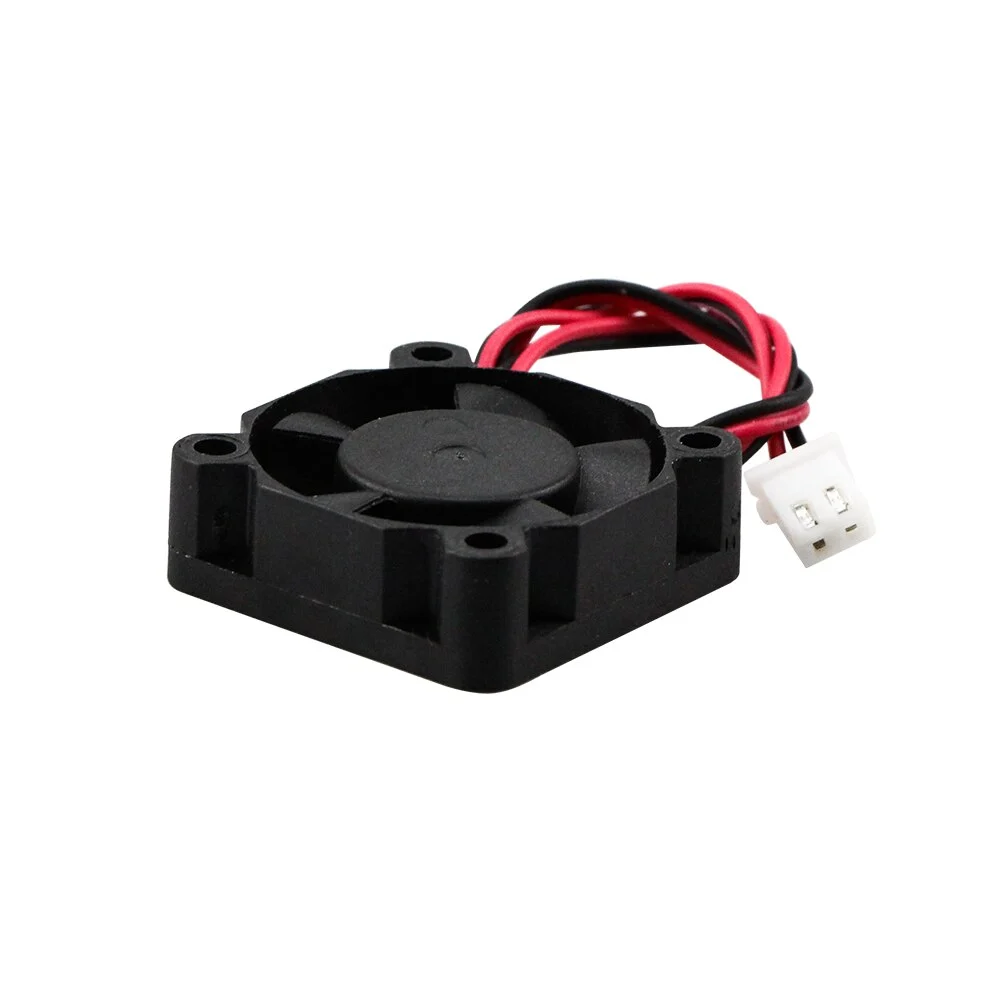

DC5V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:40*40*10MM
Keep your projects cool with this high-quality 4010 5V Double Ball Cooling Fan. This compact 5V fan has easy mounting and a connector to plug into your board. You can connect this fan directly to Raspberry Pi pins 4 and 6. This fan is also ideal for high-ampere motor drivers and PC CPU boxes.
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specifications and Features:
- 40 x 40 x 10 mm casing Frame size
- 35 mm mounting hole spacing
- Cable Length 90 CM
- Ready to plug Connector for Pi board
- Color: Black
Specification:
- Operating Voltage:5V
- Max. Operating Current (mA): 100
- Cable Length (cm): 30cm

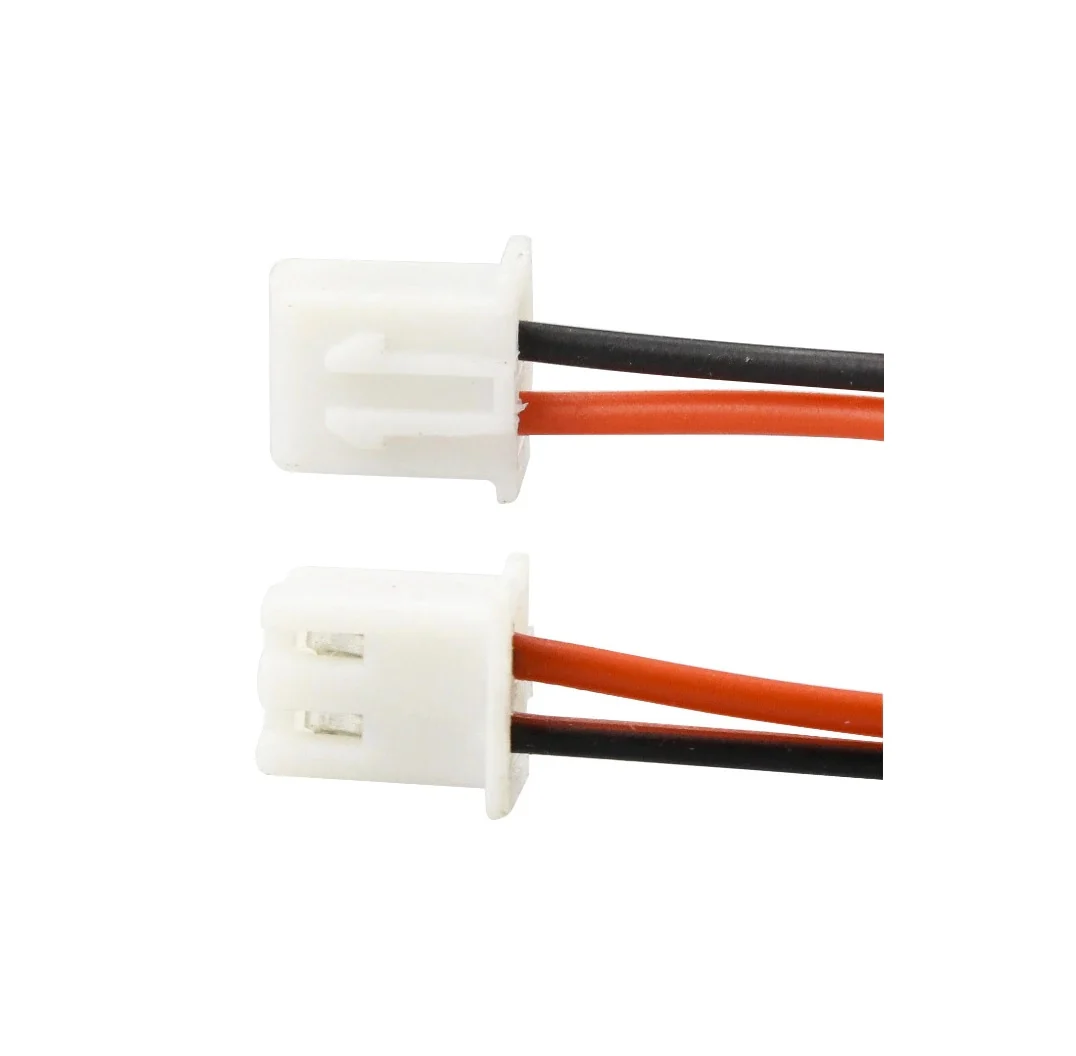

- Connector: XH2.54-2P
- Dimensions in mm (LxWxH): 40 x 40 x 1o
- Material: High-Quality Plastic
| Material | High-Quality Plastic |
|---|---|
| Color: | Black |
| Operating Voltage (VDC) | 5 |
| Max. Operating Current (mA) | 100 |
| Cable Length(mm) | 300 |
| Connector | XH2.54-2P |
| Dimensions(mm) | 40 x 40 x 10 |
| Frame Size (mm) | 40 x 40 x 10 |
| Shipping Weight | 0.013 kg |
| Shipping Dimensions | 9 × 6 × 1 cm |
Package Includes:
1 x 4010 5V Cooling Fan
DC5V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Overview
The DC5V 4010 Double Ball Cooling Fan is a compact 40×40×10 mm fan equipped with a 2-pin XH2.54 connector and a 30 cm cable. Designed for 5 V applications, it provides reliable airflow to cool single-board computers, motor drivers, small enclosures and other electronics.
Key Features of DC5V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable
- 40 × 40 × 10 mm double ball bearing frame for enhanced durability and longer operational life
- 35 mm mounting hole spacing for easy attachment to standard brackets and enclosures
- 30 cm pre-wired XH2.54-2P connector for plug-and-play integration with Raspberry Pi, Arduino and other boards
- Rated for 5 V DC operation—ideal for low-voltage electronics without additional power converters
- Black housing blends with most project enclosures and PC cases
- Genuine product backed by fast shipping across India from Zbotic
Applications and Use Cases
- Cooling Raspberry Pi clusters and single-board computers under heavy CPU load
- Temperature control for 3D printer hot ends and enclosures
- Ventilation for compact PC cases, NAS boxes and home-lab servers
- Thermal management of high-amp motor drivers and stepper controllers
- Airflow support for networking equipment and mini-routers
- Supplemental cooling for power amplifiers and LED driver modules
How to Use DC5V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable
Mount the fan using M3 screws into the 35 mm spaced holes, ensuring the airflow arrow points toward the area needing cooling. Plug the XH2.54-2P connector into your 5 V and GND pins on a Raspberry Pi, Arduino or motor driver board. Power the device and verify steady airflow; adjust placement or add a grille for optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I connect this fan directly to a Raspberry Pi GPIO header?
Yes. The fan’s XH2.54-2P connector plugs into the 5 V (Pin 4) and GND (Pin 6) on a Raspberry Pi header for direct power without extra adapters.
What is the expected lifespan of the double ball bearing design?
Double ball bearings significantly outlast sleeve bearings under continuous operation, offering reliable cooling performance for thousands of hours in typical 5 V applications.
Is the cable permanently attached or removable?
The 30 cm cable is factory-fixed to the fan housing, providing a secure plug-and-play connection without risk of accidental disconnection.
Technical Specifications
| Model | DC5V |
|---|---|
| Operating Voltage | 5V |
| Size | 10mm |
| Interface / Protocol | BLE |
| SKU | AI3206 |
| Weight | 0.0169 kg |
| Availability | In Stock |
Applications & Use Cases
The DC5V 4010 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:40*40*10MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
