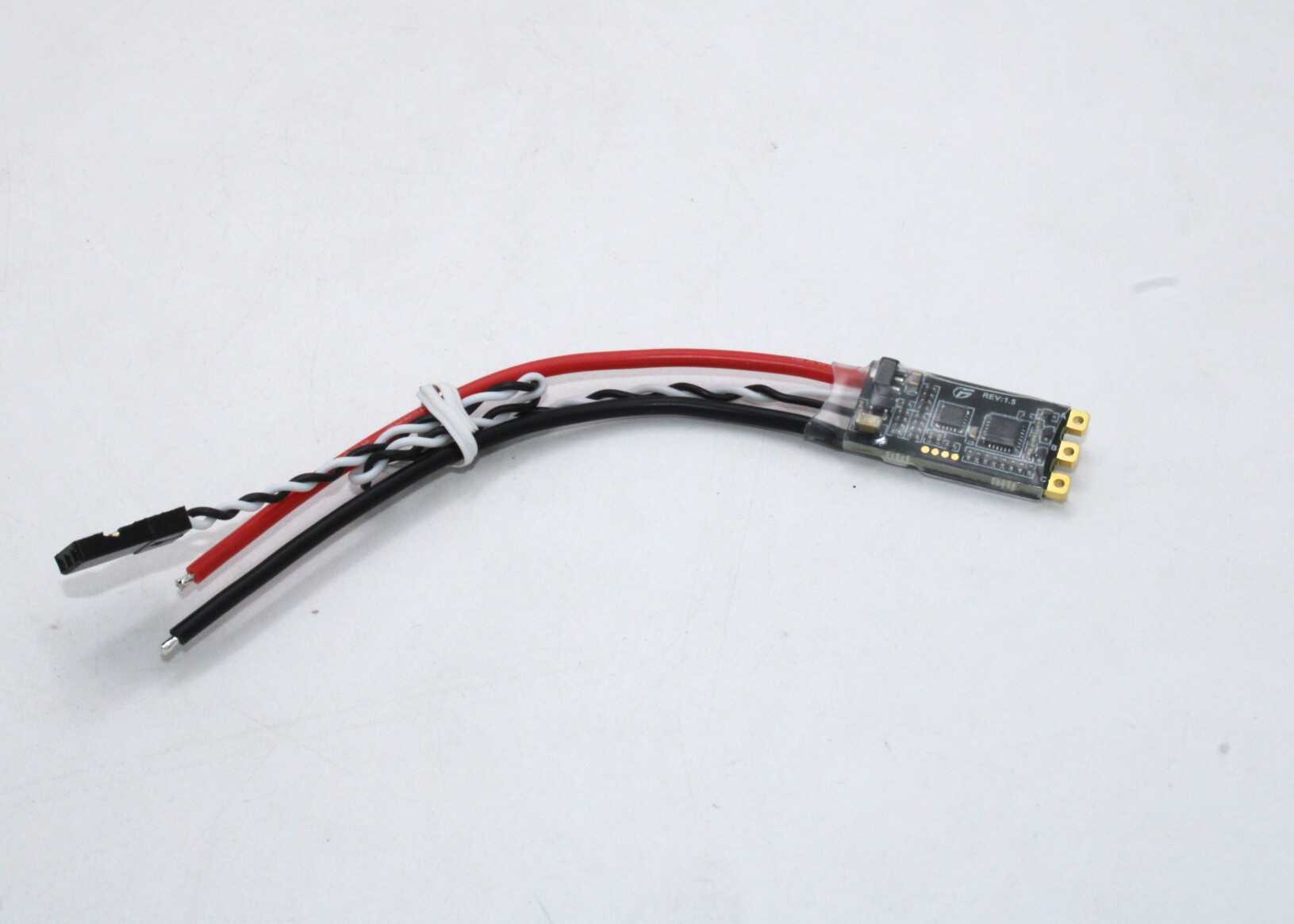

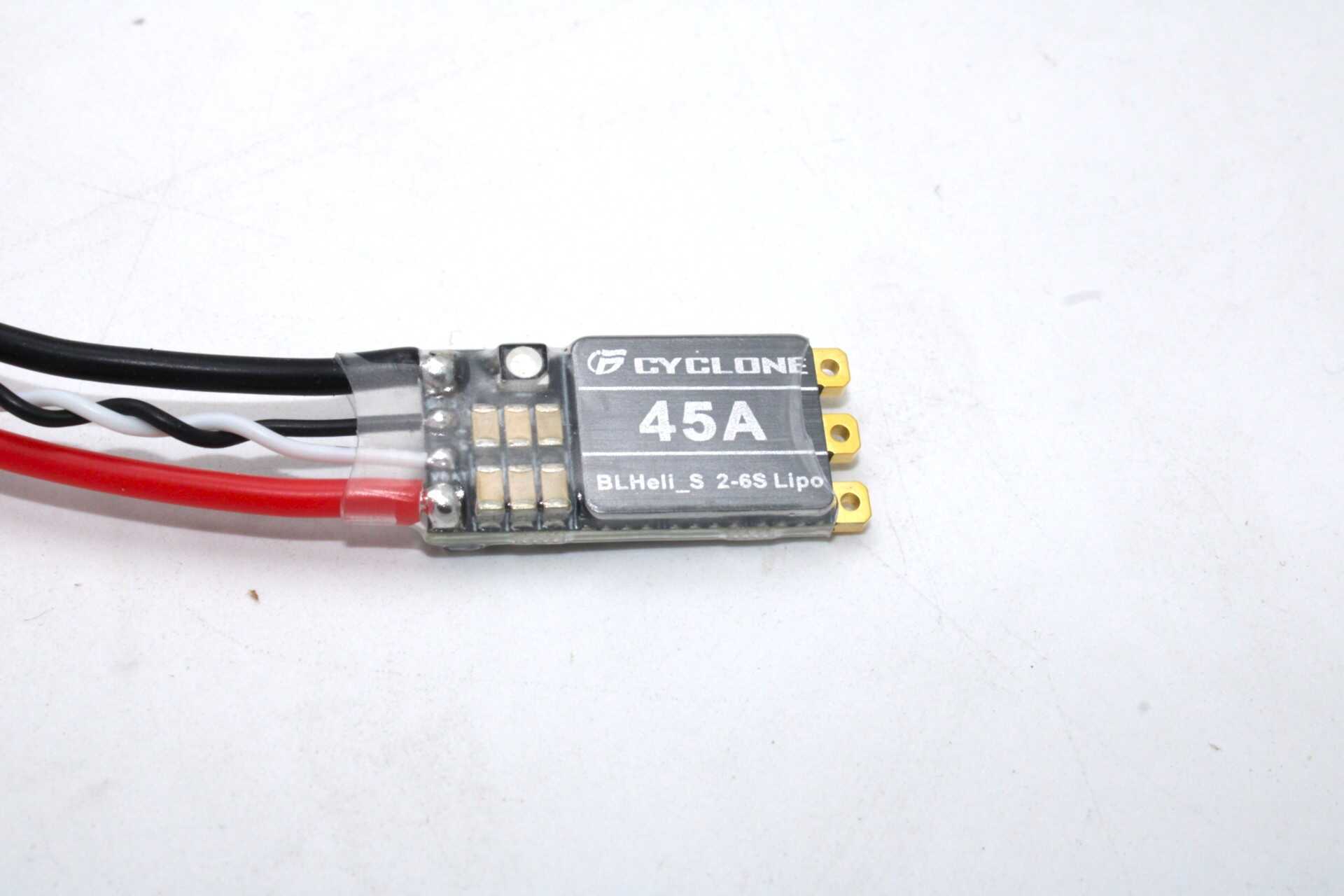

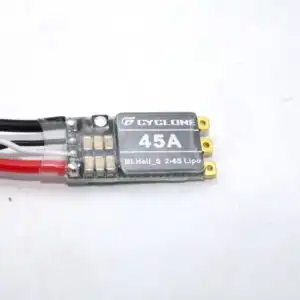

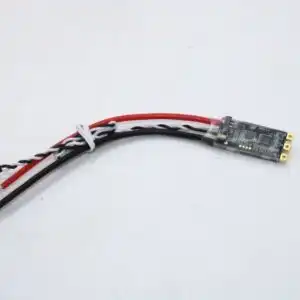

Cyclone 45A BLHeil_S ESC

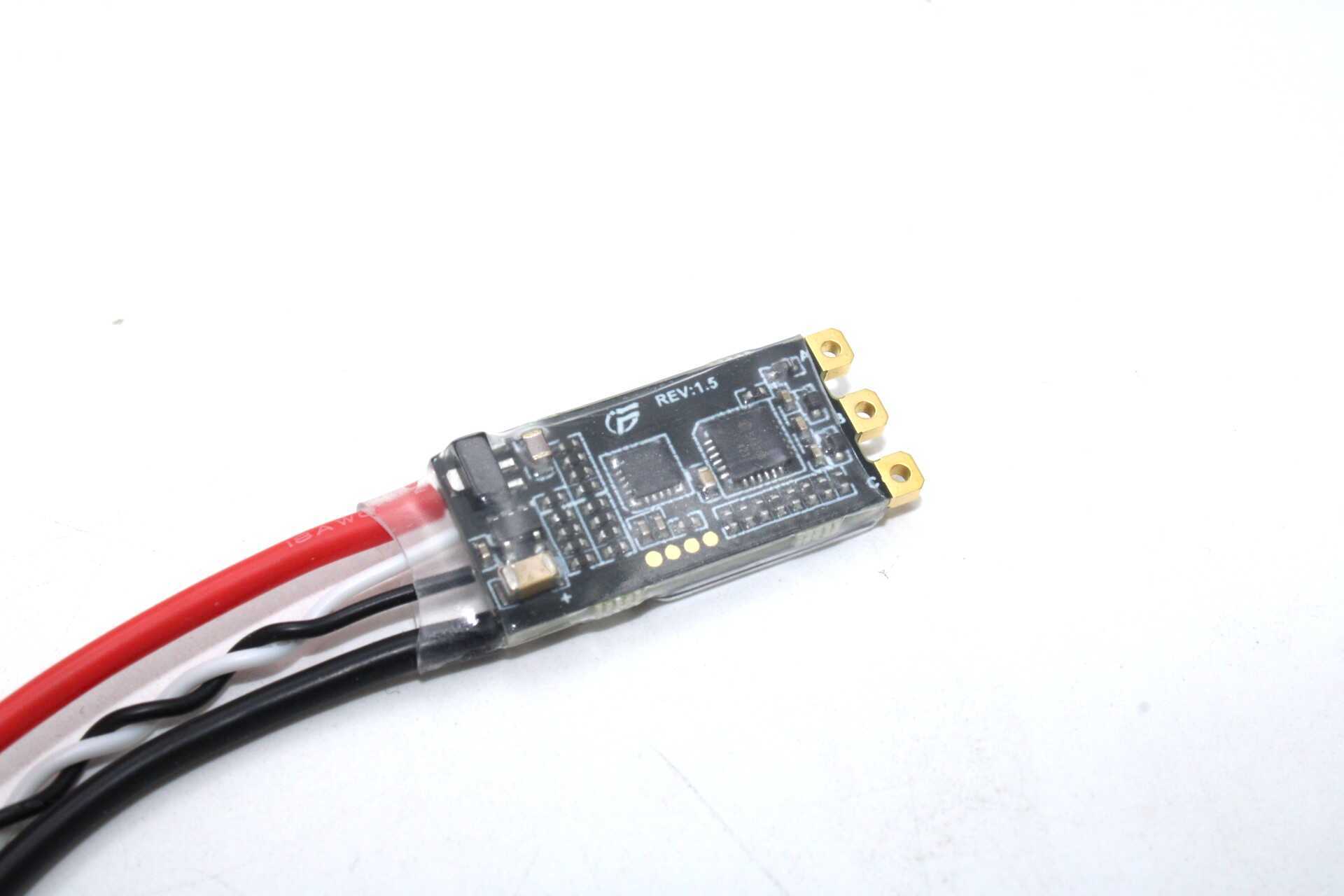

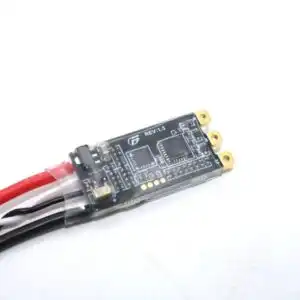

The ESC utilizes a 6-layer, 3-ounce copper-thick, high-quality PCB. This design employs a layered layout that separates large current pathways from small control signals to enhance anti-interference capabilities. The gold plating on the PCB surface effectively improves current resistance and heat dissipation.
An integrated RGB multi-color LED provides bright illumination for night flights, making them even more striking. The ESC supports BLHeli-S and DShot 150/300/600 digital throttle signals, offering robust anti-interference capabilities and quick response times.
By default, hardware PWM is enabled, and the Damped Light hardware PWM drives the motor, resulting in low noise and smoother throttle response. The Damped Light mode, coupled with a regenerative braking function, makes motor deceleration more sensitive and effective.
Features:
- Gold plated PCB
- Regenerative braking function
- Strong anti-jamming ability and quick response.
Specification:
| Voltage | Support 2-6S power supply |
|---|---|
| Working current | 35A |
| Support protocols | dshot 125/300/600 |

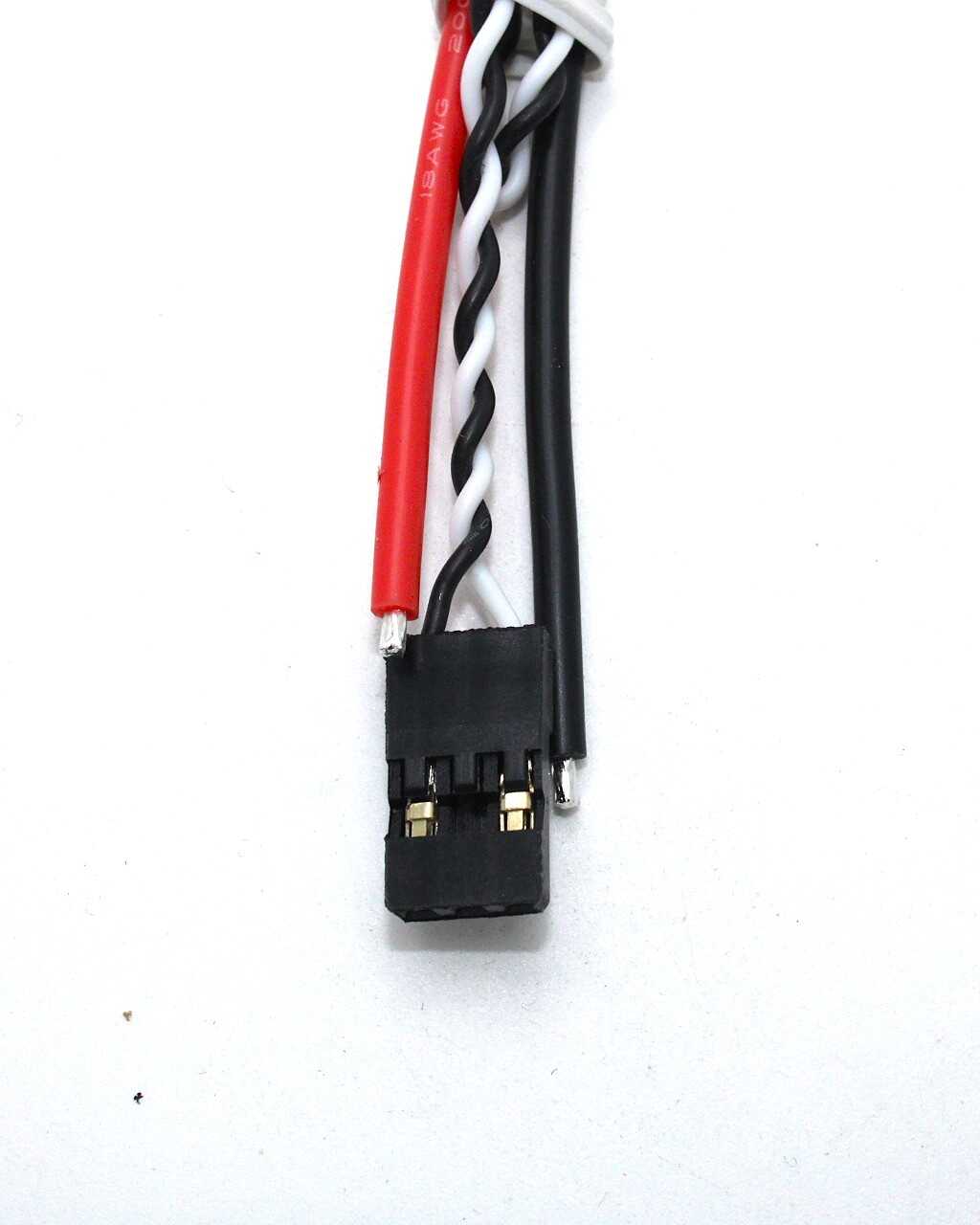

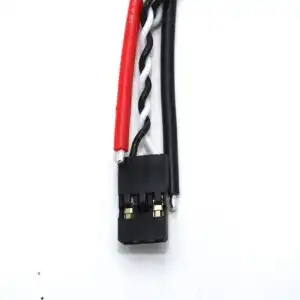

| Power cord length | 18AWG 90mm |
| Signal line length | 150 mm |
| Shipping Weight | 0.006 kg |
| Shipping Dimensions | 12 × 8 × 1 cm |
Package Includes:
1 x Cyclone 45A BLHeil_S ESC
Altitude Hold Drone Build: Barometer and Optical Flow Sensor Fusion Guide
Table of ContentsWhat Is Altitude Hold and Why Does It Matter?Barometer vs Optical Flow: Understanding Each SensorHow Sensor...
Read More →
Betaflight Configuration: Complete Setup Guide for FPV
Table of Contents What is Betaflight and Why It Matters Installing Betaflight Configurator First-Time Firmware Flashing Ports and...
Read More →
Fixed Wing Drone for Beginners: Parts, Build & First Flight
Fixed Wing Drone for Beginners: Parts, Build & First Flight When most people think of drones, they picture...
Read More →Technical Specifications
| Current Rating | 45A |
|---|---|
| SKU | AI5803 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Cyclone 45A BLHeil_S ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
