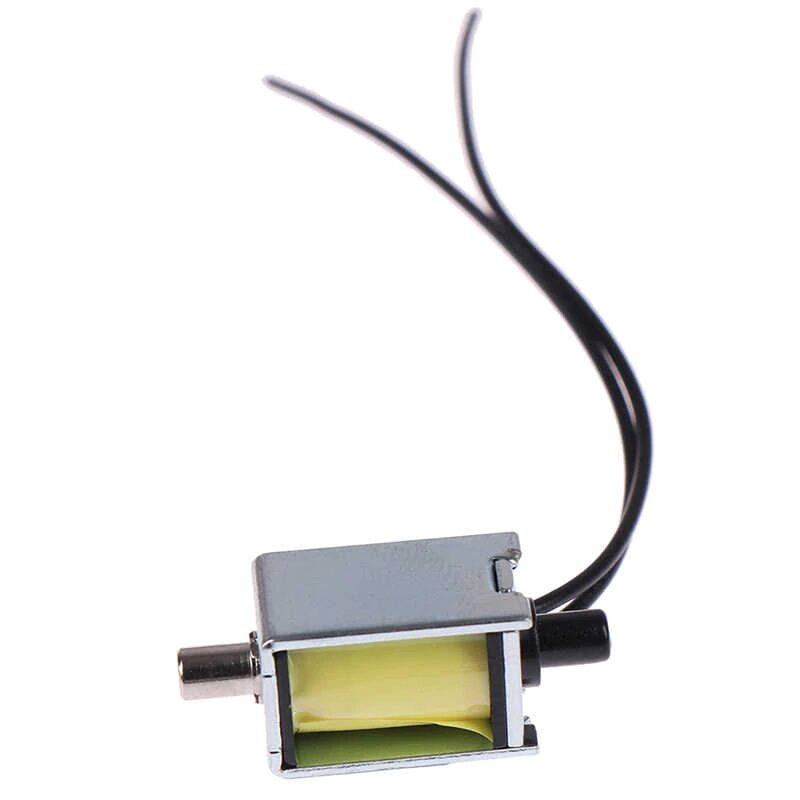

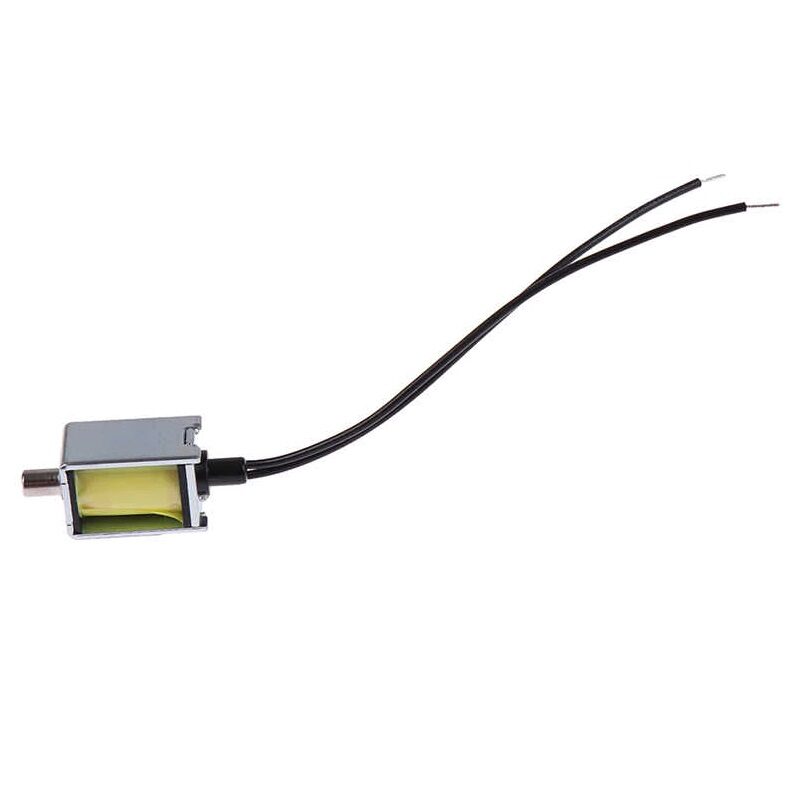

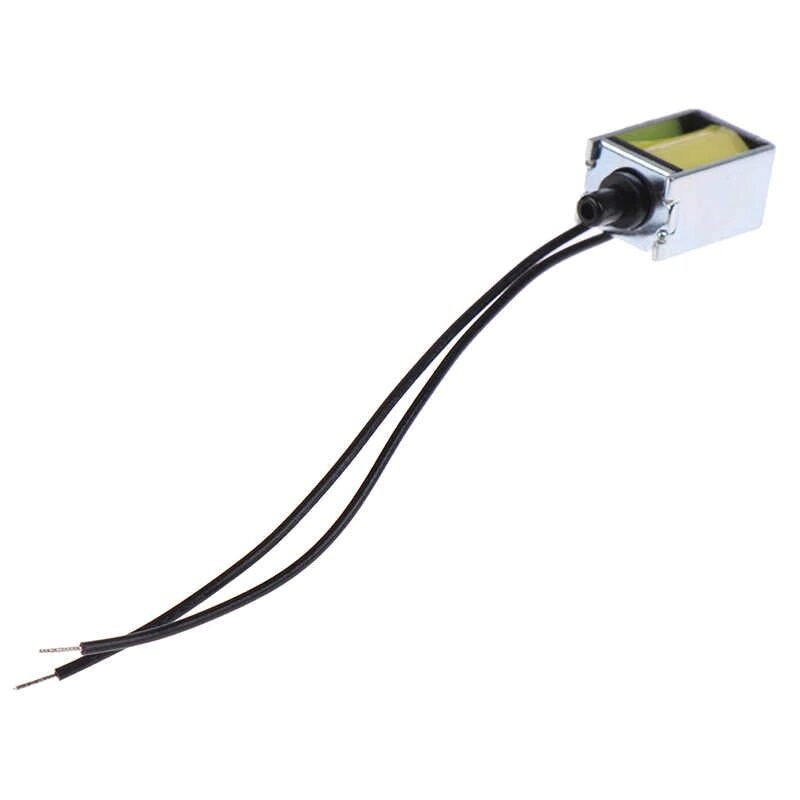

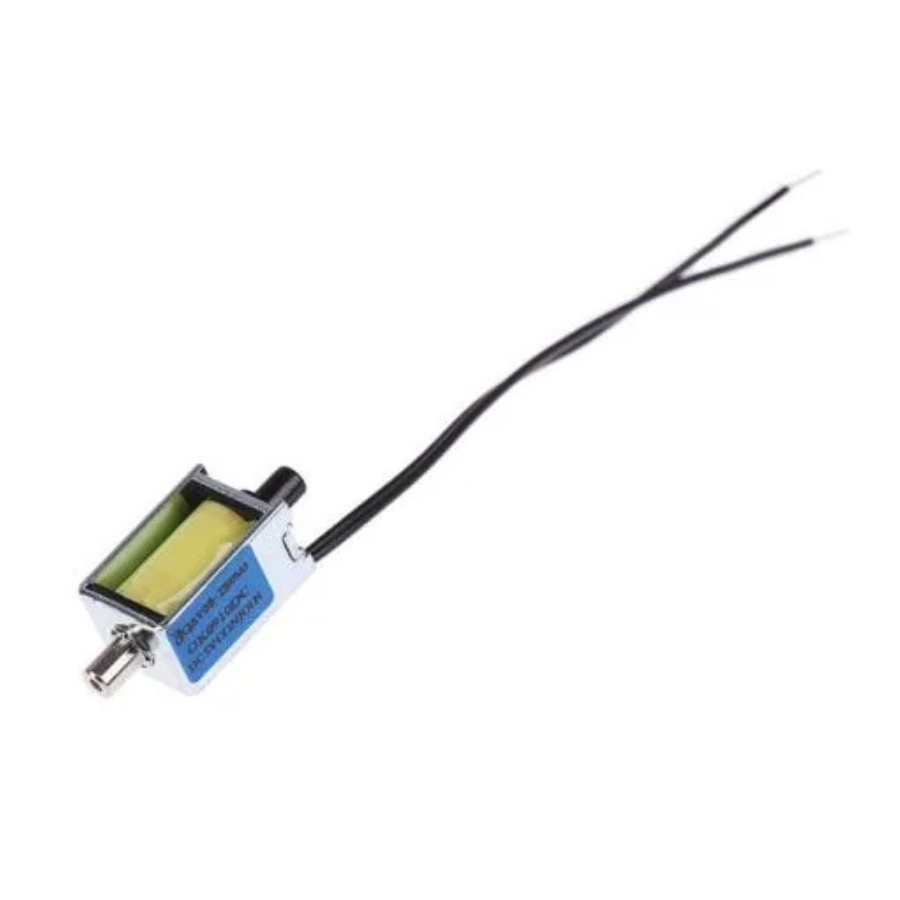

This is the 5V variant of the CJAV08-2B05A1 DC 5V 2-Position 2-way Small Mini Electric Solenoid Valve for Air/Gas in Generic Mini Pumps. Available at ₹133.34 (₹113.00 + GST) with free shipping across India.
Looking for Cjav08 2b05a1 Dc? CJAV08-2B05A1 DC 5V 2-Position 2-way Small Mini Electric Solenoid Valve for Air/Gas is available at Zbotic with fast shipping across India.
Product Description:
This is Two-Position Two-way DC 5V Solenoid Valve CJAV08-2B05A1 Normally Closed having Voltage ranges in between DC 4.5-6 V.
How it Works:
- This valve act as closed (blocked flow) when not powered.
- When you apply a 5V power supply to the input, the valve gets open and the flow-through valve get started
- Removing the supply voltage again blocks the flow.
- This is a two-way valve which means it can flow in both directions.
Features:
- Power Source: DC
- Power Consumption(W): 1.02
- 100% brand new and high quality!
Package Includes:
1 x CJAV08-2B05A1 DC 5V Two-way Solenoid Valve
CJAV08-2B05A1 DC 5V 2-Position 2-way Small Mini Electric Overview
The CJAV08-2B05A1 is a compact, two-position, two-way electric solenoid valve designed for precise air or gas flow control at low voltages. Rated for DC 5V operation (4.5–6 V range) and normally closed, it opens when energized and blocks flow when de-energized.
Key Features of CJAV08-2B05A1 DC 5V 2-Position 2-way Small Mini Electric
- Voltage Range: Operates from DC 4.5 V to 6 V, with a 5 V rated supply
- Normally Closed Design: Blocks air/gas flow when unpowered for fail-safe operation
- Two-Way Flow: Permits media to pass in either direction when open
- Compact Size: Small footprint ideal for space-limited installations
- Low Power Consumption: Approximately 1.02 W draw for efficient use in battery-powered systems
- 70 mm Lead Wires: Pre-attached wiring simplifies electrical connections
- Fast Shipping from Zbotic: Dispatched within 24 hours across India
Applications and Use Cases
- Pneumatic control valves in small automation and robotics projects
- Regulating airflow in laboratory gas sampling or test rigs
- Automated air purge systems for instrumentation panels
- Miniature air compressors or vacuum generators requiring on/off control
- Integration into 3D printers or CNC machines for part drying or cooling
- Air assist setups in painting or surface treatment equipment
How to Use CJAV08-2B05A1 DC 5V 2-Position 2-way Small Mini Electric
Mount the solenoid valve securely using its mounting holes, attach your air or gas tubing to the inlet and outlet ports, and connect the two 70 mm wires to a regulated 5 V DC power source. When power is applied, the valve opens to allow flow; removing power closes it. Ensure your supply can deliver at least 1.02 W and observe correct polarity for reliable operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What media can this solenoid valve handle?
This valve is designed for clean, dry air or inert gases. It is not suitable for liquids or corrosive media.
What is the current draw at 5 V?
At a rated voltage of 5 V, the solenoid consumes approximately 1.02 W, drawing around 200 mA. Use a stable DC supply capable of delivering 250 mA or more.
Can the valve be installed in any orientation?
Yes, the CJAV08-2B05A1 supports flow in both directions and can be mounted horizontally or vertically, provided the tubing remains free of kinks.
