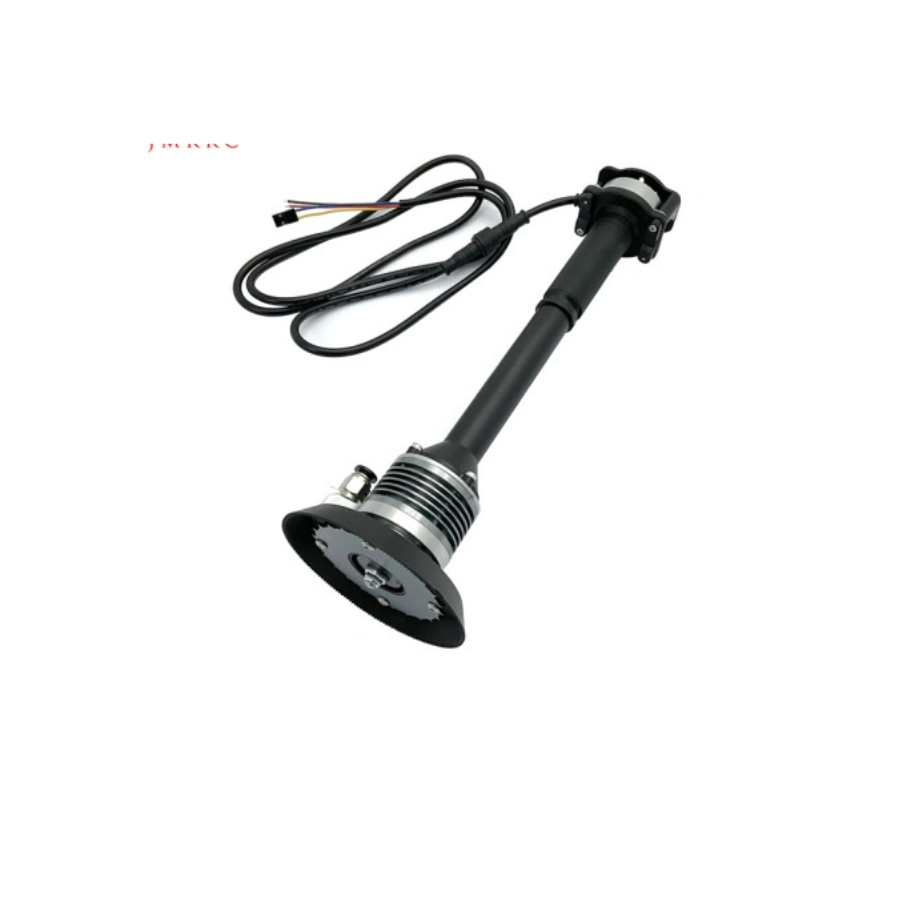

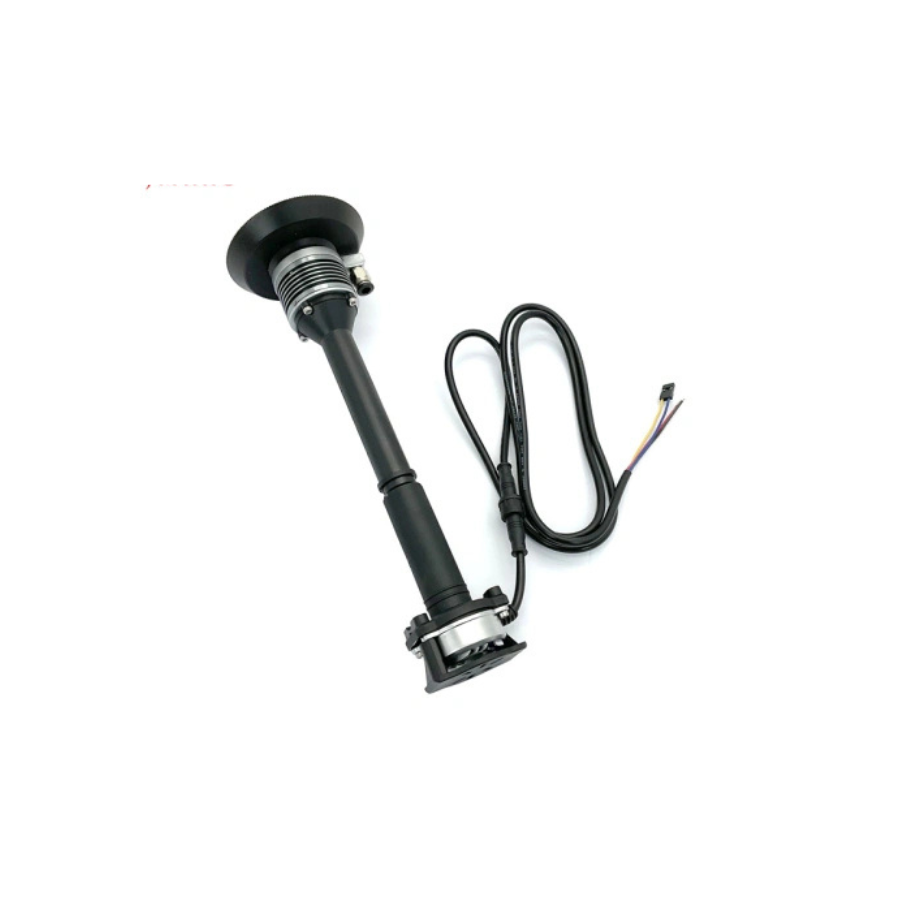

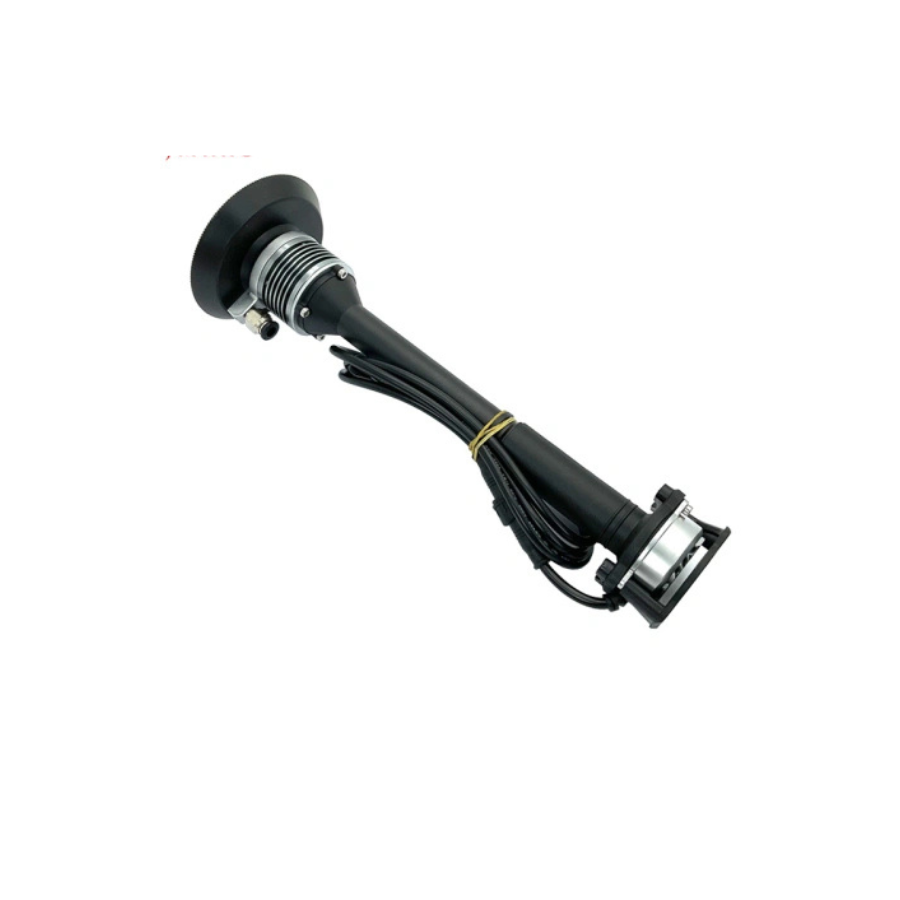

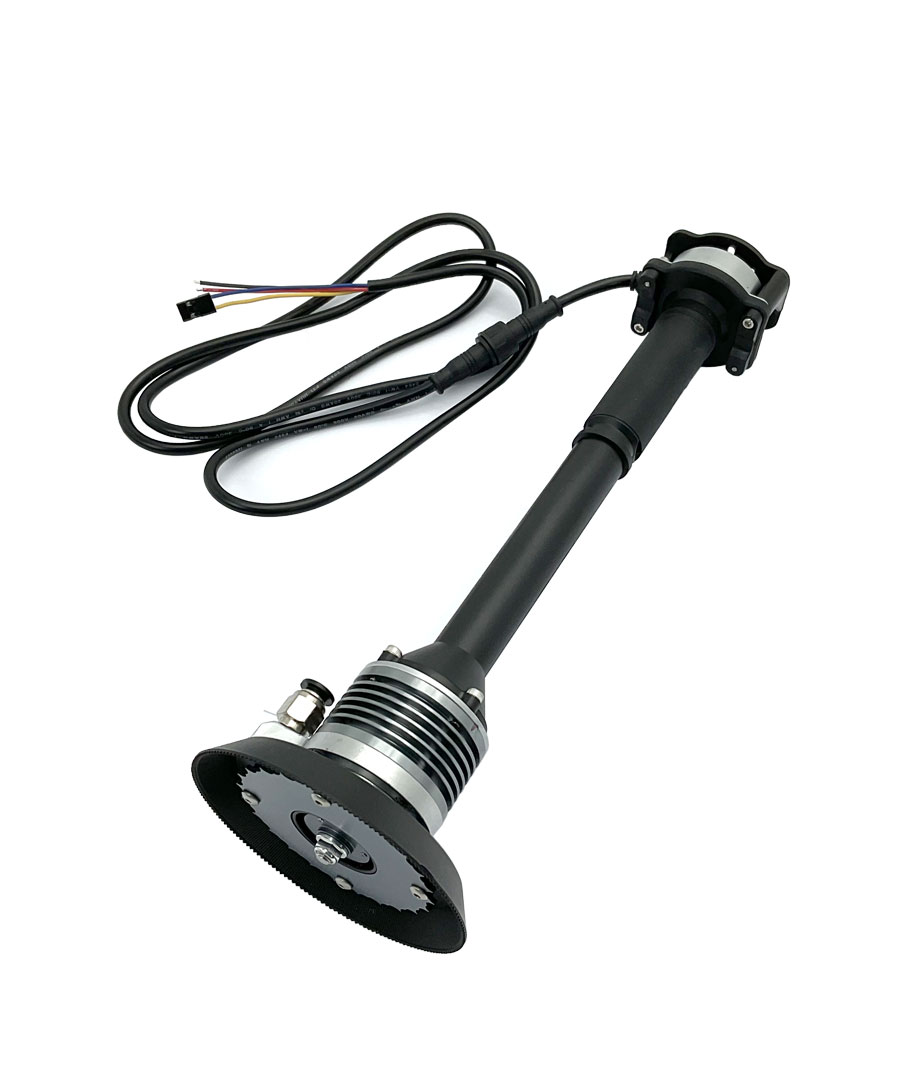

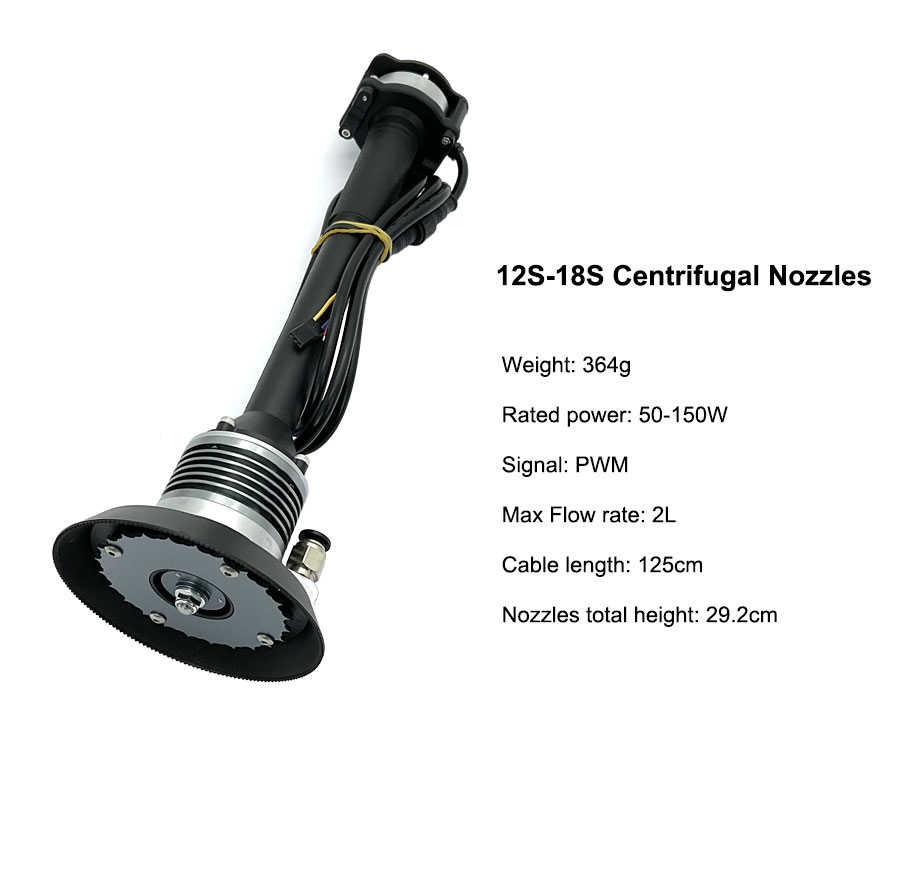

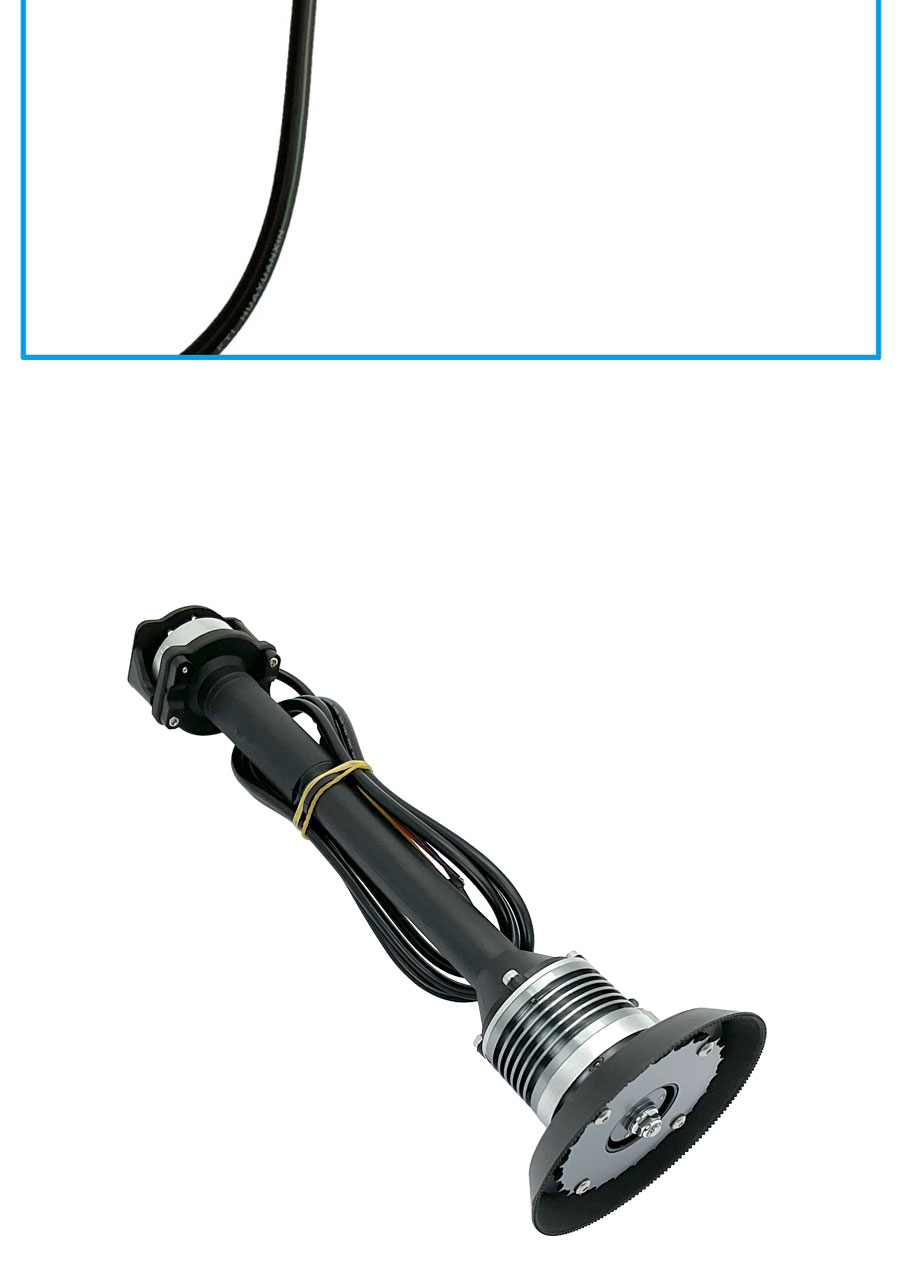

Centrifugal Nozzle 2L Spray System for Agriculture Drone – 2L/min
Description:
A Centrifugal Nozzle Spray System is an advanced spray system for Agriculture Drones that helps farmers to spray crops with high efficiency and precision. It is designed to deliver a high-pressure spray that can cover a large area in a short period of time. The centrifugal nozzle spray system is easy to use. This system is perfect for precision spraying of crops, reducing the amount of chemical used, and preventing over-spraying. It can be used in a variety of crop fields such as orchards, vineyards, and vegetable fields.
Features:
- Shell material: aluminum alloy
- Nozzle height: 30cm
- Mist particle diameter: 50-200 micron
- Working range: water supply 200-2000mL/min
- Atomizing spray width: 1.5-2.0 meters
- Voltage: 12-14S power supply
- Speed: 20,000rpm
- Signal: PWM (1000-2000)
- Power: 60W
- Weight: 260 grams
- Length: total length 300MM
- Outgoing cable length: 1.1 meters
Specifications:
| Parameter | Specification |
|---|---|
| Model No. | LX-2L |
| Brand | JMRRC |
| Origin | China |
| Place of Origin | China |
| Usage | Agriculture |
| Droplet Size | 50–100 micron |
| Spray Range | 2–3 m |
| Motor Speed | 16,000 RPM |
| Flow Rate | 2 L/min |
| Power | 50–150 W |
| Voltage | 12–18S |
| Current | <4 A |

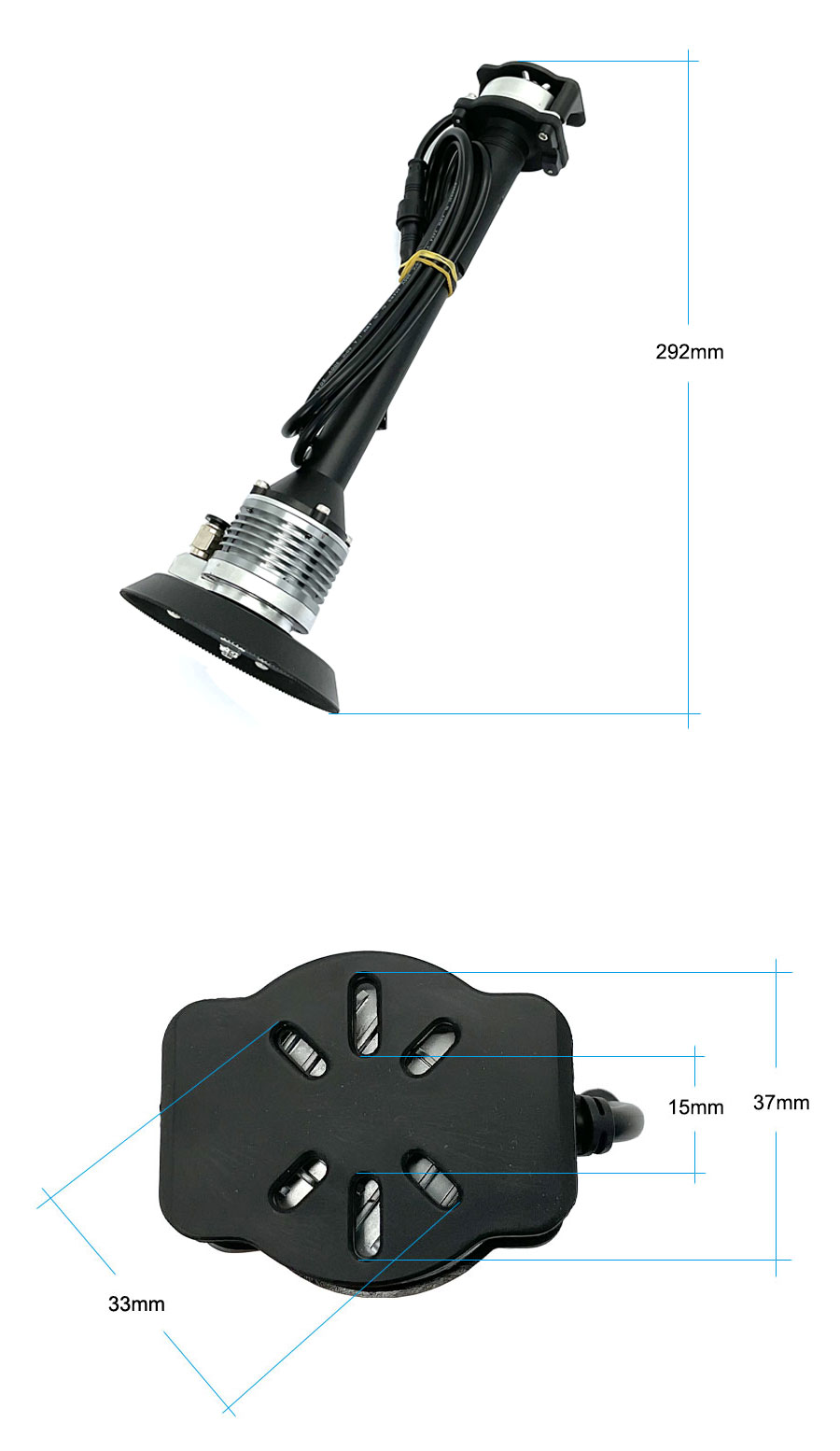

| Height | 292 mm |
| Weight | 364 g |
- Even Atomization: The liquid medicine is evenly atomized and the atomization effect is good, providing you a good using experience

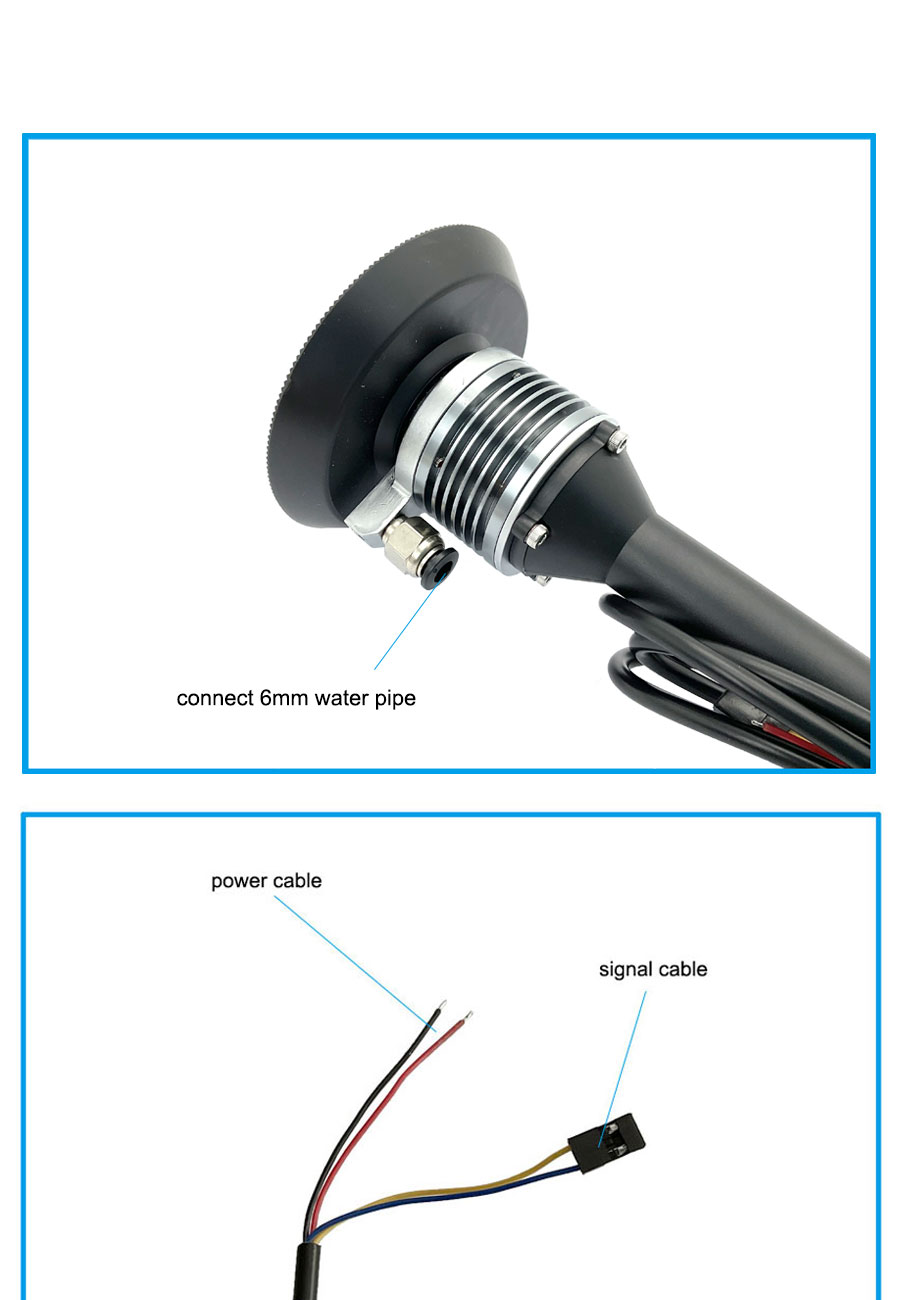

- Product Length: Cable length is about 133cm/52.4in, water pipe connection is about 6mm/0.2in, product length is about 295mm / 11.6in
- Centrifugal Nozzle: The centrifugal nozzle has a larger spray radius and higher efficiency than ordinary nozzles, the speed is 20,000 rpm
- Premium Material: Using Premium Material plastic + rubber + aluminum alloy materials, it can be used for a long time and the effect is good
- Applicable Model: Drone agricultural centrifugal nozzle is suitable for model airplane plant protection machine, having reliable performance
Product use precautions:
The nozzle can not be idling, and the pump needs to be opened at the same time when it is rotating (the liquid needs to flow to cool the nozzle motor).
2: 12S power supply nozzle speed at 95% (analog 1000-1950)
3: 14S power supply nozzle speed at 85% (analog 1000-1850)
4: 18S power supply nozzle speed opened at 75% (analog 1000-1750)
5: The nozzle must be turned off when the liquid is finished (some flight controllers do not have centrifugal nozzle mode, which requires manual closing of the nozzle)
6: Every time after work must fill a tank of clean water, open the centrifugal nozzle, spray a tank of water, then idling for 30 seconds. The purpose is to clean the residual pesticides, prevent corrosion, solidification, damage to the motor bearing.
Package Includes:
1xCentrifugal Nozzle 2L Spray System for Agriculture Drone – 2L/min
