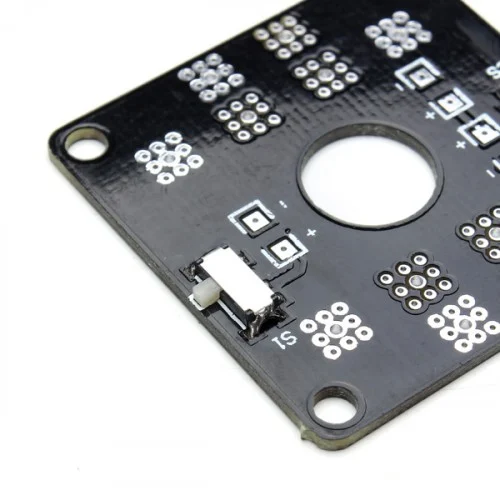

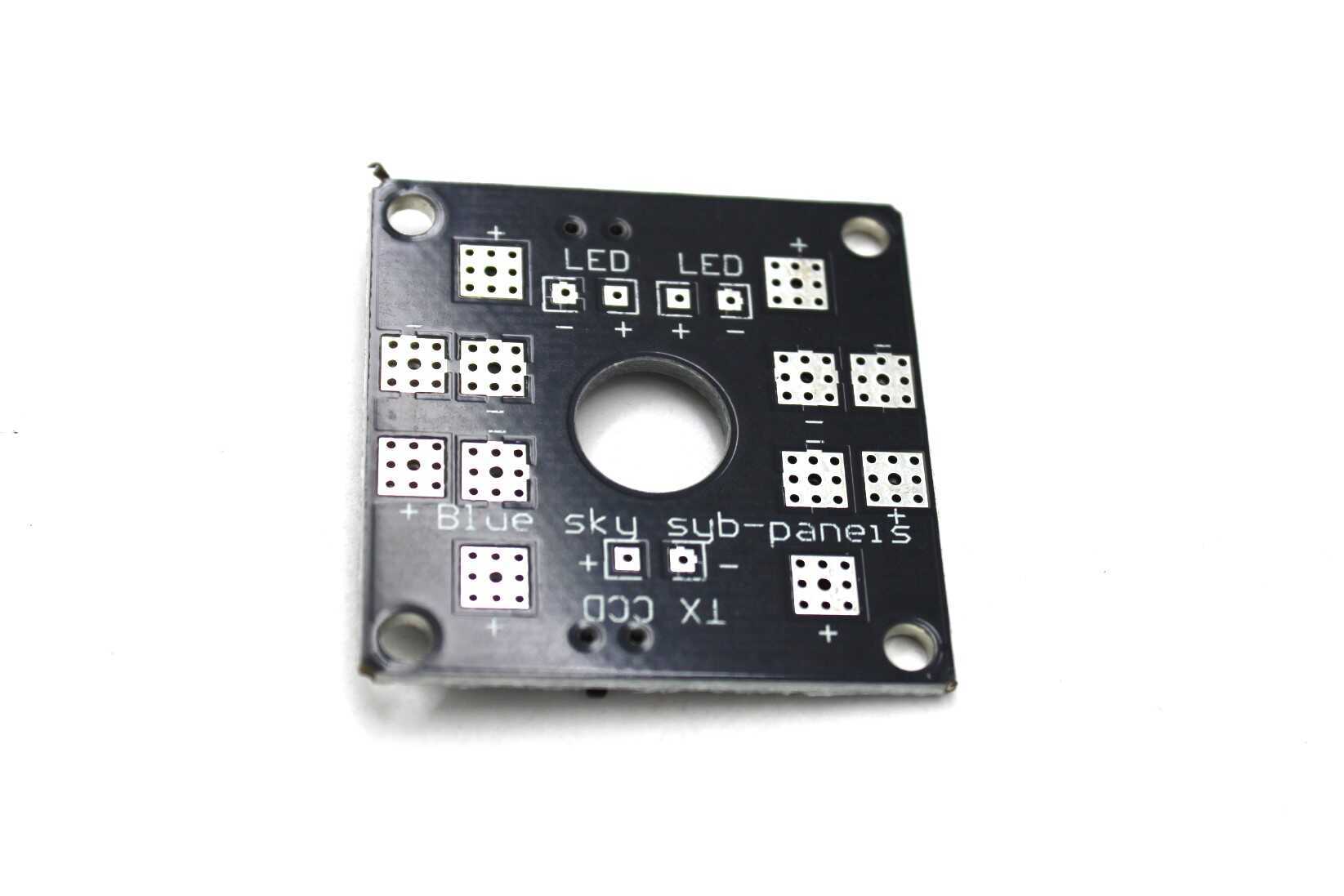

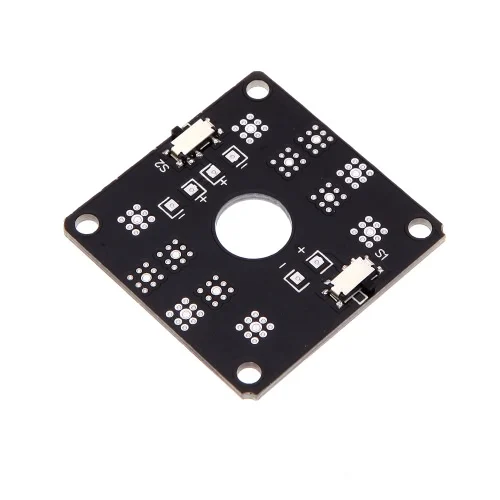

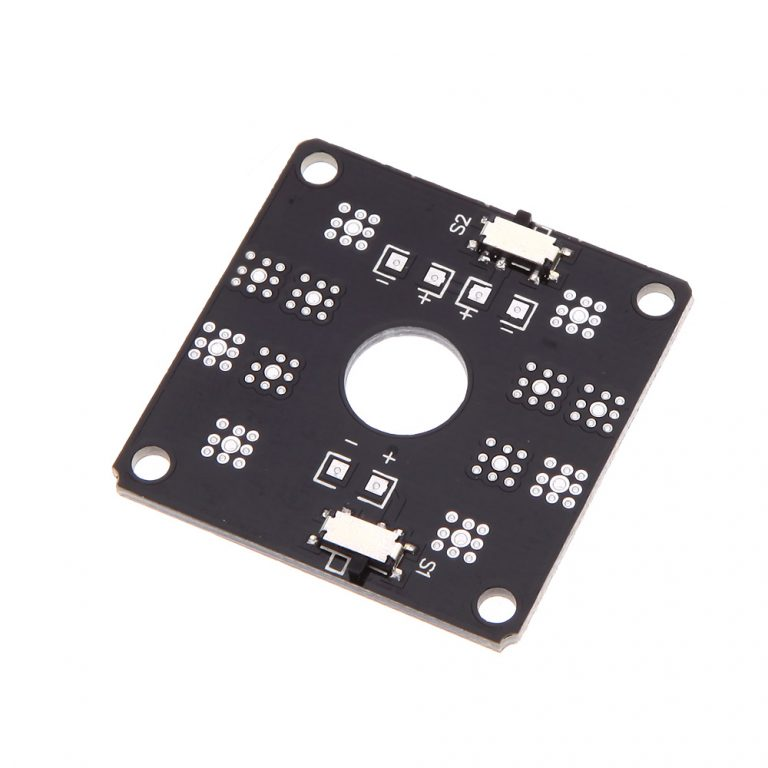

This product is a mini power distribution board (PDB) for CC3D flight controller, which is suitable for smaller multi-rotors.
This PDB simplifies the wiring from your battery to your ESC, video transmitter, flight controller and other components. It also has a few switches that you can use to control LEDs, video transmitter power and so on.
Note-
This PDB is an open-source design, so there are many manufacturers who produce it. We have carefully selected the best quality products from the market and tested them for their functionality. We guarantee that our product works exactly as described above.
Features :
- – A power distribution board that fits CC3D flight controllers
– Compact, durable, and easy to carry
– Two switches for LED and FPV devices
– Compatible with CC3D size and hole placement
Package Includes :
1 x CC3D Flight Controller Mini Power Distribution Board.
CC3D Power Distribution Board with LED Strip Control Overview
This compact power distribution board is specifically designed for CC3D flight controllers on small multirotor drones. It centralizes battery input to ESCs, FPV equipment, and LED strips, while offering two integrated switches for independent control of lighting and video transmitter power.
Key Features of CC3D Power Distribution Board with LED Strip Control
- Fits CC3D mounting pattern with identical size and hole locations
- Integrated dual switches for LED strip and FPV transmitter power control
- Compact, durable PCB construction for reliable performance
- Simplifies wiring by distributing a single battery input to multiple ESCs and accessories
- Lightweight design ideal for portable drone builds
- Fast shipping from Zbotic with genuine components
Applications and Use Cases
- Racing quads requiring centralized power management
- FPV drones with switchable LED lighting
- Small DIY multirotors built around CC3D flight controllers
- Portable aerial photography rigs with onboard video gear
- Experimental UAV platforms needing quick power distribution
How to Use CC3D Power Distribution Board with LED Strip Control
Mount the board beneath your CC3D flight controller using the identical mounting hole pattern, then solder the main battery leads to the input pads and connect ESC wires to the output pads. Attach your LED strip and video transmitter cables to their designated switch-controlled pads, secure the assembly with standoffs or screws, and use the built-in switches to toggle power to your lighting and FPV systems before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I mount this board directly under my CC3D flight controller?
Yes. The board uses the same size and hole location as standard CC3D flight controllers, allowing perfect alignment for a secure fit.
How many power outputs does this PDB support?
This PDB distributes battery power to multiple ESCs typical of a quad setup, plus dedicated pads for LED strips and FPV video transmitters controlled by two separate switches.
Do the LED and FPV switches operate independently?
Yes. The board features two independent mechanical switches—one for LEDs and another for your FPV equipment—so you can toggle each system on or off as needed.
