Foxeer Cat_4_Micro_HS1277
Description:

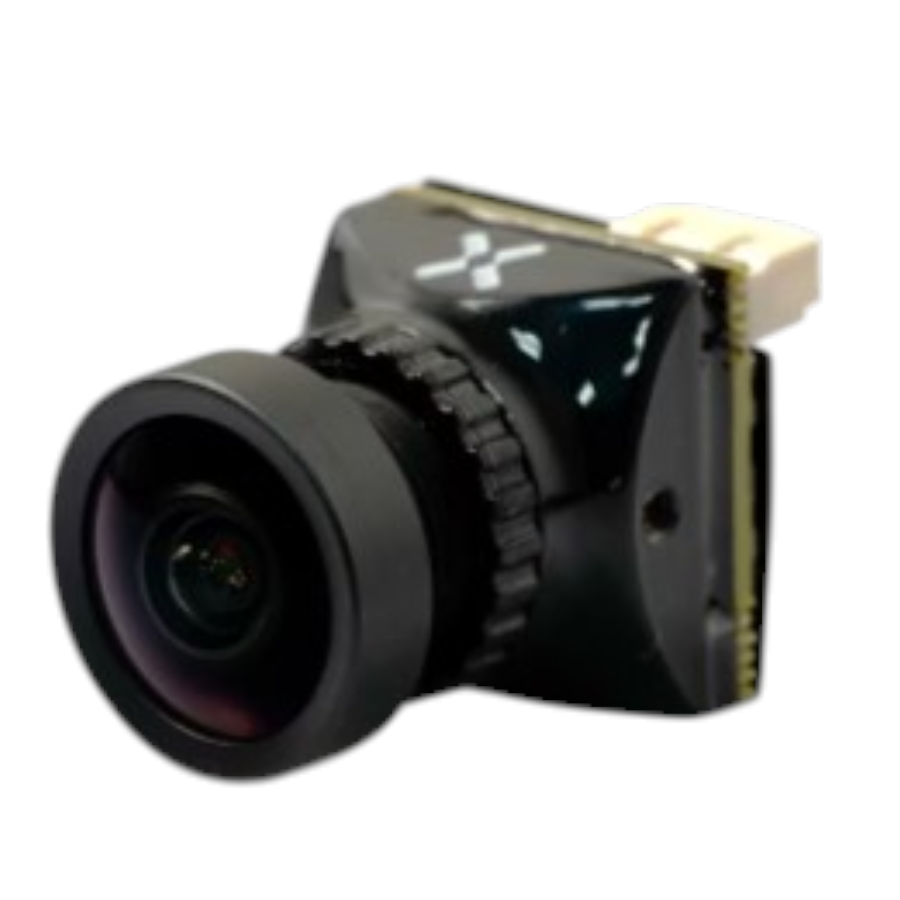

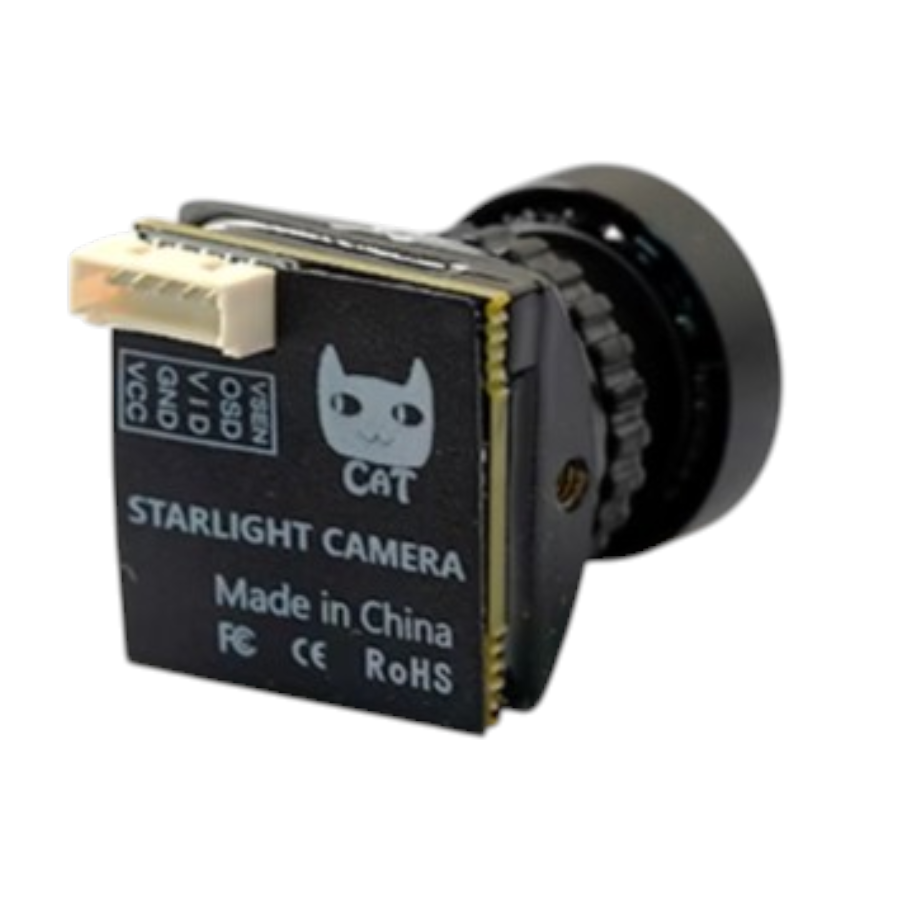

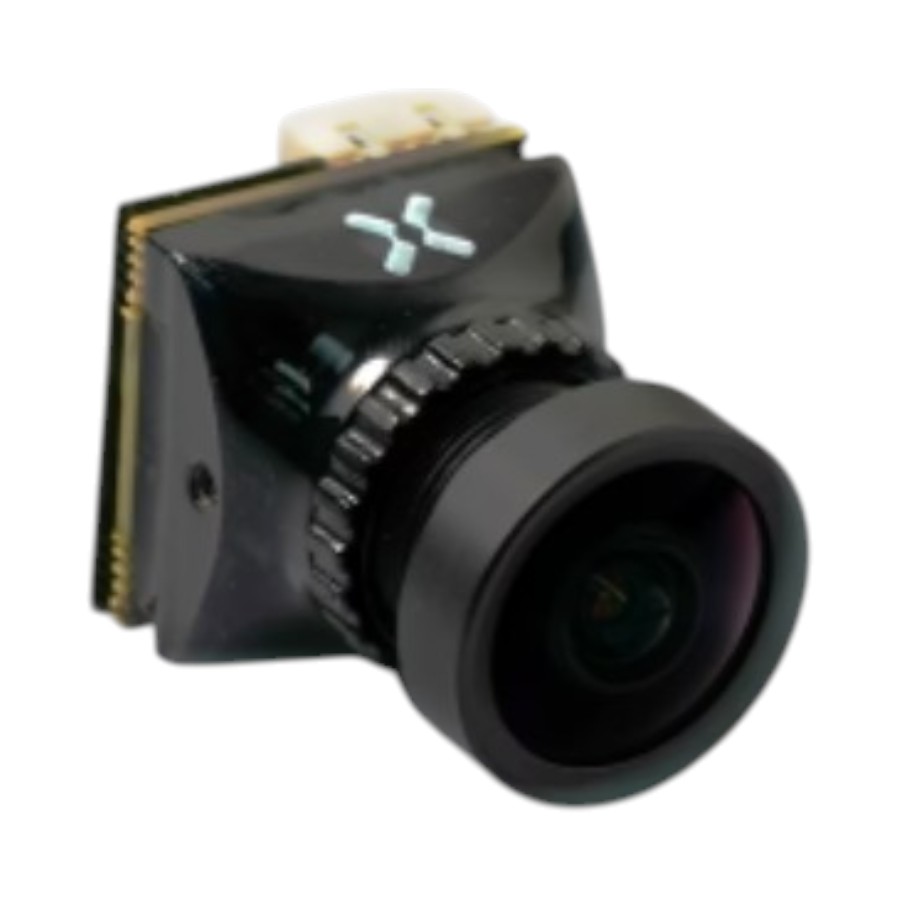

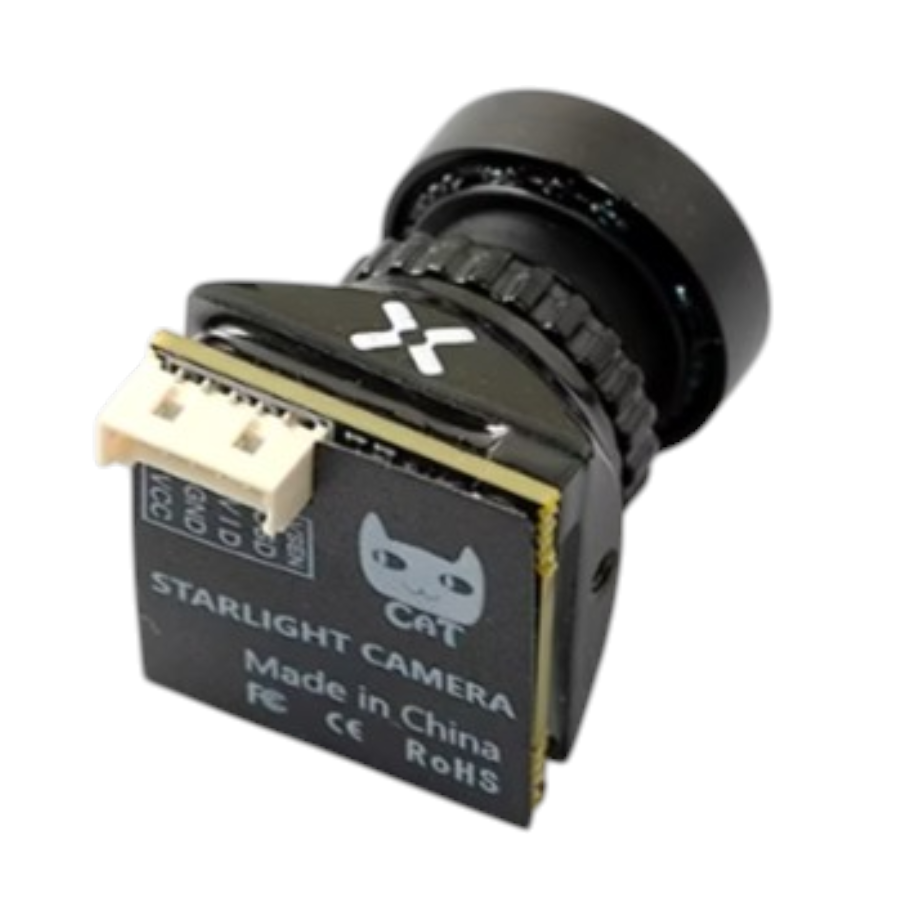

The Foxeer Cat 4 Micro FPV Camera is designed to elevate your FPV racing experience. With its exceptional image quality and minimal latency, this camera brings a new level of immersion to your flights. Its compact form factor ensures easy installation on any quadcopter, while its robust construction ensures durability in challenging racing conditions.
The Foxeer Cat 4 Micro FPV Camera, with its large aperture night vision lens and LED optimization, is a great option for nighttime flights. With less noise and low latency, it is sure to enhance your low-light navigation. Get ready to soar through the skies with the Foxeer Cat 4 Micro FPV Camera.
Specifications:
| Item Type: | FPV Camera |
| Resolution (TVL): | 1200 |
| Color | Black |
| Sensor Type | Sony 1/3″ CMOS Sensor |
| Scale | 4:3(Default)/16:9 Switchable |
| TV System | PAL(Default)/NTSC Switchable |
| Lens | M12 2.1mm Low Light Lens |

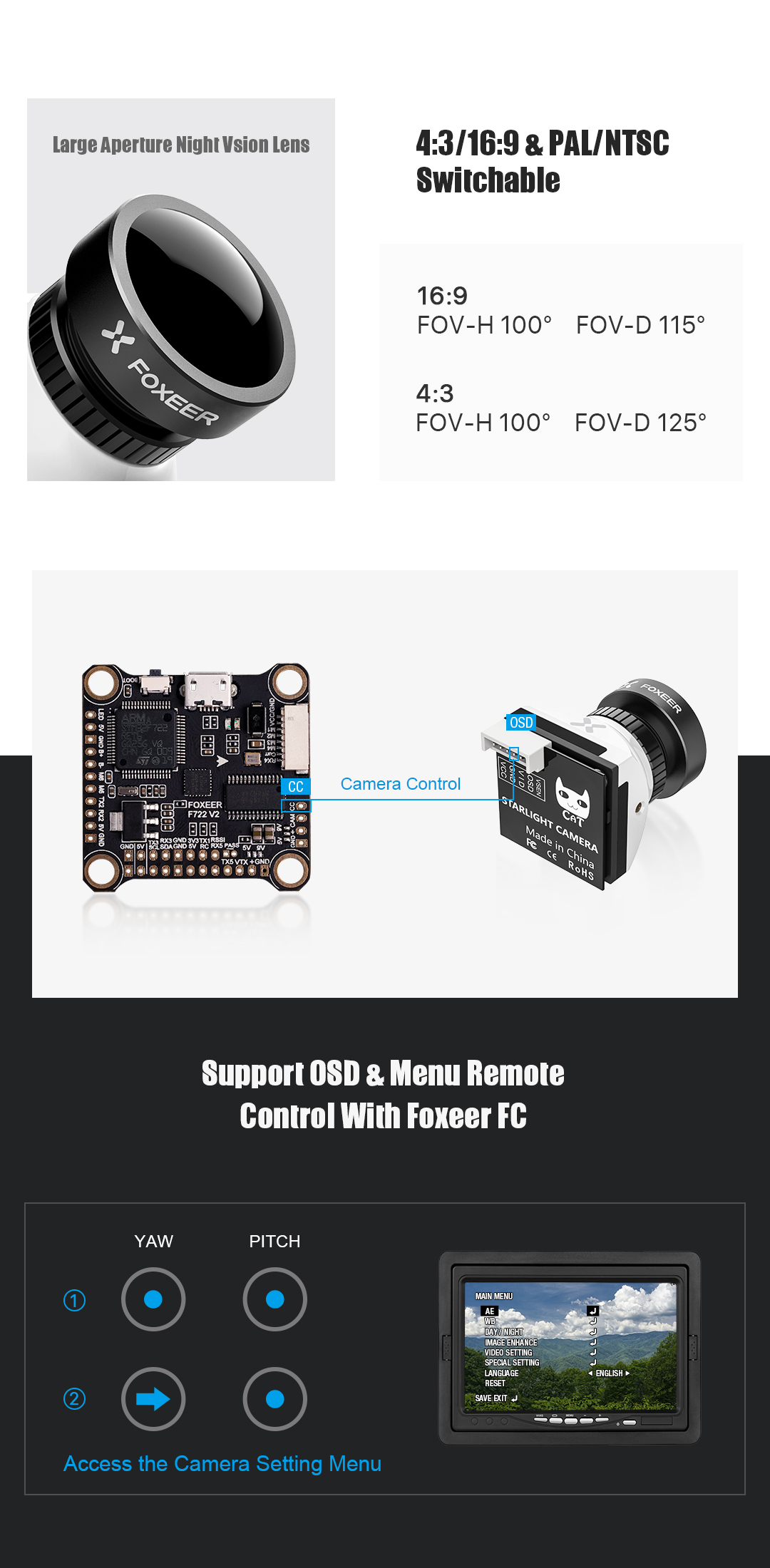

| Field of View (FOV): | 4:3 FOV-H: 100° FOV-D:125° 16:9 FOV-H: 100° FOV-D:115° |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.00001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| Day/Night | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage (V): | 4.6V~20V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Operating Temperature (°C): | -10°~50°C RH90% MAX |
| Operating humidity | 20~80% |
| Storage Temperature (°C): | -20°~70°C |
| Consumption | 95mA±15% @ DC12V |
| Overall Dimension | 19*19mm |
Features:
- Crystal-clear Image Quality: The Cat 4 Micro FPV Camera delivers stunningly clear and vivid images, allowing you to see every detail during your FPV flights.
- Ultra-low Latency: Experience minimal delay with the Cat 4’s ultra-low latency, ensuring real-time responsiveness for a truly immersive racing experience.
- Compact and Lightweight: Designed for easy integration, the camera’s compact size and lightweight construction make it ideal for any racing quadcopter setup.
- Durable Build: Constructed with durability in mind, the Cat 4 is built to withstand the rigors of high-speed racing, ensuring it can handle the toughest conditions.
- Wide Dynamic Range (WDR): The WDR feature helps to balance light and dark areas, providing clear visibility even in challenging lighting conditions.
Package Includes:
1 x Foxeer Cat 4 Micro FPV Camera 4 x Bracket Screws 4 x Gasket Ring 1 x OSD Board 1 x 2-Pin OSD Cable 1 x Servo Cable
Technical Specifications
| Brand | Foxeer |
|---|---|
| SKU | AI8207 |
| Weight | 0.048 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Foxeer Cat_4_Micro_HS1277 is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
