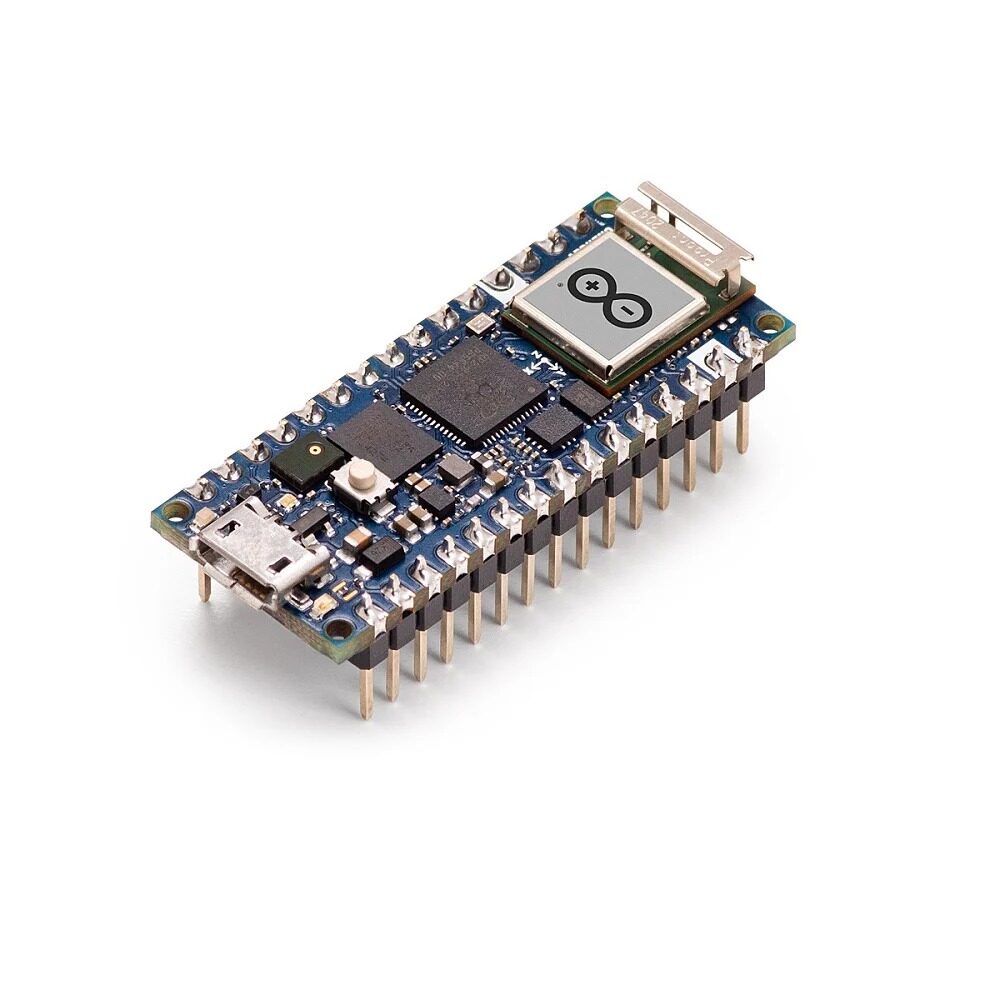

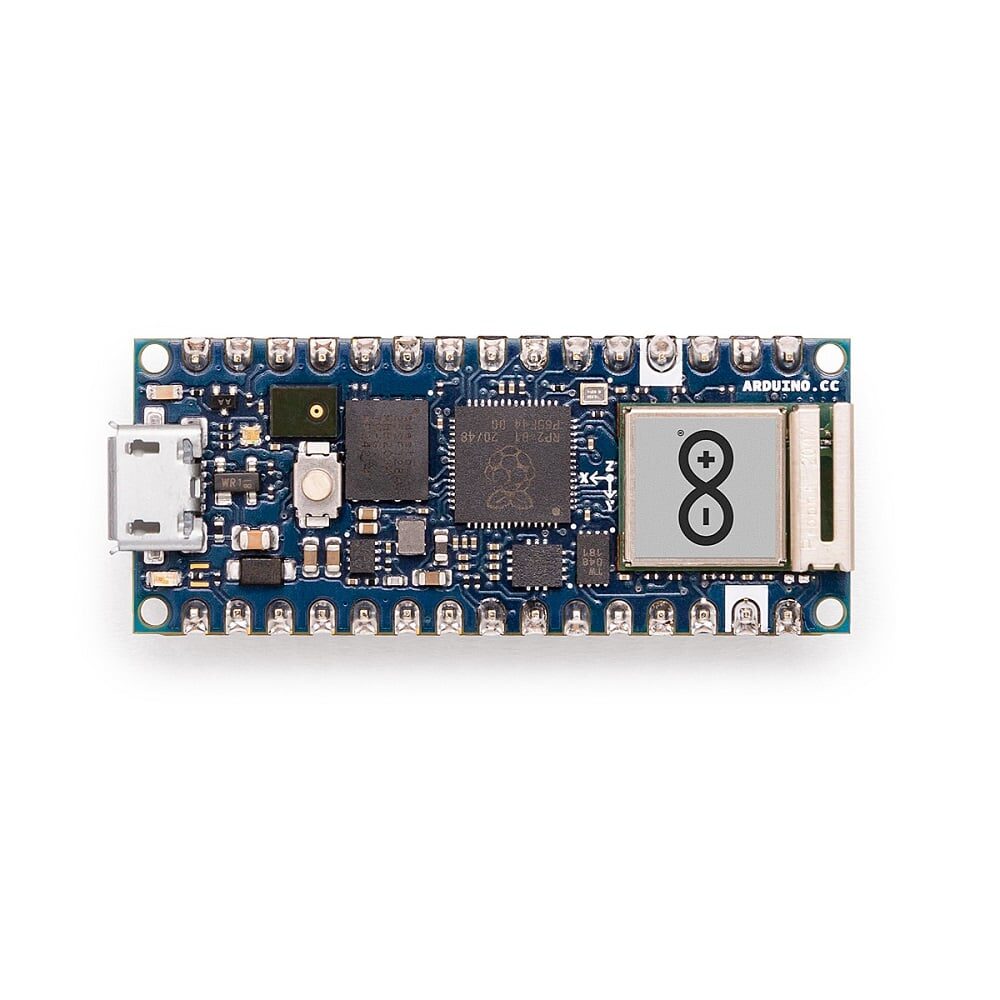

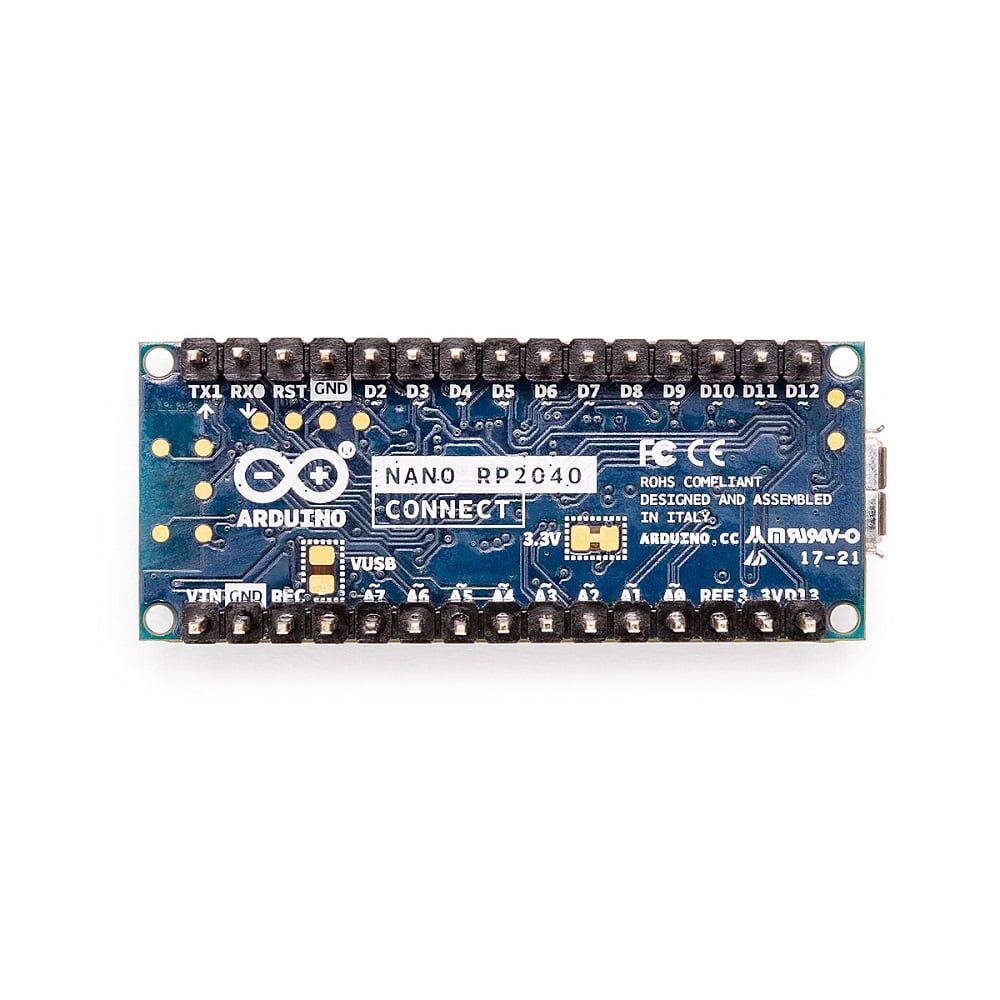

Arduino Nano RP2040 Connect with Header

Looking for Rp2040 Connect Header? Arduino Nano RP2040 Connect with Header is available at Zbotic with fast shipping across India.

While the news-breaking launch of the Raspberry Pi Pico is still fresh in our minds, here is another launch of a tiny but powerful development board in the world of microcontroller boards on the footprint of Raspberry Pi  Pico from Arduino officials.

Arduino named it “Arduino Nano RP2040 Connect” a newly launched Microcontroller board welcoming the Raspberry Pi’s RP2040chip on which NANO connect has been built. The Arduino Nano RP2040 Connect shares a similar form factor to the Raspberry Pi Pico, but it includes extra functionality, chiefly WiFi and Bluetooth along with a 9-axis IMU sensor and microphone.

Arduino also broke the news that they will be porting the Arduino IDE for use with the RP2040 chip. This is welcome news for C/C++ developers and embedded hobbyists alike.

Features and Specifications:

Raspberry Pi RP2040 Microcontroller:

1. 133MHz 32bit Dual Core Arm Cortex-M0+
2. 264kB on-chip SRAM
3. Direct Memory Access (DMA) controller
4. Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus
5. USB 1.1 controller and PHY, with host and device support
6. 8 PIO state machines
7. Programmable IO (PIO) for extended peripheral support
8. 4 channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion
9. SWD Debugging
10. 2 on-chip PLLs to generate USB and core clock
11. 40nm process node
12. Multiple low power mode support
13. USB 1.1 Host/Device
14. Internal Voltage Regulator to supply the core voltage
15. Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)

U-blox® Nina W102 WiFi/Bluetooth Module:

1. 240MHz 32bit Dual Core Xtensa LX6
2. 520kB on-chip SRAM
3. 448 Kbyte ROM for booting and core functions
4. 16 Mbit FLASH for code storage including hardware encryption to protect programs
   and data
5. 1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
6. Flash-Encryption, and Chip-ID
7. IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
8. Bluetooth 4.2
9. Integrated Planar Inverted-F Antenna (PIFA)
10. 4x 12-bit ADC
11. 3x I2C, SDIO, CAN, QSPI

Memory:

1. AT25SF128A 16MB NOR Flash
2. QSPI data transfer rate up to 532Mbps
3. 100K program/erase cycles

For the detailed description of the product Please go through the datasheet in the attachments.

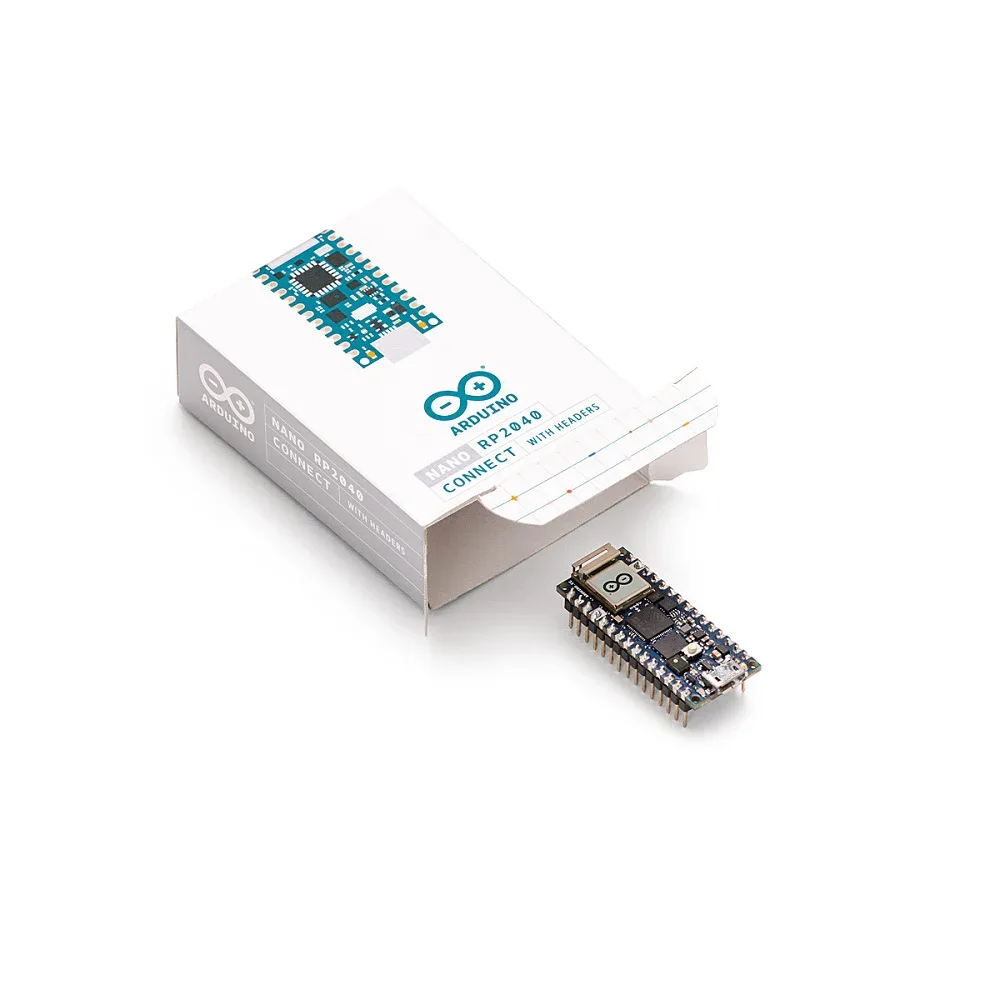

Package Includes:

1 x Arduino Nano RP2040 Connect with Header

About Rp2040 Connect Header

Arduino Nano RP2040 Connect with Header is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arduino, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Arduino
• SKU: AI1992
• Category: Original Arduino Boards

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Rp2040 Connect Header and other products.

Applications

Rp2040 Connect Header can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Rp2040 Connect Header today and start building.

Arduino Nano RP2040 Connect with Header Overview

The Arduino Nano RP2040 Connect with Header is a compact development board combining the Raspberry Pi RP2040 dual-core microcontroller with onboard WiFi/Bluetooth connectivity. Designed for rapid prototyping, it features an integrated 9-axis IMU sensor and microphone, making it ideal for embedded IoT, robotics, and sensor-based applications.

Key Features of Arduino Nano RP2040 Connect with Header

• Dual-core RP2040 MCU running up to 133 MHz with 264 kB on-chip SRAM
• U-blox Nina W102 WiFi/Bluetooth module (dual-core Xtensa LX6 at 240 MHz, 520 kB SRAM)
• Built-in 9-axis IMU (accelerometer, gyroscope, magnetometer) and PDM microphone
• Standard Arduino Nano form factor with female headers pre-soldered for breadboard use
• Fully supported in Arduino IDE and MicroPython via UF2 bootloader
• Genuine Arduino product with fast shipping across India from Zbotic

Applications and Use Cases

• IoT sensor nodes with wireless data logging and remote monitoring
• Wearable devices tracking motion and orientation using the onboard IMU
• Voice-activated projects leveraging the built-in PDM microphone
• Robotics controllers for balancing bots, drones, or gimbals
• Prototyping smart home gadgets with Bluetooth Low Energy connectivity
• Educational kits teaching embedded programming and real-time signal processing

How to Use Arduino Nano RP2040 Connect with Header

Begin by installing the latest Arduino IDE and adding the “Arduino Mbed OS RP2040” core via Board Manager. Connect the Nano RP2040 Connect to your PC over USB; select “Arduino Nano RP2040 Connect” in Tools > Board. Use Library Manager to install WiFiNINA for wireless networking and sensor libraries for IMU and microphone. Load example sketches to test WiFi, BLE, and motion sensing, then expand your code to interface with external components on the breadboard-ready headers.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Does the Arduino Nano RP2040 Connect with Header include pre-soldered headers?

Yes. This version ships with standard 1×15 female headers soldered on both sides, allowing immediate insertion into breadboards and perfboards without additional soldering.

Which libraries are needed for WiFi and the 9-axis IMU?

For wireless connectivity, install the WiFiNINA library from Arduino’s Library Manager to drive the U-blox Nina W102 module. For the IMU, use the Arduino_LSM6DSOX and Arduino_LIS3MDL libraries to access accelerometer, gyroscope, and magnetometer data.

Can I program this board with MicroPython?

Absolutely. The Nano RP2040 Connect supports UF2 bootloader flash. Download the official MicroPython UF2 file, copy it to the board, and access the REPL via USB serial for Python scripting and rapid prototyping.
