Description:

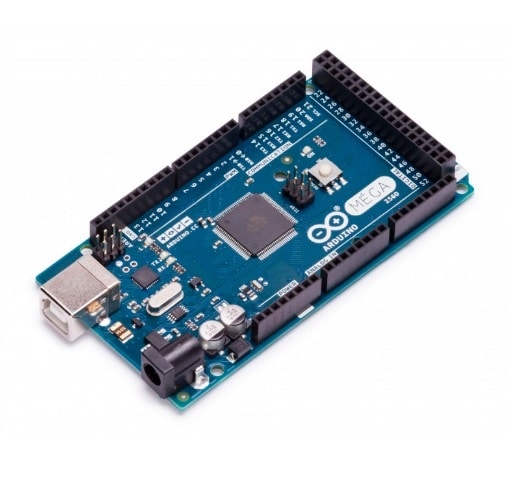

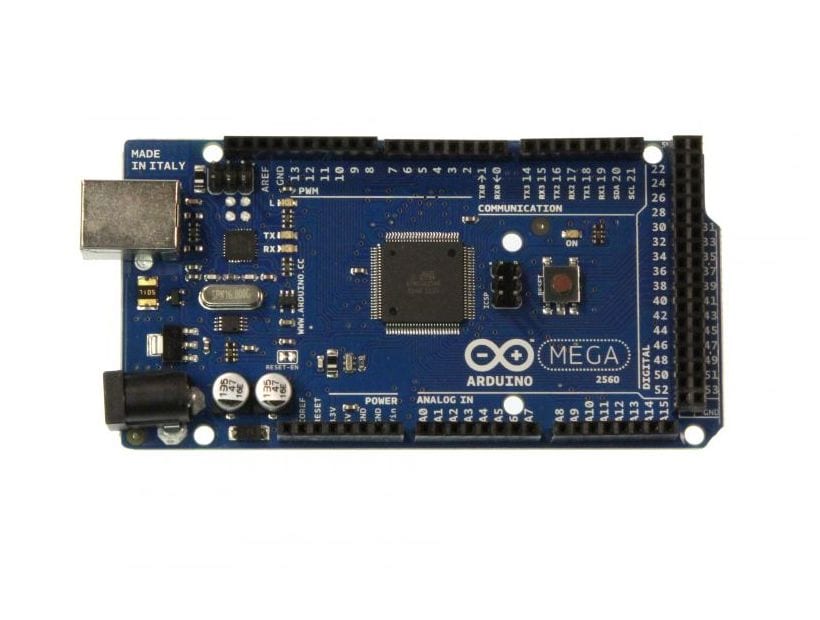

The Arduino Mega 2560 R3 is a celebrated open-source microcontroller board, valued for its precision and versatility. Building on the Arduino Mega’s legacy, it employs the ATmega2560 SMD chip. Enhancements include:
- SDA and SCL pins next to the AREF pin
- Two additional pins by the RESET pin
- The IOREF pin allows shields to match the board’s voltage
- Another reserved pin provided for future upgrades
- With 54 digital input/output pins (15 supporting PWM output), 16 analog inputs, and 4 UARTs (hardware serial ports), the Mega 2560 R3 boasts a wide array of connectivity options. It also features:
- 16 MHz crystal oscillator
- USB connection
- Power jack
- ICSP header
- Reset button
Offering full support for the microcontroller.
Designed for ease of use, the board can be connected to a computer via a USB cable or powered by a DC adapter or battery. Its compatibility with existing shields and ability to adapt to new ones render it an ideal choice for diverse projects and applications.

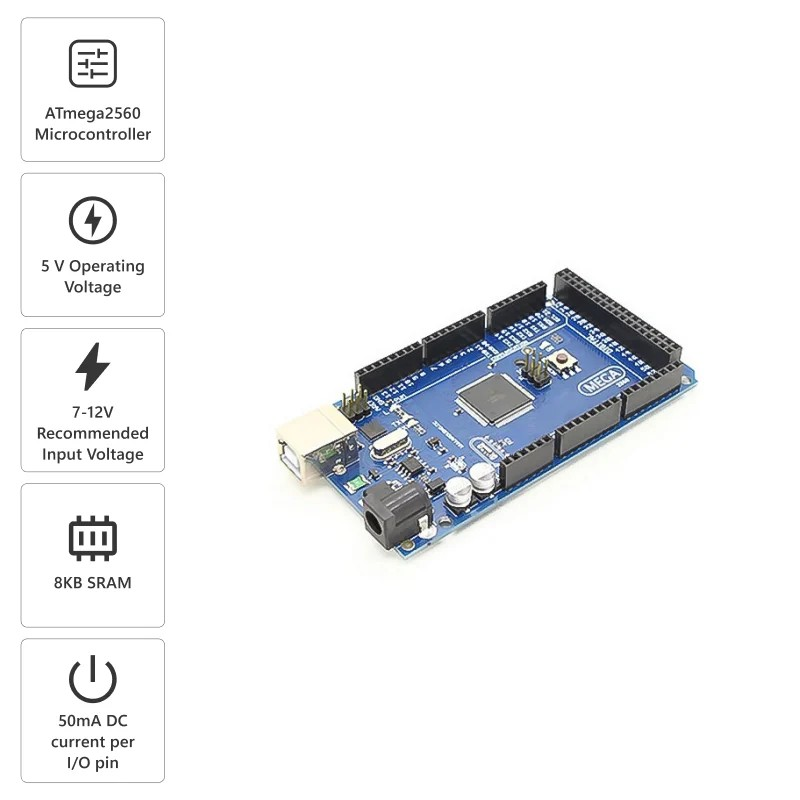

Features:
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Input Voltage (recommended): 7–12V
- Input Voltage (limits): 6–20V
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 256 KB (8 KB used by bootloader)
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz
- USB Host Chip: MAX3421E
- Length: 101.98 mm / 4.01 in
- Width: 53.63 mm / 2.11 in
- Height: 15.29 mm / 0.60 in

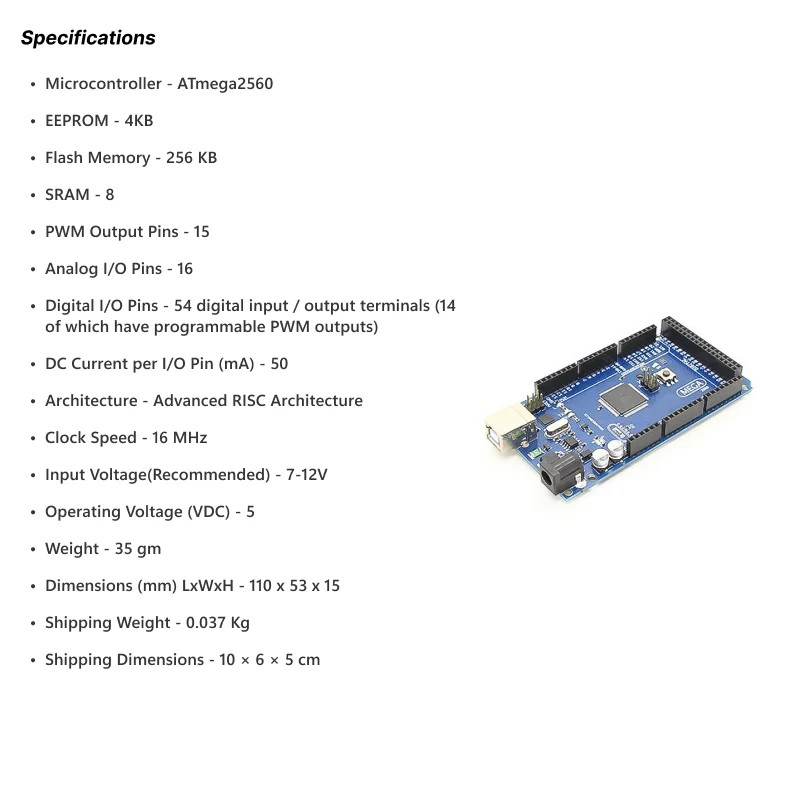

Specification:
| Microcontroller | ATmega2560 |
|---|---|
| EEPROM | 4KB |
| Flash Memory | 256 KB |
| SRAM | 8 |
| PWM Output Pins | 15 |
| Analog I/O Pins | 16 |
| Digital I/O Pins | 54 digital input / output terminals (14 of which have programmable PWM outputs) |
| DC Current per I/O Pin (mA) | 50 |
| Architecture | Advanced RISC Architecture |
| Clock Speed | 16 MHz |
| Input voltage | 7-12V |
| Operating Voltage (VDC) | 5 |
| Color: | Blue |
Package Includes:
- 1 x Arduino Mega 2560 Board.
Attachment’s:
Arduino Sleep Mode: Reduce Power for Battery Projects
A standard Arduino Uno running at full speed draws roughly 45–50 mA from the USB or power jack....
Read More →
WS2812B NeoPixel: 60+ LED Strip Projects with FastLED
The WS2812B — sold under the popular NeoPixel brand name — is the LED that changed maker culture...
Read More →
ATmega328P Standalone: Run Arduino Without the Board
Running an ATmega328P standalone — directly on a breadboard or custom PCB without a full Arduino development board...
Read More →Technical Specifications
| Brand | Arduino |
|---|---|
| SKU | AI0025 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The Arduino Mega 2560 R3 Board is a versatile boards compatible with arduino used across a wide range of applications including electronics learning, robotics, home automation, sensor interfacing, and motor control.
Common use cases:
- Learning programming and electronics
- Building a line-following robot
- Creating a home automation hub
This product is ideal for students, hobbyists, and electronics beginners.
Technical Tip: Arduino Uno is the standard learning board. Mega offers more pins for complex projects. Nano suits breadboard prototyping.
