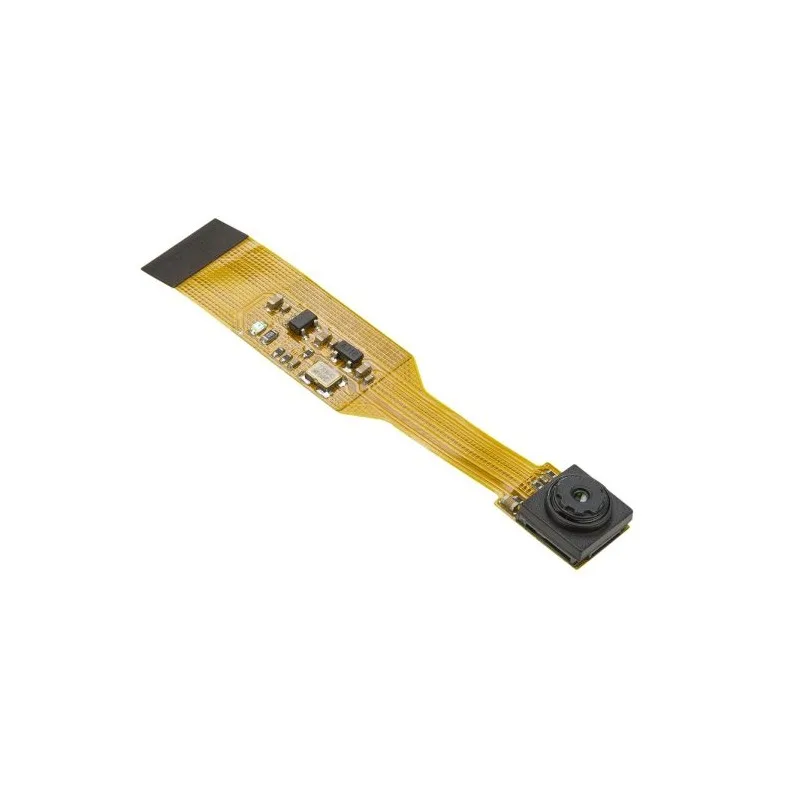

Arducam 5MP OV5647 NoIR MINI Camera with Flex Cable

Description:

Looking for Ov5647 Cable? Arducam 5MP OV5647 NoIR MINI Camera with Flex Cable is available at Zbotic with fast shipping across India.

In order to meet the increasing need for Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on camera module that is fully compatible with Raspberry Pi Zero and Pi compute module.

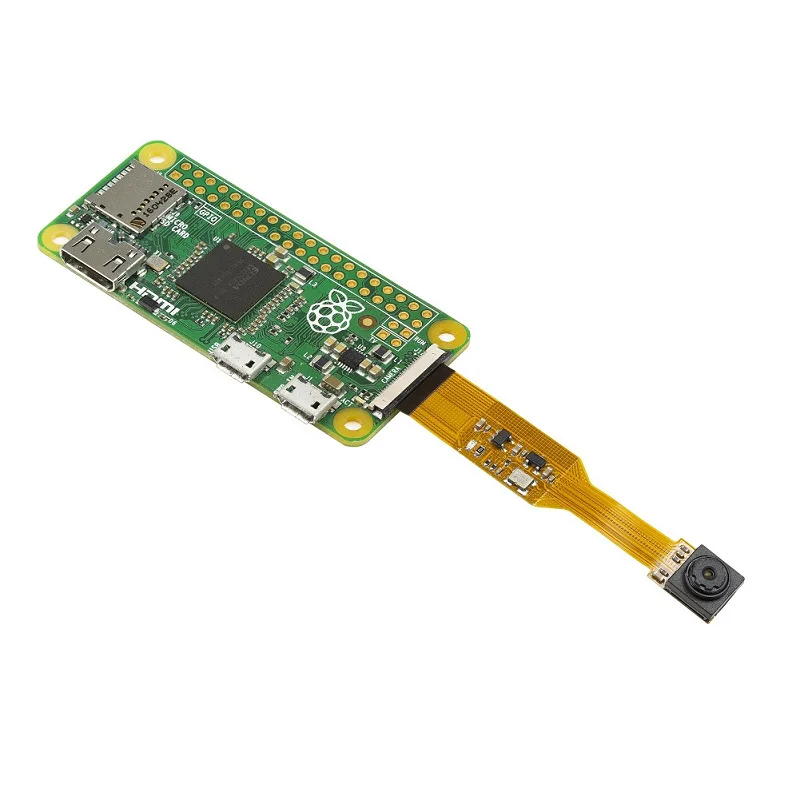

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for an endoscope, surveillance, or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor.

This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30. 720p60 and 640x480p60/90 video.

It attaches to Raspberry Pi Zero by way of the small sockets on the board’s upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

NOTE: raspberry pi zero is not included.

Download link:

1. To use this camera, it is necessary to do hardware and software setup. To do both, please follow the instructions given in the  link .

Features:

1. The angle of View: 64 x 48 degrees
2. Full-frame SLR lens equivalent: 35 mm
3. Fixed Focus: 1 m to infinity
4. Max frame rate: 30fps
5. Size: 300 x 16 mm flex cable, neck wide is 6mm

Datasheet:

Package Includes:

1 x Arducam 5MP OV5647 NoIR MINI Camera with flex cable

About Ov5647 Cable

Arducam 5MP OV5647 NoIR MINI Camera with Flex Cable is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arducam, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Arducam
• SKU: AI1916
• Category: Arducam Cameras and Accessories

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Ov5647 Cable and other products.

Applications

Ov5647 Cable can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Ov5647 Cable today and start building.

Arducam 5MP OV5647 NoIR MINI Camera with Flex Cable Overview

The Arducam 5MP OV5647 NoIR MINI Camera with Flex Cable is a compact imaging module designed for Raspberry Pi Zero and Compute Module projects. Its 1/4″ OV5647 sensor delivers 2592×1944 stills and 1080p video, making it ideal for tight-space applications requiring clear visible-light capture.

Key Features of Arducam 5MP OV5647 NoIR MINI Camera with Flex Cable

• 5 megapixel OV5647 sensor with fixed-focus lens for sharp images
• Diagonal 72.4° field of view covers wide scenes
• Resolutions up to 2592×1944 stills and 1080p video at 30 fps
• Integral IR filter for accurate visible-light imaging
• Ultra-compact board (60 × 11.5 × 5 mm) with 6 mm neck width
• Includes short flex cable for CSI connection to Pi Zero/Compute Module
• Fast shipping across India from Zbotic

Applications and Use Cases

• Tiny home surveillance rigs and door-camera systems
• Robotic endoscopes and inspection crawlers
• Low-profile wildlife or garden monitoring setups
• Embedded vision on wearable Pi Zero devices
• STEM and DIY electronics learning platforms

How to Use Arducam 5MP OV5647 NoIR MINI Camera with Flex Cable

Simply attach the supplied flex cable to the CSI port on your Raspberry Pi Zero or Compute Module, ensuring the cable’s contacts face the connector’s contacts. Secure the module in your enclosure or mount, boot Raspbian, enable the camera interface via raspi-config, then capture images with raspistill or video with raspivid.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which Raspberry Pi models work with this camera?

This mini camera is fully compatible with Raspberry Pi Zero models and Compute Modules via the CSI port. It connects directly using the included flex cable.

Can I adjust the focus on the lens?

The module features a fixed-focus lens, so no manual adjustment is required—simply position the camera at your desired distance and capture sharp images.

What are the exact dimensions for enclosure design?

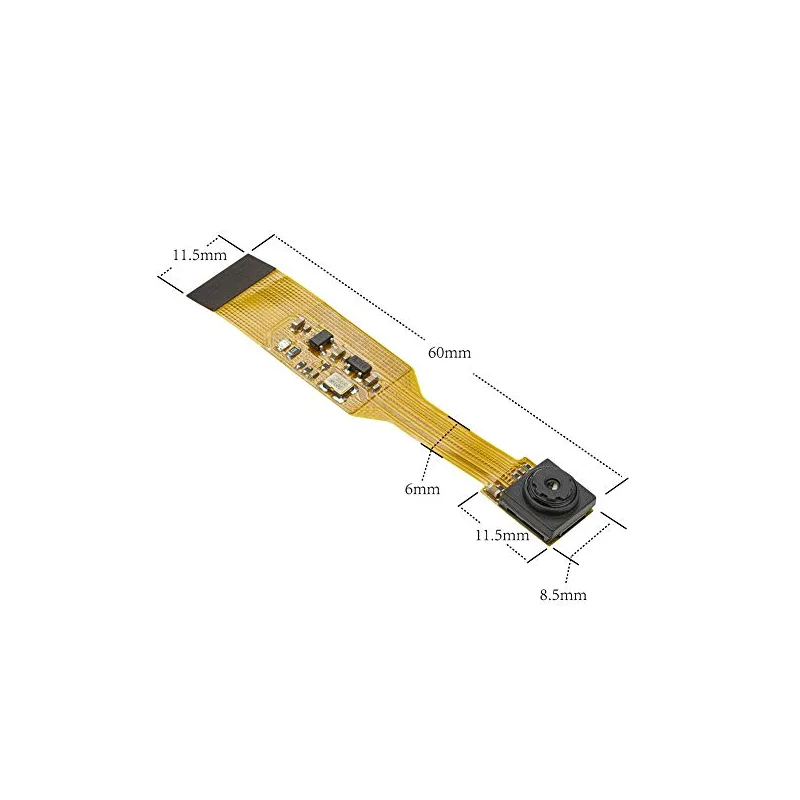

The board measures 60 × 11.5 × 5 mm, and the camera neck is 6 mm wide, making it easy to plan tight-fit enclosures or endoscope assemblies.
